| Availability: | |
|---|---|
| Quantity: | |
| Model | CPU | 4K | LAN | USB2.0 | USB3.0 | SSD | Memory (MAX) | Power |

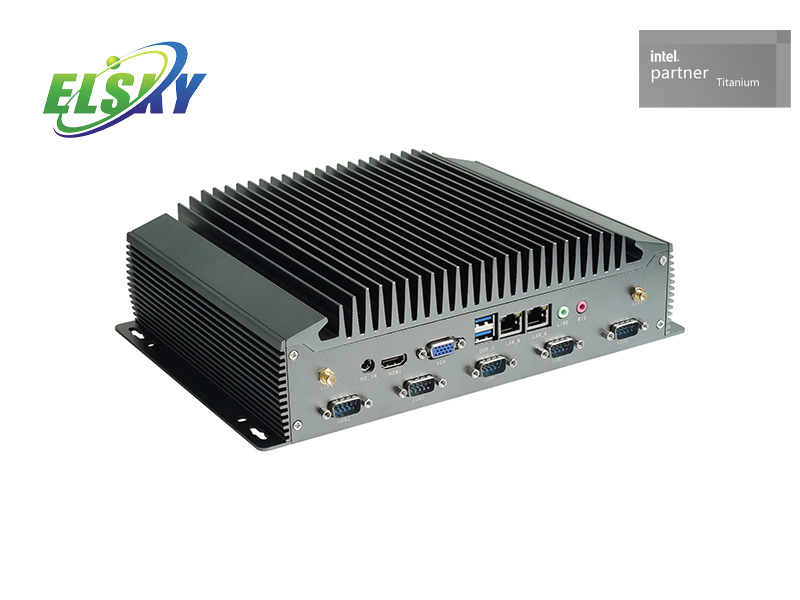

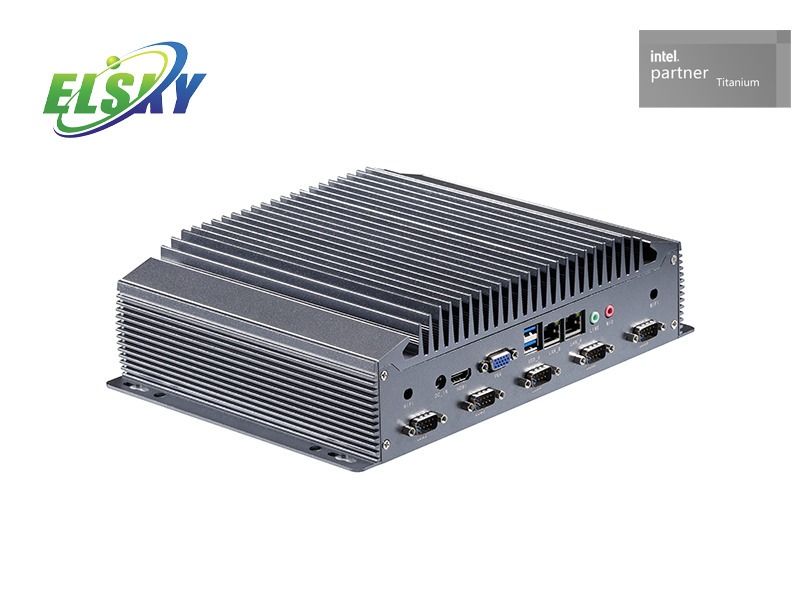

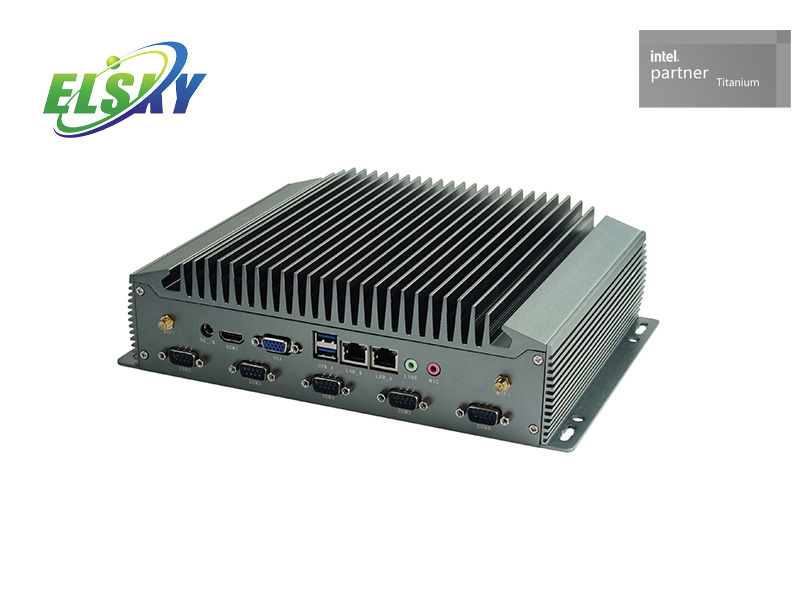

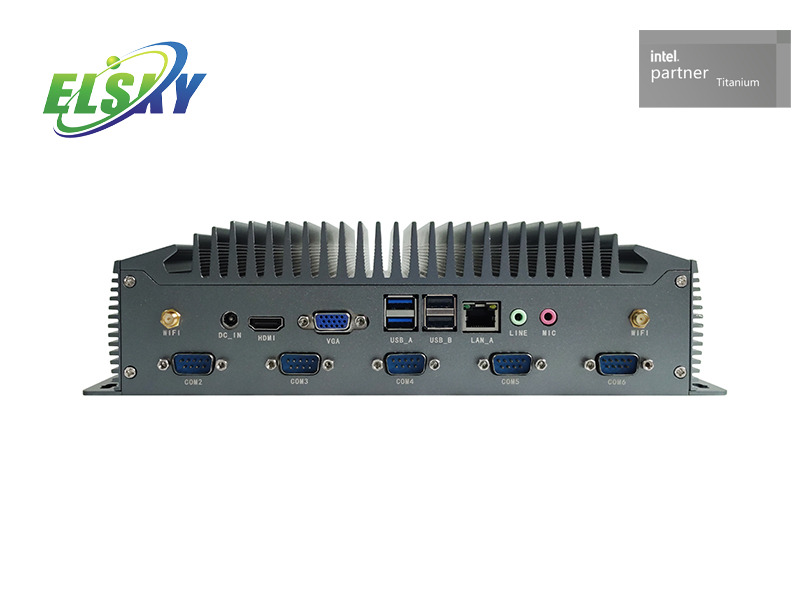

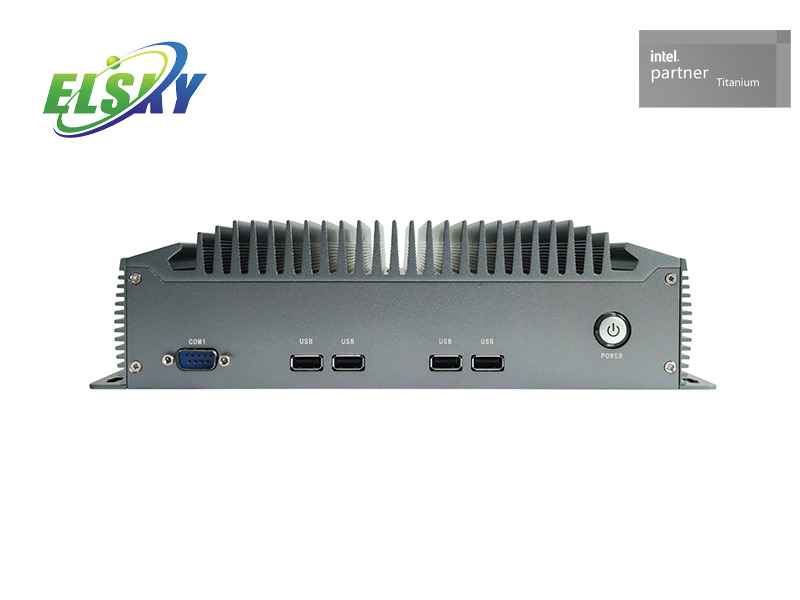

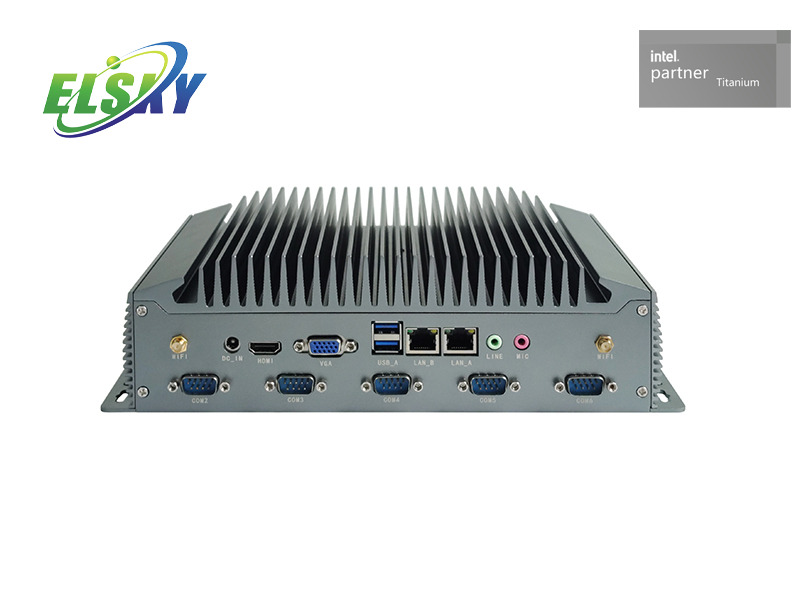

| IPC6800 | Intel core 6th-14th i3 i5 i7 i9 | support | 2 | 4 | 2 | 1*M.2/ 1*MSATA/ 1*2.5 inch SSD/Laptop hard drive | 2*NB-DDR3 or 2*NB-DDR4 | 12V/19V |
| Applicable motherboard: QM9600H,QM9700H,QM9850,QM8U,QM10U,QM11U,QM12U,QM13U,QM14U | ||||||||
>> Important Note
1) The mini pc VGA and HDMI support single display, dual display copy, dual display expansion, single display under DOS;
2) The HDMI interface of the mini pc supports 4K output, with a resolution of 4096/3840*2160@24/30Hz; running 4K video requires WIN10 system;
3) The mini pc supports 6COM, and RS232 is supported by default; RS232/422/485 is optional according to the configuration;
4) The mini pc supports dual Gigabit Ethernet ports, and a single Gigabit Ethernet port is optional, and the corresponding motherboard IO block needs to be replaced;
5) Since there are many models available for this mini pc, the specification parameters are for reference only, please consult us for details.
>> CPU Information
6th-8th generation
| CPU | CPU brand | CPU | Main frequency | Turbo | CPUPower consumption（W） |
| 6th gen | Celeron | 3855U | Dual-core1.6G | 15 | |
| 3955U | Dual-core2.0G | 15 | |||
| 6th gen I3 | core | 6006U | Dual-core2.0G | 15 | |
| 6100U | Dual-core2.3G | 15 | |||
| 6157U | Dual-core2.4G | 28 | |||
| 6167U | Dual-core2.7G | 28 | |||
| 6th gen I5 | core | 6200U | Dual-core2.3G | 2.8G | 15 |
| 6260U | Dual-core1.8G | 2.9G | 15 | ||
| 6267U | Dual-core2.9G | 3.3G | 28 | ||
| 6287U | Dual-core3.1G | 3.5G | 28 | ||
| 6300U | Dual-core2.4G | 3.0G | 15 | ||
| 6360U | Dual-core2.0G | 3.1G | 15 | ||
| 6th gen I7 | core | 6500U | Dual-core2.5G | 3.1G | 15 |
| 6560U | Dual-core2.2G | 3.2G | 15 | ||
| 6567U | Dual-core3.3G | 3.6G | 28 | ||
| 6600U | Dual-core2.6G | 3.4G | 15 | ||
| 6650U | Dual-core2.2G | 3.4G | 15 | ||
| 6660U | Dual-core2.4G | 3.4G | 15 | ||
| 7th gen | Celeron | 3865U | Dual-core1.8G | 15 | |
| 3965U | Dual-core2.2G | 15 | |||
| 7th gen I3 | core | 7020U | Dual-core2.3G | 15 | |
| 7100U | Dual-core2.4G | 15 | |||
| 7130U | Dual-core2.7G | 15 | |||
| 7th gen I5 | core | 7200U | Dual-core2.5G | 3.1G | 15 |
| 7260U | Dual-core2.2G | 3.4G | 15 | ||
| 7267U | Dual-core3.1G | 3.5G | 28 | ||
| 7287U | Dual-core3.3G | 3.7G | 28 | ||
| 7300U | Dual-core2.6G | 3.5G | 15 | ||
| 7360U | Dual-core2.3G | 3.6G | 15 | ||
| 7th gen I7 | core | 7500U | Dual-core2.7G | 3.5G | 15 |
| 7560U | Dual-core2.4G | 3.8G | 15 | ||
| 7567U | Dual-core3.5G | 4.0G | 28 | ||
| 7600U | Dual-core2.8G | 3.9G | 15 | ||
| 7660U | Dual-core2.5G | 4.0G | 15 | ||
| 8th gen I3 | core | 8130U | Dual-core2.2G | 3.4G | 15 |
| 8th gen I5 | core | 8250U | Quad core1.6G | 3.4G | 15 |
| 8350U | Quad core1.7G | 3.6G | 15 | ||
| 8th gen I7 | core | 8550U | Quad core1.8G | 4.0G | 15 |
| 8650U | Quad core1.9G | 4.2G | 15 |
10th-11th generation
| CPU | CPU brand | CPU | Main frequency | Turbo | CPUPower consumption（W） |
| 10th gen I3 | core | 10110U | Dual-core 2.1G | 4.10 G | 15 |
| 10th gen I5 | core | 10310U | Quad core 1.7G | 4.40 G | 15 |
| core | 10210U | Quad core 1.6G | 4.20 G | 15 | |
| 10th gen I7 | core | 10510U | Quad core 1.8G | 4.90 G | 15 |
| core | 10610U | Quad core 1.8G | 4.90 G | 15 | |
| core | 10810U | Six core 1.1G | 4.90 G | 15 | |
| core | 10710U | Six core 1.1G | 4.70 G | 15 | |
| 11th gen I3 | Core | 1115G4E | Dual core 2.2G | 3.9G | 15 |
| Core | 1115GRE | Dual core 2.2G | 3.9G | 15 | |
| Core | 1115G4 | Dual core 1.7G~3.0G | 4.1G | 12~28 | |
| Core | 1125G4 | Quad core 900 M~2.0G | 3.7G | 12 ~28 | |
| 11th gen I5 | Core | 1145G7E | Quad core1.5G | 4.1G | 15 |
| Core | 1145GRE | Quad core1.5G | 4.1G | 15 | |
| Core | 1145G7 | Quad core1.1G~2.6G | 4.4G | 12~28 | |
| Core | 1135G7 | Quad core900 M~2.4G | 4.20 GHz | 12~28 | |
| Core | 1155G7 | Quad core1.0 G~2.5G | 4.50 G | 12~28 | |
| 11th gen I7 | Core | 1185GRE | Quad core1.8G | 4.4G | 15 |
| Core | 1185G7E | Quad core1.8G | 4.4G | 15 | |
| Core | 1185G7 | Quad core1.2 G~3.0G | 4.8G | 12~28 | |
| Core | 1165G7 | Quad core1.2 G~2.8G | 4.7G | 12~28 | |
| Core | 1195G7 | Quad core1.3~2.9G | 5.0G | 12~28 |
>> Product Specifications
| Size | 286mm（L）*205mm（W）*76.3mm（H） | |
| CPU | Intel 6th-11th I3,I5,I7, etc. | |
| RAM | 2*NB-DDR3/DDR4 | |
| Power | 1*DC_IN | Support 12V/19V voltage, DC head inner diameter is 2.5MM The power consumption of the motherboard is about 30W/60W at full load. It is recommended to use 12V7A or above power supply |
| Display function | 11th generation support Integrated Intel Iris® Xᵉ UHD Graphics, support single display, dual display copy, dual display expansion, single display under DOS | |
| 10th generation Integrated Intel UHD Graphics ultra-core graphics card, support single display, dual display copy, dual display expansion, single display under DOS | ||
| 1*VGA DB15 | Support the highest resolution 1920*1200@60HZ | |
| 1*HDMI 1.4 | Support 4K resolution 4096/3840*2160@60HZ | |
| Network features | 1*LAN(default) | Realtek 8111H Gigabit Ethernet chip, supports Wake-on-LAN and PXE diskless boot function |
| 1*LAN_B(Optional) | Intel I219-LM Gigabit NIC chip, supports Wake-on-LAN and PXE diskless boot function | |
| 1*Mini-PCIE | support WIFI/3G/4G | |
| Hard Disk Function | 1*SATA1 | Standard SATA3.0 hard disk interface, maximum transfer speed 6.0 Gbps |
| 1*SATA2 | Standard SATA3.0 hard disk interface, maximum transfer speed 6.0 Gbps | |
| 1*MSATA | Support MSATA disk, support MSATA3.0 | |
| 1*M.2 | Support M.2 2280 by default, optional 2242; default SATA protocol | |
| Sound function | Integrated Realtek ALC662 HD digital audio decoder, 6-channel high-fidelity audio controller | |
| 1*LINE_OUT | Support audio output (green) | |
| 1*MIC_IN | Support microphone input (red) | |
| USB function | 2*USB3.0 | Standard USB3.0 interface |
| 4*USB2.0 | Standard USB2.0 interface | |
| Switch function | 1* switch | Switch button |
| 1*AUTO_SW | Hardware control power-on pin | |
| I/O | COM1/COM2 | Serial port, default RS232, optional support RS422/RS485 |
| COM3~COM6 | Serial port, support standard RS232; | |
| 1*SIM_CARD | Support SIM card, SIM card is required when using 3G/4G | |
| Operating environment | Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | |
| BIOS | AMI BIOS, support power-on boot, scheduled boot, remote switch machine intelligent identification | |
| Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
| Operating system | Windows 10，Windows 8，Windows 7，Linux | |
>> The Characteristics of the Industrial Computer
The industrial computer supports 4K Extreme HD, Fanless, Multi-COM, Multi-network, Multi-USB, Multi-display ports. Full size and dimensions, optional discrete graphics card.
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100, 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9, etc.
