| Availability: | |
|---|---|
| Quantity: | |
| HDMI | VGA | DVI-I | LAN | USB3.1 | USB2.0 | COM | SSD | Memory | Power |
| 4K 30Hz | 2K 60Hz | 2K 60Hz | 2 | 4 | 6 | 6 | 1*M.2 3*SATA3.0 | 2*PC-DDR4 MAX 64G | ATX |
>> CPU Information
| CPU Specifications | CPU Brand | CPU Model | Frequency | Turbo | CPU power consumption (W) | CPU full load power consumption (W) |
| 6th Generation I3 | Intel Core | 6100 | Dual-core 3.7G | 65 | 90 | |
| 6300 | Dual-core 3.8G | 65 | 90 | |||
| 6320 | Dual-core 3.9G | 65 | 90 | |||
| 6th Generation I5 | Intel Core | 6400 | Quad-core 2.7G | 3.3G | 65 | 90 |
| 6500 | Quad-core 3.2G | 3.6G | 65 | 90 | ||
| 6600 | Quad-core 3.3G | 3.9G | 65 | 90 | ||
| 6th Generation I7 | Intel Core | 6700 | Quad-core 3.4G | 4.0G | 65 | 90 |
| 7th Generation I3 | Intel Core | 7100 | Dual-core 3.9G | 65 | 90 | |
| 7300 | Dual-core 4.0G | 65 | 90 | |||
| 7320 | Dual-core 4.1G | 65 | 90 | |||
| 7th Generation I5 | Intel Core | 7400 | Quad-core 3.0G | 3.5G | 65 | 90 |
| 7500 | Quad-core 3.4G | 3.8G | 65 | 90 | ||
| 7600 | Quad-core 3.5G | 4.,1G | 65 | 90 | ||
| 7th Generation I7 | Intel Core | 7700 | Quad-core 3.6G | 4.2G | 65 | 90 |
| 8th Generation I3 | Intel Core | 8100 | Quad-core 3.6G | 65 | 90 | |
| 8300 | Quad-core 3.7G | 65 | 90 | |||
| 8th Generation I5 | Intel Core | 8400 | Six core 2.8G | 4.0G | 65 | 90 |
| 8500 | Six core 3.0G | 4.1G | 65 | 90 | ||
| 8600 | Six core 3.2G | 4.3G | 65 | 90 | ||
| 8th Generation I7 | Intel Core | 8700 | Six core 3.2G | 4.6G | 65 | 90 |
| 9th Generation I3 | Intel Core | 9100 | Quad-core 3.6G | 4.2G | 65 | 90 |
| 9300 | Quad-core 3.7G | 4.2G | 65 | 90 | ||
| 9th Generation I5 | Intel Core | 9400 | Six core 2.9G | 4.1G | 65 | 90 |
| 9500 | Six core 3.0G | 4.4G | 65 | 90 | ||
| 9600 | Six core 3.1G | 4.6G | 65 | 90 | ||
| 9th Generation I7 | Intel Core | 9700 | Octa-core 3.0G | 4.7G | 65 | 90 |
| 9th Generation I9 | Intel Core | 9900 | Octa-core 3.1G | 5.0G | 65 | 90 |
>> Product Specifications

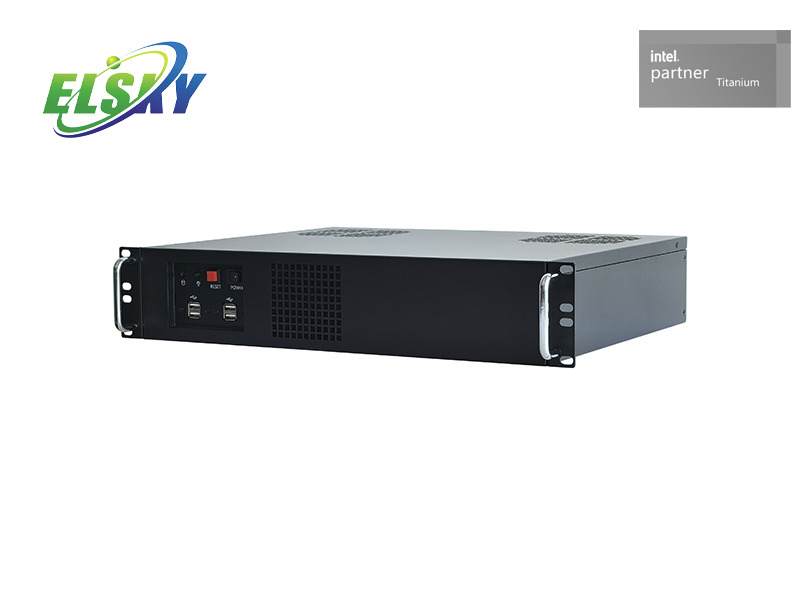

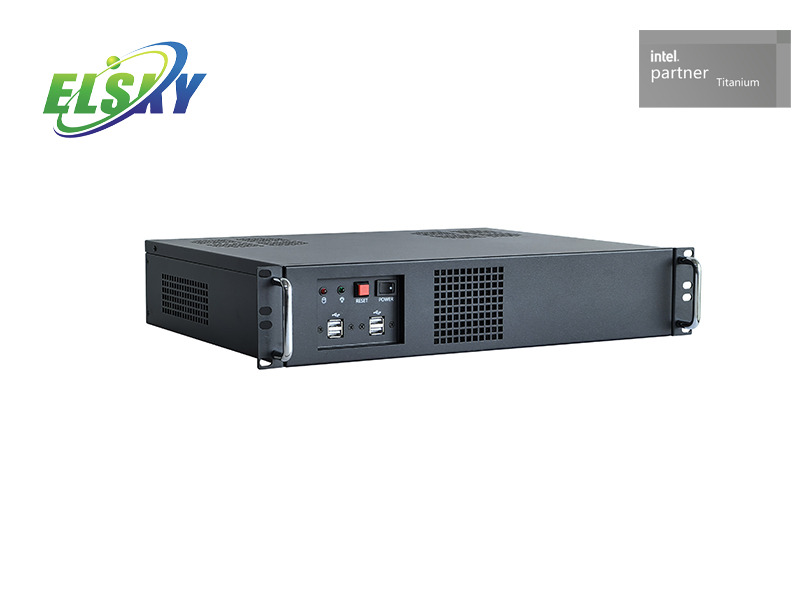

| PC model | IPC200U-GK6900 | |
| PC size | 428mm(L)*350mm(W)*88mm(H) Size with handle: 480mm(L)*350mm(W)*88mm(H) | |
| Cooling System | With heat dissipation holes, silent fan heat dissipation | |
| Color | black | |
| Compatible motherboard models | GK6900 | |
| Motherboard | CPU | Supports Skylate 6th generation LGA1151 Core i3-6100, i5-6400, i7-6700, etc. Supports Kaby Lake 7th generation LGA1151 Core i3-7100, i5-7400, i7-7700, etc. Supports Coffee Lake 8th generation LGA1151 Core i3-8100, i5-8400, i7-8700, etc. Supports Coffee Lake 9th generation LGA1151 Core i3-9100, i5-9400, i7-9700, I9-9900, etc. (See the next page for a detailed CPU list) |
| Graphics | 6th generation: Intel HD Graphics 530 graphics controller, supports single display, dual display expansion, dual display copy 7th generation: Intel HD Graphics 630 graphics controller, supports single display, dual display expansion, dual display copy 8th and 9th generation: Intel UHD Graphics 630 graphics controller, supporting single display, dual display expansion, and dual display copy | |
| Memory | 2*PC-DDR4 supports 2133/2400/2666MHz memory, maximum support 64G | |

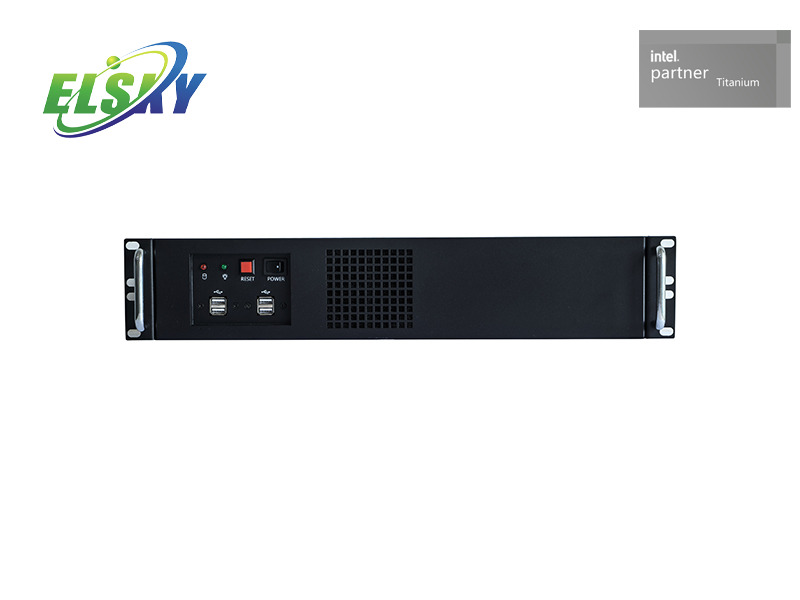

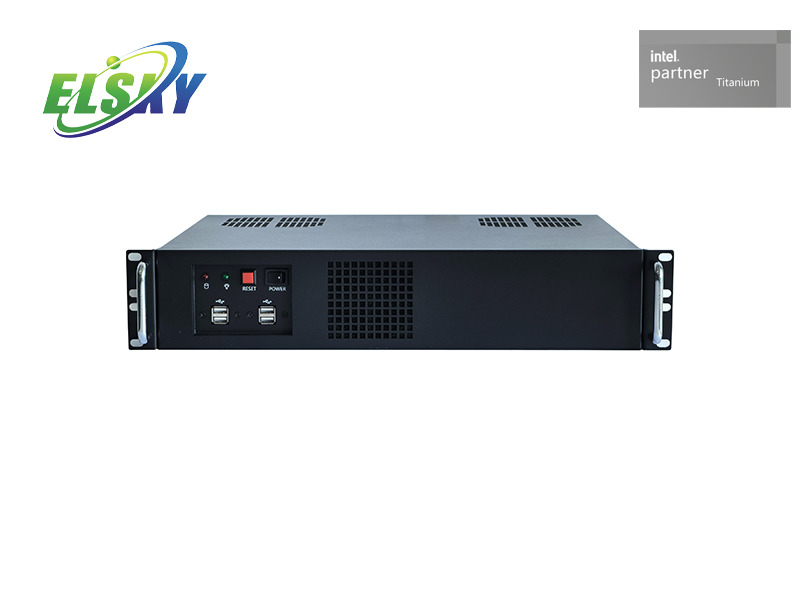

| Front panel interface | POWER | 1*Switch button |
| RESET | 1*Reset button | |
| USB | 4*USB2.0 interface | |
| led | 1*HDD light, 1*Power light | |

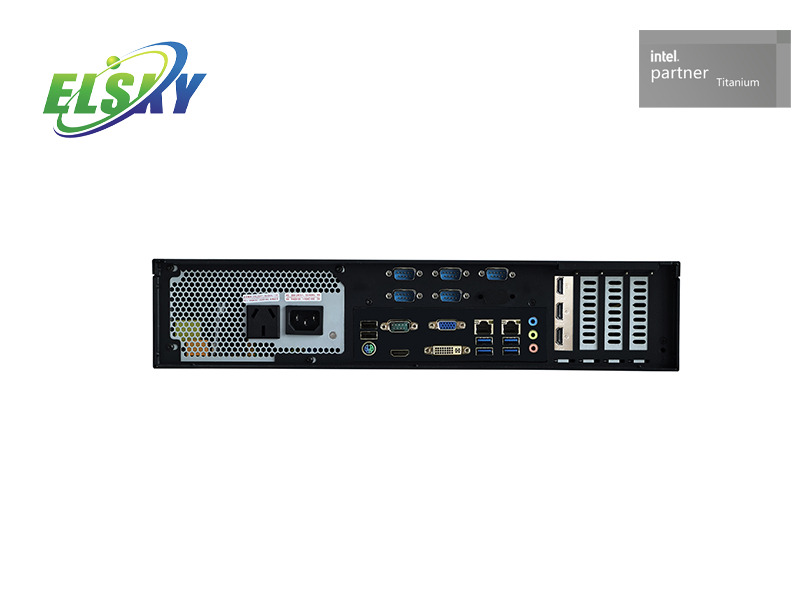

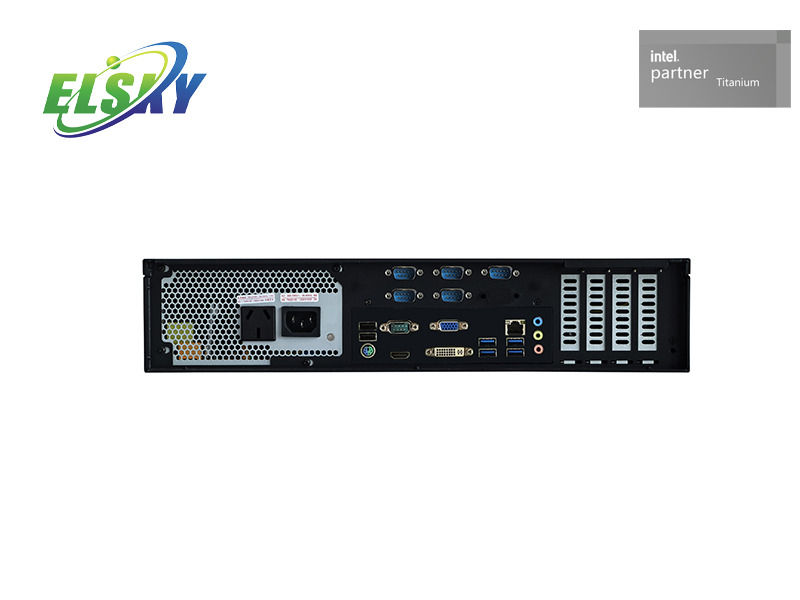

| Rear panel interface | Power interface | 1*ATX power interface, supports standard desktop power supply, recommended 200W or above desktop power supply |
| Display Interface | 1*HDMI1.4 interface (4096/3840*2160@30Hz) 1*VGA interface (1920*1080@60Hz) 1*DVI-I interface (1920*1080@60Hz) | |
| LAN | Default dual Gigabit network card: Intel I226-V (LAN1) + Intel I219V (LAN2) Gigabit network card; Single Gigabit NIC: Intel I219V (LAN2) Gigabit NIC; Support network wake-up function | |
| USB | 4*USB3.1 Gen1 interface 2*USB2.0 interface | |
| COM | 6*COM ports, support RS232 by default, COM3/4 can support RS232/422/485 | |
| Audio | 1*LINE_IN interface, line input 1*LINE_OUT interface, audio output 1*MIC_IN interface, microphone input | |
| 1*PS/2 interface | PS/2 keyboard and mouse interface | |
| Storage | M.2_SSD | 1*M.2 Key-M slot, supports M.2 2280 hard disk, optional M.2 2242 hard disk, only supports SATA protocol |
| SATA | 3*SATA3.0 hard disk interface, support 2.5-inch SSD/HDD hard disk or 3.5-inch HDD hard disk | |
| Extensions | PCI-E X16 | 1*PCI-E X16 slot, supports independent graphics card and other PCI-E X16 devices |
| PCI-E X4 | 1*PCI-E X4 slot, supports PCI-E X4 devices | |
| PCI | 2*PCI slots, support PCI devices | |
| Environment | Operating temperature | -10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ | |
| Relative humidity | 5%-95% relative humidity, non-condensing | |
| Working vibration | 0.5grms/5-500HZ/random/operating | |
| BIOS | AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification | |
| Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
| Operating system | 6th and 7th generation CPUs support Windows 7, Windows 10, Windows 11, Linux systems, etc.; 8th and 9th generation CPUs support Windows 10, Windows 11, Linux systems, etc.; The Intel 1226-V (LAN1) network card chip on the dual-port motherboard does not support the Windows 7 system; Can be changed to single network port motherboard Intel 1219V (LAN2) network card to support win7 system | |
>> The Characteristics of the Industrial Computer
The industrial computer supports 4K Extreme HD, Fanless, Multi-COM, Multi-network, Multi-USB, Multi-display ports. Full size and dimensions, optional discrete graphics card.
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100, 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9, etc.
Industrial Computer Series
IPC6900 High-performance Industrial Computer
Size: 210*220*80MM
Supports single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/DP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 8th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
IPC6800 Industrial Computer
Size: 205*286*76MM
Support single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/EDP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 8th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
IPC6000 Industrial Computer
Size: 205*213*53MM
Support single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/EDP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 6th-10th Gen CPUs:Intel CORE i3, i5, i7, i9
Rack-mounted Industrial Computer Series
1U series IPC100U
Size: 430*301*44MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
2U series IPC200U
Size: 480*350*88MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
4U series IPC400U
Size: 380*351*160MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
>> The Applications of the Industrial Computer
ELSKY products help thousands of businesses, widely used in Intelligent city, Intelligent financial, Intelligent retails, Intelligent transportation, Intelligent Medical Care, Intelligent Network Security, Intelligent Commercial Display, Intelligent Education and Conferences, Self-service Cash Registers, Industrial Automation, Industrial control, AI Computing Terminal, AI Robots, 5G IoT, ect.
>> Company Profile
Founded in 2009, ELSKY is a national high-tech enterprise focusing on independent research and development of industrial control motherboards and computers. With more than 16 years of deep development of control terminal industry technology, ELSKY has been at the forefront of industrial control terminal design and development, committed to promoting the automation, intelligence and informationization of high-end manufacturing equipment industry, and providing partners with complete industrial control terminal solutions.
ELSKY has obtained more than 40 intellectual property rights. The products are widely used in industrial control, medical, transportation, network security and other industries, fully supporting the application of visual innovation technology and artificial intelligence technology, and have been strongly recognized by the market and users. ELSKY has won many government recognitions and industry awards, and has passed many major global certifications.
ELSKY is a member of Intel China Intelligent Manufacturing Base, a member of Intel Internet of Things Alliance, and has been awarded Intel Titanium Global Strategic Partner in 2022. The company has launched hundreds of industrial motherboards and OPS based on low-power platforms, industrial PC, with comprehensive functions, exquisite processing, stable operation, which are affirmed by the users and sold well in Europe, America, the Middle East, Southeast Asia and hundreds of other countries and regions. In the field of IoT artificial intelligence innovation, we are willing to work with excellent partners all the way to create a win-win situation!
>> Company Advantage
National High-tech Enterprise, National Specialized New Small Giant Enterprise, Guangdong Industrial Visual Control Terminal Engineering Technology Research Center.
Founded in 2009, with 200+ professional employees, focusing on motherboard and OPS, Industrial Computer solutions for more than sixteen years.
Providing OEM / ODM motherboard and computer service
All kinds of intellectual property rights more than 60 pieces.
Core support: Intel Titanium strategic partner, Intel China Intelligent Manufacturing Base members.
Supply chain support: Intel, ON, Realtek, ITE and other domestic and international OEMs and ODMs.
Wide range of applications: covering Display, Education,Retail, Industrial Automation, Network, Medical, Telecommunications, Metallurgy, Transportation, Electric power, Railroads, aviation, Communications, Finance, etc.
Representative Users and projects: Foxconn, TCL, Lenovo, Daxing Airport, Zhejiang University, etc.
>> FAQs
Q: Who are you?
A: We are Shenzhen ELSKY Technology Co., Ltd.
"ELSKY"is our own brand.
We are "Intel Internet of Things(IOT) solutions alliance"member, "Intel Chinese intelligent manufacture base"member, Intel Titanium Partner and Microsoft CLA Partner.
Q: What do you do?
A: We develop, produce, sell motherboard, Mini PC, Industrial Computer, OPS PC and Industrial Tablet PC.
We have many types of motherboards, like ATX, Mini-itx, Nano-itx, 3.5-inch, 4.0-inch, OPS, Firewall, NUC, x86, embedded, industrial motherboards.
Our products mainly use for industrial production, banking, shops, supermarkets, transportation, medical and other industries.
They also apply to ordering machines, cash registers, ATM, digital signage, advertising machines, spot welders, electronic whiteboards, conference equipment, teaching equipment, multimedia players and other equipment.
Q: How many engineers are there in your company?
A: Now we have 50 engineers and technicians.
For the company to develop better, we moved to our own property rights office in Longgang District, Shenzhen, now we have 6000 square meters office space. Every year we continue to increase our staff to meet the needs of the company's development. Welcome to visit our company.
Q: What's your payment ways?
A: We accept T/T, Western Union, Paypal, Alibaba Trade Assurance, Alipay, Wechat Pay, Cash, etc.
