| Availability: | |
|---|---|
| Quantity: | |
| HDMI | VGA | LAN | USB3.2 | USB2.0 | COM | SSD | Memory | Power |
| 4K 60Hz | 2K 60Hz | 2 | 8 | 4 | 6 | 1*M.2 4*SATA3.0 | 2*PC-DDR4 MAX 64G | ATX |
| 4 | ||||||||
| 6 |
>> CPU Information
| CPU Specifications | CPU Brand | CPU Model | Frequency | Turbo | CPU power consumption (W) | Maximum turbo power consumption (W) |
| 12th Generation I3 | Intel Core | 1 21 00 | Quad- core 3.3 GHz | 4.3 GHz | 60 | 89 |
| Intel Core | 12300 | Quad- core 3.5 GHz | 4.4 GHz | 60 | 89 | |
| 12th generation I5 | Intel Core | 1 2 400 | Hexa-core 2.5 GHz | 4.4 GHz | 65 | 117 |
| 1 2 500 | Hexa-core 3.0 GHz | 4.6 GHz | 65 | 117 | ||
| 1 2 600 | Hexa-core 3.3 GHz | 4.8 GHz | 65 | 117 | ||
| 12th Generation I7 | Intel Core | 12700 | Twelve cores 2.1GHz | 4.9GHz | 65 | 180 |
| 12th Generation I9 | Intel Core | 1 2 900 | Hexa - core 2.4 GHz | 5. 1 GHz | 65 | 202 |
| 13th Generation I3 | Intel Core | 13100 | Quad-core 3.4 GHz | 4.5 GHz | 60 | 89 |
| 13th Generation I5 | Intel Core | 13400 | Ten core 2.5 GHz | 4.6 GHz | 65 | 154 |
| 13th Generation I5 | Intel Core | 13500 | Fourteen cores 2.5 GHz | 4.8 GHz | 65 | 154 |
| 13th Generation I5 | Intel Core | 13600 | Fourteen cores 2.7 GHz | 5.3 GHz | 65 | 154 |
| 13th Generation I7 | Intel Core | 13700 | Hexa-core 2.1 GHz | 5.2 GHz | 65 | 219 |
| 13th Generation I9 | Intel Core | 13900 | 24 cores 2.3 GHz | 5.6 GHz | 65 | 219 |
| 14th generation i3 | Intel Core | 14100 | Quad-core 3.5GHz | 4.7GHz | 60 | 110 |
| 14th generation i5 | Intel Core | 14400 | Ten-core 2.5GHz | 4.7GHz | 65 | 148 |
| 14th generation i5 | Intel Core | 14500 | Fourteen cores 2.6GHz | 5.0GHz | 65 | 154 |
| 14th generation i5 | Intel Core | 14600 | Fourteen cores 2.7GHz | 5.2GHz | 65 | 154 |
| 14th generation i7 | Intel Core | 14700 | Twenty cores 2.1GHz | 5.4GHz | 65 | 219 |
| 14th generation i9 | Intel Core | 14900 | 24 cores 2.0GHz | 5.8GHz | 65 | 219 |
>> Product Specifications
| PC model | IPC400U-GK1200 | |
| PC size | 356mm (L)*320mm (W)*179mm (H) | |
| Color | black | |
| Compatible motherboard models | GK1200 | |
| Motherboard | CPU | Support Alder Lake 12th generation LGA 1700 Core i3-12100, i5-12400, i7-12700, i9-12900, etc. |
| Supports Raptor Lake 13th generation LGA 1700 Core i3-13100, i5-13400, i7-13400, i9-13900, etc. | ||
| Supports Raptor Lake 14th generation LGA 1700 Core i3-14100, i5-14400, i7-14700, i9-14900, etc. | ||
| (See the next page for a detailed CPU list) | ||
| Graphics | Intel UHD Graphics 730/770 graphics controller, supports single display, dual display copy, dual display expansion | |
| Memory | 2*PC-DDR4 supports 2133/2400 / 2666/2933/3200MHz memory, maximum support 64G | |

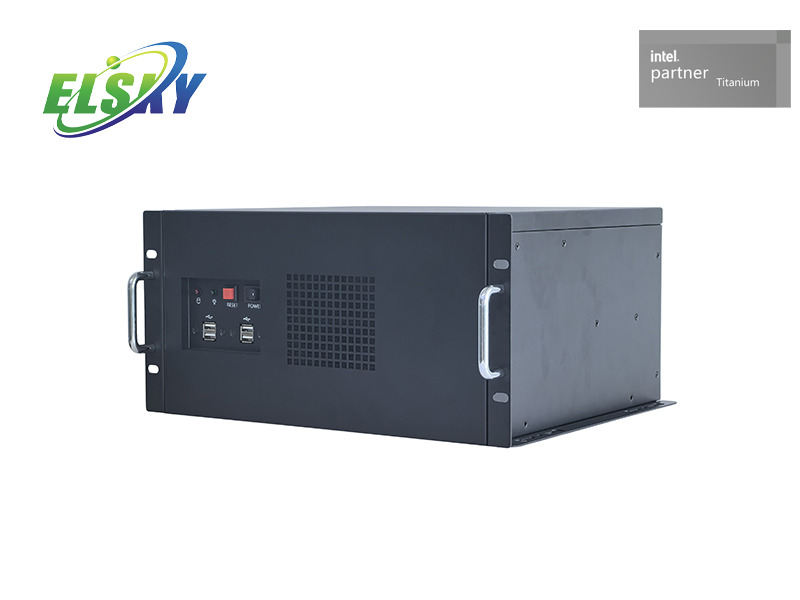

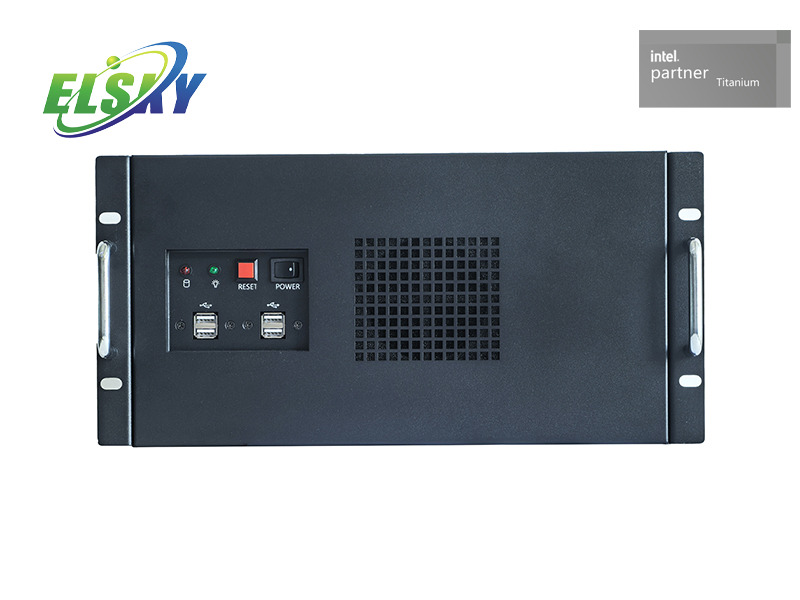

| Front panel interface | POWER | 1*Switch button |
| RESET | 1*Restart switch | |
| USB | 4*USB2.0 interface | |
| LED | 1*power light, 1*hard disk light | |

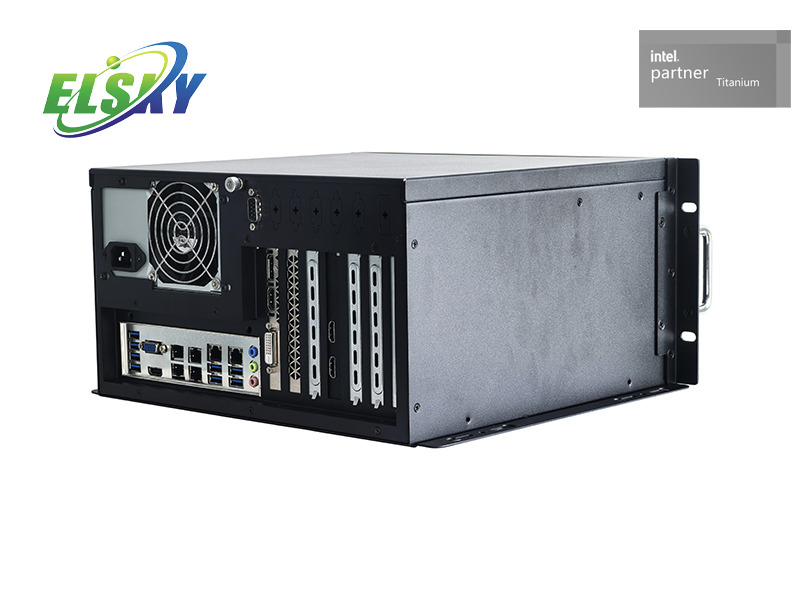

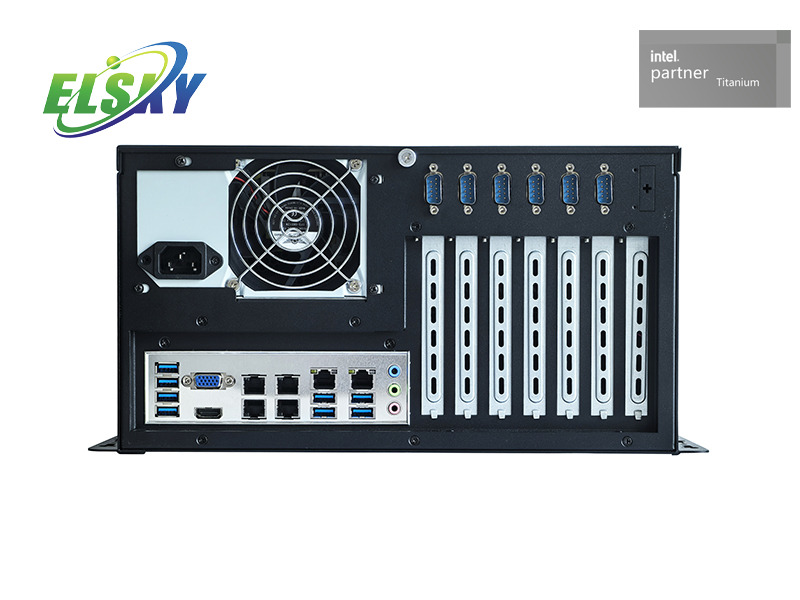

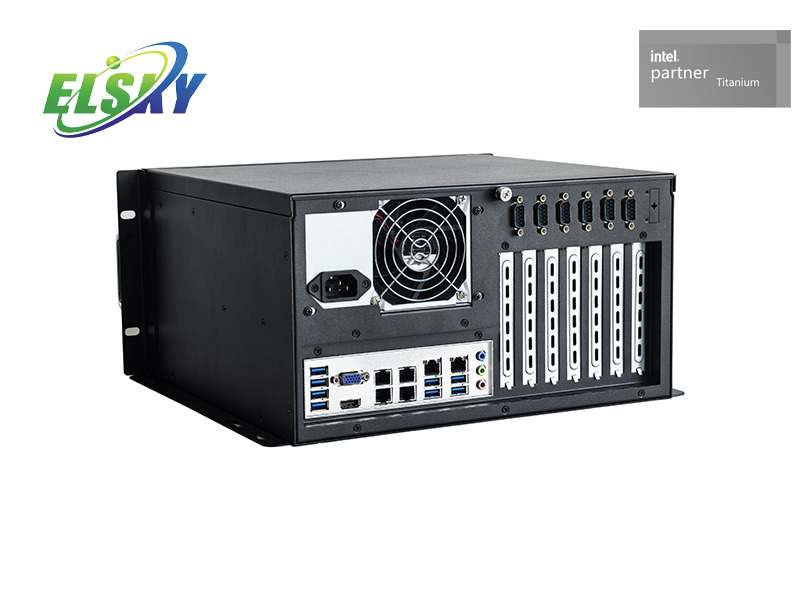

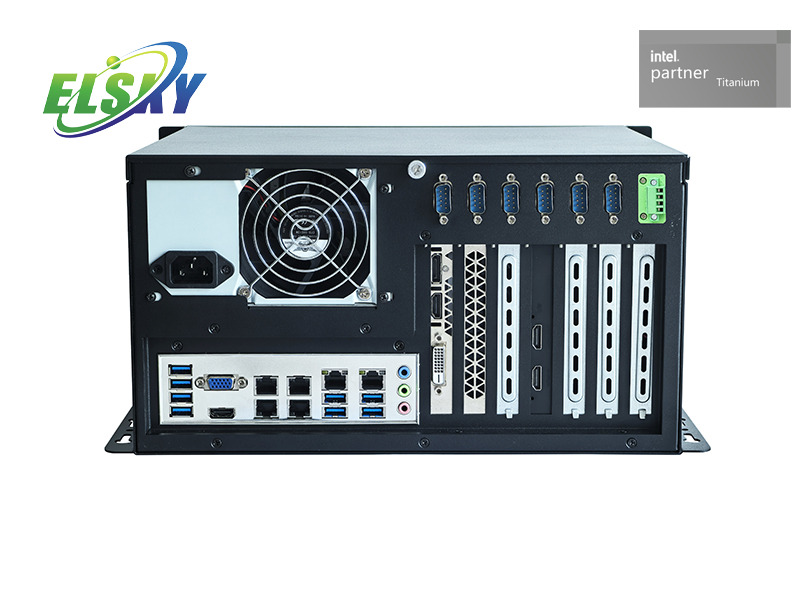

| Rear panel interface | Power interface | 1* Standard ATX desktop power supply , 500W and above desktop power supply is recommended |
| Display Interface | 1*HDMI2.0 interface (4096/3840*2160@60Hz) | |
| 1*VGA interface (1920*1080@60Hz) | ||
| LAN | 6*LAN: Default support 1*Intel I219V+5*Intel I226-V Gigabit LAN | |
| 4*LAN: Support 1*Intel I219V+3*Intel I226-V Gigabit Network Card | ||
| 2*LAN: Support 1*Intel I219V+1*Intel I226-V Gigabit Network Card | ||
| Support network wake-up, network PXE function | ||
| USB | 8*USB3.2 Gen1 interface | |
| COM | 6*COM, support RS232 by default, COM1 and COM2 can support RS232/RS485 | |
| Audio | 1*LINE_OUT interface, audio output | |
| 1*LINE_IN interface, line input | ||
| 1*MIC_IN interface, microphone input | ||
| Phoenix Terminal | 1*4Pin Phoenix terminal is optional, and the line sequence and function can be customized | |
| Storage | M.2_SSD | 1*M.2 Key-M slot, supports M.2 2280 hard disk, default NVME (PCIE) protocol, can change hardware to support SATA protocol |
| SATA | 4*SATA3.0 hard disk interface | |
| Extensions | M.2_WiFi | 1*M.2 Key-E slot, supports M.2 2230 WiFi Bluetooth module |
| PCI/PCI-E | 2*PCI-E X16 interface (PCI-E is X8 signal) | |
| 3*PCI-E X4 interface | ||
| 2*PCI interface | ||
| Expandable independent graphics card, network card, acquisition card and other devices | ||
| Environment | Operating temperature | -10℃ ~ 60℃ |
| Storage temperature | -20℃ ~ 70℃ | |
| Relative humidity | 5%-95% relative humidity, non-condensing | |
| Working vibration | 0.5grms/5-500HZ/random/operating | |
| BIOS | AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification | |
| Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
| Operating system | Supports Windows 11, Windows 10, Linux, etc. | |
>> The Characteristics of the Industrial Computer
The industrial computer supports 4K Extreme HD, Fanless, Multi-COM, Multi-network, Multi-USB, Multi-display ports. Full size and dimensions, optional discrete graphics card.
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100, 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9, etc.
Industrial Computer Series

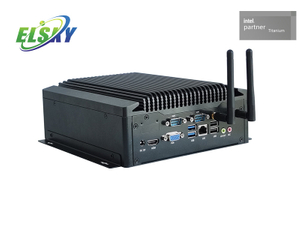

IPC6900 High-performance Industrial Computer
Size: 210*220*80MM
Supports single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/DP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 8th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
IPC6800 Industrial Computer
Size: 205*286*76MM
Support single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/EDP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 8th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
IPC6000 Industrial Computer
Size: 205*213*53MM
Support single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/EDP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 6th-10th Gen CPUs:Intel CORE i3, i5, i7, i9
Rack-mounted Industrial Computer Series
1U series IPC100U
Size: 430*301*44MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
2U series IPC200U
Size: 480*350*88MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
4U series IPC400U
Size: 380*351*160MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
