| Availability: | |
|---|---|
| Quantity: | |
| CPU model | Applicable motherboard model | HDMI | LAN | USB2.0 | USB3.0 | COM | SSD | Memory (MAX) | Power |
| J1900 series | M219F | 2K 60Hz | 1 | 7 | 1 | 2/6/10 | 1*MSATA 1*2.5 inch HDD | 1*DDR3; 8G | 12V |
| 2 | 5 | 1 | 2/6/10 | ||||||
| J3355 series | M335F | 4K 30Hz | 1 | 5 | 2 | 2/6 | 1*DDR3; 8G | 12V | |
| 2 | 3 | 2 | 2/6 | ||||||
| 3rd generation series | HGP series | 2K 60Hz | 1 | 6 | 2 | 2/6 | 1*DDR3; 8G | 12V | |
| 2 | 4 | 2 | 2/6 | ||||||
| 4th generation 5th generation series | QM9400 QM9500 | 4K 30Hz | 1 | 6 | 2 | 2/6 | 1*DDR3; 8G | 12V | |
| 2 | 4 | 2 | 2/6 | ||||||
| 6th generation 7th generation series | QM9600 QM9700 | 4K 30Hz | 1 | 6 | 2 | 2/6 | 2*DDR3; 16G | 12V/19V | |
| 2 | 4 | 2 | 2/6 | ||||||
| 8th generation 10th generation series | QM9850 QM10U | 4K 30Hz | 1 | 6 | 2 | 2/6 | Supports the above hard drives as well as 1*M.2 SSD | 2*DDR4; 32G | 12V/19V |
| 2 | 4 | 2 | 2/6 |
>> Product Specifications

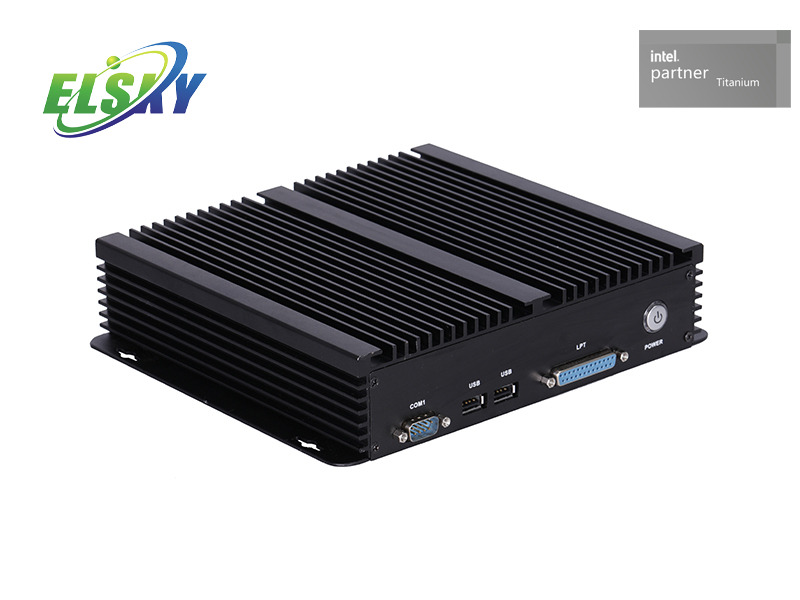

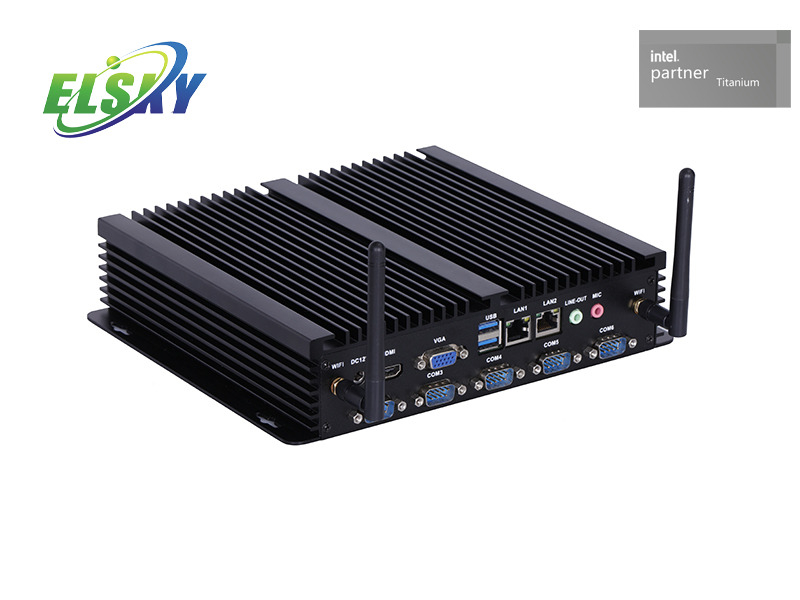

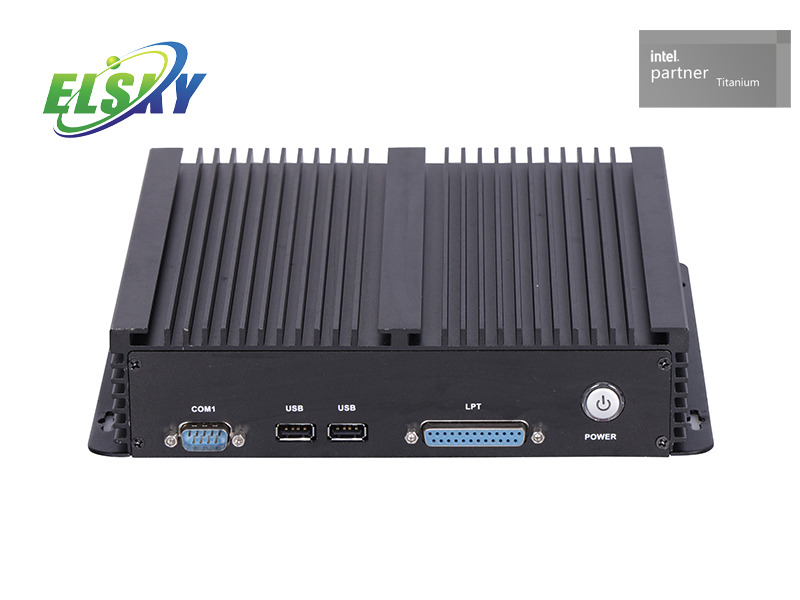

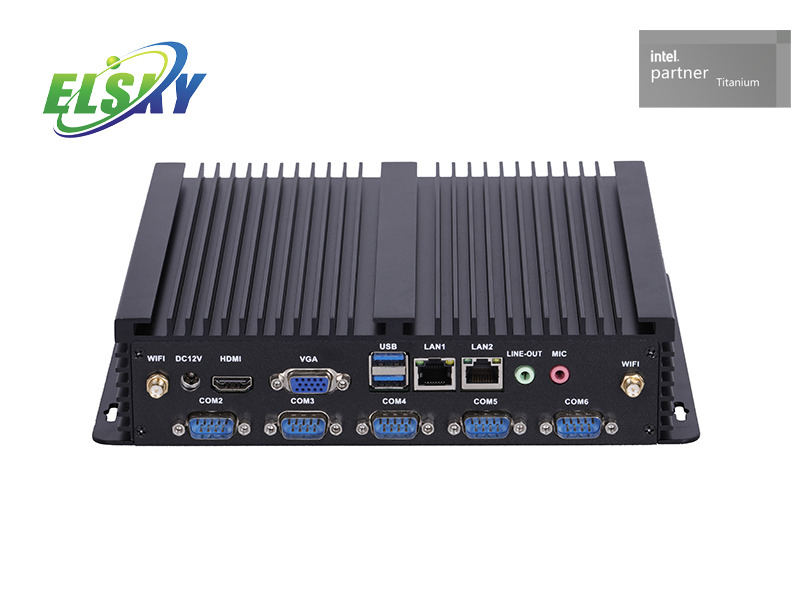

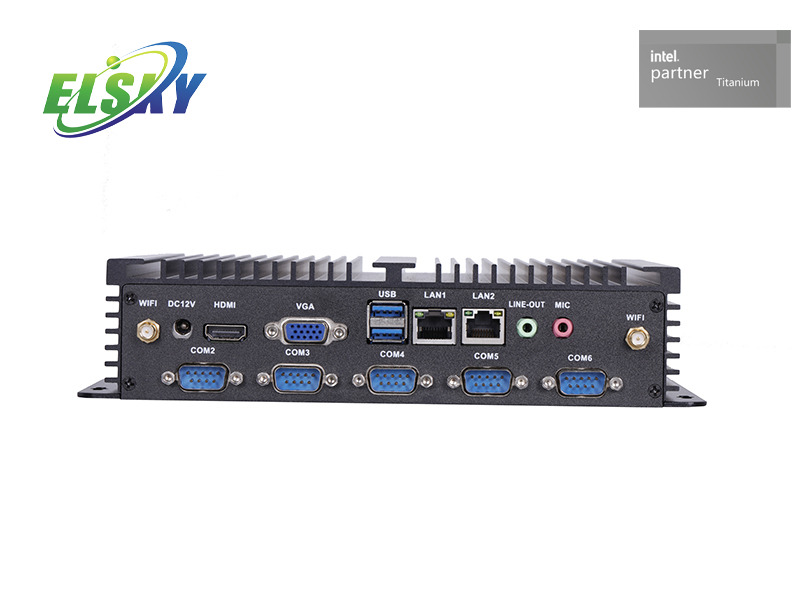

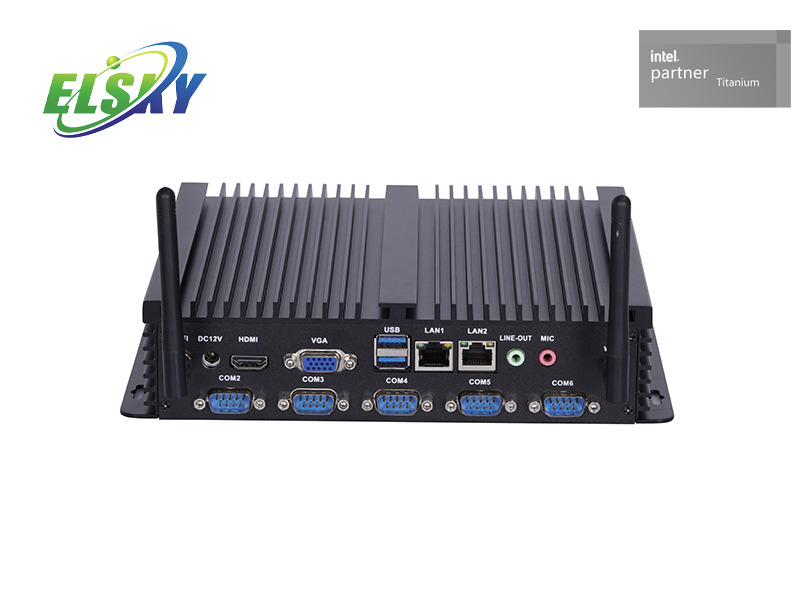

| PC model | IPC6000 8th generation 10th generation series | |
| Motherboard model | QM9850, QM10U, QM8H, QM9H, QM10H, etc. | |
| PC size | 234mm*205mm*53mm | |
| CPU processor | Support 8th generation Whiskey Lake _ CPU: I3-8145U , I5-8265U, I7-8665U , etc. | |
| Support 10th generation Comet Lake _ CPU: I3-10110U, I5-10210U, I7-10510U, etc. | ||
| Memory support | 2*NB-DDR4 memory slots, support 2133/2400/2666MHz memory, up to 64GB | |
| Power supply | 1*DC_IN | It supports 12V voltage, the inner diameter of the DC plug is 2.5MM, and the power consumption of the motherboard is about 85 W at full load. It is recommended to use 12V 7 A or above power supply |
| Display function | Integrated Intel UHD Graphics ultra-core graphics card, support single display, dual display/triple display copy, dual display/triple display expansion, single display under DOS | |
| 1*VGA DB15 interface | Support resolution 1920*1080@60HZ | |
| 1*HDMI 1.4 interface | Support 4K resolution 4096/3840*2160@30HZ | |
| Internet function | 1*LAN interface | Realtek 8111H Gigabit LAN chip, supports Wake-on-LAN and PXE diskless boot function |
| Support WIFI/4G/Bluetooth optional, support 2*WIFI antenna mast | ||
| Hard disk function | 1*M.2 interface | M.2 2280 is supported by default, 2242 is optional; the default NVME (PCIE) protocol can be changed to SATA protocol |
| 1*SATA1 interface | Standard SATA3.0 hard disk interface, the maximum transmission speed is 6.0 Gbps | |
| Select one of SATA1 signal and MSATA signal, SATA1 is supported by default | ||
| 1*SATA2 interface | Standard SATA3.0 hard disk interface, the maximum transmission speed is 6.0 Gbps | |
| Sound function | Integrated Realtek ALC662 HD digital audio decoder, 6-channel high-fidelity audio controller | |
| Or integrated BBH621 USB audio chip | ||
| 1*LINE_OUT interface | Support audio output (green) | |
| 1*MIC_IN interface | Support microphone input (red) | |
| USB function | 2*USB3. 1 interface | Rear standard USB3. 1 Gen2 interface, the maximum transmission bandwidth is 10.0Gbps |
| 4 *USB2.0 interface | Rear standard USB2.0 interface, the maximum transmission bandwidth is 480Mbps (60MB/s) | |
| Switch function | POWER | Switch button |
| Other I/O | 6*COM interface | Support RS232; COM1 optional support RS422/RS485 |
| Operating environment | Working temperature: -10 ℃~60℃; | |
| Working humidity: 5%~95% relative humidity, non-condensing | ||
| BIOS | AMI BIOS, support power-on and start-up, scheduled start-up, remote switch machine intelligent identification of equipment | |
| Watch dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
| Operating system | Support Windows 10 64 , Linux, etc. | |
illustrate:
Single gigabit network port/dual gigabit network port of the Mini PC is optional; dual network ports only affect the number of USB2.0;
The Mini PC has wall-mounted holes.
>> The Characteristics of the Industrial Computer
The industrial computer supports 4K Extreme HD, Fanless, Multi-COM, Multi-network, Multi-USB, Multi-display ports. Full size and dimensions, optional discrete graphics card.
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100, 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9, etc.
Industrial Computer Series
IPC6900 High-performance Industrial Computer
Size: 210*220*80MM
Supports single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/DP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 8th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
IPC6800 Industrial Computer
Size: 205*286*76MM
Support single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/EDP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 8th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
IPC6000 Industrial Computer
Size: 205*213*53MM
Support single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/EDP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 6th-10th Gen CPUs:Intel CORE i3, i5, i7, i9
Rack-mounted Industrial Computer Series
1U series IPC100U
Size: 430*301*44MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
2U series IPC200U
Size: 480*350*88MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
4U series IPC400U
Size: 380*351*160MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
>> The Applications of the Industrial Computer
ELSKY products help thousands of businesses, widely used in Intelligent city, Intelligent financial, Intelligent retails, Intelligent transportation, Intelligent Medical Care, Intelligent Network Security, Intelligent Commercial Display, Intelligent Education and Conferences, Self-service Cash Registers, Industrial Automation, Industrial control, AI Computing Terminal, AI Robots, 5G IoT, ect.
>> Company Profile
Founded in 2009, ELSKY is a national high-tech enterprise focusing on independent research and development of industrial control motherboards and computers. With more than 16 years of deep development of control terminal industry technology, ELSKY has been at the forefront of industrial control terminal design and development, committed to promoting the automation, intelligence and informationization of high-end manufacturing equipment industry, and providing partners with complete industrial control terminal solutions.
ELSKY has obtained more than 40 intellectual property rights. The products are widely used in industrial control, medical, transportation, network security and other industries, fully supporting the application of visual innovation technology and artificial intelligence technology, and have been strongly recognized by the market and users. ELSKY has won many government recognitions and industry awards, and has passed many major global certifications.
ELSKY is a member of Intel China Intelligent Manufacturing Base, a member of Intel Internet of Things Alliance, and has been awarded Intel Titanium Global Strategic Partner in 2022. The company has launched hundreds of industrial motherboards and OPS based on low-power platforms, industrial PC, with comprehensive functions, exquisite processing, stable operation, which are affirmed by the users and sold well in Europe, America, the Middle East, Southeast Asia and hundreds of other countries and regions. In the field of IoT artificial intelligence innovation, we are willing to work with excellent partners all the way to create a win-win situation!
>> Company Advantage
National High-tech Enterprise, National Specialized New Small Giant Enterprise, Guangdong Industrial Visual Control Terminal Engineering Technology Research Center.
Founded in 2009, with 200+ professional employees, focusing on motherboard and OPS, Industrial Computer solutions for more than sixteen years.
Providing OEM / ODM motherboard and computer service
All kinds of intellectual property rights more than 60 pieces.
Core support: Intel Titanium strategic partner, Intel China Intelligent Manufacturing Base members.
Supply chain support: Intel, ON, Realtek, ITE and other domestic and international OEMs and ODMs.
Wide range of applications: covering Display, Education,Retail, Industrial Automation, Network, Medical, Telecommunications, Metallurgy, Transportation, Electric power, Railroads, aviation, Communications, Finance, etc.
Representative Users and projects: Foxconn, TCL, Lenovo, Daxing Airport, Zhejiang University, etc.
