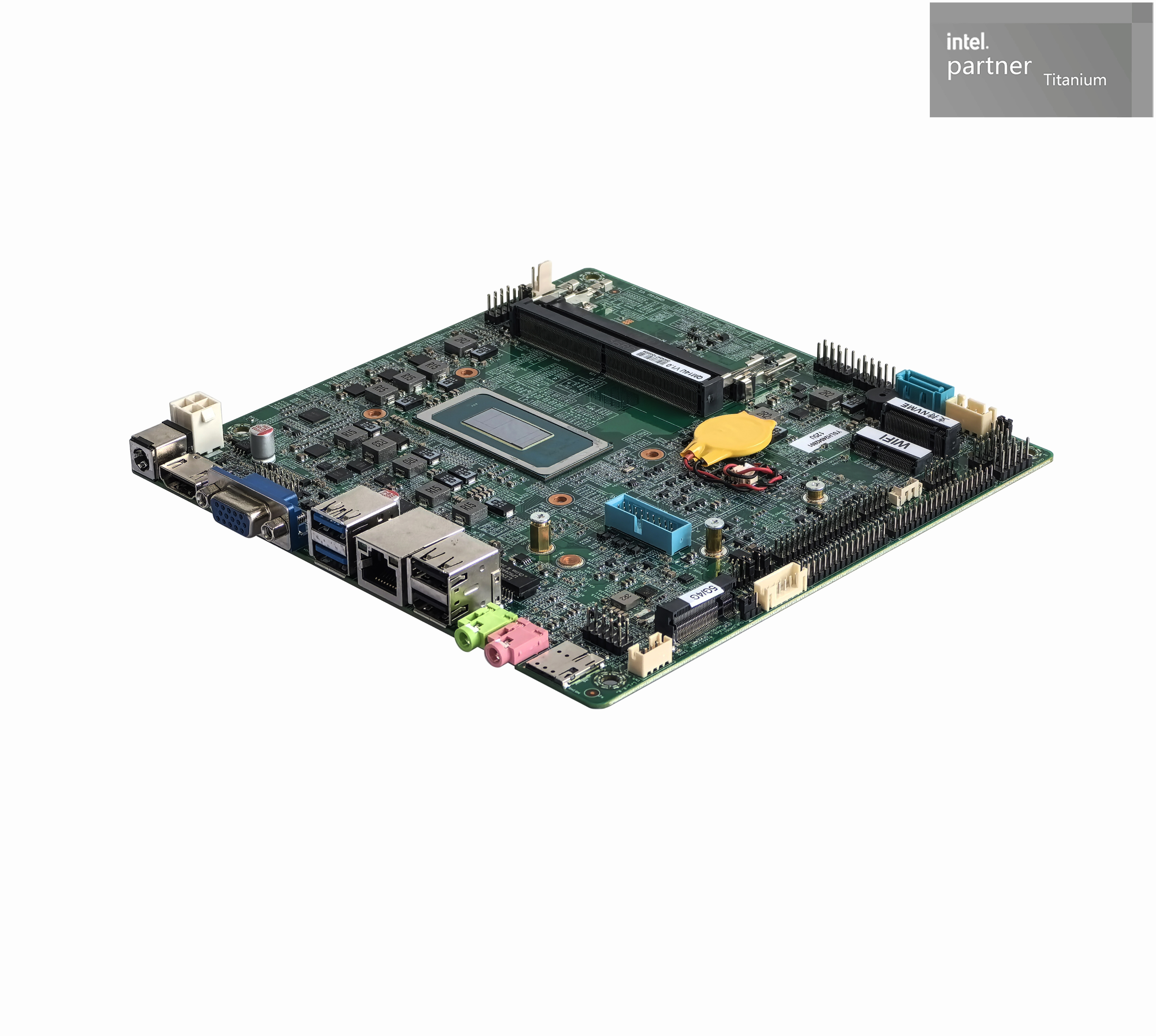

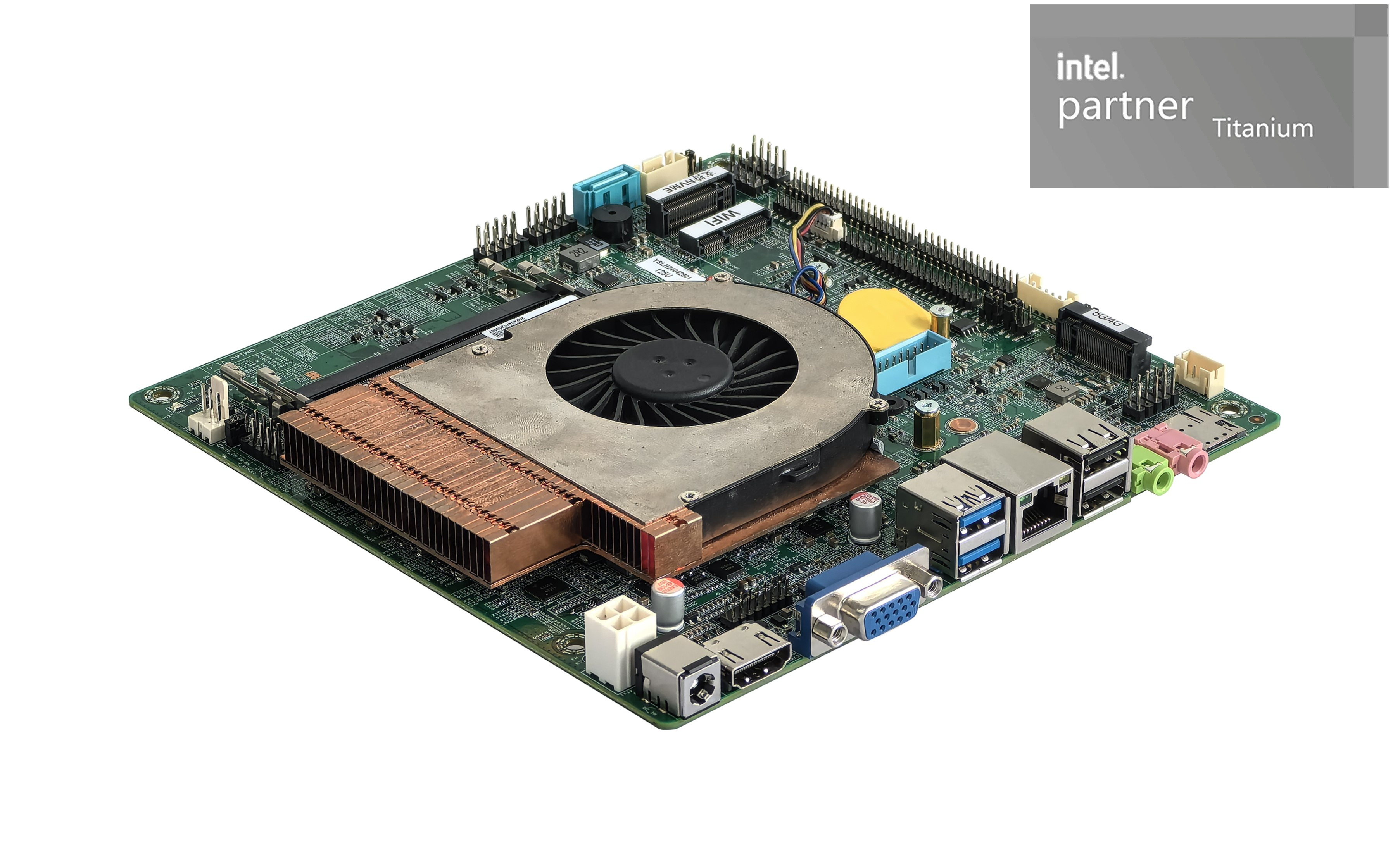

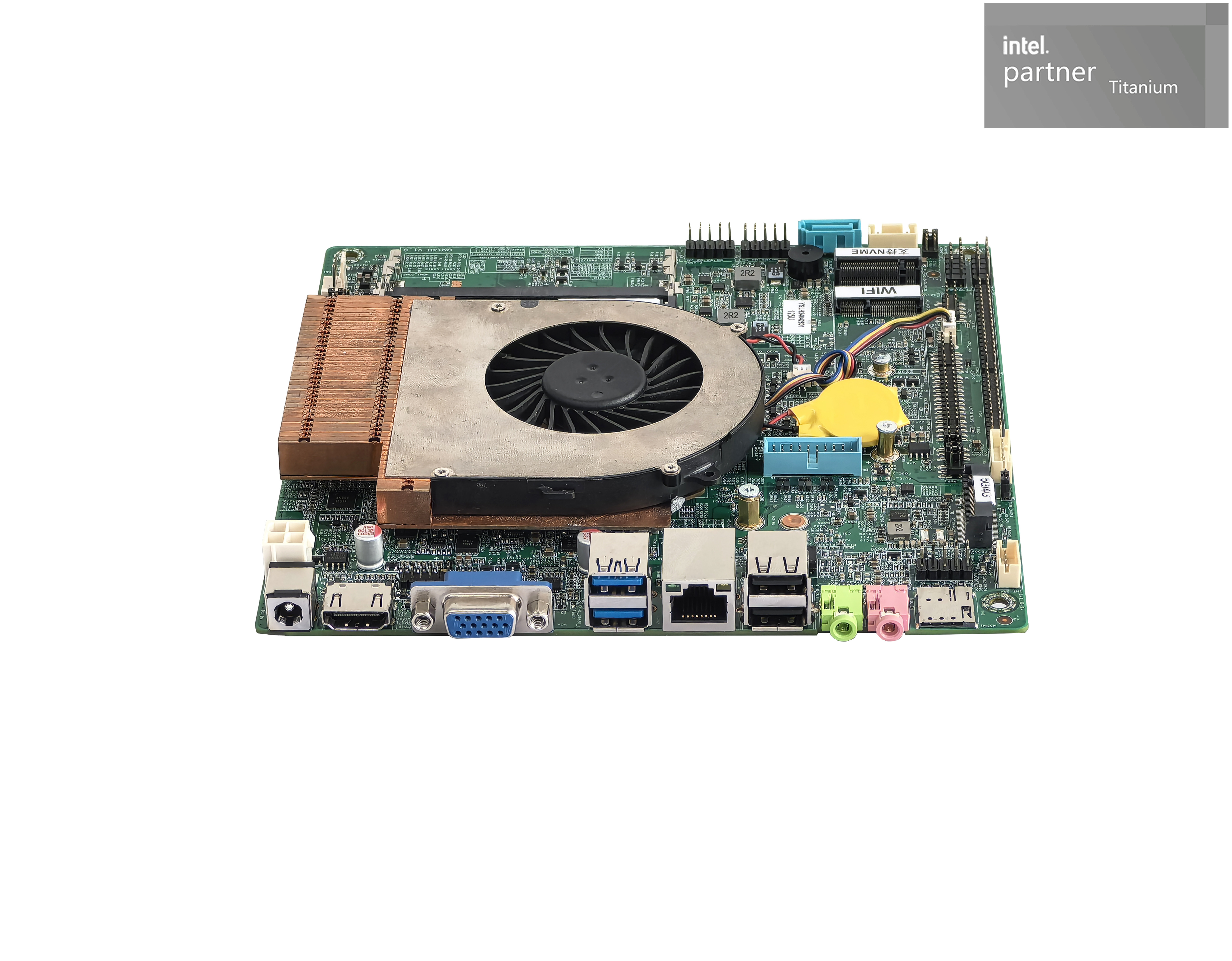

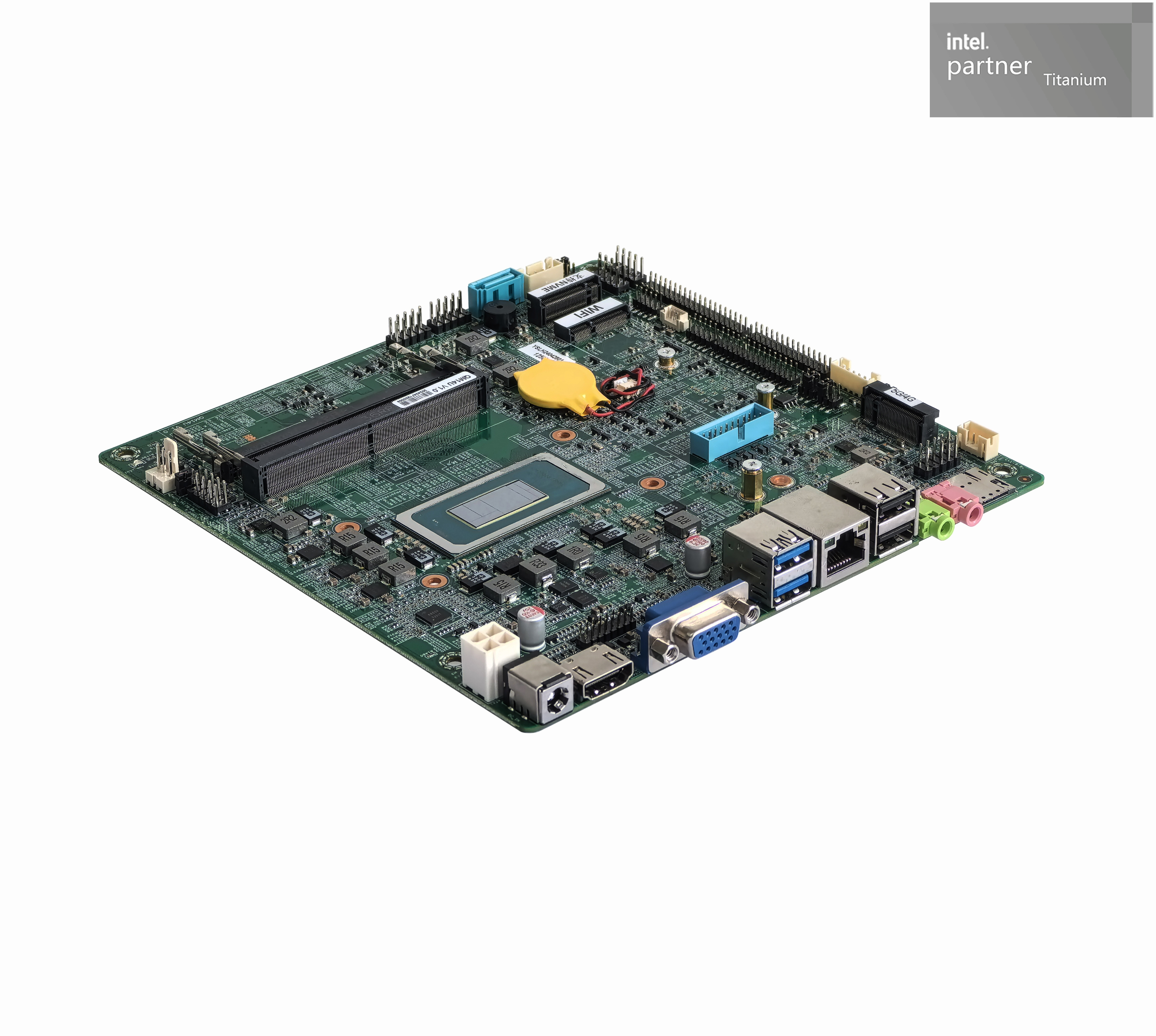

| Size | 170mm（L）*170mm（W）*21mm（H）(No fan thickness) | |
| CPU | QM14U | Support Intel Meteor Lake14 gen Ultra 5 、Ultra 7、Ultra 9 U/H series CPU |
| Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5MM and supports 12V / 19V The maximum power consumption of U series CPU is 57W, and it is recommended to use 12V 7A or 19V5A; H series CPU maximum core frequency power consumption is 115W, it is recommended to use 12V 10A or 19V 6.3A above the power supply; |
| 1*DC_ATX（4Pin） | ||
| Memory | 2*SODIMM slot | NB-DDR5 memory，support 4800/5600MT/s memory，up to support 96GB |
| Internet function | 1/2*RJ45_LAN port | Single network: the default support of Intel I219V gigabit network card; Dual network: support Intel I219V + Realtek 8111H Gigabit network card; Support network wake-up, PXE function; |
| 1*M.2-WIFI port | PCIE 4.0 signal, support for Key-E interface M.2 2230 WiFi / Bluetooth module | |
| 1*M.2-4G/5G port | Support the Key-B interface M.2 5G (3052 / 3042) module or M.2 4G (3042) module | |
| Display function | Integrated Intel Graphics / Intel Arc graphics supercore graphics card Support single display, double / three / four development replication, double / three / four development extension, SHELL double display; | |

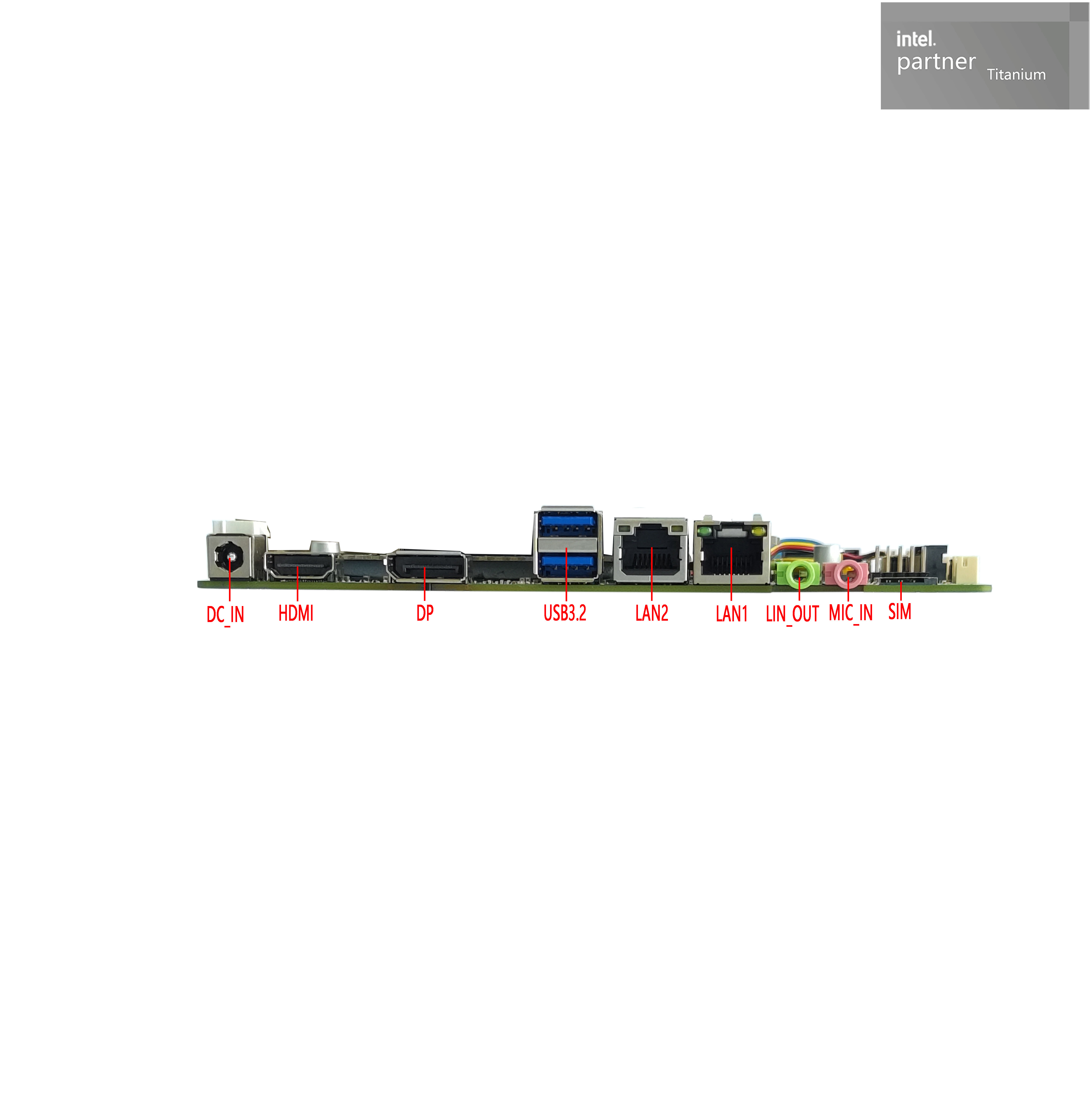

| 1*HDMI2.0 port | Support for 4K resolution 4096/3840*2160@60Hz | |
| 1*HDMI_CON pin | Support for 4K resolution 4096/3840*2160@60Hz （16Pin，2*8Pin，2.0mm） | |

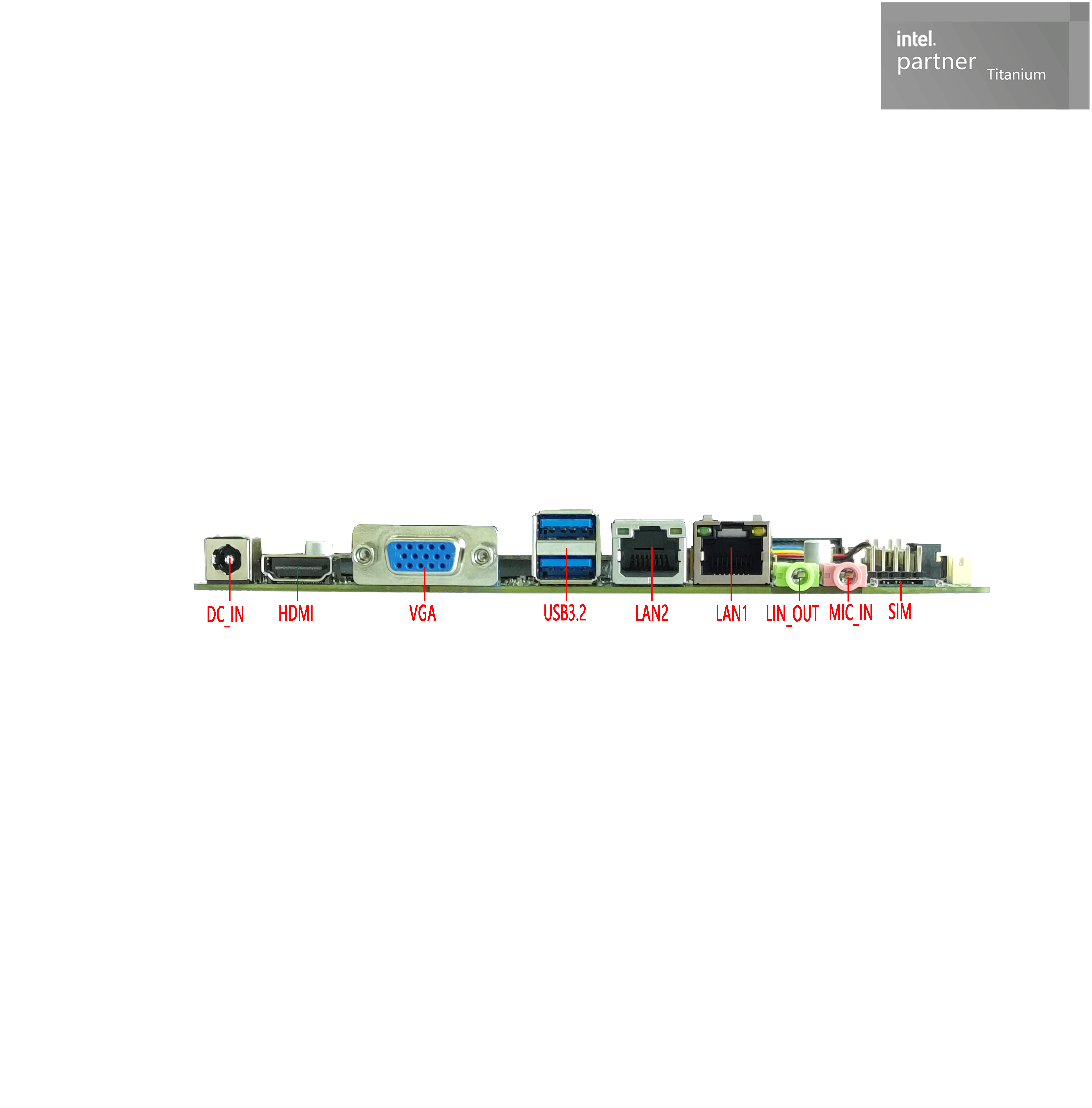

| 1*VGA DB15 port | Support resolution 1920*1080@60Hz | |
| 1*DP port（optional） | Support for DP + +, with 4K resolution 4096 / 3840 * 2160@60Hz | |
| VGA interface can support DP interface | ||
| 1*LVDS1/EDP2 pin | LVDS1 support 2K60Hz；EDP2 support 4K60Hz （30Pin，2*15Pin，2.0mm） | |
| USB function | 2*USB3.2 port | The rear standard USB3.2 Gen1 interface, the maximum transmission broadband of 5 Gbps |
| 2*USB2.0 port | The rear standard USB2.0 interface, the maximum transmission broadband of 480Mbps | |
| 1*F_USB3_A pin | Front USB3.2 pin, one group has 2 * USB3.2 （19Pin，2*10Pin，2.0mm） | |
| 1*F_USB1 pin | Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.54mm） | |
| 1*F_USB2 pin | Front USB2.0 pin, one group has 2 * USB2.0 （9Pin，2*5Pin，2.54mm） | |
| Sound function | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller; | |
| 1*LINE_OUT port | Support audio output (green) | |
| 1*MIC_IN port | Support microphone input (red) | |
| 1*INT_SPK pin | The power amplifier supports dual-channel output of 8 ohm 5 watt Speakers （4Pin，1*4Pin，2.0mm） | |
| 1*F_AUDIO pin | Standard audio insert （9Pin，2*5Pin，2.54mm） | |
| Hard Disk Function | 1*M.2-SATA/PCIE port | Support PCIE 4.0 signal, support Key-M interface M.2 2280 hard disk, and support NVME and SATA protocol by default |
| 1*SATA1 port | Standard SATA hard disk interface, with support for SATA 3.0 | |
| 1*SATA_PWR pin | Hard disk power supply pin, the cable power 5V, 12V （4Pin，1*4Pin，2.54mm） | |
| Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
| 1*AUTO_SW pin | Hardware control power-on boot pin （3Pin，1*3Pin，2.0mm） | |
| Other I/O | 1*COM1 pin | Support for standard RS232 / RS422 / RS485 optional (BIOS settings) （9Pin，2*5Pin，2.54mm） |
| 1*COM2 pin | Only the standard RS232 is supported （9Pin，2*5Pin，2.54mm） | |
| 1*COM3~6 pin | Only the standard RS232 is supported （39Pin，2*20Pin，2.0mm） | |
| 1*JCOM1 pin | COM19th foot set 0V / 5V / 12V （6Pin，2*3Pin，2.0mm） | |
| 1*MSIM1 slot | SIM card supported, SIM card required for 5G / 4G | |
| 1*CLR_CMOS pin | Motherboard zero clearance, discharge plug pin （3Pin，1*3Pin，2.0mm） | |
| 1*CPU_FAN pin | CPU fan pin, support for temperature control （4Pin，1*4Pin，1.25mm） | |
| 1*SYS_FAN pin | System fan pin does not support temperature control at full speed （3Pin，1*3Pin，2.54mm） | |
| 1*J_GPIO pin | GPIO control pin （10Pin，2*5Pin，2.0mm） | |
| Operating environment | Working temperature：-10℃~60℃； Working humidity：5%~95% relative humidity, non-condensing | |
| BIOS | AMI BIOS ， Support power-on boot, scheduled boot, remote switch machine intelligent identificatio | |
| Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds） | |
| operating system | Support Windows 11，Windows 10，LINUX etc. | |
