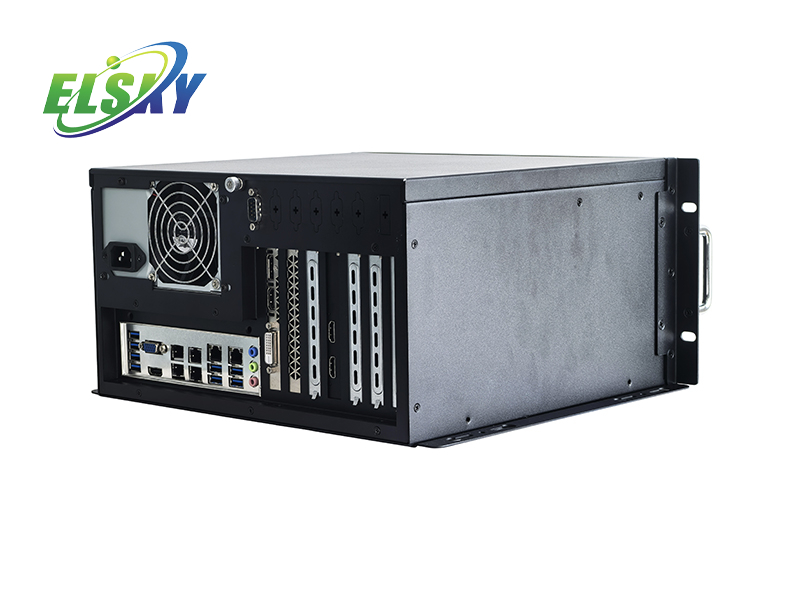

Compact IPC400U for Industrial Use

Overview

The Compact IPC400U Industrial Computer is a space - saving yet powerful computing solution designed for a wide range of industrial applications. Despite its small form factor, it offers reliable performance, rich connectivity options, and rugged construction, making it suitable for use in industrial environments where space is limited but high - performance computing is still required. Whether for embedded control systems, data acquisition, or remote monitoring, the IPC400U provides a compact and efficient platform to meet industrial computing needs.

Features

Ultra - Compact Design: The IPC400U features an extremely small form factor, allowing it to be easily integrated into tight spaces, such as control panels, small enclosures, or existing industrial equipment. Its compact size doesn't compromise on functionality, as it still offers all the necessary components and interfaces for industrial applications.

Reliable Performance in a Small Package: Powered by a capable processor and equipped with sufficient memory and storage, the IPC400U can handle a variety of industrial tasks, including real - time data processing, control algorithm execution, and communication with other industrial devices. It provides stable and reliable performance, ensuring smooth operation of industrial processes even in demanding conditions.

Rich I/O Connectivity: The industrial computer comes with a comprehensive set of I/O interfaces, including Ethernet ports for network communication, USB ports for connecting peripherals, serial ports for legacy devices, and GPIO pins for direct control of industrial equipment. These interfaces enable seamless integration with other industrial components, facilitating data exchange and system coordination.

Rugged and Durable Build: The IPC400U is built with rugged materials to withstand the harsh conditions of industrial environments. It is resistant to dust, moisture, vibrations, and shocks, ensuring its reliable operation in factories, plants, and other industrial settings. The computer's robust design also includes an efficient cooling system to maintain optimal operating temperatures under heavy loads.

Application

Embedded Industrial Control: In embedded industrial control systems, the Compact IPC400U can be used as the core computing unit. It can control and monitor various industrial processes, such as the operation of pumps, valves, and motors, ensuring precise and efficient control. Its small size allows for easy integration into existing control panels or machinery, reducing the overall footprint of the control system.

Data Acquisition and Monitoring: For data acquisition and monitoring applications in industrial environments, the IPC400U can collect data from multiple sensors and devices, process it in real - time, and transmit it to a central server or monitoring station. It can be used in industries such as manufacturing, energy, and transportation to monitor equipment performance, detect anomalies, and optimize operations.

Remote Industrial Monitoring and Control: The IPC400U's network connectivity features make it suitable for remote industrial monitoring and control. It can be connected to a network, allowing operators to access and control the computer and the connected industrial devices from a remote location. This enables proactive maintenance, quick response to issues, and improved overall industrial process management.

Why Choose Us

Innovative Compact Design: Our team has focused on creating an industrial computer that combines a small form factor with high - performance capabilities. The IPC400U's innovative design is the result of extensive research and development, ensuring that it meets the specific needs of industrial applications where space is at a premium.

Quality - Driven Manufacturing: We use only high - quality components in the manufacturing of the IPC400U to ensure its reliability and durability. Each unit undergoes strict quality testing, including performance testing, environmental testing, and compatibility testing, to guarantee that it can perform well in industrial environments. Our commitment to quality means that you can trust the IPC400U for your industrial computing tasks.

Customization for Industrial Requirements: We understand that different industrial applications have unique requirements. That's why we offer customization options for the IPC400U, such as adjusting the I/O configuration, adding specialized software, or optimizing the performance for specific tasks. Our technical team can work with you to create a customized solution that perfectly fits your industrial needs.

Responsive Technical Support: Our technical support team is dedicated to providing prompt and effective support for the IPC400U. Whether you have questions about installation, need help with troubleshooting, or require assistance with software updates, we are here to ensure that your industrial computer operates smoothly and efficiently. We also offer training services to help your staff use the IPC400U to its full potential.

HDMI	VGA	LAN	USB3.2	USB2.0	COM	SSD	Memory	Power
4K 60Hz	2K 60Hz	2	8	4	6	1*M.2 4*SATA3.0	2*PC-DDR4 MAX 64G	ATX
		4
		6

>> CPU Information

CPU Specifications	CPU Brand	CPU Model	Frequency	Turbo	CPU power consumption (W)	Maximum turbo power consumption (W)
12th Generation I3	Intel Core	1 21 00	Quad- core 3.3 GHz	4.3 GHz	60	89
	Intel Core	12300	Quad- core 3.5 GHz	4.4 GHz	60	89
12th generation I5	Intel Core	1 2 400	Hexa-core 2.5 GHz	4.4 GHz	65	117
		1 2 500	Hexa-core 3.0 GHz	4.6 GHz	65	117
		1 2 600	Hexa-core 3.3 GHz	4.8 GHz	65	117
12th Generation I7	Intel Core	12700	Twelve cores 2.1GHz	4.9GHz	65	180
12th Generation I9	Intel Core	1 2 900	Hexa - core 2.4 GHz	5. 1 GHz	65	202
13th Generation I3	Intel Core	13100	Quad-core 3.4 GHz	4.5 GHz	60	89
13th Generation I5	Intel Core	13400	Ten core 2.5 GHz	4.6 GHz	65	154
13th Generation I5	Intel Core	13500	Fourteen cores 2.5 GHz	4.8 GHz	65	154
13th Generation I5	Intel Core	13600	Fourteen cores 2.7 GHz	5.3 GHz	65	154
13th Generation I7	Intel Core	13700	Hexa-core 2.1 GHz	5.2 GHz	65	219
13th Generation I9	Intel Core	13900	24 cores 2.3 GHz	5.6 GHz	65	219
14th generation i3	Intel Core	14100	Quad-core 3.5GHz	4.7GHz	60	110
14th generation i5	Intel Core	14400	Ten-core 2.5GHz	4.7GHz	65	148
14th generation i5	Intel Core	14500	Fourteen cores 2.6GHz	5.0GHz	65	154
14th generation i5	Intel Core	14600	Fourteen cores 2.7GHz	5.2GHz	65	154
14th generation i7	Intel Core	14700	Twenty cores 2.1GHz	5.4GHz	65	219
14th generation i9	Intel Core	14900	24 cores 2.0GHz	5.8GHz	65	219

>> Product Specifications

PC model	IPC400U-GK1200
PC size	356mm (L)*320mm (W)*179mm (H)
Color	black
Compatible motherboard models	GK1200
Motherboard	CPU	Support Alder Lake 12th generation LGA 1700 Core i3-12100, i5-12400, i7-12700, i9-12900, etc.
		Supports Raptor Lake 13th generation LGA 1700 Core i3-13100, i5-13400, i7-13400, i9-13900, etc.
		Supports Raptor Lake 14th generation LGA 1700 Core i3-14100, i5-14400, i7-14700, i9-14900, etc.
		(See the next page for a detailed CPU list)
	Graphics	Intel UHD Graphics 730/770 graphics controller, supports single display, dual display copy, dual display expansion
	Memory	2*PC-DDR4 supports 2133/2400 / 2666/2933/3200MHz memory, maximum support 64G
Front panel interface	POWER	1*Switch button
	RESET	1*Restart switch
	USB	4*USB2.0 interface
	LED	1*power light, 1*hard disk light
Rear panel interface	Power interface	1* Standard ATX desktop power supply , 500W and above desktop power supply is recommended
	Display Interface	1*HDMI2.0 interface (4096/3840*2160@60Hz)
		1*VGA interface (1920*1080@60Hz)
	LAN	6*LAN: Default support 1*Intel I219V+5*Intel I226-V Gigabit LAN
		4*LAN: Support 1*Intel I219V+3*Intel I226-V Gigabit Network Card
		2*LAN: Support 1*Intel I219V+1*Intel I226-V Gigabit Network Card
		Support network wake-up, network PXE function
	USB	8*USB3.2 Gen1 interface
	COM	6*COM, support RS232 by default, COM1 and COM2 can support RS232/RS485
	Audio	1*LINE_OUT interface, audio output
		1*LINE_IN interface, line input
		1*MIC_IN interface, microphone input
	Phoenix Terminal	1*4Pin Phoenix terminal is optional, and the line sequence and function can be customized
Storage	M.2_SSD	1*M.2 Key-M slot, supports M.2 2280 hard disk, default NVME (PCIE) protocol, can change hardware to support SATA protocol
	SATA	4*SATA3.0 hard disk interface
Extensions	M.2_WiFi	1*M.2 Key-E slot, supports M.2 2230 WiFi Bluetooth module
	PCI/PCI-E	2*PCI-E X16 interface (PCI-E is X8 signal)
		3*PCI-E X4 interface
		2*PCI interface
		Expandable independent graphics card, network card, acquisition card and other devices
Environment	Operating temperature	-10℃ ~ 60℃
	Storage temperature	-20℃ ~ 70℃
	Relative humidity	5%-95% relative humidity, non-condensing
	Working vibration	0.5grms/5-500HZ/random/operating
BIOS	AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification
Watch Dog	Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)
Operating system	Supports Windows 11, Windows 10, Linux, etc.
