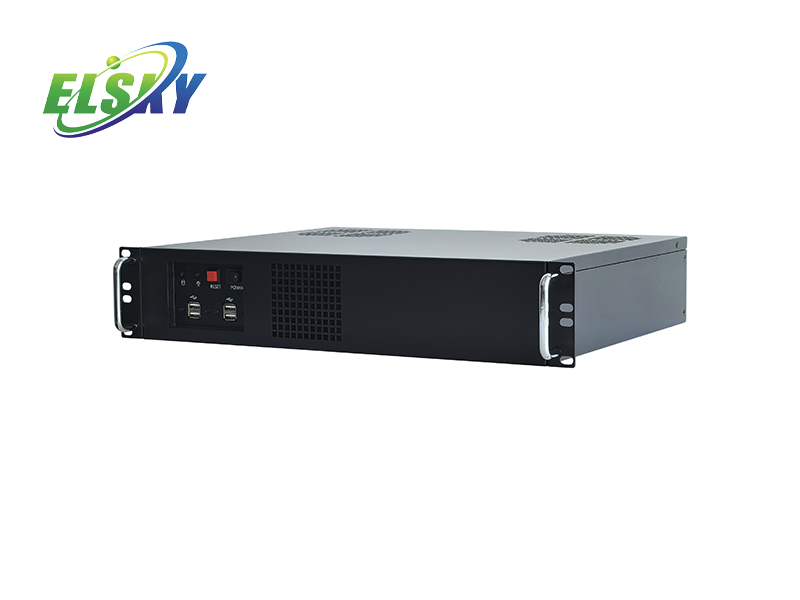

The Compact IPC200U for Industrial Use is a highly efficient and space - saving industrial computer designed to meet the diverse needs of modern industrial environments. Despite its small form factor, this industrial computer packs a punch with powerful computing capabilities and a wide range of features. It serves as a reliable and flexible solution for various industrial applications, providing stable performance and seamless integration into existing industrial systems. Whether for data acquisition, process control, or machine monitoring, the IPC200U offers an optimized platform that ensures smooth operation in demanding industrial settings.
Ultra - Compact Design: The most striking feature of the IPC200U is its ultra - compact size, which allows it to fit into tight spaces within industrial equipment, control panels, or cabinets. This space - saving design is especially beneficial in environments where space is at a premium, enabling easy installation and integration without sacrificing functionality.
Robust Performance: Equipped with a high - performance processor, sufficient memory, and fast storage options, the IPC200U can handle complex industrial tasks with ease. It can run real - time operating systems and industrial software smoothly, ensuring accurate and efficient data processing, even under heavy workloads.
Rich Connectivity Options: The IPC200U comes with a comprehensive set of connectivity ports, including USB, Ethernet, serial ports, and GPIO interfaces. These ports enable seamless connection to a variety of industrial devices such as sensors, actuators, cameras, and other peripherals, facilitating data exchange and communication within the industrial network.
Wide Operating Temperature Range: Built to withstand harsh industrial environments, the IPC200U can operate reliably within a wide temperature range. It can function normally in extreme cold or high - heat conditions, making it suitable for applications in outdoor manufacturing plants, cold storage facilities, and other challenging industrial locations.
Industrial Automation: In industrial automation systems, the Compact IPC200U plays a crucial role in controlling and monitoring production processes. It can be used to manage robotic arms, conveyor belts, and other automated machinery, ensuring precise and efficient operation. By integrating with sensors and actuators, it enables real - time data collection and process adjustment, enhancing overall productivity.
Machine Monitoring and Maintenance: For machine monitoring and predictive maintenance applications, the IPC200U can collect and analyze data from various sensors installed on machines. It can detect anomalies, predict potential failures, and trigger maintenance alerts, helping to reduce downtime and increase the lifespan of industrial equipment.
Smart Factory Solutions: As part of smart factory initiatives, the IPC200U can be integrated into the Internet of Things (IoT) ecosystem. It can communicate with other smart devices and systems, enabling the implementation of intelligent manufacturing processes, such as optimized resource allocation, quality control, and energy management.
In - depth Industrial Expertise: Our company has extensive experience in developing industrial computing solutions. We deeply understand the unique requirements and challenges of the industrial sector, and the IPC200U is the result of our continuous research and innovation in this field. Our expertise ensures that the product is tailored to meet the specific needs of industrial users.
Strict Quality Control: We adhere to strict quality control measures throughout the manufacturing process of the IPC200U. Each unit undergoes rigorous testing, including performance testing, durability testing, and environmental testing, to ensure its reliability and stability. Our commitment to quality guarantees that the IPC200U can perform consistently in harsh industrial environments.
Customization Services: We recognize that different industrial applications have unique requirements. Therefore, we offer customization services for the IPC200U, such as adjusting the hardware configuration, adding specific software, or customizing the I/O interfaces. Our technical team can work closely with you to create a personalized solution that perfectly fits your industrial needs.
Comprehensive Technical Support: Our dedicated technical support team is available to provide comprehensive assistance at every stage. From product selection and installation to after - sales service and maintenance, we offer prompt and professional support. We also provide regular software updates and driver support to keep the IPC200U running at its best, ensuring your peace of mind.
HDMI | VGA | DVI-I | LAN | USB3.1 | USB2.0 | COM | SSD | Memory | Power |
4K 30Hz | 2K 60Hz | 2K 60Hz | 2 | 4 | 6 | 6 | 1*M.2 3*SATA3.0 | 2*PC-DDR4 MAX 64G | ATX |
>> CPU Information
CPU Specifications | CPU Brand | CPU Model | Frequency | Turbo | CPU power consumption (W) | CPU full load power consumption (W) |
6th Generation I3 | Intel Core | 6100 | Dual-core 3.7G | 65 | 90 | |
6300 | Dual-core 3.8G | 65 | 90 | |||
6320 | Dual-core 3.9G | 65 | 90 | |||
6th Generation I5 | Intel Core | 6400 | Quad-core 2.7G | 3.3G | 65 | 90 |
6500 | Quad-core 3.2G | 3.6G | 65 | 90 | ||
6600 | Quad-core 3.3G | 3.9G | 65 | 90 | ||
6th Generation I7 | Intel Core | 6700 | Quad-core 3.4G | 4.0G | 65 | 90 |
7th Generation I3 | Intel Core | 7100 | Dual-core 3.9G | 65 | 90 | |
7300 | Dual-core 4.0G | 65 | 90 | |||
7320 | Dual-core 4.1G | 65 | 90 | |||
7th Generation I5 | Intel Core | 7400 | Quad-core 3.0G | 3.5G | 65 | 90 |
7500 | Quad-core 3.4G | 3.8G | 65 | 90 | ||
7600 | Quad-core 3.5G | 4.,1G | 65 | 90 | ||
7th Generation I7 | Intel Core | 7700 | Quad-core 3.6G | 4.2G | 65 | 90 |
8th Generation I3 | Intel Core | 8100 | Quad-core 3.6G | 65 | 90 | |
8300 | Quad-core 3.7G | 65 | 90 | |||
8th Generation I5 | Intel Core | 8400 | Six core 2.8G | 4.0G | 65 | 90 |
8500 | Six core 3.0G | 4.1G | 65 | 90 | ||
8600 | Six core 3.2G | 4.3G | 65 | 90 | ||
8th Generation I7 | Intel Core | 8700 | Six core 3.2G | 4.6G | 65 | 90 |
9th Generation I3 | Intel Core | 9100 | Quad-core 3.6G | 4.2G | 65 | 90 |
9300 | Quad-core 3.7G | 4.2G | 65 | 90 | ||
9th Generation I5 | Intel Core | 9400 | Six core 2.9G | 4.1G | 65 | 90 |
9500 | Six core 3.0G | 4.4G | 65 | 90 | ||
9600 | Six core 3.1G | 4.6G | 65 | 90 | ||
9th Generation I7 | Intel Core | 9700 | Octa-core 3.0G | 4.7G | 65 | 90 |
9th Generation I9 | Intel Core | 9900 | Octa-core 3.1G | 5.0G | 65 | 90 |
>> Product Specifications
PC model | IPC200U-GK6900 | |
PC size | 428mm(L)*350mm(W)*88mm(H) Size with handle: 480mm(L)*350mm(W)*88mm(H) | |
Cooling System | With heat dissipation holes, silent fan heat dissipation | |
Color | black | |
Compatible motherboard models | GK6900 | |
Motherboard | CPU | Supports Skylate 6th generation LGA1151 Core i3-6100, i5-6400, i7-6700, etc. Supports Kaby Lake 7th generation LGA1151 Core i3-7100, i5-7400, i7-7700, etc. Supports Coffee Lake 8th generation LGA1151 Core i3-8100, i5-8400, i7-8700, etc. Supports Coffee Lake 9th generation LGA1151 Core i3-9100, i5-9400, i7-9700, I9-9900, etc. (See the next page for a detailed CPU list) |
Graphics | 6th generation: Intel HD Graphics 530 graphics controller, supports single display, dual display expansion, dual display copy 7th generation: Intel HD Graphics 630 graphics controller, supports single display, dual display expansion, dual display copy 8th and 9th generation: Intel UHD Graphics 630 graphics controller, supporting single display, dual display expansion, and dual display copy | |
Memory | 2*PC-DDR4 supports 2133/2400/2666MHz memory, maximum support 64G | |
Front panel interface | POWER | 1*Switch button |
RESET | 1*Reset button | |
USB | 4*USB2.0 interface | |
led | 1*HDD light, 1*Power light | |
Rear panel interface | Power interface | 1*ATX power interface, supports standard desktop power supply, recommended 200W or above desktop power supply |
Display Interface | 1*HDMI1.4 interface (4096/3840*2160@30Hz) 1*VGA interface (1920*1080@60Hz) 1*DVI-I interface (1920*1080@60Hz) | |
LAN | Default dual Gigabit network card: Intel I226-V (LAN1) + Intel I219V (LAN2) Gigabit network card; Single Gigabit NIC: Intel I219V (LAN2) Gigabit NIC; Support network wake-up function | |
USB | 4*USB3.1 Gen1 interface 2*USB2.0 interface | |
COM | 6*COM ports, support RS232 by default, COM3/4 can support RS232/422/485 | |
Audio | 1*LINE_IN interface, line input 1*LINE_OUT interface, audio output 1*MIC_IN interface, microphone input | |
1*PS/2 interface | PS/2 keyboard and mouse interface | |
Storage | M.2_SSD | 1*M.2 Key-M slot, supports M.2 2280 hard disk, optional M.2 2242 hard disk, only supports SATA protocol |
SATA | 3*SATA3.0 hard disk interface, support 2.5-inch SSD/HDD hard disk or 3.5-inch HDD hard disk | |
Extensions | PCI-E X16 | 1*PCI-E X16 slot, supports independent graphics card and other PCI-E X16 devices |
PCI-E X4 | 1*PCI-E X4 slot, supports PCI-E X4 devices | |
PCI | 2*PCI slots, support PCI devices | |
Environment | Operating temperature | -10℃ ~ 60℃ |
Storage temperature | -20℃ ~ 70℃ | |
Relative humidity | 5%-95% relative humidity, non-condensing | |
Working vibration | 0.5grms/5-500HZ/random/operating | |
BIOS | AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification | |
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Operating system | 6th and 7th generation CPUs support Windows 7, Windows 10, Windows 11, Linux systems, etc.; 8th and 9th generation CPUs support Windows 10, Windows 11, Linux systems, etc.; The Intel 1226-V (LAN1) network card chip on the dual-port motherboard does not support the Windows 7 system; Can be changed to single network port motherboard Intel 1219V (LAN2) network card to support win7 system | |
