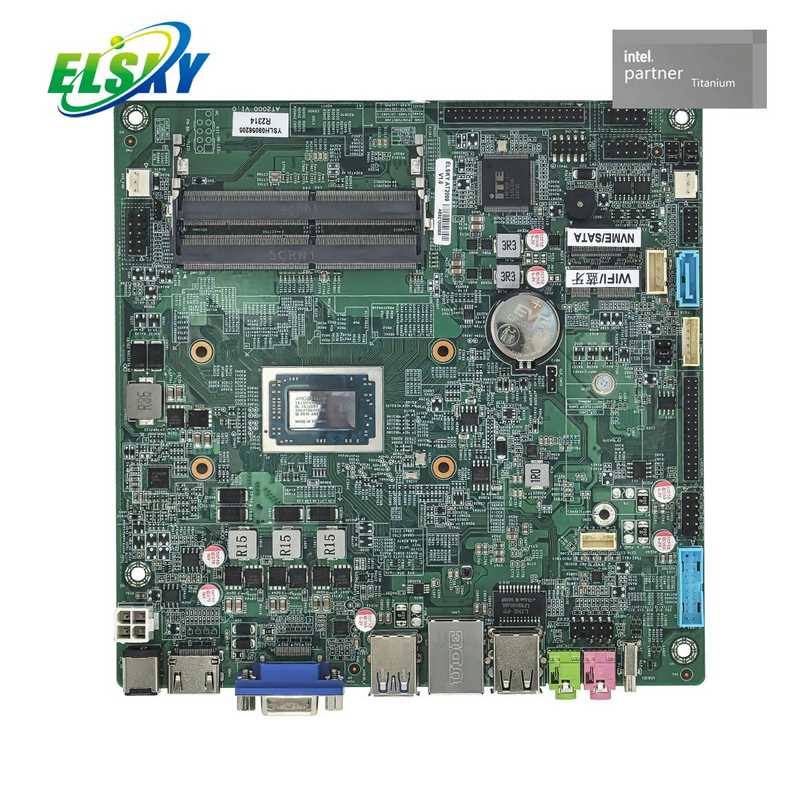

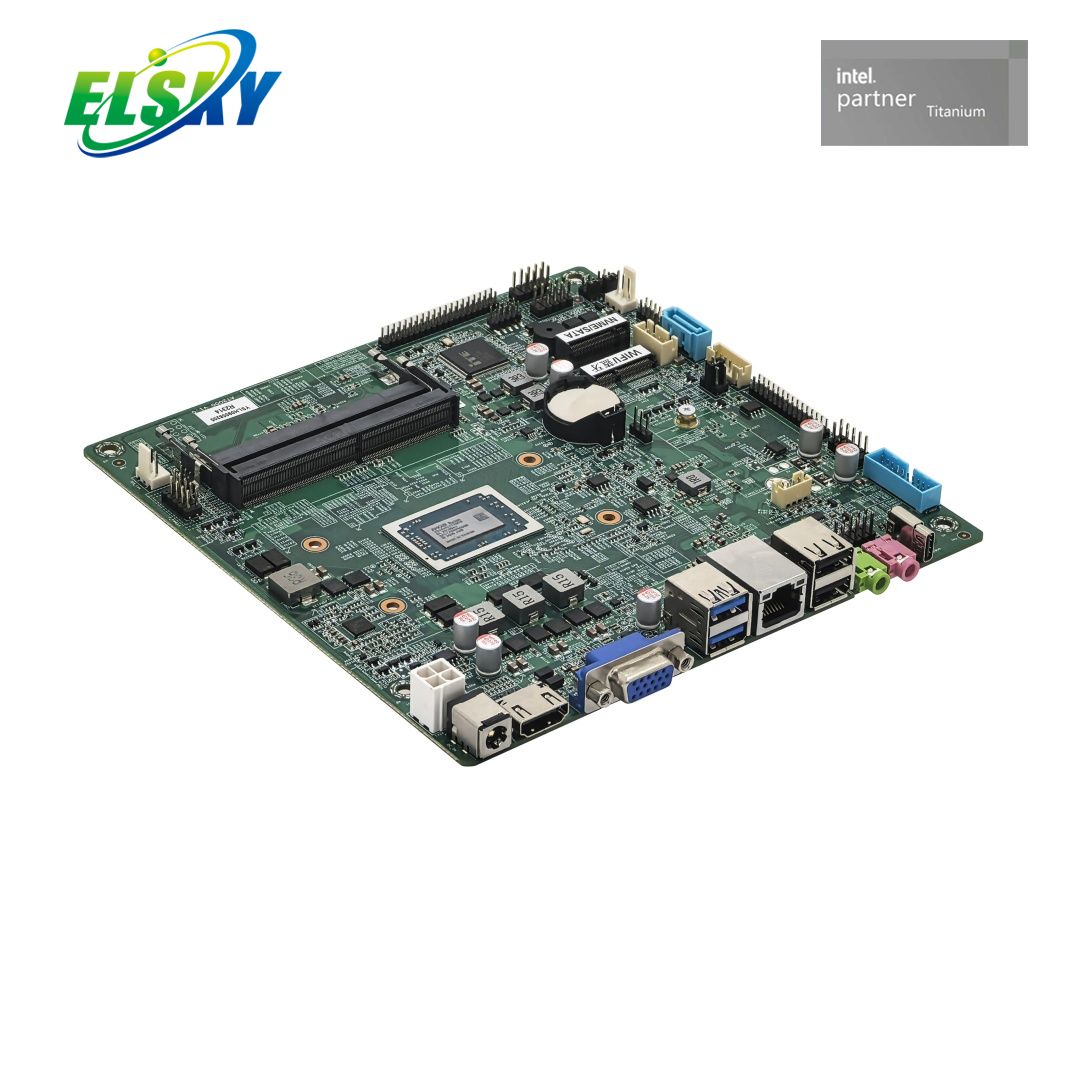

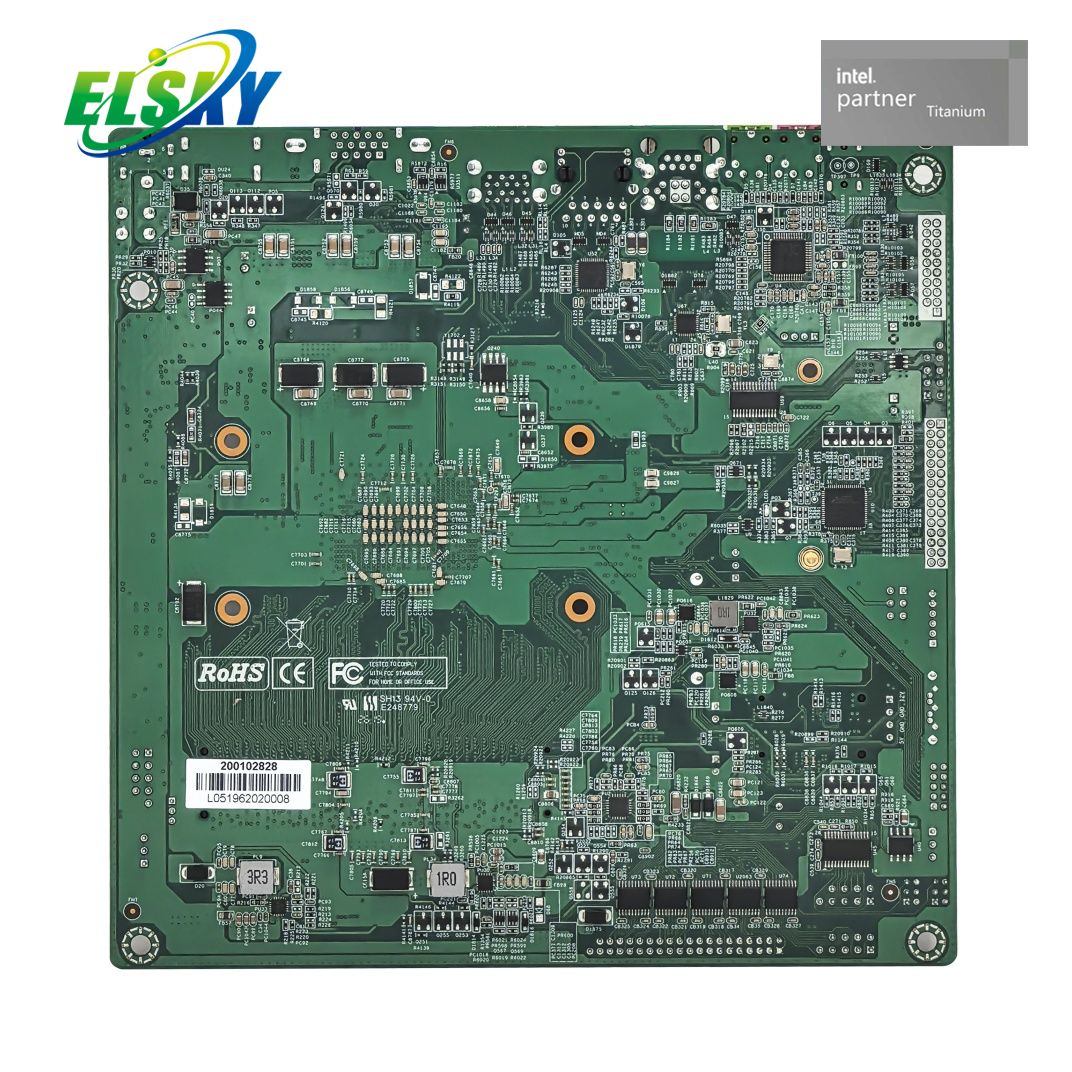

Overview
Form Factor: Standard Mini-ITX, 170mm x 170mm x 21mm
Processor Support: Onboard AMD Ryzen™ R2000 Series processors (R2544, R2514, R2314, R2312)
Graphics: Integrated AMD Radeon™ Graphics
Memory Architecture: 2x SO-DIMM NB-DDR4 slots, max 32GB (2133/2400/2666MHz)
Power Input: DC 12V / 19V input via 5.5*2.5mm DC Jack or 4-pin ATX connector
Features
Flexible Storage Expansion: Integrates one M.2 Key-M (2280) slot supporting PCIe 3.0 x4 NVMe or SATA SSDs, plus an additional SATA 3.0 connector with onboard power output.
Versatile Display Combinations: Supports synchronous and asynchronous multi-display via HDMI 2.0 (4K@60Hz), VGA or optional DP (4K@60Hz), and LVDS (2K@60Hz) / eDP (4K@60Hz) headers.
Industrial Communication Interfaces: Offers up to 6x COM ports (COM1 soft-configurable to RS232/RS422/RS485 via BIOS with 0V/5V/12V pin-9 power), plus 8-channel programmable GPIO.
Rich Networking & Wireless: Features single/dual Gigabit LAN configurations (Intel I219V + Realtek 8111H option) and M.2 Key-E (2230) slot for Wi-Fi/Bluetooth cards.
Modern Connectivity: Equipped with rear USB 3.0 ports and a dedicated Type-C data transfer port.
Application
Commercial Kiosks & Vending: Powers interactive terminals and self-service kiosks requiring multi-serial control and 4K media rendering.
Factory Edge Gateways: Handles local sensor aggregation and industrial equipment communication via 6x COM ports and 8-bit GPIO.
Digital Signage Displays: Drives high-definition multi-screen advertisement boards via HDMI, DP, and internal LVDS/eDP connections.
Why Choose Us
Efficient AMD R2000 SOC
Quad-core performance tailored for industrial edge computing.
Triple Independent Display
Direct support for simultaneous output across 4K HDMI, DP/VGA, and LVDS/eDP.
Industrial Hardware Reliability
Features Watchdog timer support (256 levels) and BIOS auto power-on function for unattended operation.
→Model Configuration
Motherboard Model |
CPU |
4K |
LAN |
COM |
USB2.0 |
USB3.0 |
Type_C |
SSD |
Memory |
Power |
AT2000 |
Supports AMD Ryzen R2000 Series CPU |
Supported |
1 |
2/6 |
4 |
4 |
USB Data Transmission Function |
1*M.2
1*SATA |
2*NB-DDR4
MAX 32G |
+12V/19V |
2 |
2/6 |
2 |
4 |
Note: Built-in F_USB3_A header signals and Type_C signals are mutually exclusive (select one of two). By default, the F_USB3_A header has signal, and Type_C has no signal.
→CPU Information
CPU Brand |
CPU Spec |
CPU Model |
Cores / Threads |
Base Clock Frequency (GHz) |
Max Boost Frequency (GHz) |
TDP Power (W) |
cTDP Power (W) |
AMD |
Ryzen R2000 Series |
R2312 |
Dual-Core Quad-Thread |
2.7G |
3.5G |
15W |
12~35W |
AMD |
Ryzen R2000 Series |
R2314 |
Quad-Core Quad-Thread |
2.1G |
3.5G |
15W |
12~35W |
AMD |
Ryzen R2000 Series |
R2514 |
Quad-Core Octa-Thread |
2.1G |
3.7G |
15W |
12~35W |
AMD |
Ryzen R2000 Series |
R2544 |
Quad-Core Octa-Thread |
3.35G |
3.7G |
45W |
35~54W |
→Product Specifications
Motherboard Size |
170mm (L) 170mm (W) 21mm (H) |
CPU |
AT2000 |
Supports AMD Ryzen R2000 Series CPU: R2544, R2514, R2314, R2312 |
Power |
1*DC_IN |
DC jack inner diameter 2.5mm, supports 12V/19V Motherboard full load power consumption ~50W; 12V 7A or 19V 3A+ power supply recommended; |
1*ATX (4Pin) |
Memory |
2*SODIMM Slots |
NB-DDR4 memory, supports 2133/2400/2666 memory, supports up to 32G |
Networking |

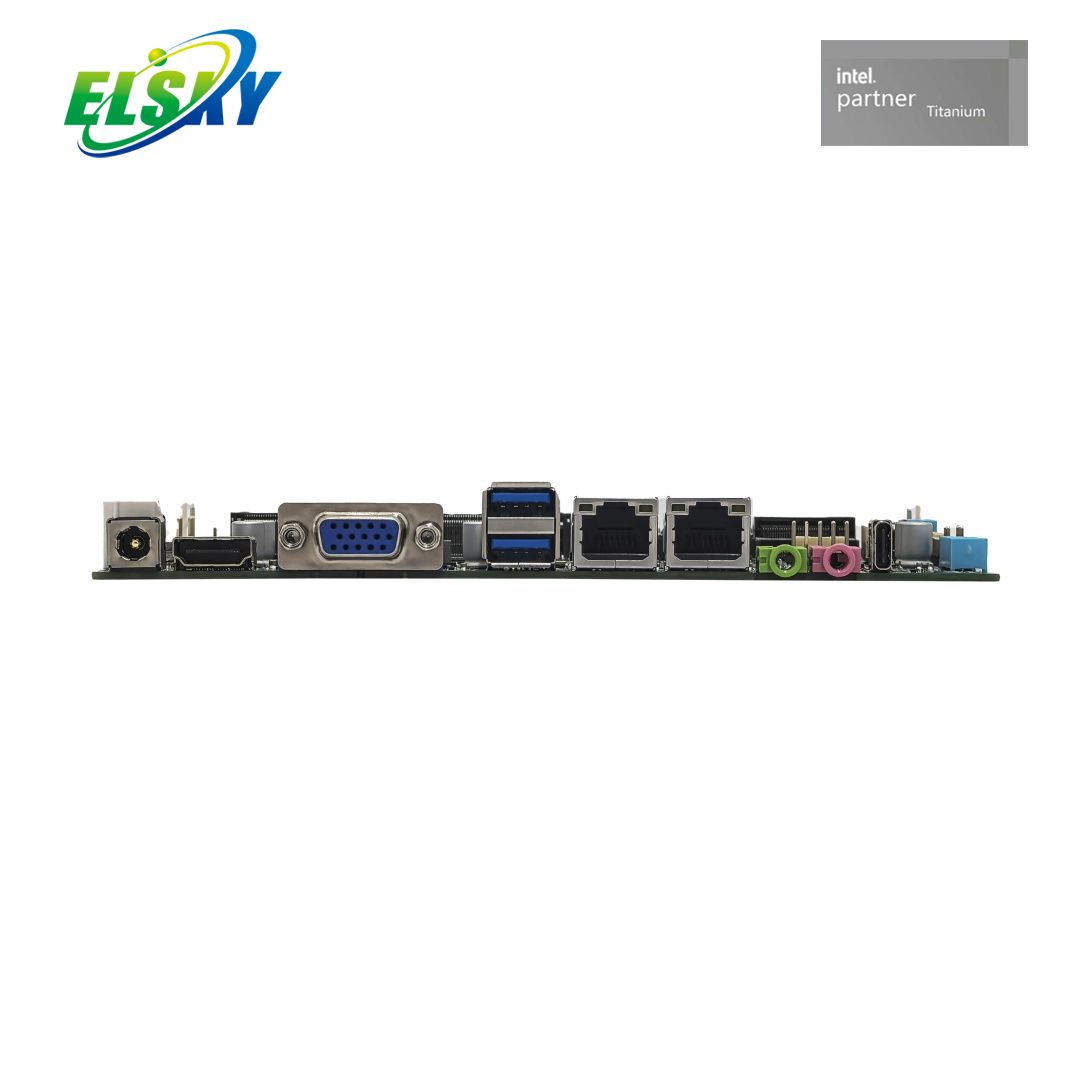

1/2*RJ45_LAN Port |

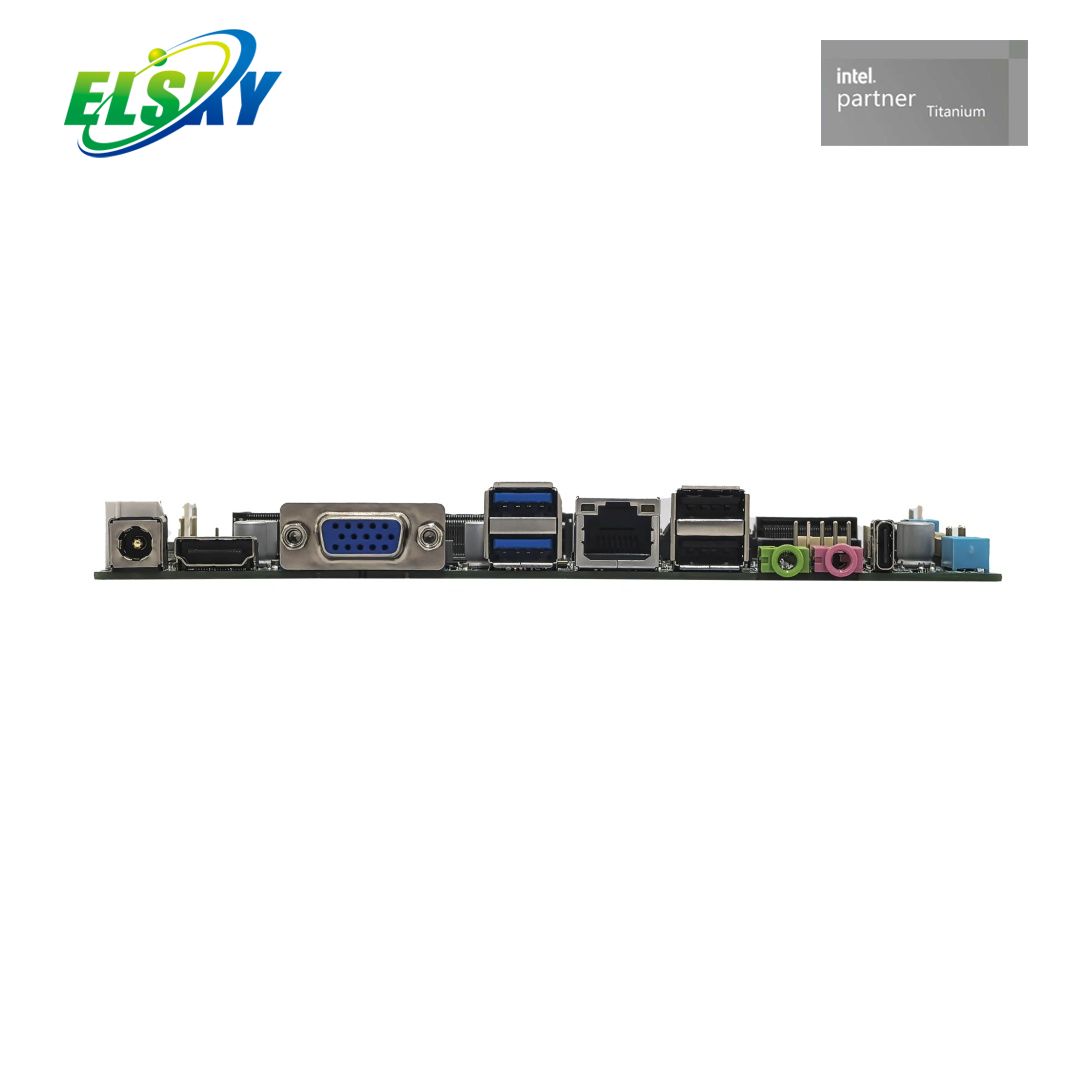

Single LAN: Default supports Intel® i219-V Gigabit LAN;
Dual LAN: Supports Intel® i219-V + Realtek 8111H Gigabit LAN;
Supports Wake-on-LAN (WOL), PXE function; |
1*M2_WIFI Interface |
Supports Key-E interface M.2 2230 PCIe 3.0 x1 & USB, supports WiFi & Bluetooth modules |
Display |
Integrated AMD Radeon Graphics |
Supports single display, dual/triple display duplicate, dual/triple display extension, dual display under SHELL; |
1*HDMI® 2.0 Port |
Supports 4K resolution 4096/3840*2160@60Hz |
1*VGA DB15 Port |
Supports resolution 1920*1080@60Hz |
1*DP Port (Optional) |
Does NOT support DP++; Supports 4K resolution 4096/3840*2160@60Hz |
VGA Port can be modified to support DP Port |
1*LVDS/EDP1 Header |
LVDS1 supports 2K@60Hz; EDP1 supports 4K@60Hz |
(30Pin, 2*15Pin, 2.0mm) |
1*VCC_SEC Header |
LVDS/EDP1 working voltage control header |
(6Pin, 2*3Pin, 2.54mm) |
1*BKLT_CONN Header |
LVDS backlight control header |
(6Pin, 1*6Pin, 2.0mm) |
Default supports LVDS, optional supports EDP1, shared header; EDP-B screen cable (20Pin independent backlight cable) |
USB |
2*USB3.0 Ports |
Rear standard USB 3.0 ports, max transmission bandwidth 5Gbps |
2*USB2.0 Ports |
Rear standard USB 2.0 ports, max transmission bandwidth 480Mbps |
1*F_USB1 Header |
Front USB 2.0 header, one set includes 2*USB2.0 |
(9Pin, 2*5Pin, 2.54mm) |
1*F_USB3_A Header |
Front USB 3.0 header, one set includes 2*USB3.0 |
(19Pin, 2*10Pin, 2.0mm) |
1*USB3D1 (Type_C) Port |
Supports data transmission |
Built-in F_USB3_A header signals and USB3D1 (Type_C) port signals are mutually exclusive (select one of two). By default, F_USB3_A header has signal, Type_C has no signal; |
Audio |
Integrated Realtek ALC897 HD Digital Audio Decoder, 6-Channel High Fidelity Audio Controller; |
1*LINE_OUT Port |
Supports audio output (Green) |
1*MIC_IN Port |
Supports microphone input (Red) |
1*INT_SPK Header |
Supports 8 ohm 5 watt speaker output (Power Amplifier) |
(4Pin, 1*4Pin, 2.0mm) |
1*F_AUDIO Header |
Standard audio header |
(9Pin, 2*5Pin, 2.54mm) |
Storage |
1*NGFF1 Interface |
Supports Key-M interface M.2 2280 NVMe PCIe 3.0 x4 / SATA dual-protocol adaptive standard SSD;
Optional M.2 2242 SSD; |
1*SATA1 Port |
Standard SATA drive port, supports SATA 3.0 |
1*SATA_PWR1 Header |
Drive power supply header, supports 5V, 12V output |
(4Pin, 1*4Pin, 2.54mm) |
Power Switch |
1*F_PANEL Header |
Power switch, power LED, HDD LED, reset header |
(9Pin, 2*5Pin, 2.54mm) |
1*AUTO_CN Header |
Hardware control auto power-on header |
(3Pin, 1*3Pin, 2.0mm) |
Other I/O |
1*COM1 Header |
Supports standard RS232/RS422/RS485 optional (BIOS setting) |
(9Pin, 2*5Pin, 2.54mm) |
1*COM2 Header |
Supports standard RS232 only |
(9Pin, 2*5Pin, 2.54mm) |
1*COM3-6 Header |
Supports standard RS232 only |
(39Pin, 2*20Pin, 2.0mm) |
1*JCOM1/2 Header |
COM1/2 Pin 9 voltage selection 0V/5V/12V |
(6Pin, 2*3Pin, 2.0mm) |
1*CLR_CMOS Header |
Motherboard clear CMOS & discharge header |
(3Pin, 1*3Pin, 2.54mm) |
1*FAN1 Header |
CPU fan header, supports temperature control |
(3Pin, 1*3Pin, 2.54mm) |
1*SYS_FAN Header |
System fan header |
(3Pin, 1*3Pin, 2.54mm) |
1*GPIO_CN Header |
GPIO control header, supports 8-channel GPIO signals |
(10Pin, 2*5Pin, 2.0mm) |
Operating Environment |
Working Temperature: -10°C~60°C; Working Humidity: 5%~95% Relative Humidity, non-condensing |
BIOS |
Supports auto power-on, scheduled power-on, remote power-on, intelligent device identification |
Watch Dog |
Watchdog programming, supports hardware reset function (256 levels, 0~255 seconds) |
Operating System |
Supports Windows 11, Windows 10, LINUX, etc. |
FAQ
Q1: Can I use both the front USB3.0 header and the rear Type-C port at the same time?
A1: No.The USB signals for the internal F_USB3_A header and the Type-C port are multiplexed (either/or). By default, signal is routed to the F_USB3_A header.
Q2: How is the VGA or DP display option configured on this board?
A2: The onboard VGA DB15 interface and DisplayPort (DP) share a single physical output location on the rear I/O. The motherboard comes with VGA output by default, but can be ordered or factory-modified with DP (supporting 4K@60Hz).
Q3: What type of power supply adapter should be used with the AT2000?
A3: The motherboard operates on a 12V or 19V DC source.
Q4: Is the M.2 Wi-Fi slot compatible with M.2 SSD storage cards?
A4: No, the M.2 Key-E (2230) slot is specifically designed for PCIe 3.0 x1 / USB Wi-Fi and Bluetooth modules and cannot be converted to support M.2 SSD storage. Storage is supported via the M.2 Key-M slot.
