Overview

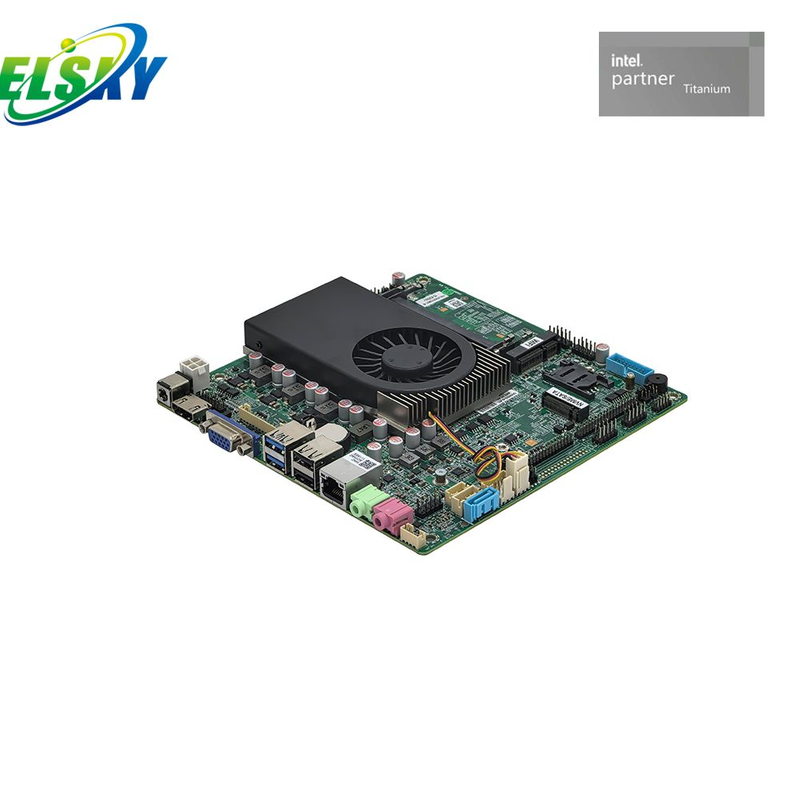

The ELSKY QM9850 is industrial-grade Mini-ITX motherboards designed for 24/7 continuous operation. Based on the Intel chipset, these boards support Intel 8th Generation Core processors (including i5-8250U, i7-8550U, etc.), delivering powerful performance for embedded and industrial applications.
Features
High-Speed Memory Support: Equipped with 2 x NB-DDR4 memory slots, the motherboard supports up to 64GB of 2133/2400MHz memory. This enables fast data access and processing, enhancing overall system performance for memory-intensive applications such as data analysis and multitasking.
Triple 4K Display Output: Featuring HDMI 1.4 (4K@30Hz), DP 1.4 (4K@60Hz), VGA, LVDS, and eDP interfaces, the motherboard supports triple independent 4K displays. This makes it ideal for digital signage, medical equipment, and multi-screen industrial workstations.
Flexible Network Options: With 1 or 2 x Realtek 8111H Gigabit LAN ports, the motherboard supports network wake-up and PXE functionality. Dual LAN configuration provides redundancy and enhanced network security for critical applications.
High-Speed Storage Support: The motherboard includes 1 x M.2 2280 NVMe/SATA adaptive SSD slot and 1 x SATA 3.0 port. The M.2 slot supports PCIe 3.0 x4 for ultra-fast data transfer, significantly accelerating system boot and software loading.
Application
Industrial Control Systems: Ideal for factory automation, CNC machines, and PLC systems. Supports 6 x COM ports, -10°C to 60°C operation, and watchdog timer for reliable 24/7 performance.
Digital Signage: Triple independent 4K display output (HDMI, DP, VGA, LVDS, eDP) makes it perfect for multi-screen signage in retail stores, airports, and hotels.
Self-Service Kiosks: Compact Mini-ITX (170x170mm) fits easily into kiosks, ATMs, and interactive terminals. Rich I/O including USB, COM, and dual LAN options ensure reliable connectivity.
Embedded Automation: Flexible storage (M.2 NVMe + SATA 3.0) and Mini-PCIe for WiFi/4G modules make it suitable for smart manufacturing, IoT gateways, and environmental monitoring.
Why Choose Us
Technological Innovation: Supports Intel 8th Gen CPUs, triple 4K display, and M.2 NVMe for future-ready performance.
Quality-Driven Manufacturing: Strict quality standards and rigorous testing ensure stability and reliability.
Comprehensive Documentation: Detailed manuals, pin definitions, and troubleshooting guides for easy setup.
Long-Term Support: Regular BIOS updates and dedicated technical support throughout the product lifecycle.
Motherboard model |
CPU |
4K |
LAN |
COM |
USB2.0 |
USB3.0 |
SSD |
Memory |
Power |
QM9850-2C |
Intel 8th generation Core i3, i5, i7 |
Support |
1 |
2 |
6 |
4 |
1*M.2 1*SATA Optional 1*MSATA |
2*NB DDR4 MAX 64GB |
+12V/19V |
QM9850-6C |
6 |
QM9850-2L2C |
2 |
2 |
4 |
4 |
QM9850-2L6C |
6 |
>> CPU information
CPU Specifications |
CPU Brand |
CPU Model |
Frequency |
Turbo |
CPU power consumption (W) |
Full load power consumption (W) |
8gen I3 |
Core |
8130U |
Dual-core 2.2G |
3.4G |
15 |
60 |
8gen I5 |
Core |
8250U |
Quad-core 1.6G |
3.4G |
15 |
60 |
8350U |
Quad-core 1.7G |
3.6G |
15 |
60 |
8gen I7 |
Core |
8550U |
Quad-core 1.8G |
4.0G |
15 |
60 |
8650U |
Quad-core 1.9G |
4.2G |
15 |
60 |
>> Product Specifications
Motherboard size |
170mm（L）*170mm（W）*24mm（H） |
CPU Processor |
6th Generation |
Celeron 3855U, 3955U, Skylake Core i3-6100U, i5-6200U, i7-6500U, etc |
7th Generation |
Celeron 3865U, 3965U and Kabylake Core i3-7100U, i5-7200U, i7-7500U, etc |
8th Generation |
Kirby Lake-R Core i3-8130U, i5-8250U, i7-8550U, etc |
Memory |
2 * NB-DDR4 memory slot, supports 2133/2400MHz memory, maximum support 64GB |
Power supply |
1*DC_IN |
Supports 12V/19V voltage, with a DC head inner diameter of 2.5MM The full load power consumption of the 6th and 7th generation motherboards is about 40W, and it is recommended to use a power supply of 12V5A or 19V3A or above; The full load power consumption of the 8th generation motherboard is about 60W. It is recommended to use a power supply of 12V7A or 19V5A or above; |
1*ATX1（4Pin） |
Display functions |
6th generation integrated with Intel ® HD510/520 Graphics |
Support single display, dual display/triple display replication, dual display/triple display expansion, single display under DOS |
7th/8th generation integrated with Intel ® HD610/620 Graphics |
1*VGA DB15 interface |
Supports a resolution of 1920* 1080@60Hz |
1*VGA_OUT pin |
Supports a resolution of 1920* 1080@60Hz （12Pin，1*12Pin，2.0mm） |
1*DP 1.4 interface |
DP does not support DP++, supports 4K resolution 4096/3840* 2160@60Hz |
VGA and DP are two options |
1*HDMI®1.4 interface |
Supports 4K resolution of 4096/3840* 2160@30Hz |
1*HDMI_CON pin |
Supports 4K resolution of 4096/3840* 2160@30Hz （16Pin，2*8Pin，2.0mm） |
1*LVDS pin |
Supports a resolution of 1920* 1080@60Hz （30Pin，2*15Pin，2.0mm） |
1*VCC_SEL pin |
LVDS voltage control pin （6Pin，2*3Pin，2.54mm） |
1*BKLT_PWR1 pin |
LVDS backlight voltage control pin （3Pin，1*3Pin，2.54mm） |
1*BKLT_CTRL pin |
LVDS backlight brightness adjustment pin （4Pin，1*4Pin，2.0mm） |
1*BKLT_CONN pin |
LVDS backlight switch backlight brightness adjustment control （6Pin，1*6Pin，2.0mm） |
1*EDP pin |
EDP-C screen cable, supports 4K resolution 4096/3840* 2160@60Hz （30Pin，2*15Pin，2.0mm） |
1*EDP_PWR pin |
EDP voltage control pin （6Pin，2*3Pin，2.0mm） |
LVDS and EDP are two options, each with a separate pin |
Network Features |
1/2*LAN interface |
Single network: default support for Realtek 8111H Gigabit Ethernet card; Optional support for Realtek 8106E 100Mbps network card; Dual network: supports Realtek 8111H Gigabit Ethernet card+Realtek 8111H Gigabit Ethernet card; Optional support for Realtek 8106E+Realtek 8106E 100Mbps network card Support network wake-up and PXE functionality |
1*MPCIE interface |
Supports PCIE3.0 x1 signal, default supports WiFi module, does not support Bluetooth/4G module; Can be modified to support WiFi Bluetooth/4G modules, but after modification, there is no signal at pins 2/4/6/8/10 of the F2 USB2 pin; The PCIE signal can be changed to SATA signal, and after the change, it supports MSATA disks; |
Hard disk function |
1*M.2 interface |
Support Key-M interface M.2 2280 NVME PCIE3.0 x4/SATA adaptive standard SSD; Optional M.2 2242 hard drive； |
1*SATA2 interface |
Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps |
1*SATA_PWR2 pin |
The hard drive power supply pin can be powered with 5V or 12V. （4Pin，1*4Pin，2.54mm） |
Sound Function |
Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller Can modify Cmedia HS_100B USB sound card |
1*LINE_OUT interface |
Supports audio output (green) |
1*MIC_IN interface |
Supports microphone input (red) |
1*INT_SPK pin |
Power amplifier; Supports dual channel output with 8 Euro and 5 Watt speakers （4Pin，1*4Pin，2.0mm） |
1*F_AUDIO pin |
Standard audio pin （9Pin，2*5Pin，2.54mm） |
USB Function |
2*USB3.0 interface |
Rear standard USB 3.0 interface |
2*USB2.0 interface |
Rear standard USB 2.0 interface |
1*F_USB1 pin |
Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.54mm） |
1*F_USB2 pin |
Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.54mm） |
Choose between the 2nd/4th/6th/8th/10th pins of the motherboard's USB2 pin and the USB signal of the Mini PCIe interface. The default USB pin has a signal; Choose between the 1st/3rd/5th/7th pins of the motherboard's F_USB2 pin and the USB signal of the Cmedia HS_100B USB sound card. The default USB pin has a signal； |
1 * F_USB3_Spin |
Front USB 3.0 pins, one set with 2 USB 3.0 （19Pin，210Pin，2.0mm） |
Switch |
1*F_PANEL pin |
Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
1*AUTO_SW pin |
Hardware control power on plug （3Pin，1*3Pin，2.0mm） |
Other I/O |
1*COM1 pin |
Serial port, supports RS232/RS422/RS485 optional （9Pin，2*5Pin，2.54mm） |
1*COM2 pin |
Serial port, supporting standard RS232; （9Pin，2*5Pin，2.54mm） |
1*COM3-6 pin |
Serial port, supporting standard RS232; （39Pin，2*20Pin，2.0mm） |
1*JCOM1 pin |
Control COM1 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm） |
1*JCOM2 pin |
Control the 9th pin voltage of COM2 to 0V/5V/12V, optional （6Pin，2*3Pin，2.0mm） |
All com can be modified to support TTL hardware |
1*SIM_CARD slot |
Supports SIM card, SIM card is required when using 4G |
1*FAN2 pin |
CPU fan pin, full speed, does not support temperature control （3Pin，1*3Pin，2.54mm） |
1*FAN3 pin |
System fan pin, full speed, does not support temperature control （3Pin，1*3Pin，2.54mm） |
1*J_GPIO pin |
GPIO control pin （10Pin，2*5Pin，2.0mm） |
Operating environment |
Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation |
BIOS |
AMI BIOS， Timed startup, intelligent recognition of remote power on/off devices |
Watch Dog |
Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) |
Operating system |
6/7 generations support Windows 10, Windows 8, Windows 7, Linux, etc; 8th generation supports Windows 10, Linux, etc |
