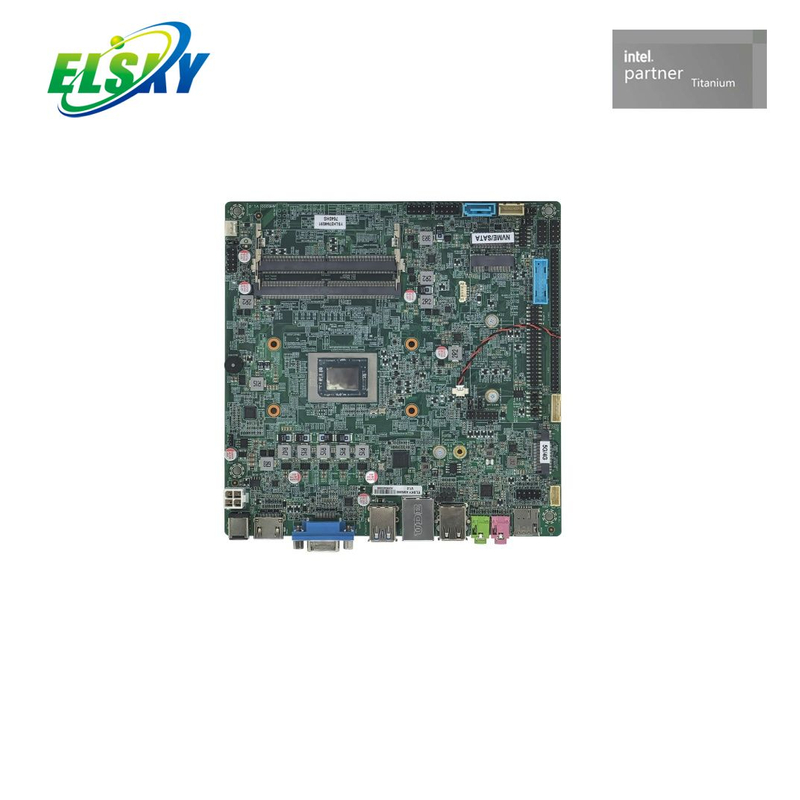

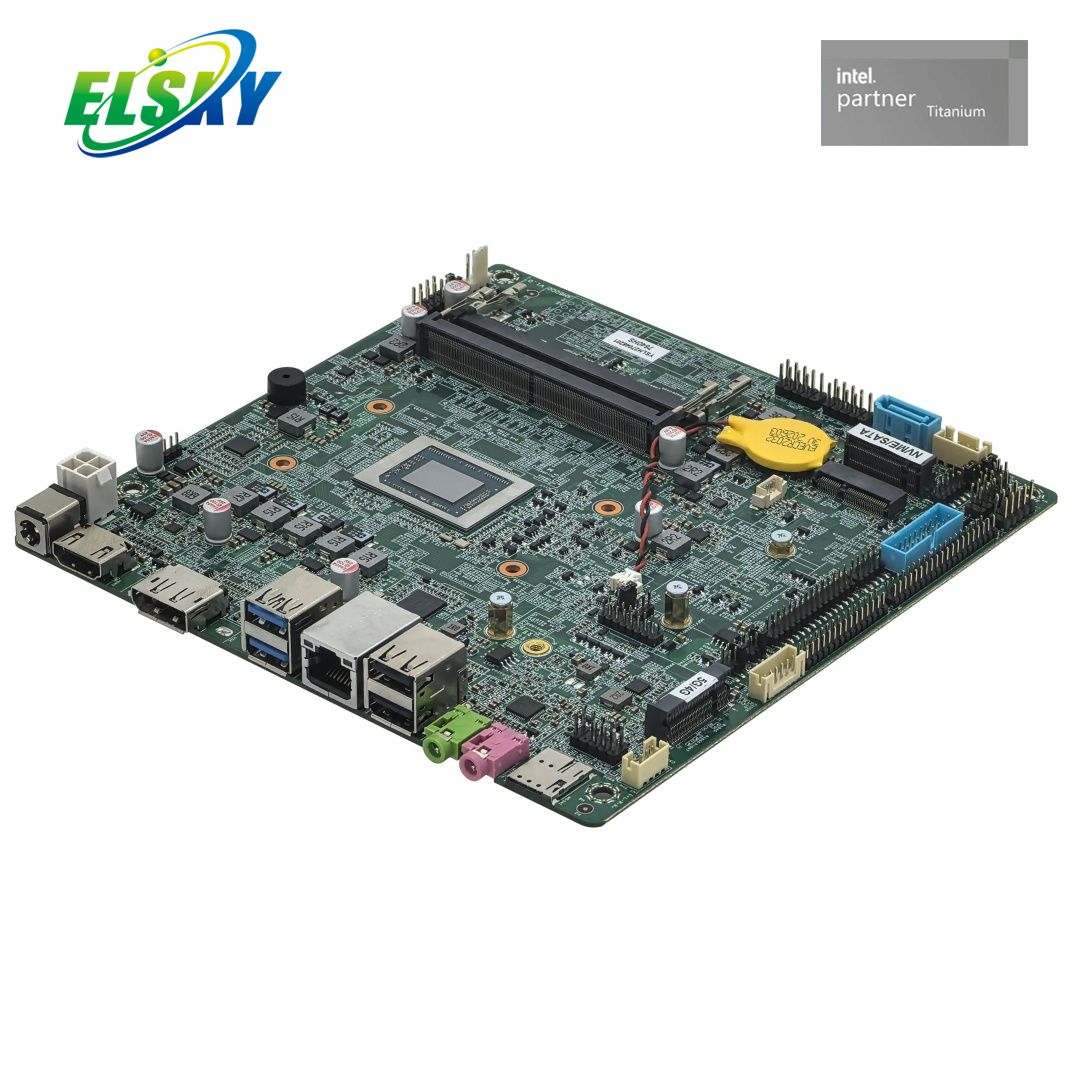

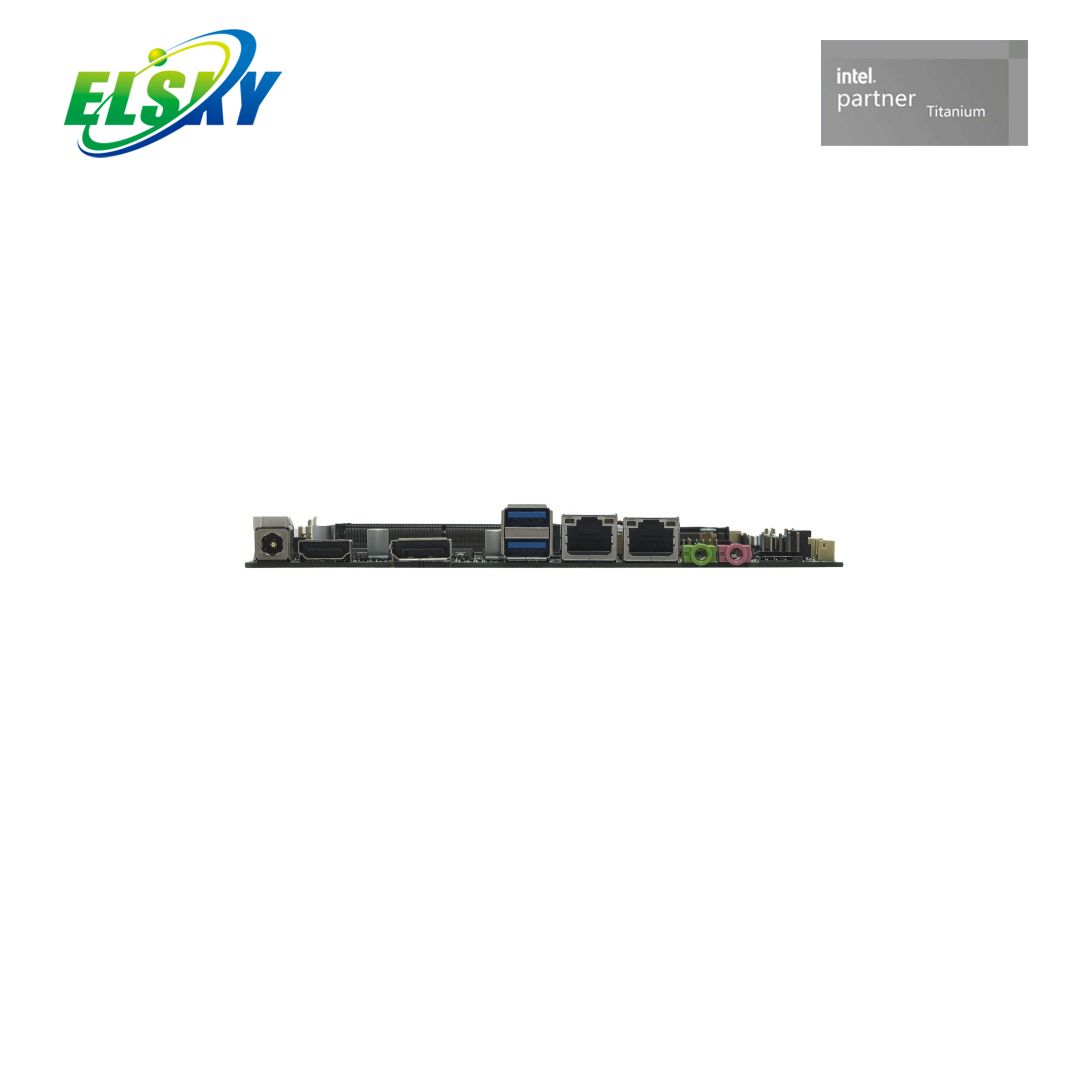

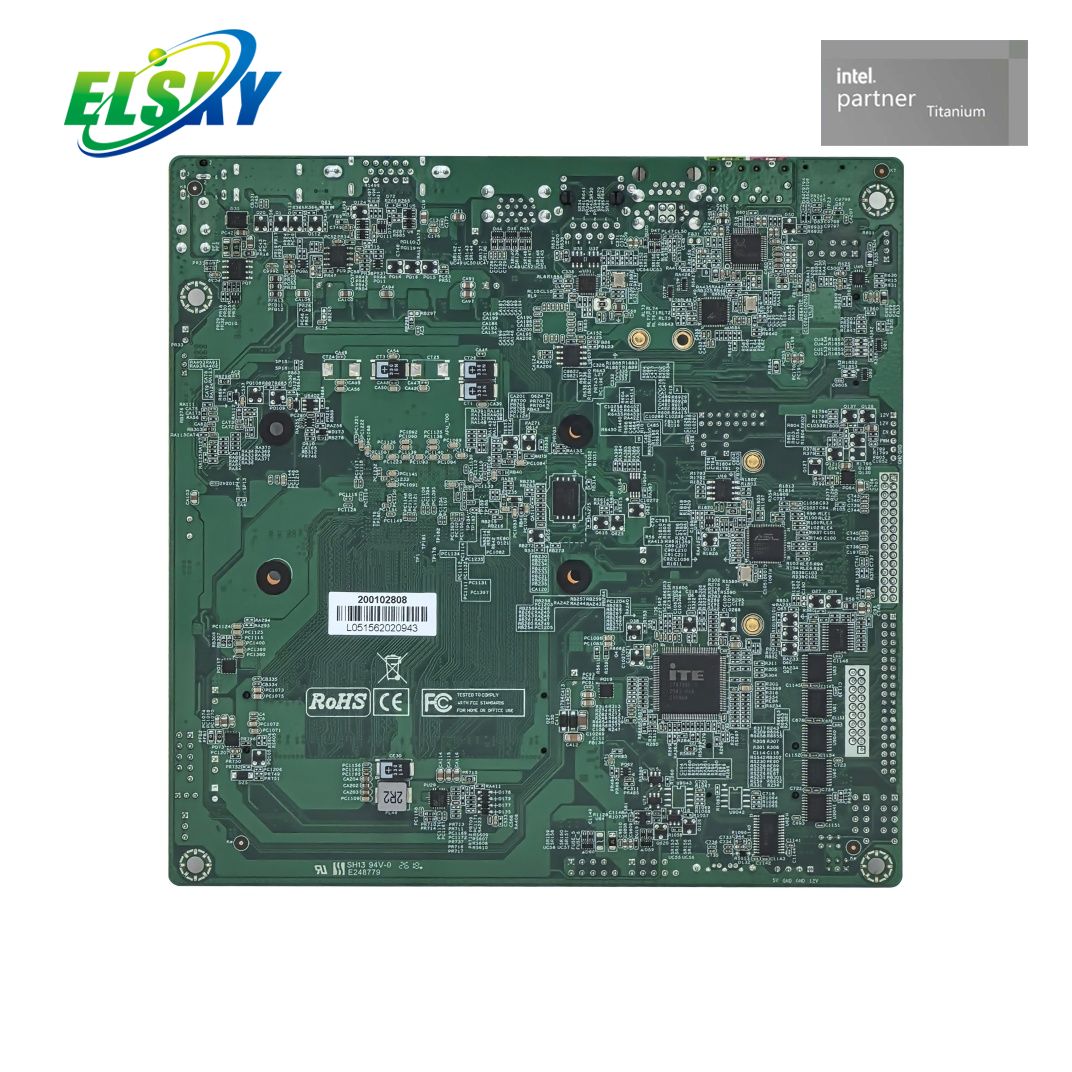

Motherboard Size |
170mm (L) 170mm (W) 20mm (H) (Excluding heatsink height) |
CPU |
AM6000 |
AMD Ryzen 7000, Ryzen Pro 7000, Ryzen 8000 and Ryzen Pro 8000 Series CPUs |
Power Supply |
1*DC_IN |
DC jack inner diameter 2.5mm, supports 12V/19V Motherboard full load power consumption is ~120W, 12V 15A or 19V 9.5A or above power supply recommended; |
1*DC_ATX (4Pin) |
Memory |
2*SODIMM Slots |
NB-DDR5 memory, memory frequency supports up to 5600MHz, dual channel supports up to 256GB |

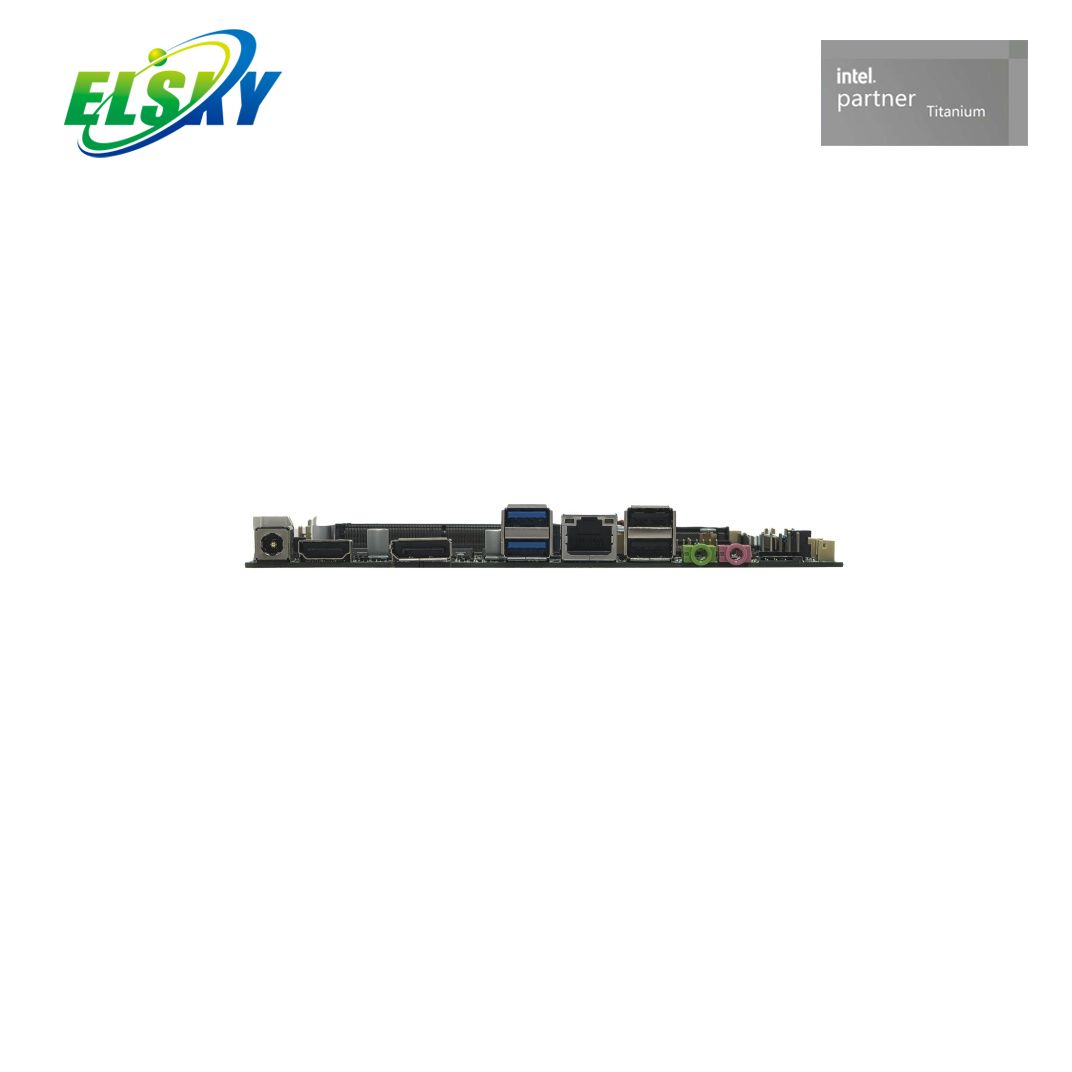

Network |
1/2*RJ45_LAN Port |
Single LAN: Default supports Realtek 8111H Gigabit LAN; Optional Motorcomm YT6801 Gigabit LAN;
Dual LAN: Supports Realtek 8111H Gigabit LAN + Realtek 8125BG 2.5G LAN;
Optional Motorcomm YT6801 Gigabit LAN + Realtek 8125BG 2.5G LAN;
Supports Wake-on-LAN (WOL), PXE function; |
1*M2_WIFI Slot |
Supports Key-E slot M.2 2230 PCIe 4.0 x1 & USB, supports WiFi & Bluetooth modules |
1*CN1 (5G Slot) |
Supports Key-B slot M.2 5G (3052) module or M.2 4G (3042) module |
Display |
AMD Radeon 780M/760M/740M Graphics |
Supports single display, dual/triple/quad display clone, dual/triple/quad display extension, dual display under SHELL; |
1*HDMI® 2.0 Port |
Supports 4K resolution 4096/3840*2160@60Hz |
1*HDMI_CON Header |
Supports 4K resolution 4096/3840*2160@60Hz (16Pin, 2*8Pin, 2.0mm) |

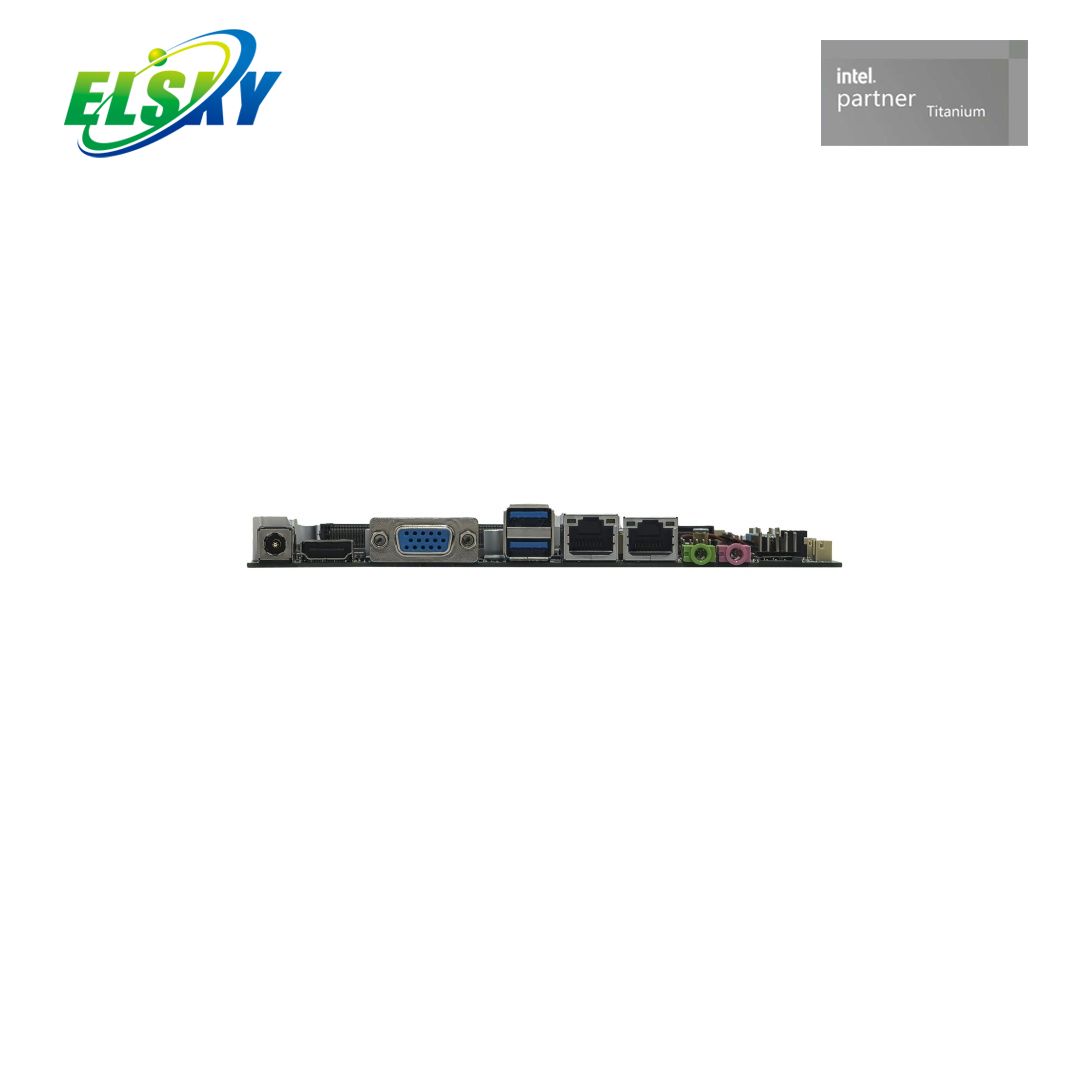

1*VGA DB15 Port |
Supports resolution 1920*1080@60Hz |
1*DP Port (Optional) |
Supports DP++, supports 8K resolution 7680*4320@60Hz |
VGA Port can be modified to support DP Port |
1*LVDS1/EDP2 Header |
LVDS1 supports 2K@60Hz; EDP2 supports 4K@60Hz (30Pin, 2*15Pin, 2.0mm) |
Default supports LVDS1, optional supports EDP2, shared header; EDP2 uses EDP-B screen cable, supports 4K resolution |
1*EDP1 Header |
EDP-C screen cable; supports 4K resolution 4096/3840*2160@60Hz (30Pin, 2*15Pin, 2.0mm) |
1*LVDS_PWR1 Header |
LVDS/EDP working voltage control header (6Pin, 2*3Pin, 2.0mm) |
1*EDP_PWR Header |
EDP1 working voltage control header (6Pin, 2*3Pin, 2.0mm) |
1*INVERT Header |
LVDS backlight control header (6Pin, 1*6Pin, 2.0mm) |
USB |
2*USB3.0 Ports |
Rear standard USB 3.0 ports, maximum transmission bandwidth 5Gbps |
2*USB2.0 Ports |
Rear standard USB 2.0 ports, maximum transmission bandwidth 480Mbps |
1*F_USB3_A Header |
Front USB 3.0 header, one set includes 2*USB3.0 (19Pin, 2*10Pin, 2.0mm) |
1*F_USB1 Header |
Front USB 2.0 header, one set includes 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) |
1*F_USB2 Header |
Front USB 2.0 header, one set includes 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) |
Audio |
Integrated Realtek ALC897 HD Digital Audio Decoder, 6-Channel High Fidelity Audio Controller; Optional Senary SN6186 Sound Card |
1*LINE_OUT Port |
Supports audio output (Green) |
1*MIC_IN Port |
Supports microphone input (Red) |
1*INT_SPK Header |
Supports 8 ohm 5 watt speaker output (Power Amplifier) (4Pin, 1*4Pin, 2.0mm) |
1*F_AUDIO Header |
Standard audio header (9Pin, 2*5Pin, 2.54mm) |
Storage |
1*NGFF1 (M.2-SATA/PCIe Slot) |
Supports Key-M slot M.2 2280 NVMe PCIe 4.0 x4 / SATA dual-protocol adaptive standard SSD;
Optional M.2 2242 SSD; |
1*SATA1 Port |
Standard SATA drive port, supports SATA 3.0 |
1*SATA_PWR1 Header |
Drive power supply header, supports 5V, 12V output (4Pin, 1*4Pin, 2.54mm) |
Power Switch |
1*F_PANEL Header |
Power switch, power LED, HDD LED, reset header (9Pin, 2*5Pin, 2.54mm) |
1*AUTO_SW Header |
Hardware control auto power-on header (3Pin, 1*3Pin, 2.0mm) |
Other I/O |
1*COM1 Header |
Supports standard RS232/RS422/RS485 optional (BIOS setting) (9Pin, 2*5Pin, 2.54mm) |
1*COM2 Header |
Supports standard RS232 only (9Pin, 2*5Pin, 2.54mm) |
1*COM3-6 Header |
Supports standard RS232 only (39Pin, 2*20Pin, 2.0mm) |
1*JPCOM1/2 Header |
COM1/2 Pin 9 voltage selection 0V/5V/12V (6Pin, 2*3Pin, 2.0mm) |
1*MSIM1 Slot |
Supports SIM card, required when using 4G/5G module |
1*CLR_CMOS Header |
Motherboard clear CMOS & discharge header (3Pin, 1*3Pin, 2.0mm) |
1*CPU_FAN Header |
CPU fan header, supports temperature control, fan voltage 12V (4Pin, 1*4Pin, 1.25mm) |
1*SYS_FAN Header |
System fan header (3Pin, 1*3Pin, 2.54mm) |
1*GPIO_CN Header |
GPIO control header, supports 8-channel GPIO signals (10Pin, 2*5Pin, 2.0mm) |
1*PW_DB1 Header |
Power debugging header (3Pin, 1*3Pin, 2.0mm) |
1*DB_COM1 Header |
Serial port debugging header (3Pin, 1*3Pin, 2.0mm) |
1*DB_CN2 Header |
Debugging header (10Pin, 2*5Pin, 2.0mm) |
Operating Environment |
Working Temperature: -10°C ~ 60°C; Working Humidity: 5% ~ 95% Relative Humidity, non-condensing |
BIOS |
Supports auto power-on, scheduled power-on, remote power-on, intelligent device identification |
Watch Dog |
Watchdog programming, supports hardware reset function (256 levels, 0~255 seconds) |
Operating System |
Supports Windows 11, Windows 10, LINUX, etc. |
