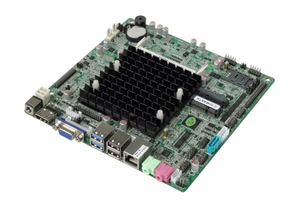

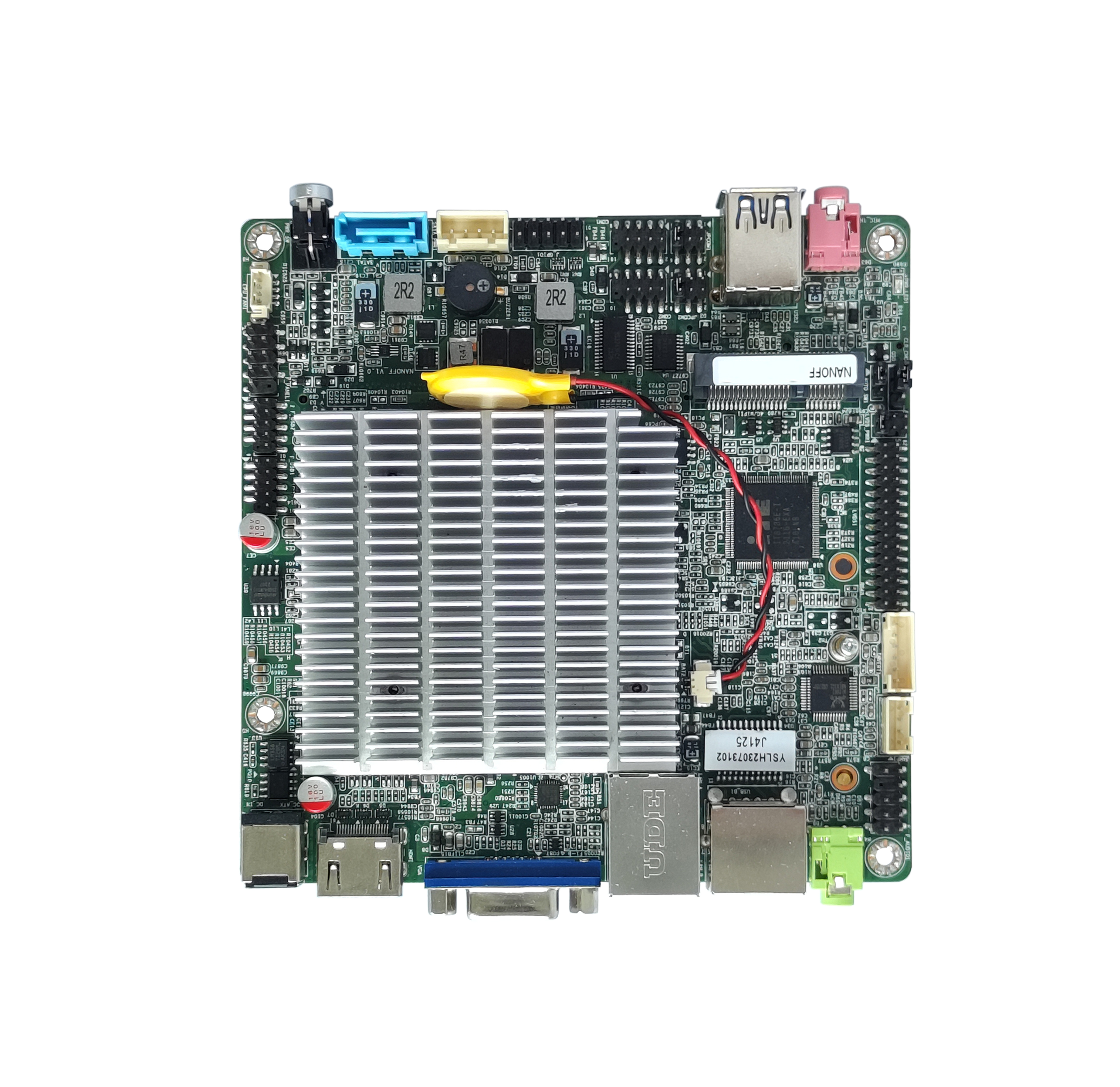

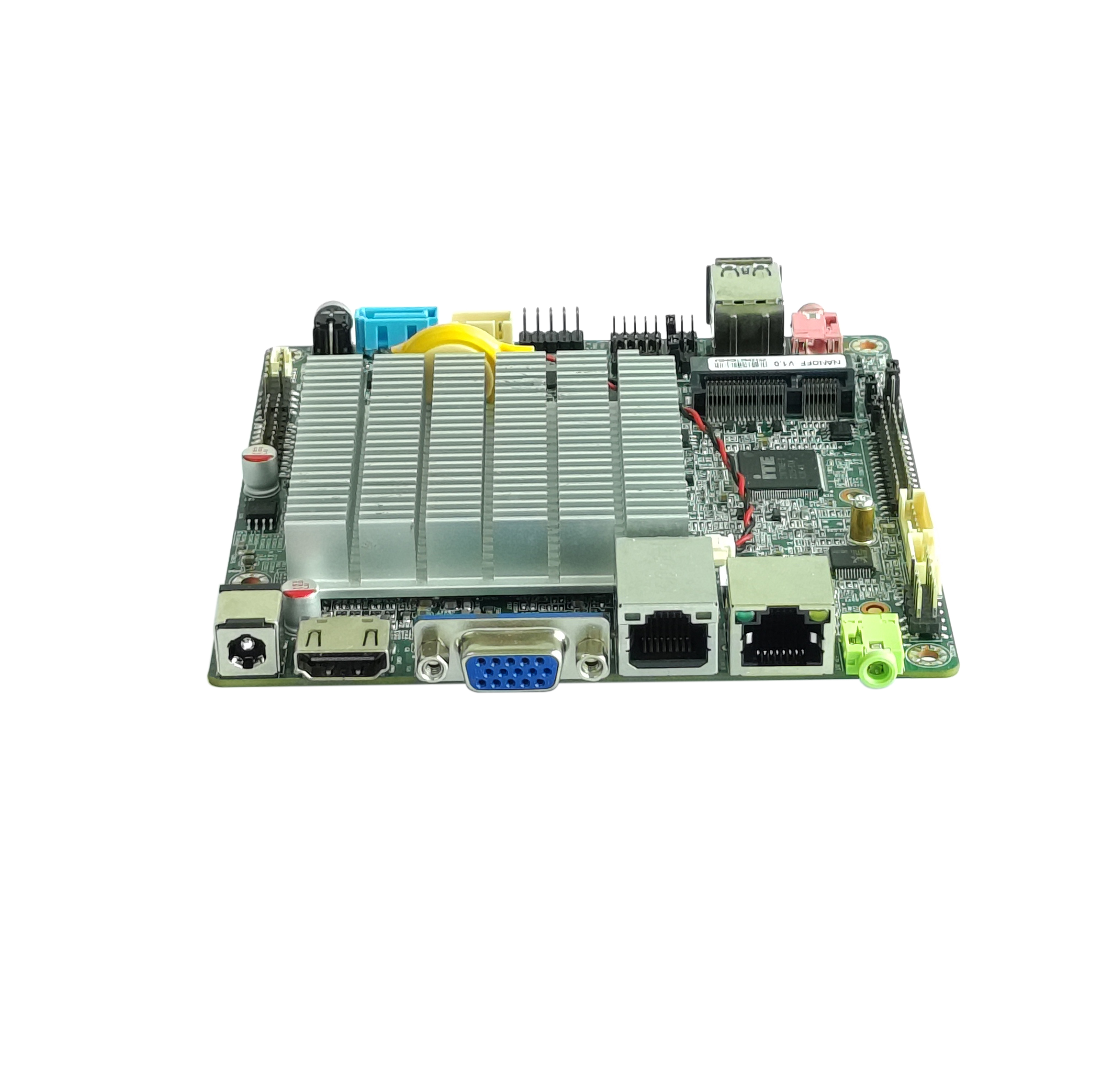

Motherboard Model |
NANO4E |
Motherboard Size |
120mm（L）*120mm（W）*24mm（H） |
CPU |
Intel ® Processors Celeron J4025/J4125/N4020/N4120, Pentium J5040/N5030 |
Memory |
1*NB-DDR4 SODIM Memory slot, supporting single channel 2400MHz memory, low voltage 1.2V, maximum support of 8GB |

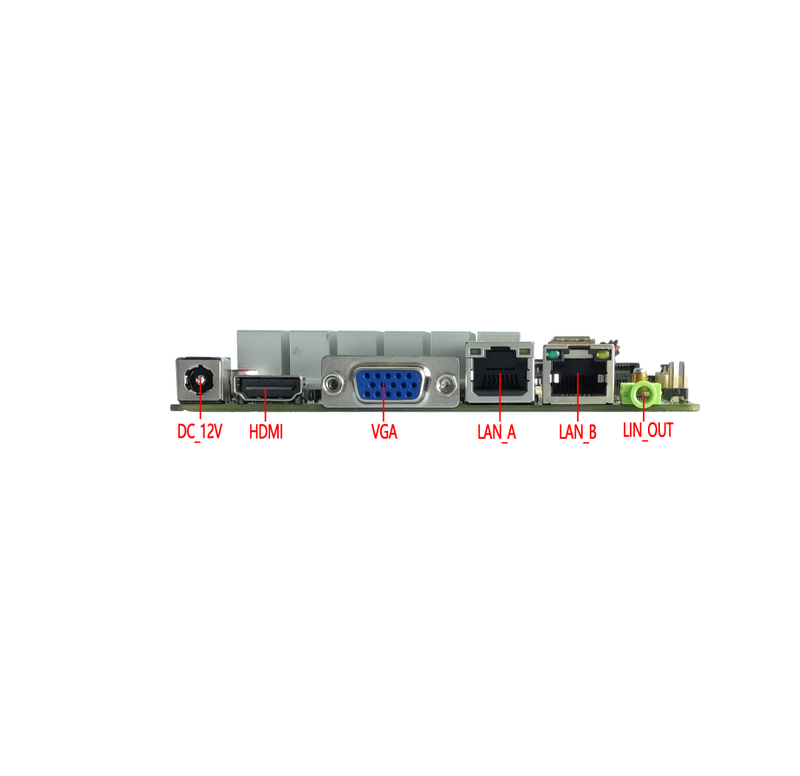

Power supply |
1*DC_IN |
Supports 12V voltage, with a DC head inner diameter of 2.5MM The full load power consumption of the motherboard is about 30W. Suggest using a 12V/4A or higher power supply |
1*DC_ATX(Optional) |
DC_ IN and DC_ ATX are optional, and the motherboard supports DC by default_ IN. |
Display |
Intel ® Ultra high definition graphics card 600 graphics controller, supporting single display, dual display/triple display replication, dual display/triple display expansion, single display under DOS |
1*HDMI 1.4 Interface |
Supports 4K resolution of 4096/3840* 2160@30Hz |
1*VGA DB15 Interface |
Support resolution1920 * 1080@60Hz |
1*LVDS/EDP Pin |
Support resolution 1920 1080@60Hz （30Pin，215Pin，2.0mm） |
1*LVDS_PWR1 Pin |
LVDS/EDP Working voltage control Pin （6Pin，2*3Pin，2.0mm） |
LVDS and EDP are optional, Motherboard supports LVDS by default. |
Network |
1*RJ45 LAN (2*LAN optional) |
Optional 100GB and Gigabit network cards, supporting network wake-up and PXE diskless startup functions (Gigabit: single network 8111H, dual network 8111H+8111H) (100 Mbps: single network 8106E, dual network 8106E+8106E) |
1*Mini-PCIE Interface |
Supports WIFI/3G/4G/GPS/Bluetooth modules, etc |
Hard disk |

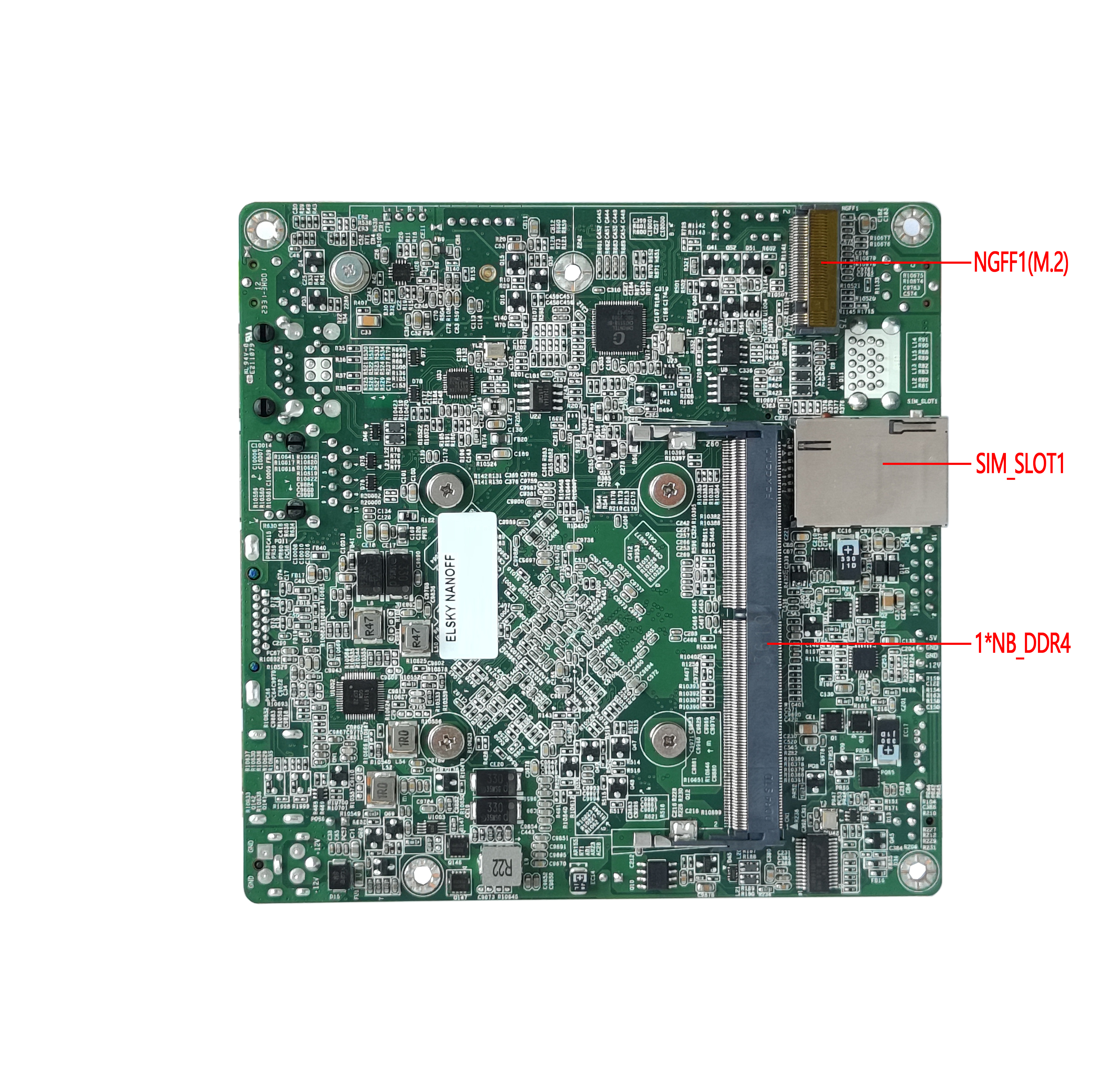

1*NGFF1(M.2) Interface |
Default support for M.2 2280, optional 2242; Default SATA protocol, NVME (PCIE) protocol can be modified |
1*SATA1 Interface |
Standard SATA3.0 hard disk interface with a maximum transfer speed of 6.0 Gbps |
1*SATA_PWR1 Pin |
The hard drive is powered by Pin and can be powered by 5V or 12V. （4Pin，1*4Pin，2.54mm） |
Sound function |
Integrated Realtek ALC662/897 HD digital audio decoder, 6-channel high fidelity audio controller |
1*LIN_OUT Interface |
Support for audio output (green) |
1*MIC_IN Interface |
Support microphone input (red) |
1*JAMP Pin |
The power amplifier supports dual channel output of 8-ohm 5-watt speakers （4Pin，1*4Pin，2.0mm） |
1*F_AUDIO Pin |
Standard Audio Pin （9Pin，2*5Pin，2.54mm） |

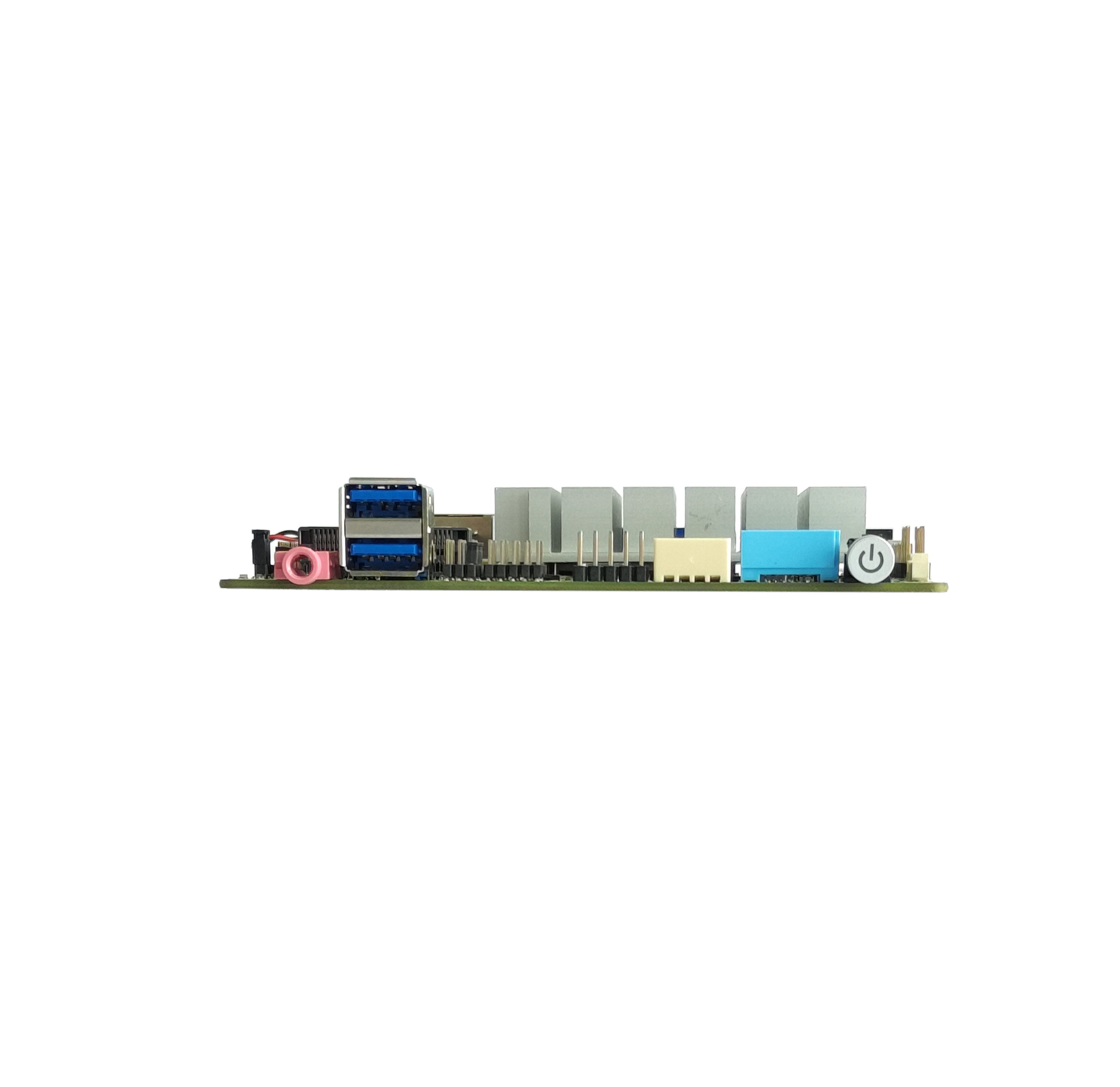

USB |
2*USB3.0 Interface |
Post standard USB3.0 Interface with a maximum transmission bandwidth of 5.0Gbps |
2*USB2.0 Interface |
Post standard USB2.0 Interface with a maximum transmission bandwidth of 480Mbps |
1*F_USB1 Pin |
Front USB2.0 Pin, with a set of 2 USB2.0 （9Pin，25Pin，2.0mm） |
1*F_USB2 Pin |
Front USB2.0 Pin, with a set of 2 USB2.0 （9Pin，25Pin，2.0mm） |
SWITCH |
1*F_PANEL Pin |
Switch, power light, hard drive light, restart Pin （9Pin，2*5Pin，2.54mm） |
1*PWR_SW button |
Switch button |
1*AUTO_SW Pin |
Hardware control power-on and power-on Pin（3Pin，1*3Pin，2.0mm） |
Other I/O |
1*COM1 Pin |
Serial port, optional support for RS232/RS422/RS485 （9Pin，2*5Pin，2.0mm） |
1*COM2 Pin |
Serial port, only supports RS232 （9Pin，2*5Pin，2.0mm） |
1*JPCOM1/2 Pin |
Control COM1/2 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm） |
1*SIM_CARD slot |
Supports SIM card, requires SIM card when using 3G/4G |
1*CLR_CMOS Pin |
Clear motherboard and discharge Pin （3Pin，1*3Pin，2.54mm） |
1*CPU_FAN Pin |
CPU fan Pin, supporting temperature control （4Pin，1*4Pin，1.25mm） |
1*GPIO Pin |
标准GPIO Pin （10Pin，2*5Pin，2.54mm） |
Operating environment |
Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, non condensing |
BIOS |
AMI BIOS, supports power-on, timed power-on, and intelligent identification of remote on/off devices |
Watch Dog |
Watchdog programming, supporting hardware reset function (256 levels, 0-255 seconds) |
operating system |
Supports Windows 11, Windows 10 , Linux, etc |
