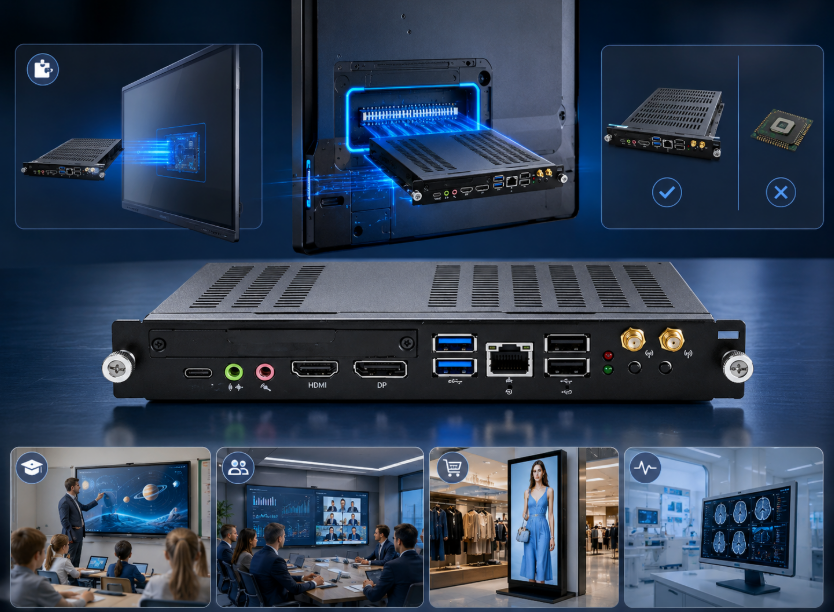

An OPS Computer is a standardized, modular plug-in PC designed to simplify the integration of computing power into large-format displays like interactive whiteboards and digital signage. By utilizing a universal 80-pin JAE connector, an OPS Computer eliminates the need for external cables by plugging directly into a dedicated slot on the display, providing power, video, and data connectivity through a single interface.
As industries move toward smarter workspaces and high-traffic public information systems, understanding the technical nuances of modular computing is essential. This article explores the fundamental mechanics of the OPS standard, its diverse range of applications in professional environments, and how it differs from external mini PCs and traditional signage players. By the end of this guide, you will have a comprehensive understanding of why this technology is a cornerstone of modern commercial display solutions.
Section | Summary |
What is OPS? | An introduction to the Open Pluggable Specification standard, explaining its physical design, the 80-pin connector interface, and how it revolutionizes display integration. |
Uses or Applications of OPS | A detailed look at how these modular PCs are utilized in education, corporate boardrooms, retail digital signage, and industrial monitoring. |
OPS Computer vs External Mini PC | A practical comparison between a plug-in OPS module and an externally mounted mini PC or traditional signage player, focusing on installation, cabling, maintenance, and display integration. |
OPS stands for Open Pluggable Specification, a hardware standard initiated by Intel that defines a modular architecture for connecting a computer to a display via a single, standardized interface.
The primary objective of the OPS standard is to provide a uniform mechanical and electrical specification so that any compliant media player can work with any compliant display. Historically, digital signage required a separate PC connected via HDMI or DisplayPort, power cables, and USB for touch functionality. This created a "cable nest" that was difficult to troubleshoot and unsightly in public spaces. The OPS Computer solves this by shrinking the entire PC into a small, rectangular metal chassis that slides into a slot on the back or side of a monitor.
At the heart of this technology is the 80-pin JAE connector. This high-density interface handles everything: it pulls power from the internal power supply of the monitor, sends high-definition video signals (up to 4K or 8K depending on the version), and manages USB data for touch-sensitive screens. Because the electrical components are standardized, an organization can upgrade their computing power—for example, moving from an i3 to an i7 processor—without having to replace the expensive large-format display. This modularity extends the lifecycle of the hardware and reduces the total cost of ownership.
Furthermore, the OPS standard has evolved over time. While the original spec supported standard high-definition output, newer versions like OPS-C (China Standard) and OPS+ (which adds support for higher thermal design power and additional features like PCIe lanes) allow for even more robust performance. This makes the plug-in computing module a versatile choice for everything from basic looping advertisements to complex, 3D-rendered interactive maps in smart cities.
Form Factor: Compact dimensions (typically 180mm x 119mm x 30mm) allowing for slim display profiles.
Universal Interface: The 80-pin JAE TX24/TX25 connector for seamless data and power transmission.
Thermal Management: Internal cooling fans or passive heat sinks designed to operate within the enclosed environment of a display slot.
Processor Flexibility: Supports a wide range of architectures, predominantly based on Intel Core or Celeron platforms.
The uses of OPS technology span multiple industries, primarily focusing on environments where reliability, ease of maintenance, and high-quality visual output are paramount, such as interactive classrooms and commercial advertising.
In modern education, Interactive Flat Panel Displays (IFPDs) have replaced traditional chalkboards. An OPS-based PC solution is the "brain" of these units. Teachers can use Windows-based educational software, annotate directly on the screen, and save lessons to the cloud. Because the PC is internal, there are no tripping hazards from cables, and IT staff can quickly swap out the module if a software failure occurs, ensuring that class time is never wasted.
Corporate boardrooms utilize OPS units to facilitate seamless presentations and unified communications. By integrating the computer into the display, companies can run native applications like Microsoft Teams, Zoom, or specialized whiteboarding tools without needing a laptop. The high processing power of modern industrial modular PCs ensures that high-definition video conferencing remains smooth and lag-free, even when multitasking with large data sets or presentations.
In airports, malls, and transit hubs, digital signage must run 24/7. OPS computers are ideal for these high-uptime environments because they are built with industrial-grade components. They can handle the heat generated by constant operation and are easily manageable via remote software. If a screen at a train station needs a content update or a hardware repair, the modular nature allows a technician to replace the PC unit in seconds without dismounting the 85-inch screen from the wall.
Beyond simple displays, the OPS form factor is increasingly used in industrial HMI (Human-Machine Interface) systems and medical imaging carts. In these settings, space is at a premium. The ability to slot a powerful workstation into a medical-grade monitor allows doctors to view high-resolution X-rays or MRI scans with the necessary graphical fidelity, while the industrial-grade build of the OPS unit protects against the dust or electrical interference often found in manufacturing plants.
Application Area | Primary Benefit | Key Feature Used |
Education | Zero-cable safety | Touch-interface support via JAE |
Retail | Easy maintenance | Remote management capabilities |
Corporate | Professional aesthetics | Support for 4K video conferencing |
Industrial | Space efficiency | High thermal resistance |
The most useful comparison for an OPS Computer is not a processor chip, but another complete display computing solution, such as an external Mini PC or a traditional digital signage player.
An OPS module and an external Mini PC can both run software, drive display content, connect to a network, and support interactive applications. The difference is not whether one has computing power and the other does not. The difference lies in how the computing unit is installed, powered, connected, maintained, and upgraded inside a real commercial display project. For education panels, conference screens, retail signage, medical displays, and public information terminals, this comparison is much clearer and more practical.
ELSKY positions its OPS Computer as a modular mini computer for large-format display integration. The company also provides Mini PC solutions for broader industrial and commercial computing scenarios. Choosing between the two should depend on the display structure, installation environment, service method, and future upgrade plan.
The biggest advantage of OPS is internal integration. A compatible OPS module slides directly into the OPS slot of an interactive display or commercial screen. Power, video signal, USB data, and control communication are routed through the standardized connector. This makes the system look cleaner from the outside because there is no separate computer box mounted behind the screen.
An external Mini PC is installed outside the display. It may sit behind the screen, inside a cabinet, under a desk, or in a control box. This approach gives installers more freedom over placement, but it also requires extra power wiring, display cables, USB cables for touch, and sometimes additional brackets. In a single installation, this may not be a serious issue. In a campus, office tower, shopping mall, or public signage network, the extra cabling can increase installation time and make later troubleshooting more complicated.
OPS was created to reduce the cable clutter often seen with external display computers. In traditional signage systems, one cable may deliver video, another carries touch data, another provides power, and another connects to the network. Every cable is a potential loose point, especially in public places where screens may vibrate, move, or receive frequent user contact.
With an OPS module, the display and computer become a more unified system. The neat installation is especially valuable for classrooms, meeting rooms, retail shops, and reception areas where appearance matters. It also helps reduce accidental disconnection. However, an external Mini PC can still be a strong choice when the screen does not support OPS, when the computer must be placed in a ventilated equipment cabinet, or when the project needs ports that are easier to access from outside the display.
OPS is designed for module-level maintenance. If the display computing unit needs service, the technician can remove the OPS module from the display slot and replace it with another compatible module. This is convenient for schools, training centers, conference systems, and signage networks that need fast maintenance without removing a full display from the wall.
An external Mini PC is also easy to replace, but it is usually connected through several cables. Service teams must confirm the power adapter, display output, USB touch connection, mounting position, and cable routing. For small projects, this is simple. For large deployments with many screens, OPS often gives IT teams a more standardized replacement method.
Upgrade logic is also different. With OPS, the upgrade is usually handled by replacing the whole module with a newer configuration. With an external Mini PC, the user may replace the whole unit as well, but the physical mounting and cable arrangement may need more adjustment. Therefore, OPS is often preferred when the display slot standard and long-term deployment plan are already clear.
Both OPS Computers and external Mini PCs can support different processing platforms, memory options, storage options, and operating systems. The performance question should not be simplified into “which one is faster.” A better question is: which form factor can deliver stable performance under the specific installation condition?
OPS modules operate inside a display slot, so thermal design must match the limited internal space of the screen. Good airflow, reliable heat dissipation, and stable component selection are important. External Mini PCs may have more flexible heat dissipation because they can be mounted in open air or in a controlled cabinet. That can be useful for demanding signage, industrial control, or edge computing applications where long operating hours and environmental conditions matter.
The display already has an OPS slot and the project needs a clean all-in-one appearance.
The application is an interactive whiteboard, smart classroom panel, meeting room display, advertising screen, or public information terminal.
The installation needs fewer exposed cables and a more professional look.
The maintenance team wants module-level replacement across many displays.
The screen manufacturer or system integrator specifies OPS compatibility.
The display does not include an OPS slot or uses a non-standard slot design.
The project needs flexible installation away from the display body.
The system requires more accessible external ports, special I/O, or cabinet-based maintenance.
The computing device must serve more than one screen or connect to a wider industrial system.
The environment requires a separate fanless or rugged enclosure design.
Comparison Point | OPS Computer | External Mini PC / Signage Player |
Installation | Slides into the OPS slot of a compatible display. | Mounted outside the display or placed in a cabinet. |
Cabling | Uses a standardized internal connector for power, video, and data. | Usually requires separate power, video, USB, and network cables. |
Appearance | Clean integrated appearance with no external computer box. | Visible device or bracket may be needed behind or near the screen. |
Maintenance | Module-level replacement through the display slot. | Device replacement may require cable and bracket handling. |
Best Fit | Interactive panels, smart classrooms, meeting rooms, digital signage, and display-integrated projects. | General industrial computing, non-OPS displays, multi-screen systems, and cabinet-based deployments. |
Limitation | Requires a compatible OPS slot and must match the display's mechanical and electrical design. | Requires more external wiring and may look less integrated in public-facing installations. |
After understanding the difference between an OPS Computer and an external Mini PC, the next step is project matching. A good OPS choice should start with the display model, not only with the desired performance level. The screen must support the OPS slot standard, the connector position must match the module, and the display's internal power design must support the selected configuration.
For education and meeting rooms, buyers should confirm touch support, operating system requirements, wireless display needs, camera and microphone compatibility, and long-term software updates. For advertising display, the key points are 4K playback, remote content management, network stability, and continuous operation. For industrial monitoring or medical information display, the project may require stronger reliability, a stable supply cycle, and careful configuration control.
ELSKY provides OPS PC, Mini PC, industrial computer, and motherboard categories, which allows buyers to choose the form factor that fits the display environment instead of forcing every project into one hardware style. A smart selection process compares the installation environment, cable plan, service method, and required interfaces before finalizing the model.
OPS is best understood as a complete plug-in computing module for compatible displays. Its value is not only processing performance, but also simplified installation, clean cabling, easier maintenance, and strong integration with large-format screens.
Choose an OPS Computer when the display supports OPS and the project needs a neat, modular, display-integrated system. Choose an external Mini PC when the project needs flexible placement, wider device access, or compatibility with displays that do not include an OPS slot. For integrators, distributors, and project buyers, this distinction makes the article more technically accurate and easier to use in real product selection.
