An OPS PC for digital signage is not just a small computer placed behind a screen. It is a modular computer built around the Open Pluggable Specification, a display integration standard that allows a computing module to slide into a compatible commercial display. For digital signage, interactive panels, education displays, conference screens, and public information terminals, this modular structure can reduce cable clutter, simplify maintenance, and make upgrades easier.
ELSKY OPS PC products are designed for professional display scenarios where compatibility matters as much as performance. A signage project may fail not because the computer is weak, but because the display slot, power supply, interface direction, touch connection, cooling path, or resolution requirement was not checked carefully. This guide explains how to evaluate OPS PC compatibility before deployment, with special attention to the OPS interface, display slot, processor platform, dual 4K output, storage, USB, network, operating system, touch support, and installation workflow.
A traditional external signage player is usually mounted behind or near the display. It connects through HDMI or DisplayPort, uses its own power adapter, and may need USB or network cables for touch, control, and data. This can work, but it creates more visible wiring and more possible connection points. In public spaces, loose cables and adapters increase the chance of accidental disconnection or messy installation.
An OPS PC uses a slot-in structure. The module connects to the display through a standardized internal interface, often described through the OPS connector. This single slot connection can carry power, display signal, and data depending on the display design. The result is a cleaner installation with fewer external parts. The ELSKY OPS category is used for digital signage, education, enterprise conference displays, commercial information screens, medical display systems, retail terminals, transportation information, and industrial monitoring.
The first compatibility question is simple: does the display support the same OPS form factor and interface expected by the module? Not every large display has an OPS slot, and not every slot has the same physical clearance, power design, or supported signal path. Buyers should check slot depth, module dimensions, mounting method, connector position, input voltage, and the display maker's OPS support notes before selecting the module.
The ELSKY Intel H310 Chipset OPS PC for signage is a modular OPS computer aimed at digital signage and interactive display solutions. The ELSKY OPS PC Manufacturer for Education product direction shows another common use case: smart education panels and interactive whiteboards. These two examples show why compatibility should be checked by scenario. A retail signage screen, classroom panel, and conference display may all use OPS, but the workload, software, display output, and service expectations can be different.
The OPS interface is important because it allows the computer module and the display to communicate through a standardized plug-in connection. Instead of running several external cables, the module connects internally. This reduces installation time and makes the system easier to service. In a large signage network, that time saving can become significant because many displays may need to be installed, replaced, or updated.
However, the connector should not be treated as the only compatibility detail. The display must supply enough power. The module must fit the slot without blocking ventilation. The display firmware must recognize the input correctly. If touch function is required, the USB path must be supported. If the project needs 4K content, confirm the display resolution, refresh rate, content player requirements, and output interface. Compatibility is a complete chain, not a single connector check.
Digital signage workloads vary widely. A simple schedule of static images does not need the same computing platform as interactive maps, multi-window dashboards, high-resolution video, browser-based data display, or smart classroom software. Buyers should match the OPS PC platform to the content and user interaction. The best platform is the one that plays the content smoothly, handles updates reliably, and keeps the display stable for long operating hours.

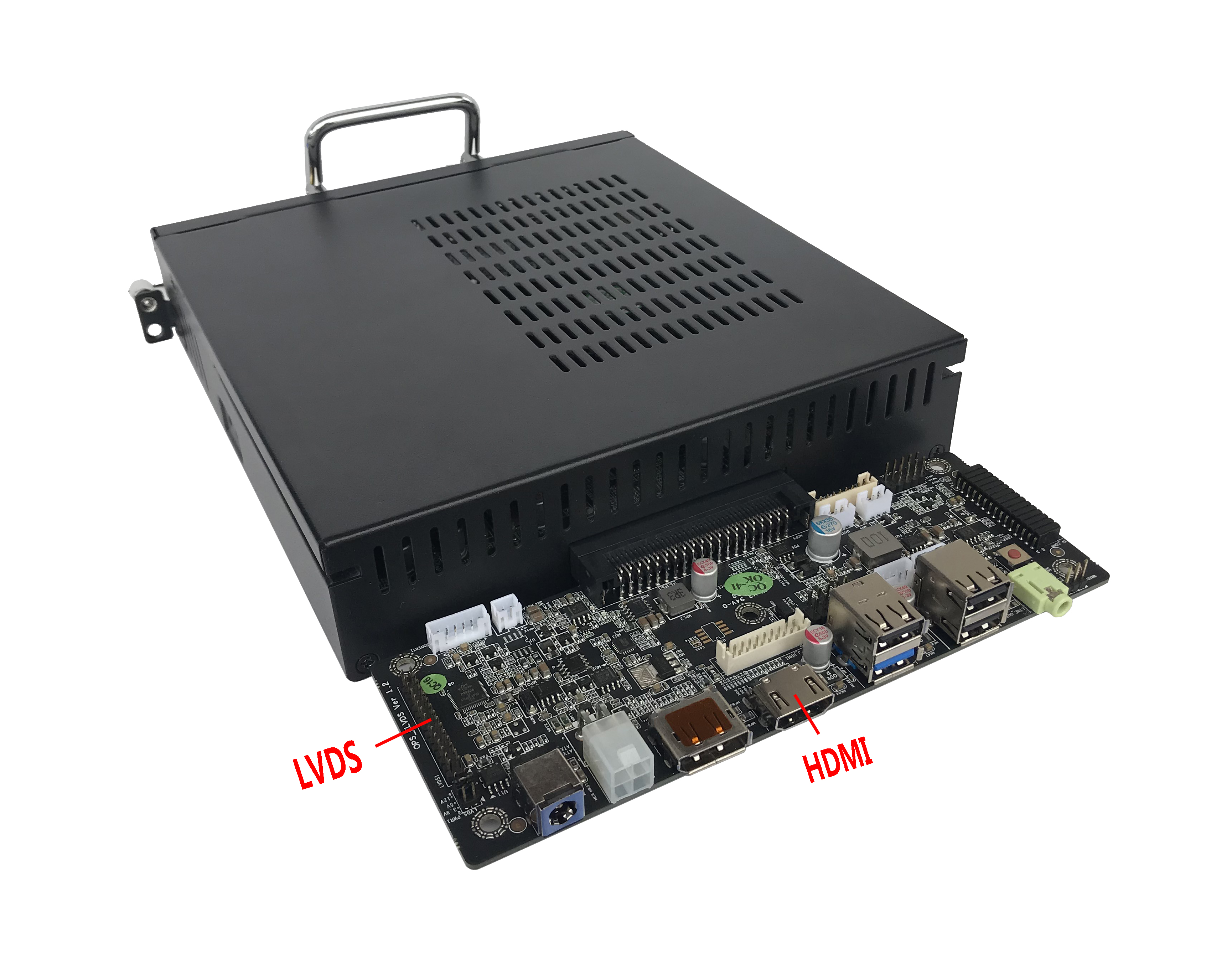

The ELSKY OPS-H310 computer module is positioned with an Intel H310 chipset, 8th and 9th generation Intel Core processor support, dual 4K output, Gigabit network, multiple USB ports, and flexible storage options. For education applications, the ELSKY OPS8000 direction emphasizes a compact OPS structure, 4K output, multiple USB ports, Gigabit LAN, expansion options, and industrial-grade stability. These details matter because signage performance depends on both computing power and display integration.
Many signage buyers ask for 4K because public displays are larger and viewers stand closer than before. But “4K support” should be checked carefully. Confirm whether the module supports one 4K output or dual 4K output. Confirm whether HDMI, DP, or the OPS interface is used. Confirm refresh rate and whether the content software can render the required resolution. A device may technically output 4K, but a heavy browser animation, live data dashboard, or multi-zone video wall layout can still stress the system.
The ELSKY H310 OPS product direction includes HDMI and DP dual 4K display support, which is relevant for high-resolution signage and interactive display projects. For digital signage, this can support clearer text, sharper product images, and smoother presentation on large panels. For classroom and conference screens, it can improve the experience when users display documents, video, dashboards, or collaboration tools. The key is to test the exact content plan on the target display before full deployment.
Digital signage is no longer limited to one-way advertising. Many displays are interactive. A user may search a mall directory, check transport information, browse a menu, select a product, or use an education whiteboard. In these situations, the OPS PC must support the touch path between the display and the operating system. Touch compatibility depends on USB communication, drivers, operating system support, and display firmware.
Before choosing an OPS PC, test the exact touchscreen display. Check single-touch and multi-touch behavior, wake behavior after sleep, calibration, gesture support, and driver stability. If the signage system uses a web app, test the browser and touch interaction together. If the system runs a classroom or meeting application, test writing delay, screen sharing, and annotation tools. Interactive signage succeeds when the user experience feels direct and reliable.
Compatibility item | Why it matters | What to check |
|---|---|---|
OPS slot | Determines whether the module can be installed | Slot dimensions, connector position, power rating, mechanical clearance |
Display signal | Controls image quality and stability | HDMI, DP, internal display path, resolution, refresh rate |
Touch communication | Required for interactive panels | USB path, operating system driver, calibration, wake behavior |
Network | Supports content updates and remote control | Gigabit LAN, WiFi options, security settings, network isolation |
Storage | Stores media, software, logs, and recovery files | M.2, SATA, capacity, access method, content update plan |
Thermal design | Protects long operating stability | Display slot airflow, ambient temperature, continuous playback test |
A signage screen is useful only when content can be updated and stored safely. Network planning should consider wired Ethernet, wireless communication, firewall rules, remote content management, and local playback if the network fails. Gigabit LAN can be important for large media files or centralized updates. Wireless can be convenient but should be tested for signal strength and security policy in the real site.
Storage planning is equally important. A digital signage system may store video files, content schedules, browser caches, logs, update packages, and recovery images. M.2 storage saves space and improves installation cleanliness. SATA storage may be easier for some service teams to replace. The ELSKY H310 OPS product direction includes M.2, 2.5-inch SSD/HDD, and mSATA storage options, giving installers flexibility for different content and service plans.
An OPS PC sits inside or behind a display, which means it shares a thermal environment with the screen. A commercial display can generate heat during long operation, and the OPS slot may not have the same airflow as an open desktop area. If the signage screen runs all day, temperature testing is essential. Test the system with the display brightness set near real operating levels and the signage content running continuously.
Thermal planning should include the ambient environment. A screen inside an air-conditioned meeting room faces different conditions from a menu board near a restaurant entrance or a public display in a transportation station. If the system becomes unstable only after several hours, the cause may be heat rather than software. Choosing an OPS PC with suitable industrial stability and testing it in the final display environment reduces this risk.
OPS PC and external Mini PC are both valid signage computing options. OPS PC is usually better when the display has an OPS slot and the buyer wants a cleaner, integrated, cable-light solution. It is especially useful for education panels, conference displays, public signage, and installations where appearance and fast servicing matter. External Mini PC can be better when the display has no OPS slot, when the computer must be placed away from the display, or when a specific enclosure, expansion, or service method is required.
ELSKY offers both directions. The ELSKY OPS PC category supports modular display integration, while the ELSKY Mini PC category supports compact external computing for digital signage, business, education, industrial, and embedded applications. For buyers, the best decision is based on display compatibility, cable control, service access, computing workload, and site layout.
Confirm the display: Check whether the display includes an OPS slot and verify slot specifications.
Define the content: List video resolution, browser apps, touch features, dashboards, and media schedules.
Select the OPS platform: Match processing, memory, storage, display output, and I/O to the content plan.
Test the real panel: Install the OPS PC in the target display and verify signal, touch, network, and heat.
Prepare recovery: Create a software image, content backup, and field reset plan.
Document the setup: Record slot model, module model, OS version, driver version, content software, and network settings.
One common mistake is assuming that every OPS-compatible display will behave the same way. In reality, display firmware, slot power, thermal design, and touch controller behavior can vary. Another mistake is testing only the desktop screen instead of testing the real signage software. A module may look stable at idle but behave differently when playing 4K video, running a browser dashboard, or supporting multi-touch interaction.
Buyers should also avoid selecting a platform only by processor generation. Storage speed, memory capacity, network stability, USB support, thermal behavior, and service access can be equally important. For public signage networks, small installation details become large service factors. A clean OPS installation can save time across many screens, but only if compatibility is verified before rollout.
Compatibility tip: An OPS PC should be selected with the display, content software, touch controller, network environment, and service plan all in mind. A module that fits the slot mechanically still needs to pass real operating tests.
An OPS PC is used as the built-in computing module for compatible commercial displays. It can run signage software, interactive apps, media playback, conference tools, education software, and public information systems.
It depends on the installation. OPS PC is better for slot-compatible displays where clean integration and fast module replacement matter. External Mini PC is useful when the display has no OPS slot or when the computer must be mounted separately.
Check the display slot, connector, power support, module dimensions, display resolution, touch communication, operating system, network method, storage needs, and thermal behavior inside the display.
Yes, many OPS PC models support 4K output, but buyers should confirm the exact resolution, refresh rate, output path, content workload, and display compatibility before installation.
ELSKY provides OPS PC and Mini PC product categories for display-related projects. Buyers can compare models such as ELSKY OPS-H310 and P30H-OPS-H510 with the target display and content requirements.
OPS PC compatibility is the foundation of a reliable digital signage project. The module must fit the display slot, receive proper power, send the correct display signal, support touch communication, manage heat, and run the required content smoothly. ELSKY OPS PC options such as the H310 signage module and education-focused OPS platform give buyers practical starting points, but the final decision should always be tested with the actual display and software. When compatibility is handled carefully, an OPS PC can create a cleaner, more maintainable, and more professional digital signage system.
