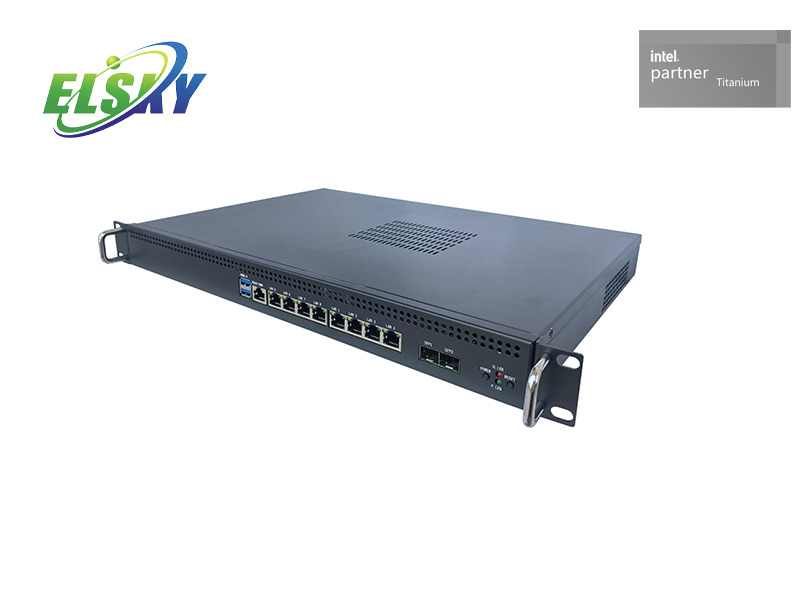

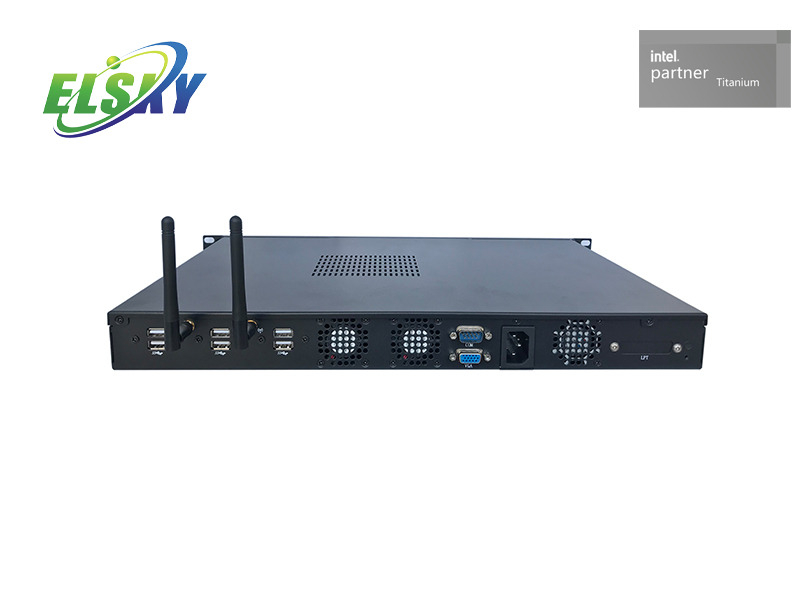

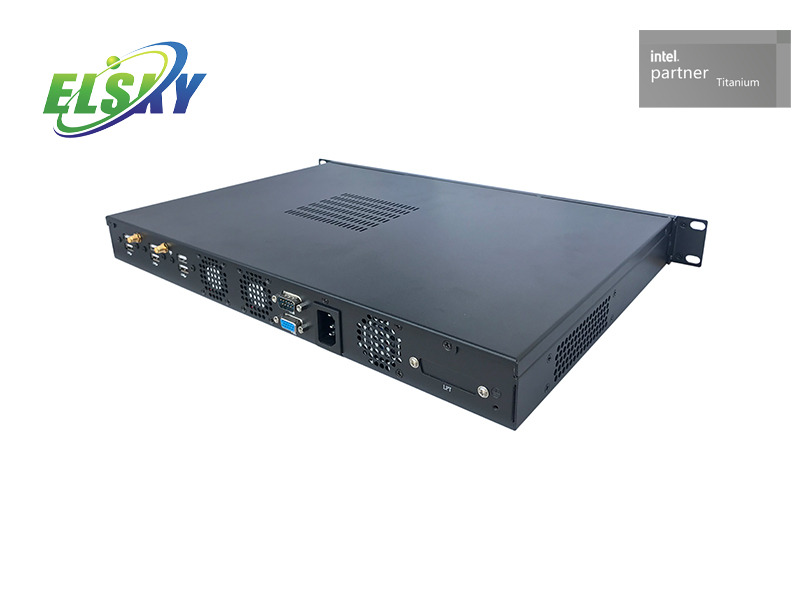

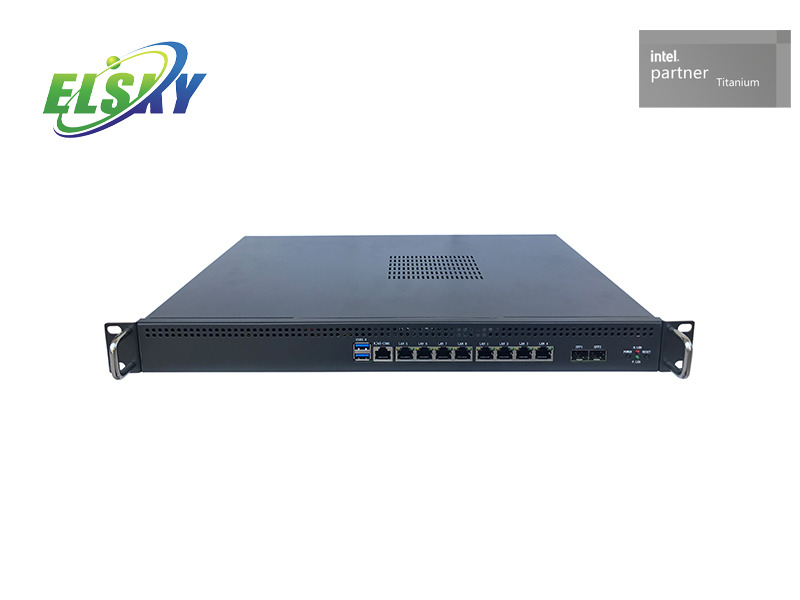

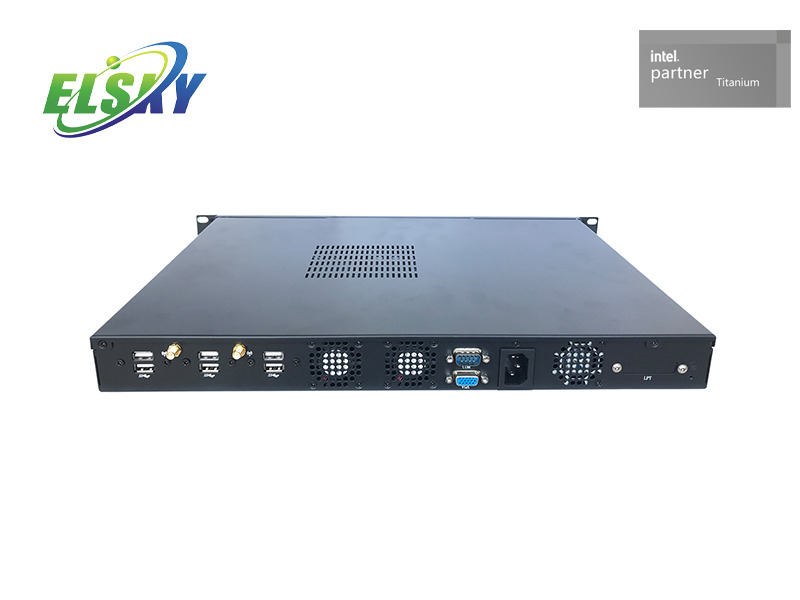

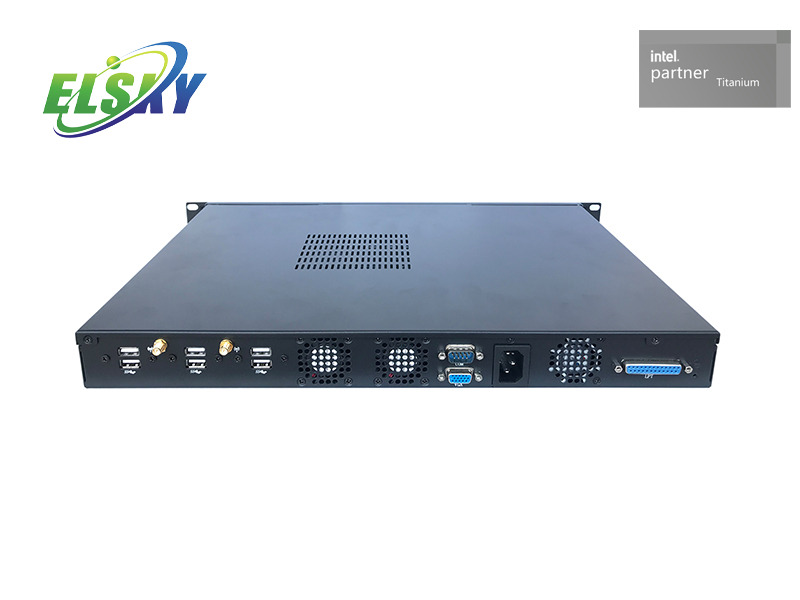

PC model | CPU | RJ45-LAN | Fiber LAN | COM | USB | Memory | Power |
U108-2F | Supports Skylake 6th generation and Kaby lake 7th generation platforms with 1151-pin i3, i5, i7 | 8 | 2 | 2 | 8 | 2*NB-DDR4 MAX 32G | ATX 1U power supply |
Motherboard model | |||||||
QM118L |
>> Important NOTE
1) The motherboard supports independent desktop 1151-pin 6th generation and 7th generation CPUs;
2) The Mini PC has no LPT interface by default, and the LPT interface can be added optionally;
3) The motherboard M.2 interface defaults to M.2 2280, and M.2 2242 is optional; the default only supports the SATA protocol, and the NVME protocol cannot be changed;
4) The motherboard supports standard CF card slot, supports CF card, and has the same function as the hard disk;
5) The motherboard MSATA supports the coexistence of SATA signal and USB signal by default, and the SATA signal cannot be changed to the PCIE signal;
6) The motherboard Mini-PCIE supports the coexistence of PCIE signals and USB signals by default;
7) The motherboard has an external USB interface and a built-in USB pin, which supports A power by default (charged after shutdown), and cannot be changed to S power (no power after shutdown);
8) The motherboard supports 8 * Intel i211-AT Gigabit LAN; LAN1~4 supports Bypass function;
9) The motherboard supports 2 * Intel i350-AM2 optical fiber Gigabit LAN;
>> CPU Information
CPU specifications | CPU brand | CPU model | Main frequency | Turbo frequency | CPU power consumption (W) |
6th generation I3 | Intel core | 6100 | Dual-core 3.7G | 65 | |
6300 | Dual-core 3.8G | 65 | |||
6320 | Dual-core 3.9G | 65 | |||
6th generation I5 | Intel core | 6400 | Quad-core 2.7G | 3.3G | 65 |
6500 | Quad-core 3.2G | 3.6G | 65 | ||
6600 | Quad-core 3.3G | 3.9G | 65 | ||
6th generation I7 | Intel core | 6700 | Quad-core 3.4G | 4.0G | 65 |
7th generation I3 | Intel core | 7100 | Dual-core 3.9G | 65 | |
7300 | Dual-core 4.0G | 65 | |||
7320 | Dual-core 4.1G | 65 | |||
7th generation I5 | Intel core | 7400 | Quad-core 3.0G | 3.5G | 65 |
7500 | Quad-core 3.4G | 3.8G | 65 | ||
7600 | Quad-core 3.5G | 4.1G | 65 | ||
7th generation I7 | Intel core | 7700 | Quad-core 3.6G | 4.2G | 65 |
>> Product Specifications
PC size | 428mm*301mm*44mm | |
CPU processor | Supports Skylake 6th generation and Kaby lake 7th generation platforms with 1151-pin i3, i5, i7 | |
Chipset | H110 chipset | |
Power supply | 1*24Pin ATX 1*4Pin PWR | Standard desktop 1U power supply Motherboard full load power consumption is about 90W |
Memory | 2*NB-DDR4 memory, support 2133/2400MHz memory, maximum support 32G | |
Display function | 6th generations | Intel HD Graphics 530 graphics controller |
7th generations | Intel HD Graphics 630 graphics controller | |
1*VGA_OUT pin | Support the highest resolution 1920*1200@60HZ (12Pin, 1*12Pin, 2.0mm) | |
Internet function | 8*RJ45 LAN | Intel i211-AT Gigabit LAN |
2*Fiber LAN | Intel i350-AM2 Fiber Optic Gigabit LAN | |
1*Mini-PCIE interface | Support WIFI/3G/4G/Bluetooth, etc. | |
1*LAN_LED | Network port light pin (36Pin, 2*13Pin, 2.0mm) | |
Hard disk function | 1*SATA1 interface | Standard SATA3.0 hard disk interface, the maximum transmission speed is 6.0 Gbps |
1*SATA2 interface | Standard SATA3.0 hard disk interface, the maximum transmission speed is 6.0 Gbps | |
1*MSATA interface | Support MSATA disk | |
1*M.2 interface | M.2 2280 is supported by default, 2242 is optional; only SATA protocol is supported | |
1*CF card slot | Support standard CF card | |
USB function | 2*USB3.0 interface | Rear standard USB3.0 interface |
6*USB2.0 interface | Rear standard USB2.0 interface | |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, reset pin (9Pin, 2*5Pin, 2.54mm) |
1*PWR_BUTN button | switch button | |
1*RST_BIN button | restart button | |
1*AT_ATX pin | Support hardware control to power on and start (3Pin, 1*3Pin, 2.54mm) | |
Other I/O | 1*RJ45-COM1 interface | COM port in the form of RJ45 interface |
1*COM2 pin | Serial port, support RS232 (9Pin, 2*5Pin, 2.54mm) | |
1*SIM card slot | Support SIM card, need SIM card when using 3G/4G | |
1*J1 pin | CLR_CMOS motherboard clearing and discharging pin (3Pin, 1*3Pin, 2.0mm) | |
1*FAN1 pin | CPU fan pin, with temperature control (3Pin, 1*3Pin, 2.54mm) | |
1/FAN2 Pin | System fan pin, no temperature control (3Pin, 1*3Pin, 2.54mm) | |
1*JLPT pin | Standard LPT printing interface pin (25Pin, 2*13Pin, 2.54mm) | |
1*PCI-E interface | PCI-E devices can be connected | |
Operating environment | Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | |
BIOS | AMI BIOS, support power-on and start-up, scheduled start-up, remote switch machine intelligent identification of equipment | |
Watch dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Operating system | Support Windows 10, Windows 8, Windows 7, Linux, etc. | |
>> The Characteristics of the Mini PC
The Mini PC supports 4K Extreme HD, small size, simple and portable, low power consumption, power saving and environmental protection. Full size and dimensions, optional discrete graphics card.
Mini PC Series

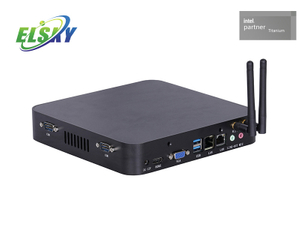

HD4001 Mini PC
Size: 197*197*37MM
Supports single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/EDP Display Interfaces
7*24 hours stable operation
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
NUC Mini PC
Size: 107*110*38MM
Supports single and dual LAN ports
2-6 COM ports
HDMI/LVDS/VGA/DP Display Interfaces
7*24 hours stable operation
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9

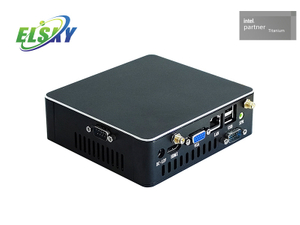

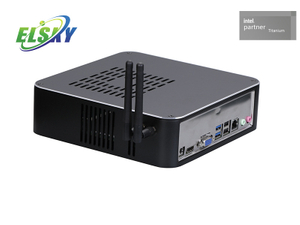

NANO Mini PC
