| Availability: | |
|---|---|
| Quantity: | |

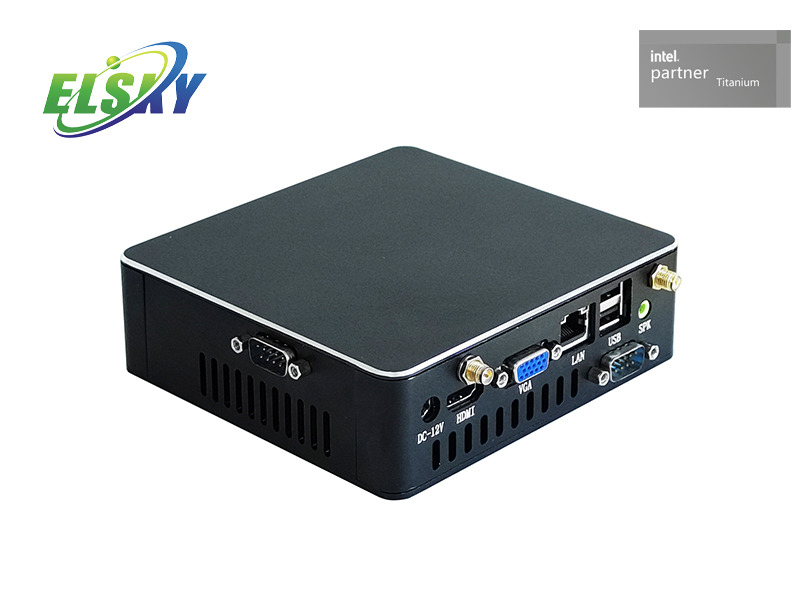

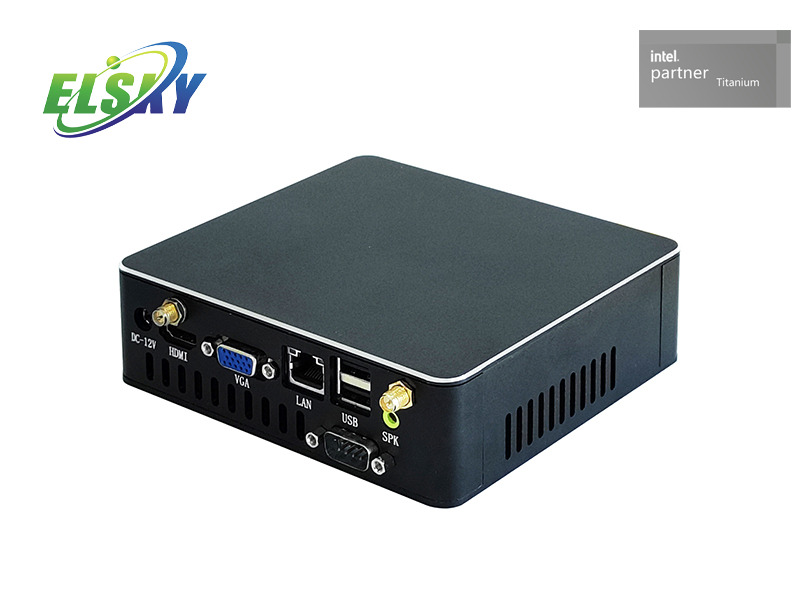

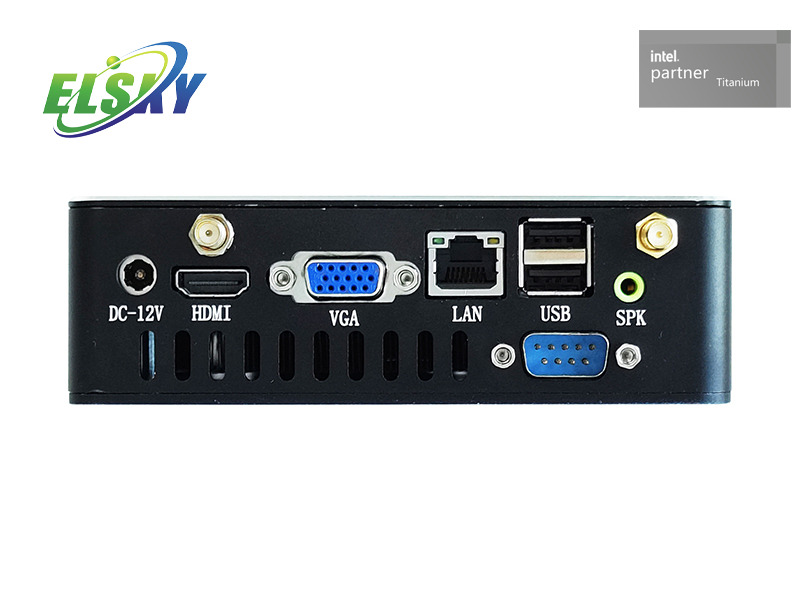

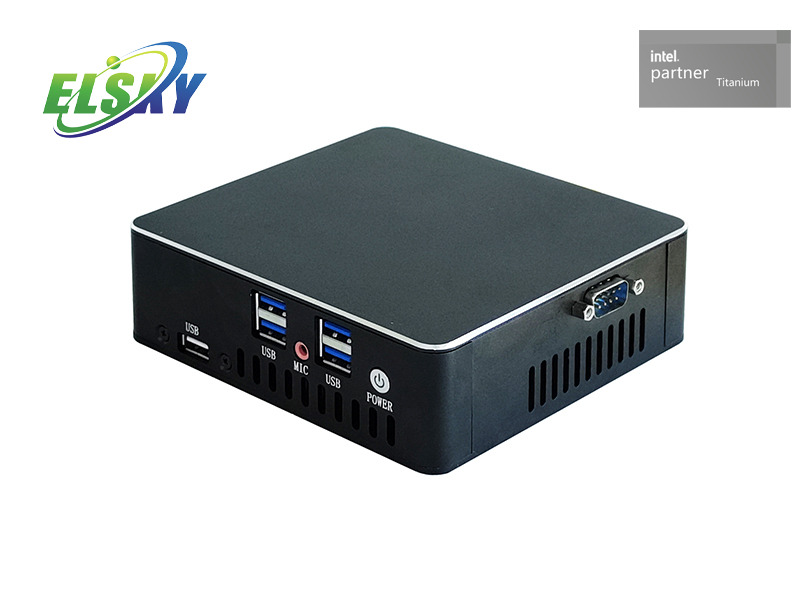

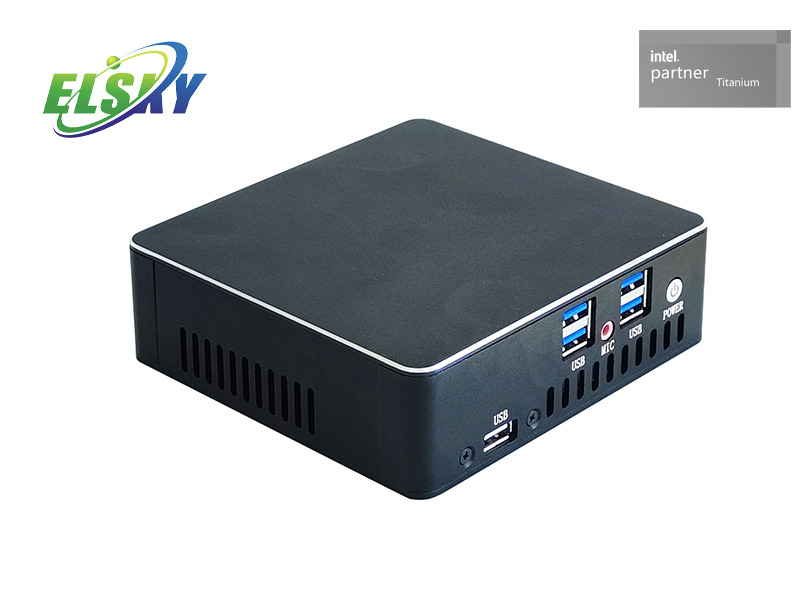

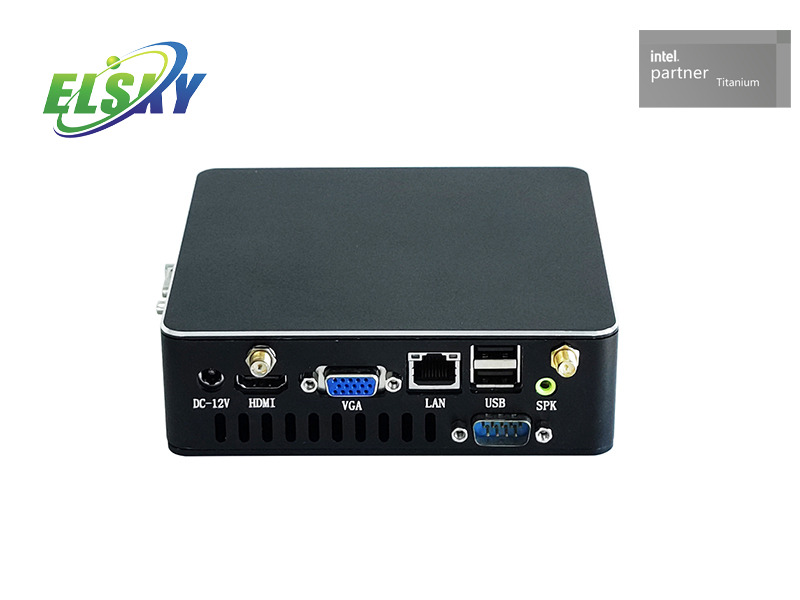

PC model | CPU | 4K | LAN | COM | USB2.0 | USB3.1 | SSD | Memory | Power | |
NANO10 | Support Whiskey Lake 8th generation, Comet Lake 10th generation Core i3, i5, i7 | support | 1 | 2 | 4 | 4 | 1*M.2 | 1*NB DDR4 32GB MAX | 12/19V | |
2 | 2 | 2 | ||||||||
Applicable motherboard | NANO8U-UA, NANO10U-UA | |||||||||
>> Important Note:
Power supply interface:
The motherboard DC interface specification 5.5*2.5; DC head can be changed to 4Pin power socket;
The power supply of the motherboard supports 12V or 19V, and the full load power consumption is about 55W. It is recommended to use a power supply of 12V7A or 19V5A or above;
Display interface:
1. The motherboard VGA, HDMI, LVDS/EDP supports single display, dual display/triple display copy, dual display/triple display expansion, single display under DOS;
2. The motherboard supports LVDS by default, but can be changed to support EDP, EDP and LVDS share pins, EDP uses EDP-B screen cable (20Pin backlight independent), EDP supports 4K resolution 4096/3840*2160@60Hz ;
3. The motherboard HDMI supports 4K resolution 4096/3840*2160@30Hz; running 4K video requires Win10 system;
Mini-PCIE:
1. The motherboard supports M.2 2280 by default, and M.2 2242 is optional; it supports both SATA protocol and NVME (PCIE) protocol by default, no need to change hardware and BIOS;
2. The default PCIE signal and USB signal coexist in the Mini-PCIE interface of the motherboard, and support WIFI/3G/4G/Bluetooth module by default; SATA signal can be changed, and MSATA disk is supported after change;
The USB signal of Mini-PCIE and the signal of pin 1/3/5/7 of F_USB2 are optional, and the default pin 1/3/5/7 of F_USB2 has no signal;
USB interface:
The motherboard supports 8USB by default (4*USB3.1, 4*USB2.0);
There is no F_USB2 pin on the motherboard by default;
All USB ports and pins of the motherboard default to S power (off power off), can be changed to A power (off power on);
COM port:
The motherboard supports 2COM, and supports RS232 by default; among them, COM1 supports RS232/RS422/RS485 optional, which can be set through BIOS;
The 9th pin of COM1 can be set to live 0V/5V/12V through JCOM1;
Network card:
The motherboard supports Realtek 8111H Gigabit network card, optional Realtek 8106E Fast Ethernet card, single network/dual network optional, POE power supply cannot be changed;
Sound card:
The motherboard sound card supports the Cmedia HS_100B USB audio chip, the USB signal and the USB signal of the F_USB2 pin 2/4/6/8 are optional, the default F_USB2 2/4/6/8/10 pin has no signal, the default F_AUDIO pin Not available, the motherboard does not support changing Realtek sound card;
>> CPU Information
CPU Specifications | CPU brand | CPU model | main frequency | Turbo | CPU power consumption (W) | Full load power consumption approx. ( W ) |
8th generation I3 | core | 8145U | Dual core 2.1G | 3.9G | 15 | 60 |
8th generation I 5 | core | 8365U | Quad core 1.6G | 4.1G | 15 | 60 |
8265U | Quad core 1.6G | 3.9G | 15 | 60 | ||
8th generation I7 | core | 8665U | Quad core 1.9G | 4.8G | 15 | 60 |
10th generation I3 | core | 10110U | Dual core 2.1G | 4.1G | 15 | 60 |
10th generation I5 | core | 10310U | Quad core 1.7G | 4.4G | 15 | 60 |
core | 10210U | Quad core 1.6G | 4.2G | 15 | 60 | |
10th generation I7 | core | 10510U | Quad core 1.8G | 4.9G | 15 | 60 |
core | 10610U | Quad core 1.8G | 4.9G | 15 | 60 | |
core | 10810U | Six-core 1.1G | 4.9G | 15 | 60 | |
core | 10710U | Six-core 1.1G | 4.7G | 15 | 60 |
>> Product Specifications
PC model | NANO10 | ||
Applicable motherboard | NANO8U-UA/NANO10U-UA | ||
PC size | 136mm(L)*127mm(W)*42mm(H) | ||
CPU processor | NANO8U-UA | Support 8 generations of Whiskey Lake CPU: I3-8145U , I5-8265U, I7-8665U, etc. | |
NANO10U-UA | Support 10th generation Comet Lake CPU: I3-10110U, I5-10210U, I7-10510U, etc. | ||
Memory support | 1*DDR4 SODIMM memory slot, support 2133/2400/2666MHz memory, low voltage 1.2V, maximum support 32GB | ||
Power supply | 1*DC_IN | Support 12V/19V voltage, the inner diameter of DC head is 2.5MM full load power consumption of the motherboard is about 55W, it is recommended to use a power supply of 12V /7 A or 19V5A or above | |
Display function | Integrated Intel UHD Graphics ultra-core graphics card , support single display, dual display/triple display copy, dual display/triple display expansion, single display under DOS | ||
1*HDMI 1.4 interface | Support 4K resolution 4096/3840*2160@ 30Hz | ||
1*VGA DB15 interface | Support resolution 1920*1080@60HZ | ||
Network features | 1*RJ45 LAN interface (Optional dual network ports) | Single or dual network Realtek 8111 H Gigabit LAN chip, support wake on LAN and PXE diskless boot function Optional Realtek 8106E Fast Ethernet chip | |
1*Mini-PCIE interface | Support WIFI/3G/4G/GPS/Bluetooth module, optional support MSATA | ||
Hard disk function | 1*M.2 interface | Default support M.2 2280, optional 2242; support NVME (PCIE) protocol and SATA protocol disk; | |
1*Mini-PCIE interface | Can be changed to support MSATA | ||
Sound function | Integrated Cmedia HS_100B USB audio chip | ||
1*LIN_OUT interface | Support audio output (green) | ||
1*MIC_IN interface | Support microphone input (red) | ||
USB function | 4*USB3.1 interface | Rear standard USB3.1 Gen2 interface , the maximum transmission bandwidth is 10.0Gbps | |
4*USB2.0 interface | Rear standard USB2.0 interface | ||
Switch function | 1*PWR_SW button | switch button | |
Other I/O | 1*COM interface | Serial port, optional support RS232/RS422/RS485 | |
1*SIM_CARD slot | Support SIM card, SIM card is required when using 3G/4G | ||
Operating environment | Working temperature: -1℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | ||
BIOS | AMI BIOS, support power-on, scheduled power-on, remote power-on and power-on device intelligent identification | ||
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | ||
Operating system | Support Windows 11, Windows 10, Linux, etc. | ||
>> The Characteristics of the Mini PC
The Mini PC supports 4K Extreme HD, Fanless, Multi-COM, Multi-network, Multi-USB, Multi-display ports. Full size and dimensions, optional discrete graphics card.
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100, 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9, etc.
Mini PC Series
IPC6900 High-performance Mini PC
Size: 210*220*80MM
Supports single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/DP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 8th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
IPC6800 Mini PC
Size: 205*286*76MM
Support single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/EDP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 8th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
IPC6000 Mini PC
Size: 205*213*53MM
Support single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/EDP display interfaces
Fully Enclosed Fanless
7*24 hours stable operation
Supports 6th-10th Gen CPUs:Intel CORE i3, i5, i7, i9
Rack-mounted Mini PC Series

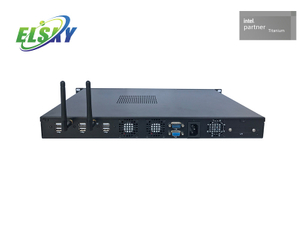

1U series IPC100U
Size: 430*301*44MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
2U series IPC200U
Size: 480*350*88MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
4U series IPC400U
Size: 380*351*160MM
Supports Intel Celeron CPUs: J1900/J4125/J6412/N100
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
