Mini PC model | Applicable motherboard model | HDMI | LAN | USB2.0 | USB3.0 | COM | SSD | Memory (MAX) | Power |
J1900 series J4125 series J6412 series N100 series | M219F M415F M612F M100F | 2K 60Hz 4K 60Hz | 1 | 4 | 2 | 2 | 2.5 inch SSD/MSATA/Laptop HDD | 1*DDR3/DDR4 8G/16G | 12V |
2nd generation 3rd generation series | HGP series | 2K 60Hz | 1 | 4 | 2 | 2 | 1*DDR3; 8G | 12V | |
6th generation 7th generation series | QM9600 QM9700 | 4K 30Hz | 1 | 4 | 2 | 2 | 2*DDR3; 16G | 12V/19V | |
8th generation 10th generation series | QM9850 QM10U | 4K 30Hz | 1 | 4 | 2 | 2 | supports the above SSDs as well as M.2 | 2*DDR4; 32G/64G | 12V/19V |
11th generation 12th generation 13th generation 14th generation series | QM11U QM12U QM13U QM14U | 4K 60Hz | 1 | 4 | 2 | 2 | supports the above SSDs as well as M.2 | 2*DDR4/DDR5 64G/96G | 12V/19V |
>> Product Specifications

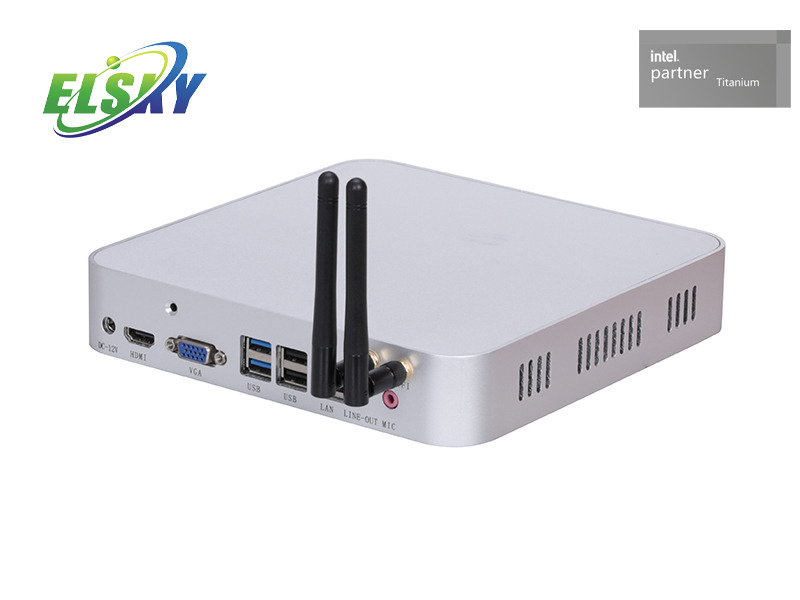

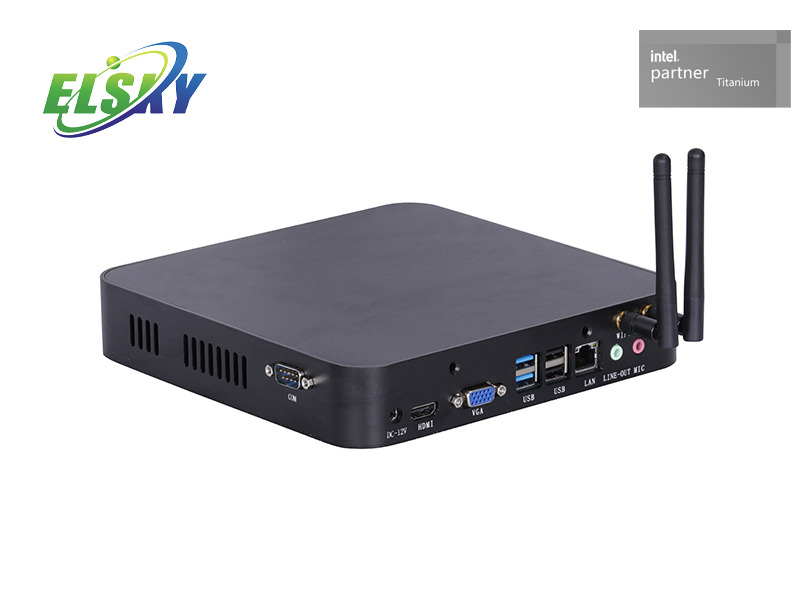

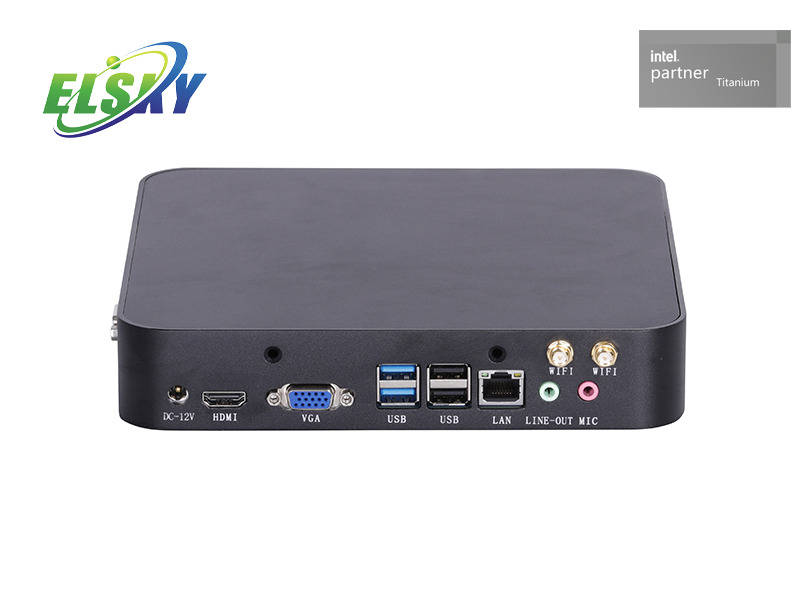

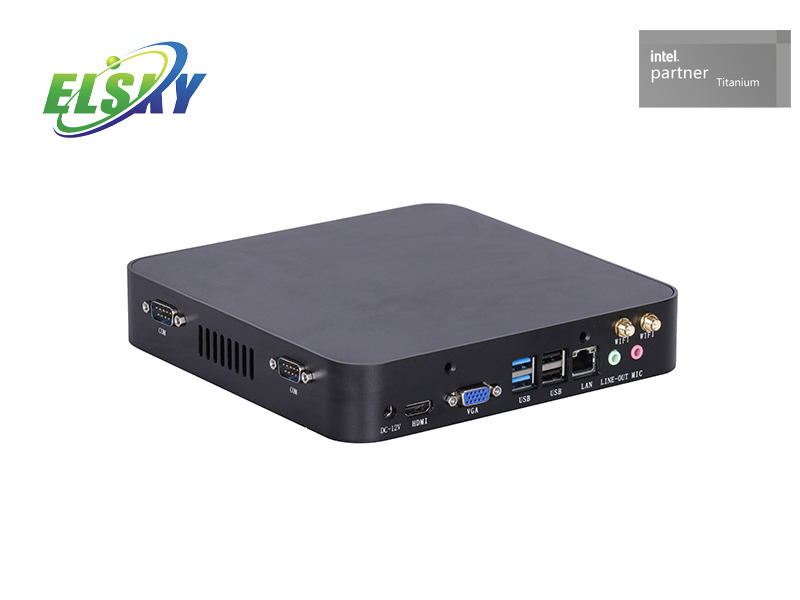

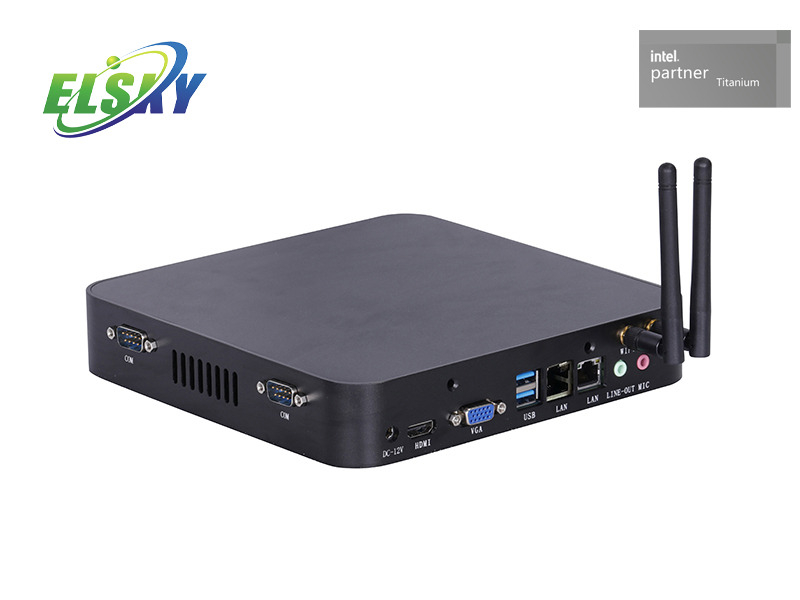

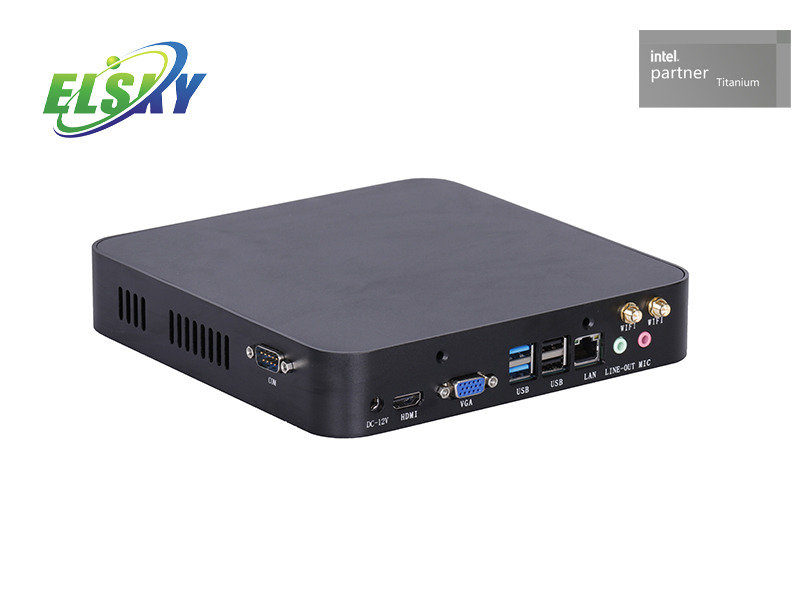

Mini PC model | HD4001 (silver and black optional) | |
Mini PC size | 196mm(L)*196mm(W)*32mm(H) | |
Power supply | 1*DC_IN | The inner diameter of the DC head is 2.5mm, it is recommended to use 12V7A or above power supply |
CPU | Support integrated Intel Celeron and CORE 2nd~14th generation i3, i5, i7, i9 (Please consult us for specific requirements.) | |
Memory | Single channel DDR3 8G MAX; Dual channel DDR3 16G MAX; Dual channel DDR4 32G/64G MAX; Dual channel DDR5 96G MAX; (depending on configuration) | |
Network function | 1*LAN | Integrated Realtek 8111E/8111F/8111H Gigabit LAN, support wake-up on LAN, network PXE function. |
Support WIFI/3G/4G, support 2*WIFI antenna mast | ||
Display function | 1*VGA | Support 2K resolution 1920*1080@60Hz |
1*HDMI | J1900 and 2nd and 3rd generations: Support 2K resolution 1920*1080@60Hz | |
6th generation~10th generation: Support 4K resolution 4096/3840*2160@30Hz; 11th generation~14th generation: Support 4K resolution 4096/3840*2160@60Hz | ||
USB function | 2*USB3.0 | The blue group USB is USB3.0 speed |
4*USB2.0 | Black group USB is USB2.0 speed | |
Serial port function | 2*COM | Support RS232/RS422/RS485 optional |
Sound function | Integrated Realtek ALC662 HD digital audio decoder, 6-channel high-fidelity audio controller | |
1*SPK | Support audio output | |
1*MIC | Support microphone input | |
HDMI interface supports HDMI audio output | ||
Hard disk function | 2.5-inch SSD disk, notebook hard disk, MSATA disk, M.2; (8G/16G/32G/64G/120G/128G/240G/256G, etc.) | |
Switch function | POWER | switch button |
Operating environment | Working temperature: -20℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | |
BIOS | AMI BIOS, support power-on boot, scheduled boot, remote boot | |
Watch dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Operating system | Support Windows 11, Windows 10, Windows 8, Windows 7, Windows XP, Linux, etc. | |
>> The Characteristics of the Mini PC
The Mini PC supports 4K Extreme HD, small size, simple and portable, low power consumption, power saving and environmental protection. Full size and dimensions, optional discrete graphics card.
Mini PC Series
HD4001 Mini PC
Size: 197*197*37MM
Supports single and dual LAN ports
2-10 COM ports
HDMI/LVDS/VGA/EDP Display Interfaces
7*24 hours stable operation
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
NUC Mini PC
Size: 107*110*38MM
Supports single and dual LAN ports
2-6 COM ports
HDMI/LVDS/VGA/DP Display Interfaces
7*24 hours stable operation
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
NANO Mini PC
Size: 136*125*44MM
Support single and dual LAN ports
2-6 COM ports
HDMI/LVDS/VGA/EDP Display Interfaces
7*24 hours stable operation
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
>> The Applications of the Mini PC
ELSKY products help thousands of businesses, widely used in Intelligent city, Intelligent financial, Intelligent retails, Intelligent transportation, Intelligent Medical Care, Intelligent Network Security, Intelligent Commercial Display, Intelligent Education and Conferences, Self-service Cash Registers, Industrial Automation, Industrial control, AI Computing Terminal, AI Robots, 5G IoT, ect.
>> Company Profile
Founded in 2009, ELSKY is a national high-tech enterprise focusing on independent research and development of industrial control motherboards and computers. With more than 16 years of deep development of control terminal industry technology, ELSKY has been at the forefront of industrial control terminal design and development, committed to promoting the automation, intelligence and informationization of high-end manufacturing equipment industry, and providing partners with complete industrial control terminal solutions.
ELSKY has obtained more than 40 intellectual property rights. The products are widely used in industrial control, medical, transportation, network security and other industries, fully supporting the application of visual innovation technology and artificial intelligence technology, and have been strongly recognized by the market and users. ELSKY has won many government recognitions and industry awards, and has passed many major global certifications.
ELSKY is a member of Intel China Intelligent Manufacturing Base, a member of Intel Internet of Things Alliance, and has been awarded Intel Titanium Global Strategic Partner in 2022. The company has launched hundreds of industrial motherboards and OPS based on low-power platforms, industrial PC, with comprehensive functions, exquisite processing, stable operation, which are affirmed by the users and sold well in Europe, America, the Middle East, Southeast Asia and hundreds of other countries and regions. In the field of IoT artificial intelligence innovation, we are willing to work with excellent partners all the way to create a win-win situation!
>> Company Advantage
National High-tech Enterprise, National Specialized New Small Giant Enterprise, Guangdong Industrial Visual Control Terminal Engineering Technology Research Center.
Founded in 2009, with 200+ professional employees, focusing on motherboard and OPS, Industrial Computer solutions for more than sixteen years.
Providing OEM / ODM motherboard and computer service
All kinds of intellectual property rights more than 60 pieces.
Core support: Intel Titanium strategic partner, Intel China Intelligent Manufacturing Base members.
Supply chain support: Intel, ON, Realtek, ITE and other domestic and international OEMs and ODMs.
Wide range of applications: covering Display, Education,Retail, Industrial Automation, Network, Medical, Telecommunications, Metallurgy, Transportation, Electric power, Railroads, aviation, Communications, Finance, etc.
Representative Users and projects: Foxconn, TCL, Lenovo, Daxing Airport, Zhejiang University, etc.
