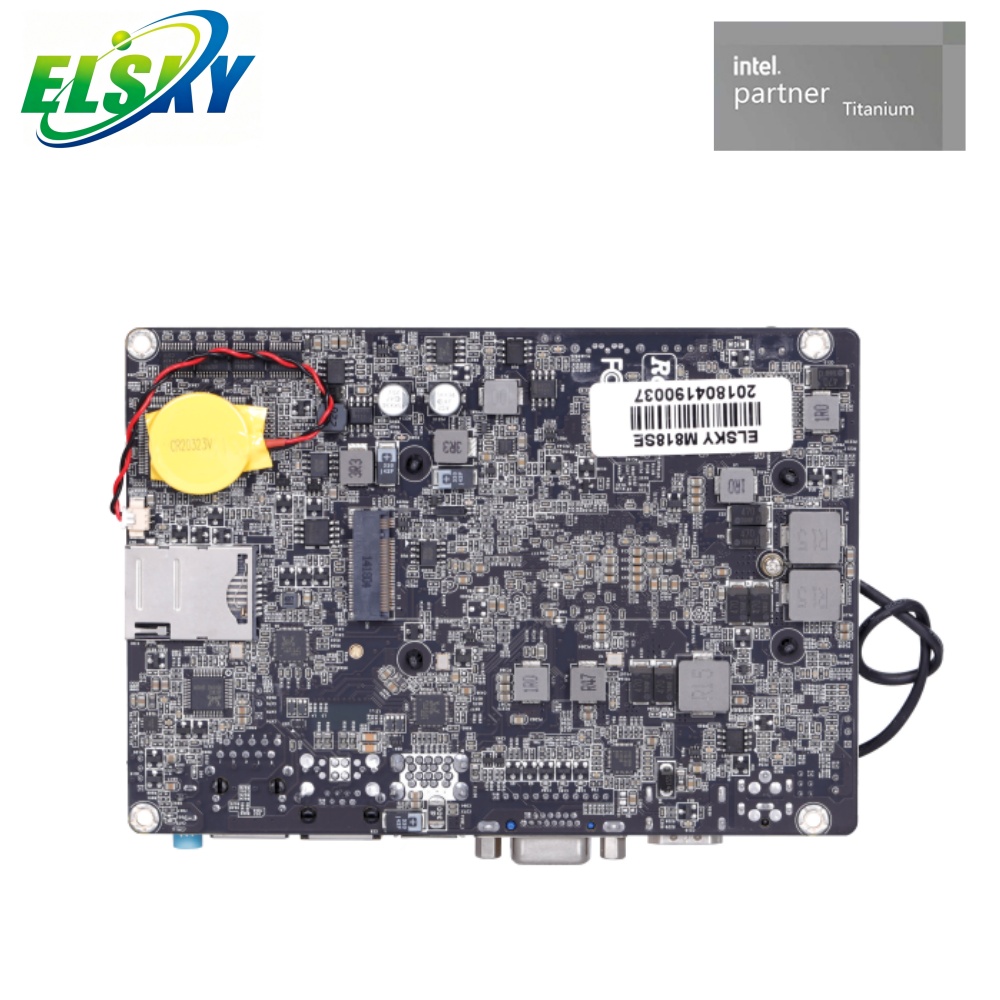

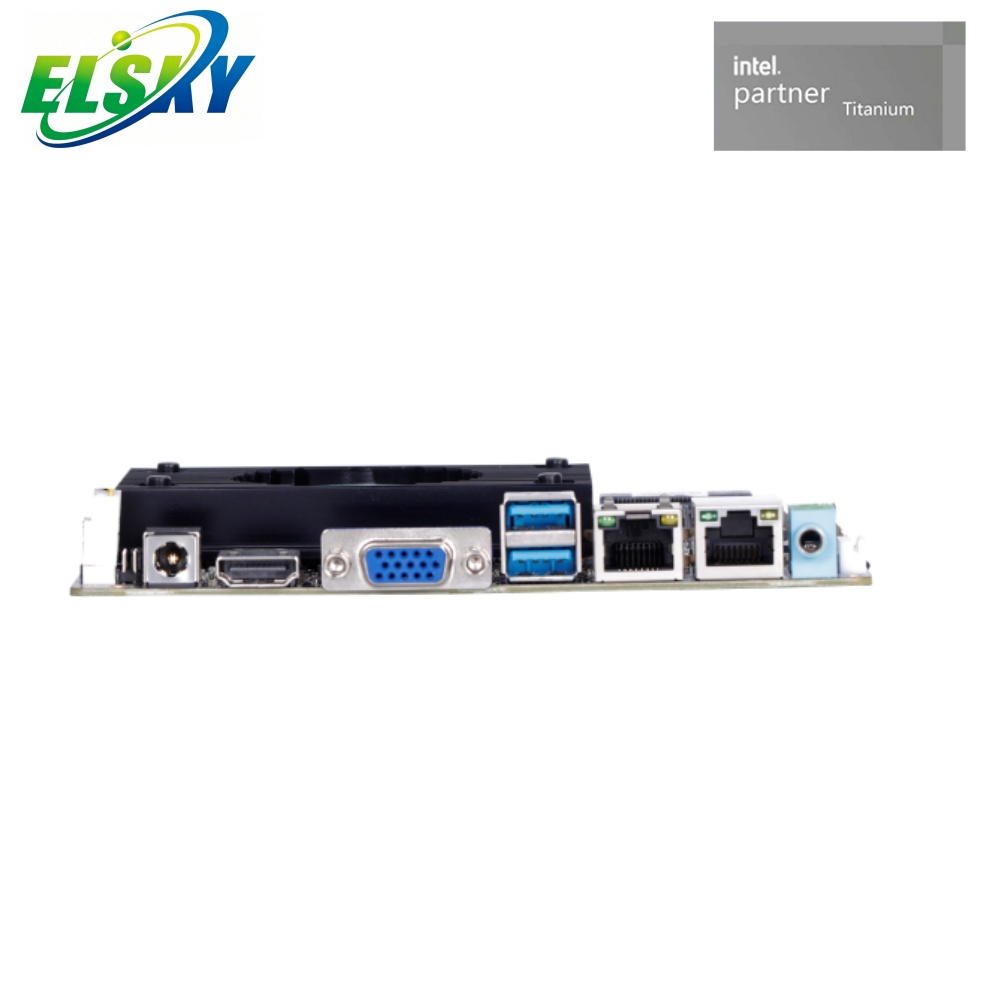

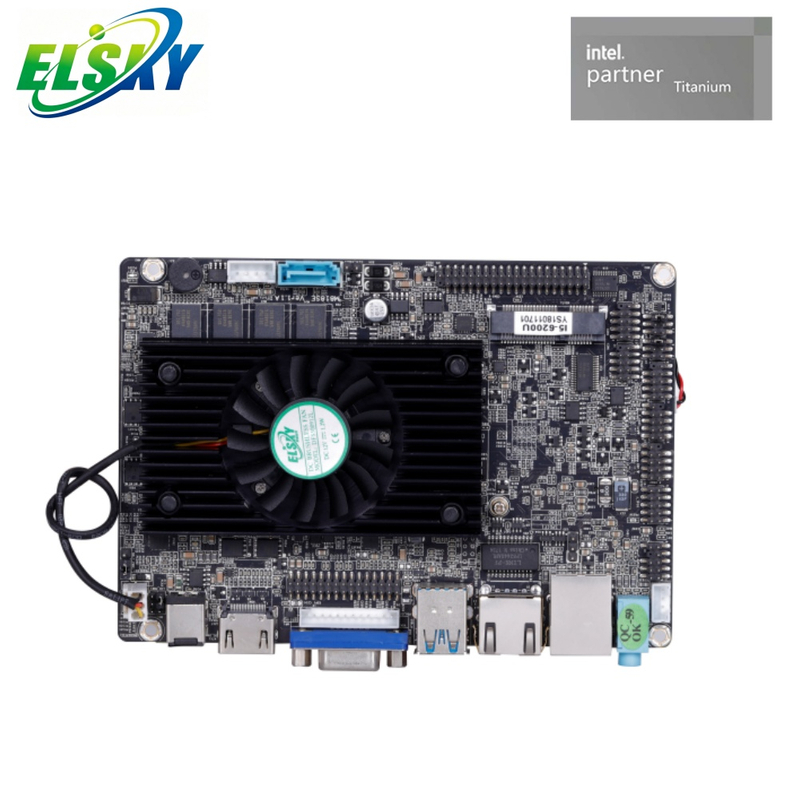

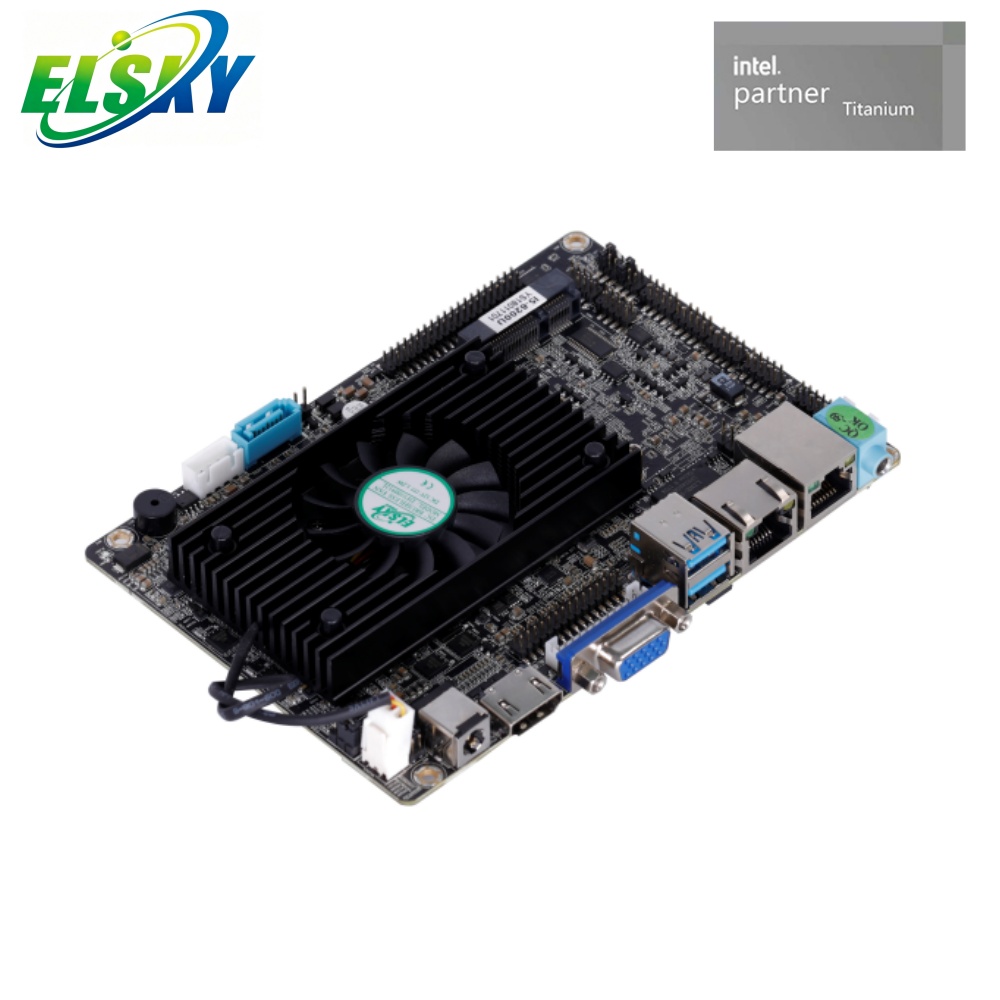

Embedded 3.5-Inch Intel Skylake And Kaby Lake Industrial Motherboard Integrated DDR4 Memory

This standard 3.5-inch industrial motherboard supports 6th and 7th generation Intel Celeron and Core i3/i5/i7 processors with integrated graphics. It features onboard DDR4 memory up to 8GB, wide-voltage DC power support (12V-24V), and robust expansion options including SATA 3.0, M.2 SSD, and a Mini-PCIE slot for 3G/4G/Wi-Fi modules. Designed for versatility, it offers multiple display outputs (VGA, HDMI, eDP), dual/triple display capabilities, a Gigabit Ethernet port, six COM ports, and USB 3.0 interfaces. Operating reliably in extreme temperatures from -20℃~60℃; this AMI BIOS-powered board supports Windows and Linux operating systems, making it an ideal choice for embedded systems, automation, digital signage, and various industrial applications requiring high performance and durability in a compact form factor.

Processor:	I3 I5 I7
Storage:	128G 256G 512G 1TB
Availability:

Quantity:



Inquire Add to Basket

Model:
M818SE
Brand:
ELSKY

3.5-inch Industrial Motherboard Intel 6th gen Skylake motherboard Core i3 i5 i7 industrial motherboard dual/triple display industrial board

Product Description

Product Advantages

Based on the provided specifications, here are the key product advantages:

Compact Form Factor: Standard 3.5-inch design (145*100*18mm) optimized for space-constrained embedded systems and small enclosures.
Flexible Processor Options: Supports a wide range of 6th (Skylake) and 7th (Kaby Lake) generation Intel Celeron and Core i3/i5/i7 processors to scale performance based on project needs.
Wide Voltage Power Support: Accommodates flexible power inputs ranging from 12V-24V DC, ensuring stable operation across diverse power environments.
Advanced Multi-Display Capability: Features HDMI (up to 4K resolution), VGA, and eDP interfaces, supporting single, dual, or triple simultaneous displays (copy or expansion modes).
Robust Industrial Connectivity: Equipped with up to 6 serial ports (COM1 supporting RS232/422/485 with adjustable voltage pins), Gigabit LAN with PXE boot, and multiple USB 3.0/2.0 ports.
Versatile Storage & Expansion: Includes a standard SATA 3.0 port, an M.2 SSD slot (SATA/NVMe support), and a Mini-PCIE interface for flexible Wi-Fi, 3G, 4G, or Bluetooth module integration.
Industrial-Grade Reliability: Designed to operate reliably in harsh environments with a wide operating temperature range of -20℃~60℃ and built-in hardware watchdog timer support.

CPU information

M818SE motherboard supports Intel 6th,7th generation processor(FCBGA1356):
CPU Model	Intel CPU	Base Frequency (GHz)	Max Turbo Frequency (GHz)	TDP (W)	CPU Graphics (Support 4K resolution )
6th generation processors:
3855U	Celeron	Dual Cores, 1.6GHz	/	15	Intel HD Graphics 510
3955U	Celeron	Dual Cores, 2.0GHz	/		Intel HD Graphics 510
I3-6006U	Core i3	Dual Cores, 2.0GHz	/		Intel HD Graphics 520
I3-6100U	Core i3	Dual Cores, 2.3GHz	/
I5-6200U	Core i5	Dual Cores, 2.3GHz	2.8GHz
I5-6300U	Core i5	Dual Cores, 2.4GHz	3.0GHz
I7-6500U	Core i7	Dual Cores, 2.5GHz	3.1GHz
I7-6600U	Core i7	Dual Cores, 2.6GHz	3.4GHz
7th generation processors:
3865U	Celeron	Dual Cores, 1.8GHz	/	15	Intel HD Graphics 610
3965U	Celeron	Dual Cores, 2.2GHz	/		Intel HD Graphics 610
I3-7020U	Core i3	Dual Cores, 2.3GHz	/		Intel HD Graphics 620
I3-7100U		Dual Cores, 2.4GHz	/
I3-7130U		Dual Cores, 2.7GHz	/
I5-7200U	Core i5	Dual Cores, 2.5GHz	3.1GHz
I5-7300U	Core i5	Dual Cores, 2.6GHz	3.5GHz
I7-7500U	Core i7	Dual Cores, 2.7GHz	3.5GHz
I7-7600U	Core i7	Dual Cores, 2.8GHz	3.9GHz

Product specification

Form Factor	*Standard 3.5inch,14510018mm(LWH)*
Processor	6th generation Celeron 3855U,3955U,Core Skylake i3-6100U,i5-6200U,i7-6500U,etc.
	7th generation Celeron 3865U,3965U,Core Kaby Lake i3-7100U,i5-7200U,i7-7500U,etc.
Chipset	Integrated single Chip in CPU.
Power Supply	*1DC_IN /ATX**	*DC port:5.52.5MM;Support 12V~24V wide voltages;By default,the motherboard has DC power. If you need ATX power,please tell us in advance.The motherboard full load power consumption is about 35W;Recommended to use 12V 5A or above.**
Memory	Integrated NB-DDR4 2133MHz Memory on the motherboard,it supports Max 8GB RAM.
Display	6th generation	Integrated Intel® HD Graphics 510/520 in CPU.	Supports single display,dual/three display copy,dual/three display expansion,single display under DOS.
	7th generation	Integrated Intel® HD Graphics 610/620 in CPU.
	*1VGA DB15 interface**	*Support Max resolution 19201200@60HZ**
	*1VGA_OUT pin**	*Support Max resolution 19201200@60HZ （112Pin，2.0mm）*
	*1HDMI 1.4 interface**	*Support Max resolution 40962304@24/30HZ (4K resolution,UHD)**
	*1EDP pin**	*Support Max resolution 40962304@60HZ (4K resolution,UHD) （215Pin，2.0mm）*
	*1BKLT PWR1**	EDP backlight voltage control pin *（13Pin，2.54mm）**
	*1LCD_PWR1 pin**	EDP voltage control pin *（23Pin，2.0mm）**
Ethernet	*1LAN**	Realtek 8111F Gigabit NIC chip supports Wake-on-LAN and PXE diskless boot function.
	*1Mini-PCIE interface**	Support WIFI/3G/4G/Bluetooth module,etc.Other option:MSATA hard disk.
Hard Disk	*1SATA1 interface**	Standard SATA3.0 hard disk interface,its maximum transmission speed 6.0Gbps.
	*1M.2 SSD**	Support M.2(2280) hard disk.It has SATA or NVME(PCIE) signal to choose.
Sound	Integrated Realtek ALC662 HD digital audio decoder,6-channel high-fidelity audio controller.
	*1LINE_OUT interface**	Support Audio output
	*1INT_SPK pin**	This is the amplifier pin. It supports 8Ω 5W speaker dual channel output. *(14Pin，2.0mm)**
	*1F_AUDIO pin**	Standard Audio pin *（25Pin，2.0mm）**
	*1SPDIF pin**	Digital Audio pin *（13Pin，2.54mm）**
USB	*2USB3.0 interfaces**	Rear standard USB3.0 interfaces
	*2USB2.0 interfaces**	Rear standard USB2.0 interfaces
	*1F_USB1 pin**	*Front USB2.0 pin,one group has 2USB2.0 （25Pin，2.0mm）*
	*1F_USB2 pin**	*Front USB2.0 pin,one group has 2USB2.0 （25Pin，2.0mm）*
Switch	*1F_PANEL pin**	Switch, power supply light, hard disk light, restart pin. *（25Pin，2.0mm）**
Other I/O	COM1/COM2 pin	*These are serial ports.The COM1 supports RS232/RS422/RS485 signal. （25Pin，2.0mm）**
	COM3~6 pins	These serial ports support standard RS232 signal. *（220Pin，2.0mm）**
	*1JPCOM1 pin**	Control the 9th pin of the COM1 to choose optional 0V/5V/12V voltage. *（23Pin，2.0mm）**
	*1JPCOM2 pin**	Control the 9th pin of the COM2 to choose optional 0V/5V/12V voltage. *（23Pin，2.0mm）**
	*1SIM slot**	Support SIM card. A SIM card is required when using 3G/4G function.
	*1CLR_CMOS pin**	Motherboard clears,discharges pin. *（12Pin，2.54mm）**
	*1CPUFAN pin**	CPU Fan pin *（13Pin，2.54mm）**
	*1J_GPIO pin**	GPIO control pin *（25Pin，2.0mm）**
Operating Environment	Operating temperature：-20℃~60℃; Working humidity：5%~95% Relative humidity, no condensation.
BIOS	AMI BIOS;Support power on,timing switch,remote switch,intelligently identify devices.
Watch Dog	Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds).
Operating System	Support Windows 10,Windows 8,Windows 7 ,Linux,etc.

Frequently Asked Questions (FAQ)

1. What power supply options and requirements does this motherboard support?

Voltage Range: Supports 12V-24V wide voltage via a standard 5.5*2.5mm DC port.
ATX Support: The motherboard defaults to DC power, but ATX power can be supported if requested in advance.
Recommendation: Since full load power consumption is approximately 35W, it is recommended to use a power adapter of 12V5A or above.

2. Can the system memory (RAM) be upgraded?

No, the memory is integrated directly onto the motherboard (NB-DDR4 2133MHz) and supports a maximum capacity of 8GB RAM. It cannot be expanded past this limit.

3. What display outputs are available and what are their maximum resolutions?

The board supports single, dual, or triple display configurations (copy/expansion) with the following outputs:

VGA (DB15 & Pin): Supports up to 1920*1200 at 60HZ.
HDMI 1.4: Supports up to 4090*2304(4K UHD) at 24/30HZ.
EDP (Pin): Supports up to 4090*2304(4K UHD) at 60HZ.

4. What storage and wireless expansion options are supported?

Storage: Features 1x SATA 3.0 interface (up to 6.0Gbps) and 1x M.2 SSD slot (supporting both SATA and NVMe/PCIE signals).
Wireless/Expansion: Includes a Mini-PCIE interface which supports Wi-Fi, 3G, 4G, or Bluetooth modules (coupled with an onboard SIM card slot for cellular connectivity).

5. What are the operating temperature and environmental limits?

Temperature: Designed for harsh environments, operating reliably from -20℃~60℃.
Humidity: Supports 5% to 95% relative humidity with no condensation.
