QM9400H 4th Gen Haswell Mini-ITX Industrial Board
Powered by Intel Haswell-U (i3-4010U/i5-4200U/i7-4500U). 1 x DDR3 (8GB max), HDMI 4K, VGA, LVDS/EDP. 1/2 x Gigabit LAN. 2 x SATA + MSATA. Mini-PCIe. 6/8 x USB. 2/6 x COM (COM2 supports 232/422/485). 12V/19V DC or ATX 4Pin. -10°C~60°C. 24/7 reliable. Ideal for industrial embedded applications.
| Processor: | |
|---|---|
| LAN: | |
| COM: | |
| Availability: | |
| Quantity: | |
QM9400H
ELSKY

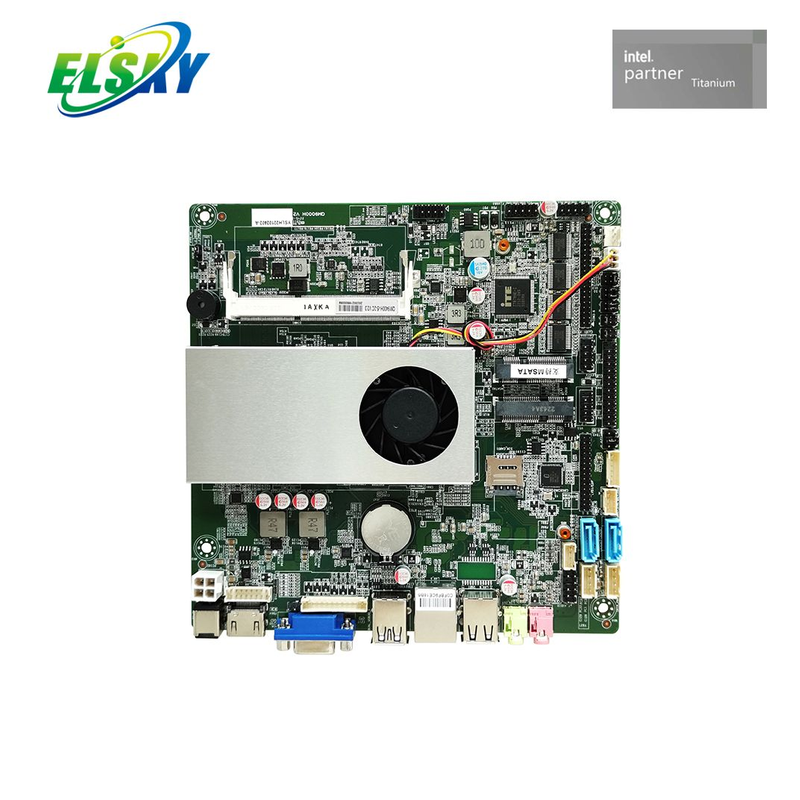

The QM9400H is a feature-packed Mini-ITX industrial board built for demanding environments. Powered by Intel 4th Generation Haswell-U processors (i3-4010U/i5-4200U/i7-4500U), it delivers stable 24/7 performance for automation, signage, and embedded projects.
Broad Processor Compatibility: Supports Intel 4th Gen Haswell-U processors (i3-4010U, i5-4200U, i7-4500U) for reliable industrial performance.
High-Speed Memory Support: 1 x DDR3 SODIMM slot supports up to 8GB 1600MHz memory.
Triple Display Output: HDMI 1.4 (4K@30Hz), VGA, and LVDS/EDP – ideal for digital signage.
Gigabit Network: 1 or 2 x Realtek 8111H Gigabit LAN with Wake-on-LAN and PXE.
Flexible Storage Options: 2 x SATA 3.0 ports + 1 x MSATA interface.
Rich I/O Connectivity: 6/8 x USB (2 x USB3.0) and optional 2/6 x COM ports (COM2: 232/422/485).
Industrial-Grade Durability: 24/7 operation at -10°C to 60°C. Watchdog timer with 256-level reset.
Industrial Control Systems: Ideal for factory automation, CNC machines, and PLC systems with optional 6 x COM ports.
Digital Signage: HDMI 4K output perfect for retail stores, airports, hotels, and public displays.
Self-Service Kiosks: Compact Mini-ITX (170x170mm) fits easily into ATMs, ticketing machines, and vending kiosks.
Embedded Automation: MSATA storage and Mini-PCIe for WiFi/4G modules make it suitable for IoT gateways.
Medical Equipment: Stable long-term operation for diagnostic devices, patient monitors, and imaging systems.
POS Systems: Reliable point-of-sale terminals for retail and hospitality environments.
Technological Innovation: Supports 4th Gen Intel processors, 4K HDMI output, and flexible storage options for future-ready industrial solutions.
Quality-Driven Manufacturing: Strict quality standards and rigorous testing ensure stability and reliability for 24/7 operation.
Long-Term Support: Regular BIOS updates and dedicated technical support throughout the product lifecycle.
Factory Direct Pricing: Competitive wholesale pricing direct from China manufacturer.
Motherboard model | CPU | 4K | LAN | COM | USB | SSD | Memory | power |
QM9400H-2C | Haswell-U 4th generation | HDMI 4K 30Hz | 1 | 2 | 8 | 1*MSATA 2*SATA 3.0 | 1*NB DDR3 MAX 8GB | 12V/19V |
QM9400H-2L2C | 2 | 2 | 6 | |||||
QM9400H-6C | 1 | 6 | 8 | |||||
QM9400H-2L6C | 2 | 6 | 6 | |||||
The motherboard defaults to 8*USB, and supports 6*USB after changing the dual network | ||||||||
>> CPU information
CPU Specifications | CPU Brand | CPU Model | Frequency | Turbo | CPU power consumption (W) | Full load power consumption (W) |
4th generation I3 | Intel core | 4005U | Dual core 1.7G | 15 | 40 | |
4010U | Dual core 1.7G | 15 | 40 | |||
4025U | Dual-core 1.9G | 15 | 40 | |||
4030U | Dual-core 1.9G | 15 | 40 | |||
4100U | Dual core 1.8G | 15 | 40 | |||
4th generation I5 | Intel core | 4200U | Dual core 1.6G | 2.6G | 15 | 40 |
4210U | Dual core 1.7G | 2.7G | 15 | 40 | ||
4250U | Dual core 1.3G | 2.6G | 15 | 40 | ||
4278U | Dual-core 2.6G | 3.1G | 28 | 50 | ||
4300U | Dual-core 1.9G | 2.9G | 15 | 40 | ||
4308U | Dual-core 2.8G | 3.3G | 28 | 50 | ||
4310U | Dual-core 2.0G | 3.0G | 15 | 40 | ||
4th generation I7 | Intel core | 4500U | Dual core 1.8G | 3.0G | 15 | 40 |
4510U | Dual-core 2.0G | 3.1G | 15 | 40 | ||
4550U | Dual-core 1.5G | 3.0G | 15 | 40 |
>> Product Specifications
Motherboard size | 170mm(L)*170mm(W)*20mm(H) | |
CPU processor | QM9400H supports 4th generations of CPU: I3-4010U, I5-4200U, I7-4500U, etc. | |
QM9500H supports 5th generations of CPU: I3-5010U, I5-5200U, I7-5500U, etc. | ||
Chipset | Haswell-U, Broadwell-U high-speed chipset | |
Memory support | 1*DDR3 SODIMM memory slot, support 1600MHz memory, low voltage 1.35V, maximum support 8GB | |
Power supply | 1*DC_IN | The motherboard supports 12V/19V, and the inner diameter of the DC head is 2.5MM The power consumption of the motherboard is about 40W under full load. It is recommended to use a power supply above 12V5A or 19V4A |
1*DC_ATX | ||
Display function | 4th generation integrated Intel® HD 4400 graphics controller, supports single display, dual display /triple display copy, dual display/triple display expansion, single display under DOS | |
5th generation integrated Intel® HD 5500 graphics controller, supports single display, dual display /triple display copy, dual display/triple display expansion, single display under DOS | ||
1*VGA DB15 interface | Support resolution 1920*1080@60Hz | |
1*VGA_OUT pin | Support resolution 1920*1080@60Hz (12Pin, 1*12Pin, 2.0mm) | |
1*HDMI 1.4 interface | Support resolution 4096/3840*2160@30Hz | |
1*HDMI_CON pin | Support resolution 4096/3840*2160@30Hz (16Pin, 2*8Pin, 2.0mm) | |
1*LVDS/EDP pin | Support resolution 1920*1080@60Hz (30Pin, 2*15Pin, 2.0mm) | |
LVDS and EDP share pins, the default LVDS signal can be changed to EDP signal | ||
1*VCC_SEL pin | LVDS/EDP voltage control pin (6Pin, 2*3Pin, 2.0mm) | |
1*INVERT pin | LVDS/EDP backlight switch control pin (6Pin, 1*6Pin, 2.0mm) | |
1*BKLT_CTRL pin | LVDS backlight brightness adjustment pin (4Pin, 1*4Pin, 2.0mm) | |
Internet function | 1/2*RJ45 LAN interface | 100M network card and Gigabit network card are optional, support wake-up on network and PXE diskless boot function (Gigabit: single network 8111H, dual network 8111H+8111H ) (100M: single network 8106E, dual network 8106E+8106E ) |
1*Mini-PCIE interface | Support WIFI/3G/4G/Bluetooth module, etc. | |
Hard disk function | 1*MSATA interface | Support MSATA disk or USB signal WIFI module |
2*SATA interface | Standard SATA3.0 hard disk interface, the maximum transmission speed is 6.0 Gbps | |
2*SATA_PWR pin | The hard disk power supply pin can be powered by 5V or 12V. (4Pin, 1*4Pin, 2.54mm) | |
Sound function | Integrated Realtek ALC662/897 HD digital audio decoder, 6-channel high-fidelity audio controller | |
1*LIN_OUT interface | Support audio output (green) | |
1*MIC_IN interface | Support microphone input (red) | |
1*INT_SPK pin | Power amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm) | |
1*F_AUDIO pin | Standard audio pin (9Pin, 2*5Pin, 2.54mm) | |
USB function | 2*USB3.0 interface | Rear standard USB3.0 interface |
2*USB2.0 interface | Rear standard USB2.0 interface | |
1*F_USB2 pin | Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) | |
1*F_USB3 pin | Front USB2.0 pins, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm) | |
Switch function | 1*F_PANEL pin | Switch, power light, hard disk light, reset pin (9Pin, 2*5Pin, 2.54mm) |
1*AUTO_SW pin | Hardware control power-on pin (3Pin, 1*3Pin, 2.0mm) | |
Other I/O | 1*COM1 pin | Serial port, only supports RS232 (9Pin, 2*5Pin, 2.54mm) |
1*COM2 pin | Serial port, COM2 supports RS232/RS422/RS485 optional (9Pin, 2*5Pin, 2.54mm) | |
COM3~COM6 pins | Serial port, support standard RS232 (39Pin, 2*20Pin, 2.0mm) | |
1*JCOM1 pin | Control COM1 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm) | |
1*JCOM2 pin | Control COM2 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm) | |
JP9/JP10/JP11 Pin | COM2 supports RS422 and RS485 signal jumper settings (6Pin, 2*3Pin, 2.0mm) | |
1*SIM_CARD card slot | Support SIM card, need SIM card when using 3G/4G | |
1*CLR_CMOS pin | Motherboard reset and discharge pin (2Pin, 1*2Pin, 2.54mm) | |
1*J_GPIO pin (optional ) | GPIO control pin (10Pin, 2*5Pin, 2.0mm ) | |
1*SYS_FAN pin | System fan pin, full speed, does not support temperature control (3Pin, 1*3Pin, 2.54mm) | |
1*CPU_FAN pin | CPU fan pin, support temperature control (3Pin, 1*3Pin, 2.54mm) | |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, non-condensing | |
BIOS | AMI BIOS, support power-on and start-up, scheduled start-up, remote switch machine intelligent identification of equipment | |
Watch dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds) | |
Operating system | Support Windows 10, Windows 8, Windows 7, Linux, etc. | |
