4th Gen Haswell 4K Mini-ITX Motherboard Manufacturer Wholesale China for Industrial

Motherboard model

CPU

4K

COM

LAN

USB2.0

USB3.0

SSD

Memory

Power

QM9450E

Haswell-U 4th Generation

support

2/6

1

6

2

1*SATA

1*MSATA

1*NB DDR3

8GB MAX

+12V

2

4

2

QM9450L

2/6

1

6

2

2

4

2

The single network motherboard defaults to 8*USB and supports 4G/Bluetooth modules by default

CPU Specifications

CPU Brand

CPU Model

Frequency

Turbo

CPU power consumption (W)

Full load power consumption (W)

4th Generation I3

Intel

Core

4005U

Dual-core 1.7G

15

40

4010U

Dual-core 1.7G

15

40

4025U

Dual core 1.9G

15

40

4030U

Dual core 1.9G

15

40

4100U

Dual core 1.8G

15

40

4th generation I5

Intel

Core

4200U

Dual core 1.6G

2.6G

15

40

4210U

Dual-core 1.7G

2.7G

15

40

4250U

Dual core 1.3G

2.6G

15

40

4278U

Dual core 2.6G

3.1G

28

55

4300U

Dual core 1.9G

2.9G

15

40

4308U

Dual core 2.8G

3.3G

28

55

4310U

Dual-core 2.0G

3.0G

15

40

4th Generation I7

Intel

Core

4500U

Dual core 1.8G

3.0G

15

40

4510U

Dual-core 2.0G

3.1G

15

40

4550U

Dual-core 1.5G

3.0G

15

40

4558U

Dual core 2.8G

3.3G

15

40

4578U

Dual-core 3.0G

3.5G

28

55

4600U

Dual core 2.1G

3.3G

15

40

4650U

Dual-core 1.7G

3.0G

15

40

Motherboard size

170mm(L)*170mm(W)* 20mm(H)

CPU Processor

QM9450E/QM9450L

Supports integration of 4th generation CPUs: I3-4010U, I5-4200U, I7-4500U, etc.

QM9550E/QM9550L

Supports integration of 5th generation CPU: I3-5010U, I5-5200U, I7-5500U, etc.

Chipset

Haswell-U, Broadwell-U Express Chipset

Memory support

1*NB-DDR3 SODIMM memory slot, supports 1600MHz memory , low voltage 1.35V , maximum support 8GB

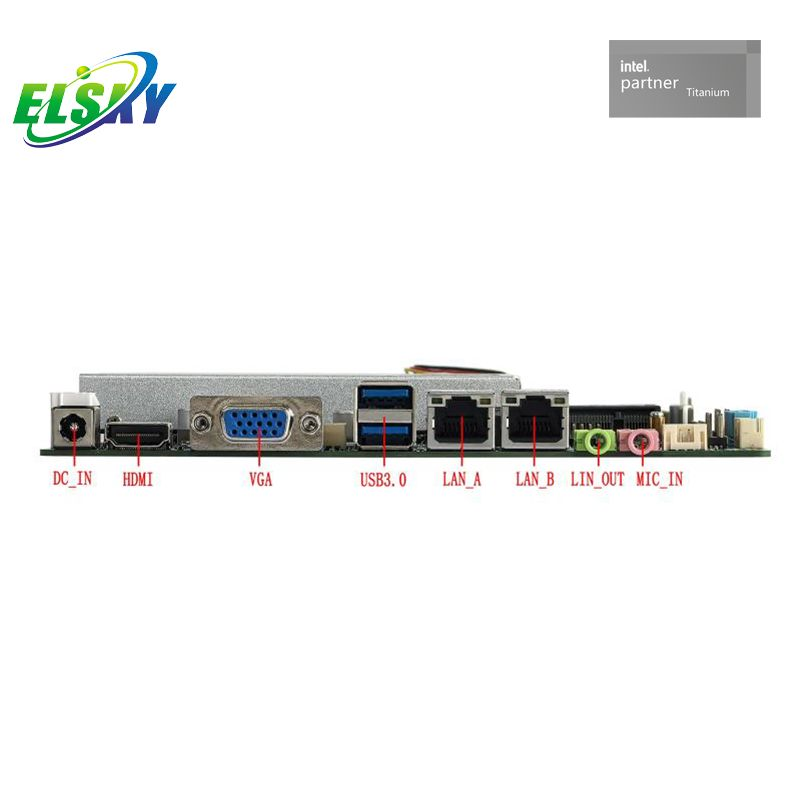

Power supply

1*DC_IN

Supports 12V voltage, the inner diameter of the DC head is 2.5MM

The motherboard consumes about 40W when fully loaded. It is recommended to use a 12V5A or higher power supply

1*DC_ATX

Display functions

4th Generation

Intel HD Graphics 4400 graphics controller

Support single display, dual display copy, dual display expansion, single display under DOS

5th Generation

Intel HD Graphics 5500 graphics controller

1*VGA DB15 interface

Support resolution 1920*1080@60Hz

1*VGA_OUT pin

Support resolution 1920*1080@60Hz (12Pin, 1*12Pin, 2.0mm)

1*HDMI 1.4 interface

Support 4K resolution 4096/3840*2160@30Hz

1*EDP2 pin

EDP-A display cable, support resolution 1920*1080@60Hz (30Pin, 2*15Pin, 2.0mm)

Choose between EDP2 pin and HDMI port

1*EDP1 pin

EDP-B screen cable, support resolution 1920*1080@60Hz (30Pin, 2*15Pin, 2.0mm)

1*LVDS pin

Support resolution 1920*1080@60Hz (30Pin, 2*15Pin, 2.0mm)

Choose between EDP1 pin and LVDS pin

1*INVERT pin

LVDS backlight switch control pin (6Pin, 1*6Pin, 2.0mm)

1*LVDS_PWR2 pin

LVDS or EDP1 working voltage control pin (6Pin, 2*3Pin, 2.0mm)

Network Features

1/2*RJ45 LAN interface

The single network supports the Realtek 8111HN Gigabit network card by default;

Optional support for Realtek 8105E 100M network card;

Dual network supports Realtek 8111HN + Realtek 8111H Gigabit network card;

Optional support for Realtek 8105E + Realtek 8106E 100M network card;

Support network wake-up and PXE functions;

1*Mini-PCIE interface

Support PCIE 2.0 signal, support Wifi/Bluetooth/4G module

Hard disk function

1*SATA1 interface

Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps

1*MSATA interface

Support MS ATA disk or USB signal WIFI module

1*SATA_PWR1 pin

Hard disk power supply pin, can take 5V, 12V power. (4Pin, 1*4Pin, 2.54mm)

Sound Features

Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller;

Can be modified to support Cmedia HS-100B high-fidelity USB audio chip

1*LIN_OUT interface

Support audio output (green)

1*MIC_IN interface

Support microphone input (red)

1*INT_SPK pin

The amplifier supports 8 ohm 5 watt speaker dual channel output (4Pin, 1*4Pin, 2.0mm)

USB Function

2*USB3.0 interface

Rear standard USB3.0 interface

2*USB2.0 interface

Rear standard USB2.0 interface

1*F_USB3 pin

Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm)

1*F_USB4 pin

Front USB2.0 pin, one set has 2*USB2.0 (9Pin, 2*5Pin, 2.54mm)

Switch function

1*F_PANEL pin

Switch, power light, hard disk light, restart pin (9Pin, 2*5Pin, 2.54mm)

1*AUTO_SW pin

Hardware control power-on pin (3Pin, 1*3Pin, 2.0mm)

Other I/O

1*COM1 pin

The serial port supports RS232 by default (9Pin, 2*5Pin, 2.54mm)

1*COM2 pin

Support RS232/422/485 optional, BIOS settings (9Pin, 2*5Pin, 2.54mm)

1*JCOM1 pin

Control COM1 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm)

1*JCOM2 pin

Control COM2 pin 9 voltage 0V/5V/12V optional (6Pin, 2*3Pin, 2.0mm)

1*COM3~6 pin

Serial port, support standard RS232; (39Pin, 2*20Pin, 2.0mm)

1*JLPT pin

Parallel port, standard printer port pin (25Pin, 2*13Pin, 2.0mm)

1*SIM_CARD slot

Support SIM card, SIM card is required when using 4G

1*CLR_CMOS pin

Motherboard reset and discharge pin (2Pin, 1*2Pin, 2.54mm)

1*SYS_FAN pin

System fan pin, full speed, does not support temperature control (3Pin, 1*3Pin, 2.54mm)

1*CPU_FAN pin

CPU fan pin, supports temperature control (3Pin, 1*3Pin, 2.54mm)

1*J_GPIO pin

Standard GPIO pin (10Pin, 2*5Pin, 2.0mm)

Operating Environment

Working temperature: -10℃~60℃;

Working humidity: 5%~95% relative humidity, no condensation

BIOS

AMI BIOS, supports power-on, scheduled power-on, remote power on and off, and intelligent device identification

Watch Dog

Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)

Operating system

Supports Windows 10, Windows 7, Linux, etc.

CPU support?

4th Gen Haswell (i3-4010U, i5-4200U, i7-4500U)

Max memory?

1 x DDR3, up to 8GB

4K support?

Yes,  HDMI 1.4 (4K@30Hz)

Storage?

SATA 3.0 + MSATA

COM ports?

Optional 2 or 6 x COM

Operating temp?

-10°C ~ 60°C

Power supply?

12V DC or ATX 4Pin
