What are the Best Industrial Motherboards for Your Needs?

In the rapidly evolving landscape of industrial automation, the core of any robust computing system is the Motherboard. Unlike consumer-grade hardware, an industrial-grade Motherboard is engineered to withstand the harshest environments, providing the backbone for mission-critical applications ranging from digital signage to complex factory automation. Choosing the right hardware is not just about raw power; it is about ensuring long-term availability, thermal resilience, and seamless integration into specialized enclosures.

To select the best industrial Motherboard, you must prioritize reliability, wide-range power input, and specialized I/O connectivity that standard commercial boards simply cannot offer. This guide will delve into the essential specifications and form factors that define high-performance industrial computing today.

As industries move toward Edge AI and more compact automation solutions, understanding the nuances of the Motherboard becomes vital for system integrators and engineers. We will explore the technical details of form factors like Mini-ITX and 3.5-inch boards, the importance of wide-voltage support, and the durability standards that ensure your system runs 24/7 without interruption.

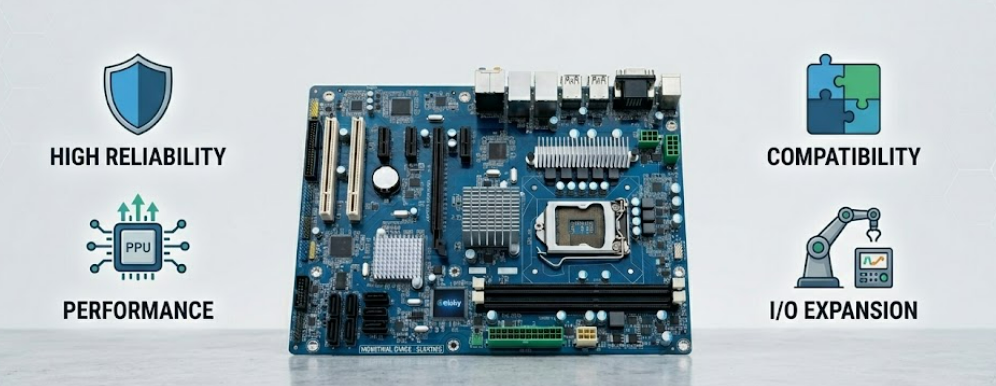

Understanding Industrial Motherboards: Key Features and Specifications

An industrial Motherboard is a specialized circuit board designed with high-quality components to ensure stable operation in extreme temperatures, high vibration, and 24/7 continuous duty cycles.

The primary distinction of an industrial Motherboard lies in its lifecycle. While consumer boards are replaced every year or two, industrial models often boast a supply lifecycle of 5 to 15 years. This consistency is crucial for B2B applications where re-certifying a system every time a component changes would be prohibitively expensive. These boards use solid capacitors and enhanced power phases to prevent the "capacitor bloat" often seen in cheaper hardware.

Furthermore, the environmental specifications of a professional Motherboard are significantly more rigorous. They are often designed to operate in temperatures ranging from -20°C to 70°C, whereas standard boards typically fail outside the 0°C to 40°C range. This makes them ideal for outdoor kiosks, oil and gas exploration, and uncooled factory floors.

Technically, these boards also include "Watchdog Timers" (WDT). A WDT is a hardware feature on the Motherboard that automatically reboots the system if the software hangs. This is a non-negotiable feature for remote installations where manual resets are not feasible, ensuring that the system remains autonomous and reliable under all conditions.

Types of Industrial Motherboards: Form Factors and Applications

Industrial Motherboard types are defined by their "Form Factor," which dictates the physical dimensions, mounting hole locations, and the number of expansion slots available for specific industrial enclosures.

The choice of form factor is the first step in system design. The most common types include:

1. ATX and Micro-ATX: These are the largest boards, providing the maximum number of PCIe and PCI slots for high-end automation and server-grade applications.

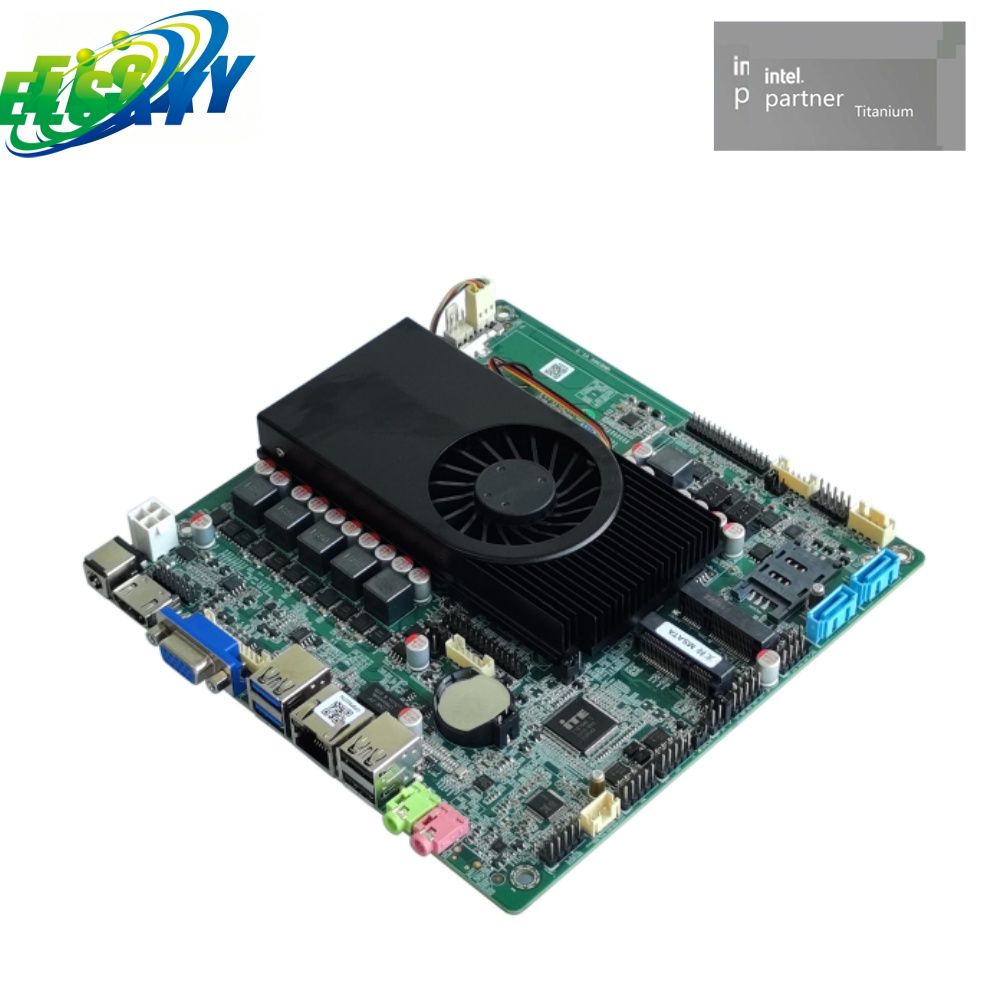

2. Mini-ITX (170mm x 170mm): The most popular choice for compact industrial PCs, balancing size with a healthy amount of I/O.

3. 3.5-inch and Nano-ITX: Extremely small boards used in fanless, palm-sized controllers where space is the primary constraint.

The application of each Motherboard type depends on the physical environment. For instance, a 3.5-inch Motherboard is frequently used in digital signage or vehicle-mounted computers because it can fit into tiny, sealed, fanless metal cases. Conversely, an ATX Motherboard would be found in a 4U rackmount server in a control room, where multiple GPU or data acquisition cards are required.

Beyond dimensions, the layout of a compact Motherboard is optimized for thermal management. In many industrial designs, the CPU is placed on the underside of the board to allow direct contact with a metal chassis, acting as a giant heatsink. This "fanless" design is a hallmark of industrial computing, as it removes the most common point of failure—the mechanical fan.

Performance Considerations: CPU, RAM, and Storage Compatibility

Performance on an industrial Motherboard is measured by its ability to maintain consistent throughput under thermal stress while supporting specific embedded processors and high-speed memory modules.

When selecting a Motherboard, the CPU socket and chipset must align with the processing needs of the task. Industrial systems often utilize "Embedded" versions of CPUs (like the Intel Core i-series or Celeron lines). These CPUs are chosen for the Motherboard because they offer lower TDP (Thermal Design Power), allowing for cooler operation in enclosed spaces. A high-performance Motherboard might support the latest 12th or 13th Gen processors, while a budget-conscious board might stick to energy-efficient Celeron chips for simple I/O tasks.

Memory compatibility is another critical factor. Many industrial Motherboard models utilize SO-DIMM slots (laptop-style RAM) to save vertical space. Furthermore, support for ECC (Error Correction Code) memory is often a requirement for boards used in medical or financial sectors, as it prevents data corruption by detecting and fixing single-bit memory errors.

Storage on a modern industrial Motherboard has shifted from traditional SATA to M.2 NVMe slots. These slots provide significantly faster data access speeds and are more resistant to vibration because they lack moving parts and are screwed directly onto the Motherboard. The table below illustrates common performance tiers:

Connectivity Options: Ports, Slots, and Networking Features

The connectivity of an industrial Motherboard includes a mix of modern high-speed interfaces like USB 3.2 and legacy ports such as RS232/422/485 COM ports which are still vital for connecting to older factory machinery.

Connectivity is where a specialized Motherboard truly shines compared to consumer alternatives. While a home PC might have many USB ports, an industrial Motherboard will feature multiple Serial (COM) ports. These are essential for communicating with PLCs (Programmable Logic Controllers) and sensors in a factory environment. Additionally, many boards offer GPIO (General Purpose Input/Output) headers, allowing the Motherboard to directly trigger external relays or read digital signals from switches.

Networking is equally robust. It is standard for a high-quality industrial Motherboard to feature Dual or even Quad Gigabit LAN ports. This allows for "Network Teaming" (for redundancy) or "Network Isolation," where one port connects to the internal factory network and the other to the external internet, enhancing security. Some advanced models also include PoE (Power over Ethernet) support directly on the Motherboard, simplifying the installation of IP cameras.

Expansion slots like PCIe x16 are used for adding high-performance GPUs, while Mini-PCIe or M.2 E-key slots are typically reserved for Wi-Fi, Bluetooth, or 4G/5G cellular modules. This modularity ensures that a single Motherboard design can be adapted for a wide variety of wireless or wired communication needs.

Power Supply Requirements: Efficiency and Power Ratings

Industrial Motherboard power designs prioritize wide-voltage DC input (often 9V to 36V) and high energy efficiency to handle the fluctuating power environments common in vehicular and factory settings.

A major advantage of an industrial Motherboard is the integration of a wide-range DC-to-DC power converter. Unlike consumer boards that require a bulky ATX power supply with fixed 12V/5V/3.3V rails, many industrial boards can be powered by a single DC jack. This flexibility allows the Motherboard to be connected directly to a vehicle battery or a 24V industrial power rail, which may fluctuate during heavy motor startups.

Efficiency is not just about saving electricity; it is about heat reduction. A high-efficiency Motherboard converts more power into computing and less into waste heat. This is vital for fanless systems where heat dissipation is limited. Boards often feature over-voltage and under-voltage protection to shield the delicate components of the Motherboard from power surges that occur in industrial grids.

When reviewing the power ratings, engineers look for the "Peak Power" and "Steady State" consumption. A robust Motherboard will have a clear power delivery map, ensuring that even if all USB ports and expansion cards are drawing maximum current, the core system remains stable. This level of power engineering is what prevents the random crashes and hardware failures common in lower-grade systems.

Durability and Reliability: Testing Standards and Environmental Factors

The durability of an industrial Motherboard is verified through rigorous testing standards such as MIL-STD-810G for shock/vibration and IP ratings for protection against dust and moisture ingress.

Reliability is the hallmark of the industrial Motherboard. These boards undergo "Burn-in" testing, where they are operated at 100% load in high-temperature chambers for 24 to 48 hours before leaving the factory. This process weeds out any components prone to early failure, ensuring that the Motherboard arriving at the customer site is "battle-hardened."

Environmental factors considered during the design phase include:

1. Vibration Resistance: Using locking connectors and reinforced soldering to ensure the Motherboard doesn't fail in moving vehicles.

2. Humidity Protection: Applying a "Conformal Coating"—a thin chemical film—to the Motherboard to prevent short circuits in humid or salty coastal environments.

3. Electromagnetic Interference (EMI): Specialized shielding to ensure the Motherboard does not interfere with other sensitive industrial equipment and is not affected by the electromagnetic noise of heavy machinery.

The Mean Time Between Failures (MTBF) for a premium Motherboard can exceed 100,000 hours. This is achieved by using high-grade PCB materials with more layers (often 6 to 10 layers), which provides better signal integrity and heat distribution throughout the Motherboard substrate.

Top Brands and Models: A Comparative Overview for Selection

Choosing the best industrial Motherboard involves comparing different architectural designs and manufacturer reputations to find the perfect balance between cost, performance, and long-term support.

When looking for the best Motherboard, it is important to categorize them by their intended use. Some manufacturers focus on ultra-compact "Single Board Computers" (SBCs), while others specialize in heavy-duty server-grade motherboards. The decision usually comes down to the specific I/O requirements, such as the number of LVDS or eDP headers for driving internal LCD panels.

For high-end machine vision, a Motherboard with multiple PCIe x4 slots is preferred to handle high-speed camera data. For edge computing, a board that supports the latest AI accelerator modules via M.2 slots is the top choice. The following table summarizes the selection criteria for different industrial roles:

Ultimately, the best Motherboard is the one that meets your specific environmental constraints while offering a guaranteed supply for the next decade. By focusing on the thermal design, power stability, and connectivity options outlined in this guide, you can ensure your industrial project remains operational for years to come.
