Selecting an Industrial Motherboard to Build the Perfect System

What Is a Motherboard?

A Motherboard is the primary printed circuit board (PCB) in a computer that serves as the central hub connecting the CPU, memory, storage, and all peripheral devices.

The Motherboard acts as the backbone of the entire electronic system. It facilitates communication between the processor and other sub-components through a series of complex electrical pathways known as "bus" lines. In an industrial context, the Motherboard must be engineered to handle consistent electrical loads while managing heat dissipation efficiently. It houses the chipset, which determines the features and capabilities of the board, including how many USB ports it can support or how fast the data can travel between the RAM and the CPU.

Beyond simple connectivity, a high-quality Motherboard ensures system stability through its Voltage Regulator Modules (VRMs). These modules convert the power from the power supply into the precise voltage required by the processor. In industrial environments where power fluctuations are common, a robust Motherboard design with high-end power phases is essential to prevent system crashes or hardware failure.

Furthermore, the Motherboard dictates the future-proofing of your system. The presence of specific sockets and headers determines whether you can upgrade your storage to NVMe SSDs or add more memory in the future. For B2B applications, selecting a Motherboard with a standardized layout ensures that if a unit needs replacement five years from now, the new board will fit into the same chassis without mechanical modifications.

Differences between Industrial and Consumer Motherboards

Industrial Motherboards are built with high-grade components for 24/7 operation and a 5 to 7-year lifecycle, whereas consumer Motherboards are designed for shorter usage cycles and frequent aesthetic updates.

The primary difference lies in the "Life Cycle Management." A consumer Motherboard might be discontinued within 12 to 18 months as newer chipsets emerge. In contrast, an industrial Motherboard manufacturer guarantees availability for several years. This is crucial for industrial projects where software is certified for a specific hardware configuration; frequent hardware changes would lead to expensive re-certification costs and software compatibility issues.

Component quality is another major differentiator. Industrial Motherboard units utilize solid capacitors and thicker gold plating on connectors to prevent corrosion in humid or dusty environments. They are often rated for a wider temperature range, sometimes from -20°C up to 70°C, while consumer boards are usually limited to standard office temperatures.

How to Select a Motherboard

Selecting a Motherboard involves matching the environmental constraints, performance requirements, and connectivity needs of your specific industrial application to the board's technical specifications.

The selection process must begin with a clear understanding of the "Use Case." Are you building a fanless kiosk, a high-speed vision inspection system, or a rugged outdoor controller? Each scenario dictates a different priority for the Motherboard. For instance, a vision system might prioritize a Motherboard with multiple PCIe x16 slots for GPU acceleration, while a kiosk might prioritize a slim form factor with LVDS headers to drive a display panel directly.

It is also vital to consider the power environment. Many industrial Motherboard models support a wide DC input (e.g., 9V to 36V), allowing them to be powered directly by industrial batteries or vehicle power systems. This eliminates the need for bulky AC-to-DC power bricks inside the enclosure, saving space and reducing heat generation.

Finally, look for "Reliability Features" such as a Watchdog Timer (WDT). A Motherboard equipped with a WDT can automatically reboot the system if the software freezes, a critical feature for remote installations where manual intervention is impossible.

Motherboard Size

The size, or form factor, of a Motherboard determines its physical dimensions, mounting hole locations, and the number of expansion slots available for the system.

1. Mini-ITX (170mm x 170mm)

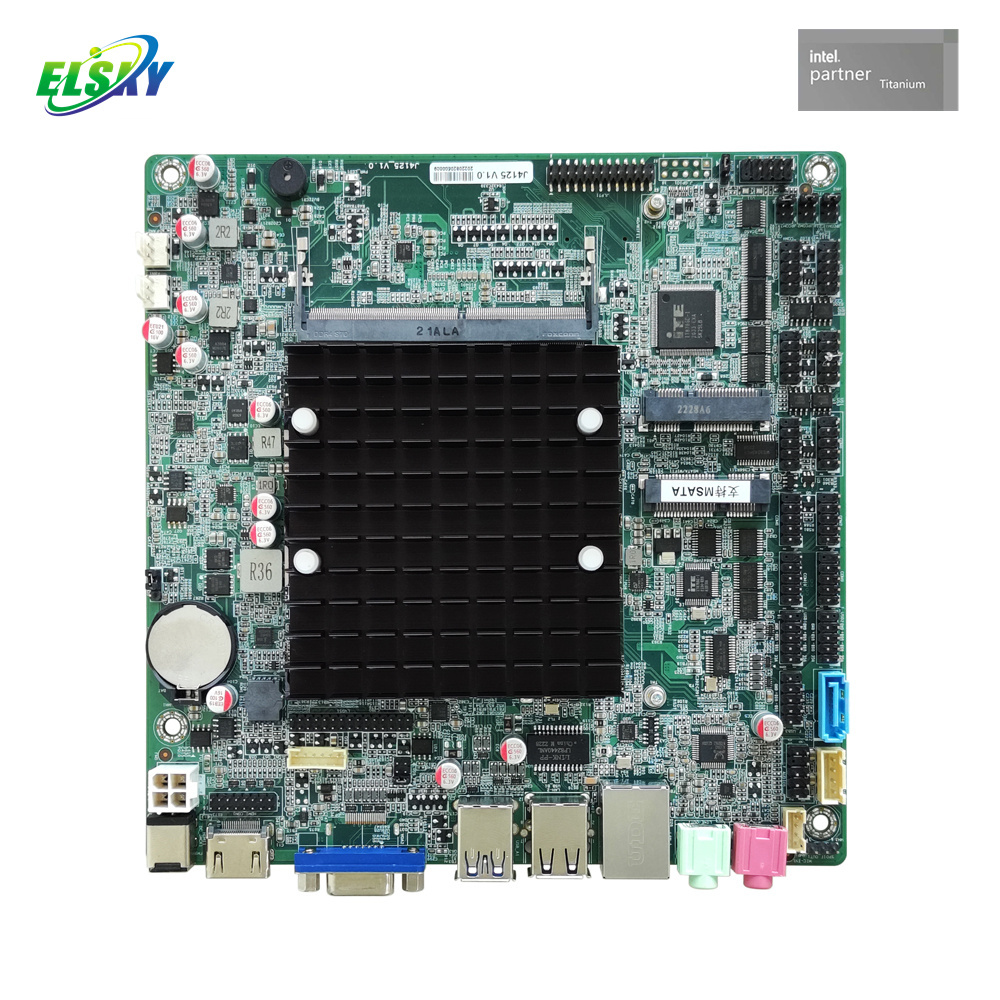

The Mini-ITX is the most popular size for compact industrial applications. Despite its small footprint, a Mini-ITX Motherboard provides enough power for most IoT gateways and digital signage players. It usually features one expansion slot and two RAM slots, making it ideal for space-constrained environments.

2. Micro-ATX (244mm x 244mm)

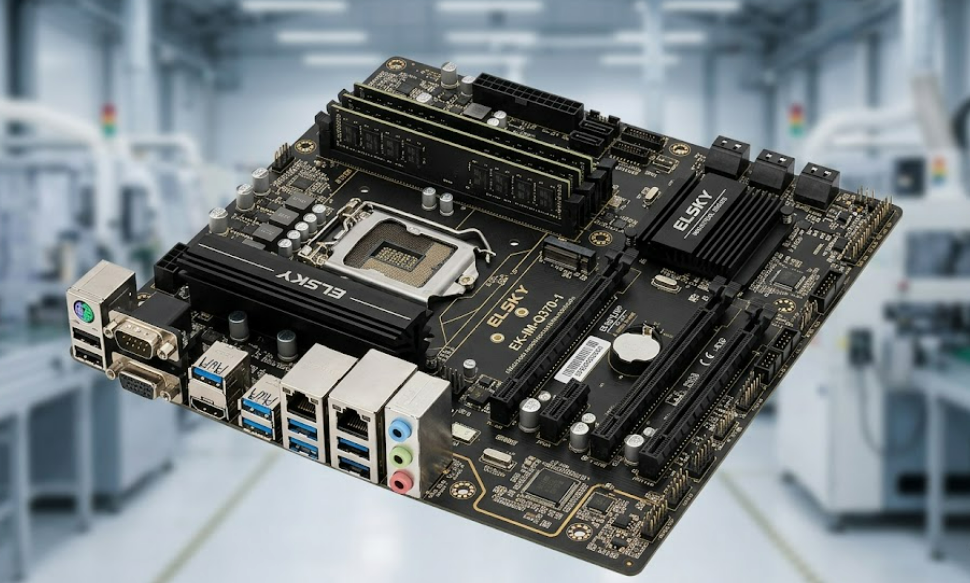

A Micro-ATX Motherboard offers a middle ground, providing more expansion slots (usually up to four) than Mini-ITX while remaining smaller than a standard ATX board. This is a common choice for industrial workstations where multiple add-on cards are required but the overall cabinet space is limited.

3. ATX (305mm x 244mm)

Standard ATX boards are used in large-scale industrial servers and data acquisition systems. An ATX Motherboard can support up to seven expansion slots, allowing for massive I/O expansion, multiple GPUs, and extensive storage arrays.

Processor Family

The Processor Family supported by a Motherboard defines the computing power, energy efficiency, and thermal profile of the completed industrial system.

Selecting the right CPU socket on the Motherboard is paramount. For high-performance edge AI tasks, you might select a Motherboard supporting Intel Core i7 or i9 processors. These boards require robust cooling solutions and higher power consumption. However, for low-power applications like sensors or light automation, an integrated Motherboard featuring Intel Celeron or Atom processors (System on Chip) might be more appropriate as they offer fanless operation and high energy efficiency.

The chipset on the Motherboard must also align with the processor generation. For example, an H610 chipset Motherboard supports different features and CPU generations compared to a Q670 chipset board. Industrial users often prefer "Q" or "R" series chipsets because they support advanced management features like Intel vPro, which allows IT administrators to manage the Motherboard remotely, even if the operating system is crashed.

Consider the "Thermal Design Power" (TDP) as well. If your Motherboard is going into a sealed, fanless enclosure, you must choose a low-TDP processor to prevent overheating. The synergy between the Motherboard power delivery system and the CPU's thermal output determines the long-term reliability of the system in harsh environments.

Number of Expansion Slots

Expansion slots on a Motherboard allow for the integration of additional hardware capabilities such as discrete graphics, specialized networking, or motion control cards.

The type and number of slots on the Motherboard are critical for system versatility. Common slots include PCIe (Peripheral Component Interconnect Express), which comes in various lane widths like x1, x4, and x16. If your application requires high-speed data transfer, such as a 10GbE network card, you must ensure the Motherboard provides a PCIe slot with sufficient lanes and bandwidth.

In the industrial sector, Mini-PCIe and M.2 slots are also highly valued on a Motherboard. These are used for adding wireless connectivity like Wi-Fi, Bluetooth, or 4G/5G modules. An M.2 NVMe slot is particularly important for modern industrial systems, as it allows for extremely fast storage speeds compared to traditional SATA SSDs, significantly reducing boot times and data logging latency.

1. PCIe x16: Primarily used for powerful GPUs or high-speed FPGA cards.

2. Mini-PCIe: Often used for legacy wireless modules or mSATA storage.

3. M.2 Key M: The standard for high-speed NVMe solid-state drives.

4. M.2 Key B/E: Designed for wireless communication (Wi-Fi/LTE) and SIM card integration.

Checking the Motherboard Interface

The Motherboard interface includes all the physical ports and internal headers that allow the system to interact with external sensors, displays, and peripheral devices.

A professional industrial Motherboard must provide a diverse range of I/O. While consumer boards have moved toward USB-only connectivity, industrial applications still rely heavily on Serial ports (RS232/422/485). A high-quality industrial Motherboard will often feature multiple COM port headers directly on the board, allowing for stable communication with legacy machinery and PLC systems.

Display interfaces are another key consideration. An industrial Motherboard may feature HDMI or DisplayPort for modern monitors, but it might also include LVDS or eDP (Embedded DisplayPort) headers. These internal headers allow the Motherboard to connect directly to an LCD panel, which is essential for building All-in-One (AIO) touch PCs or human-machine interfaces (HMI).

Other Items to Check

Beyond the main specs, an industrial Motherboard should be evaluated for its power input flexibility, environmental ratings, and specialized BIOS features.

One often overlooked detail is the "Power Input." Many industrial Motherboard models offer a 12V DC or a wide-range 9-36V DC input via a 4-pin or 2-pin phoenix connector. This is much more secure than the standard ATX 24-pin connector used in home PCs, which can easily come loose in high-vibration environments like trains or factory floors.

The "Operating Temperature" is another vital metric. If the Motherboard will be used in an outdoor kiosk in a cold climate or near a hot furnace, you must verify that the board is rated for "Wide Temperature" operation. This ensures that the components on the Motherboard won't drift in frequency or fail due to thermal expansion and contraction.

Finally, consider the BIOS/UEFI capabilities. Industrial Motherboard manufacturers often allow for deep customization of the BIOS. This includes features like "Always On" (the system boots automatically when power is applied), "Wake on LAN," and the ability to disable specific USB ports for security reasons. These firmware-level controls are essential for maintaining a secure and autonomous industrial deployment.

Conclusions

Selecting the right Motherboard is the most critical decision in building a robust industrial system, as it determines the longevity, expandability, and reliability of the entire application.

In conclusion, when you evaluate a Motherboard for your next project, remember that it is more than just a component; it is the platform upon which your entire business solution rests. By prioritizing industrial-grade features—such as long-term availability, wide temperature support, and specialized I/O—you protect your investment from the pitfalls of consumer-grade hardware.

Whether you are deploying a single high-performance server or thousands of low-power IoT nodes, the Motherboard remains the heart of the machine. Always ensure your supplier provides comprehensive technical support and a stable roadmap for the specific Motherboard model you choose. With the right foundation, your industrial system will provide years of trouble-free service in even the most demanding environments.
