M10U
ELSKY
The M10U Series is a robust line of industrial-grade computers engineered for demanding environments. Combining high-performance Intel processors with ruggedized design, these systems deliver reliability in automation, edge computing, and IoT applications.
Note: Specifications subject to change. Contact ELSKY for OEM/ODM solutions.
Features
1. Durability
Wide Temperature Range: Operates at -10°C to 60°C (working temperature) or -20°C to 70°C (storage temperature)
Humidity tolerance: 5–95% no condensing
2. Flexible I/O Configurations
Display Options: Dual HDMI/ HDMI + VGA
Network: 2–4 Intel i226-V Gigabit LAN ports (PXE boot/WoL supported)
Expansion: 6* RS232/485 COM ports (RS485 customizable), 4/6/8* USB 2.0 + 2* USB 3.2 Gen1
3. High-Performance Computing
CPU: Intel 8th/10th/11th Gen Core i3/i5/i7 processors (up to 4.9GHz Turbo)
Memory: 1* NB_DDR4 SODIMM slot (max 32GB)
Storage: Dual drives (1* M.2/MSATA + 1* 2.5" HDD/SSD)
4. Industrial Connectivity
Wireless: Optional M.2 4G/5G modules + Wi-Fi 6/Bluetooth 5.0
Watchdog Timer: 256-level hardware reset (0–255 sec)
Certification
Certified HDMI Adopter License 2025-2026.jpg
Foxconn Strategic Cooperation Award.jpg
Microsoft CLA Partner - WINDOWS IOT System.jpg
2025 Intel Titanium Partner.jpg
Guangdong Industrial Visual Control Terminal Engineering Technology Research Center.jpg
National Specialized New Small Giant Enterprise.jpg
Applications
Factory Automation: PLC control, HMI interfaces, production line monitoring
Edge Computing: 4G/5G gateways, data aggregation, predictive maintenance
Transportation: Railway signaling, fleet management systems
Energy: Smart grid controllers, renewable energy monitoring
Datasheet
HDMI | VGA | LAN | USB2.0 | USB3.2 | COM | SSD | Memory | Power | ||
4K 30Hz | VGA 2K 60Hz | 2 | 8 | 2 | 6 | 1*MSATA 1*2.5 inch SSD | 1*NB-DDR4 MAX 32G | +12V | ||
3 | 6 | 2 | 6 | |||||||
4 | 4 | 2 | 6 | |||||||
Host model | M10U-M100SE series | |||||||||

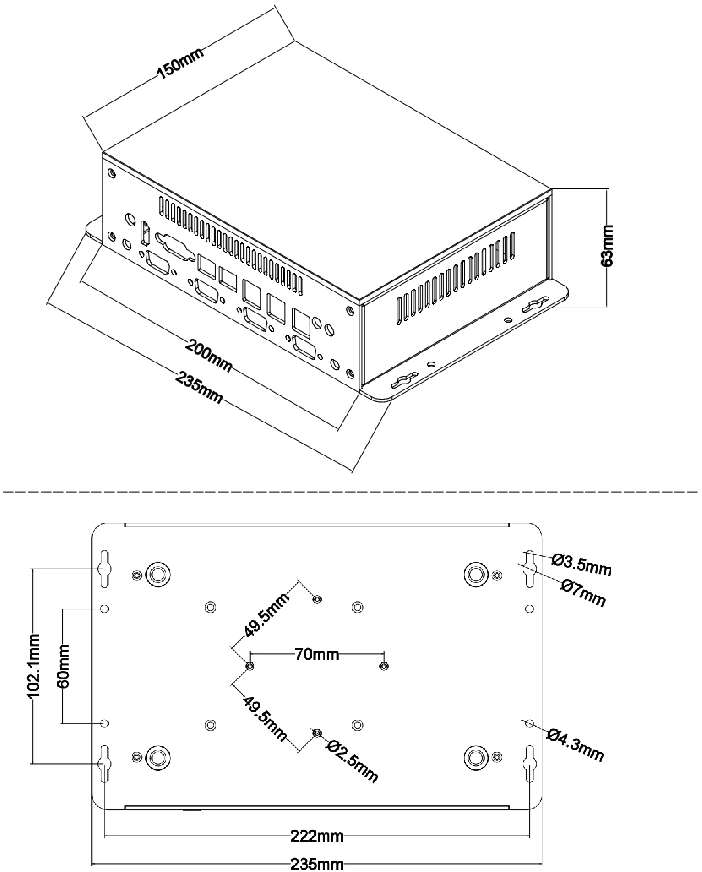

SIZE | 235mm（L）*150mm（W）*63mm（H） | |||||||||
Cooling System | With heat dissipation holes, silent fan heat dissipation | |||||||||
color | Iron Gray | |||||||||
motherboard | M100SE | |||||||||
Power | 1*DC_IN | The inner diameter of the DC head is 2.5mm, supports 12V, and it is recommended to use a 12V7A or higher power supply. | ||||||||
8th gen CPU | Whiskey Lake: Intel Core i3-8145U dual-core 2.1GHz, turbo 3.9GHz; Intel Core i5-8365U quad-core 1.6GHz, turbo 4.1GHz; Core i5-8265U quad-core 1.6GHz, turbo 3.9GHz; Intel Core i7-8665U quad-core 1.9GHz, turbo 4.8GHz; | |||||||||
10th gen CPU | Comet Lake: Intel Core i3-10110U dual-core 2.1GHz, turbo 4.1GHz; Intel Core i5-10210U quad-core 1.6GHz, turbo 4.2GHz; Core i5-10310U quad-core 1.7GHz, turbo 4.4GHz; Intel Core i7-10510U quad-core 1.8GHz, turbo 4.9GHz; Core i7-10610U quad-core 1.8GHz, turbo 4.9GHz; Intel Core i7-10710U hexa-core 1.1GHz, turbo 4.7GHz; Core i7-10810U hexa-core 1.1GHz, turbo 4.9GHz. | |||||||||
Chipset | Haswell-U、Broadwell-U Express Chipset | |||||||||
Memory | 1*NB-DDR4 memory slot, supports 2133/2400/2666MHz memory, maximum support 32GB | |||||||||
Network Features | 2*RJ45_LAN（Optional three-network/four-network） | Support Intel i226-V Gigabit NIC chip; Support network wake-up and PXE diskless boot function. | ||||||||
Support WIFI, support 2*WIFI antenna poles (support 3G/4G/Bluetooth/WIFI optional) | ||||||||||
Display functions
| Integrated Intel UHD Graphics ultra-core graphics card, supporting single display, dual display copy, and dual display expansion | |||||||||
1*VGA DB15 port | Support resolution 1920*1080@60Hz | |||||||||
1*HDMI 1.4 port | Support 4K resolution 4096/3840 * 2160@30Hz | |||||||||
USB functions | 2*USB3.2 port | Rear standard USB3.2 Gen1 interface | ||||||||
8*USB2.0 port | Rear standard USB2.0 interface | |||||||||
The three-network host supports 6*USB2.0 interfaces; the three-network host supports 4*USB2.0 interfaces. | ||||||||||
Sound functions | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller | |||||||||
1*SPK port | Support audio output | |||||||||
1*MIC port | Support microphone input | |||||||||
HDMI interface supports HDMI audio output | ||||||||||
Hard disk function | 1*MSATA disk; 1*2.5-inch SSD or HDD mechanical hard disk | |||||||||
Switch function | POWER button | Switch button | ||||||||
Other I/O | 6*COM port | Support RS232 (can be customized to support RS485) | ||||||||
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation Storage temperature: -20℃~70℃; | |||||||||
BIOS | AMI BIOS，Support power on, scheduled power on, remote power on and off, etc. | |||||||||
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds). | |||||||||
Os | Support Windows 10，Windows 11，Linux etc. | |||||||||
HDMI1 | VGA/HDMI2 | LAN | USB2.0 | USB3.2 | COM | SSD | Memory | Power | ||
4K 60Hz | VGA 2K 60Hz Optional HDMI2 4K 60Hz | 2 | 8 | 2 | 6 | 1*M.2 1*2.5 inch SSD/HDD | 1*NB-DDR4 MAX 32G | +12V/19V | ||
3 | 6 | 2 | 6 | |||||||
4 | 4 | 2 | 6 | |||||||
Host model | M10U-M11GSE series | |||||||||
Host size | 235mm（L）*150mm（W）*63mm（H） | |||||||||
Cooling System | With heat dissipation holes, silent fan heat dissipation | |||||||||
Color | Iron Gray | |||||||||
motherboard | M11GSE | |||||||||
Power | 1*DC_IN | The inner diameter of the DC head is 2.5mm, supports 12V/19V, and it is recommended to use a 12V 7A or 19V 6.3A or above power supply | ||||||||
11 gen CPU | Intel Celeron 6305E Dual-core 2.8GHz; Intel Core i3-1115G4E Dual-core 2.2GHz, Turbo 3.9GHz; Core i3-1115GRE Dual-core 2.2GHz, Turbo 3.9GHz; Intel Core i3-1115G4 Dual-core 3.0GHz, Turbo 4.1GHz; Core i3-1125G4 Quad-core 2.0GHz, Turbo 3.7GHz; Intel Core i5-1145G7E Quad-core 1.5GHz, Turbo 4.1GHz; Core i5-1145GRE Quad-core 1.5GHz, Turbo 4.1GHz; Intel Core i5-1135G7 Quad-core 2.4GHz, Turbo 4.2GHz; Core i5-1145G7 Quad-core 2.6GHz, Turbo 4.4GHz; Intel Core i5-1135G7 quad-core 2.4GHz, turbo frequency 4.2GHz; Core i5-1145G7 quad-core 2.6GHz, turbo frequency 4.4GHz; Intel Core i5-1155G7 quad-core 2.5GHz, turbo frequency 4.5GHz; Core i7-1185G7E quad-core 1.8GHz, turbo frequency 4.4GHz; Intel Core i7-1185GRE quad-core 1.8GHz, turbo frequency 4.4GHz; Core i7-1165G7 quad-core 2.8GHz, turbo frequency 4.7GHz; Intel Core i7-1185G7 quad-core 3.0GHz, turbo frequency 4.8GHz; Core i7-1195G7 quad-core 2.9GHz, turbo frequency 5.0GHz; | |||||||||
Memory | 1*NB-DDR4 memory slot, supports 2133/2400/2666/3200MHz memory, maximum support 32GB | |||||||||
Network Function | 2*RJ45_LAN（Optional three-network/four-network） | Support Intel i226-V Gigabit NIC chip; Support network wake-up and PXE diskless boot function. | ||||||||
Support M.2 WIFI/Bluetooth optional, support M.2-5G, optional M.2-4G, support 2*WIFI antenna poles | ||||||||||
The 3042 specification 4G/5G module and the M.2_WIFI module cannot be connected at the same time, there is interference, choose one; The 3052 specification 5G module and the M.2_WIFI module can be connected at the same time, no interference； | ||||||||||
Display functions
| Integrated Intel UHD Graphics ultra-core graphics card, supporting single display, dual display copy, and dual display expansion | |||||||||
1*VGA DB15 port | Supported resolution 1920*1080@60Hz | |||||||||
1*HDMI2 2.0 port（optional） | Supports 4K resolution 4096/3840*2160@60Hz | |||||||||
VGA and HDMI2 signal selection | ||||||||||
1*HDMI1 2.0 port | Supports 4K resolution 4096/3840*2160@60Hz | |||||||||
USB function | 2*USB3.2 port | Rear standard USB3.2 Gen1 interface | ||||||||
8*USB2.0 port | Rear standard USB2.0 interface | |||||||||
The three-network host supports 6*USB2.0 interfaces; the three-network host supports 4*USB2.0 interfaces | ||||||||||
Sound function | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller | |||||||||
1*SPK port | Support audio output | |||||||||
1*MIC port | Support microphone input | |||||||||
HDMI interface supports HDMI audio output | ||||||||||
Hard disk function | 1*M.2； 1*2.5-inch SSD or HDD mechanical hard disk | |||||||||
Switch function | POWER button | Switch button | ||||||||
Other I/O | 6*COM port | Support RS232 (can be customized to support RS485) | ||||||||
Operating Environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation Storage temperature: -20℃~70℃； | |||||||||
BIOS | AMI BIOS，Support power on, scheduled power on, remote power on and off, etc. | |||||||||
Watch Dog | Watchdog programming, support hardware reset function (256 levels, 0~255 seconds） | |||||||||
Os | Support Windows 11，Windows 10，Linux etc. | |||||||||
Optional Accessories
| Power adapter | 12V: 7A/ 10A |
| 19V: 6.3A/ 9.5A/ 11.58A/ 12A/ 18.94A | |
| 24V: 3.8A/ 6.3A | |
| Power Cord Type | US/ UK/ EU/ Kr |
| RAM | NB_DDR4: 4G/ 8G/ 16/ 32G |
| Hard Disk (M.2/MSATA/2.5'' SSD/2.5'' HDD) | 64G/ 120G/ 128G/ 240G/ 256G/ 480G/ 500G/ 512G/ 960G/ 1TB/ 2TB/ 4TB |
| WiFi | 2.4GHz, 2.4GHz/5GHz, 6GHz |
FAQ
What CPU options are available for the M10U series?
Choose between:
8th Gen Intel: i3-8145U, i5-8265U/8365U, i7-8565U
10th Gen Intel: i3-10110U, i5-10210U, i7-10510U
11th Gen Intel: i3-1115G4/1125G4, i5-1135G7/1145G7, i7-1165G7/1185G7
How many LAN ports are available?
A: Options for 2, 3, or 4 Intel i226-V Gigabit ports (PXE/WoL supported).
What are the physical dimensions?
Compact size: 235mm (L) × 150mm (W) × 63mm (H).
What is the warranty period?
1 year.
