QM9750
ELSKY

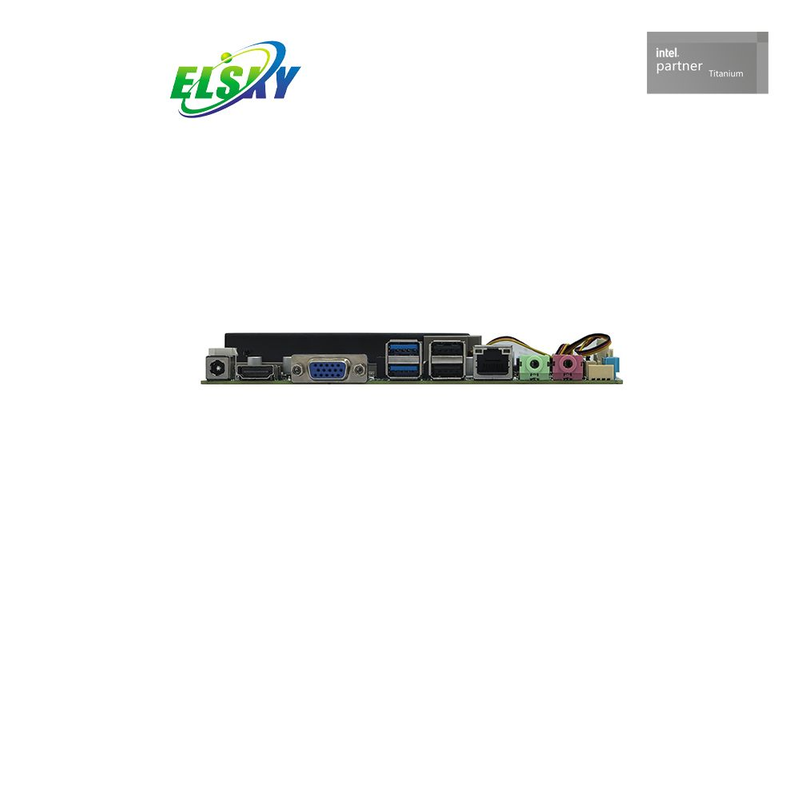

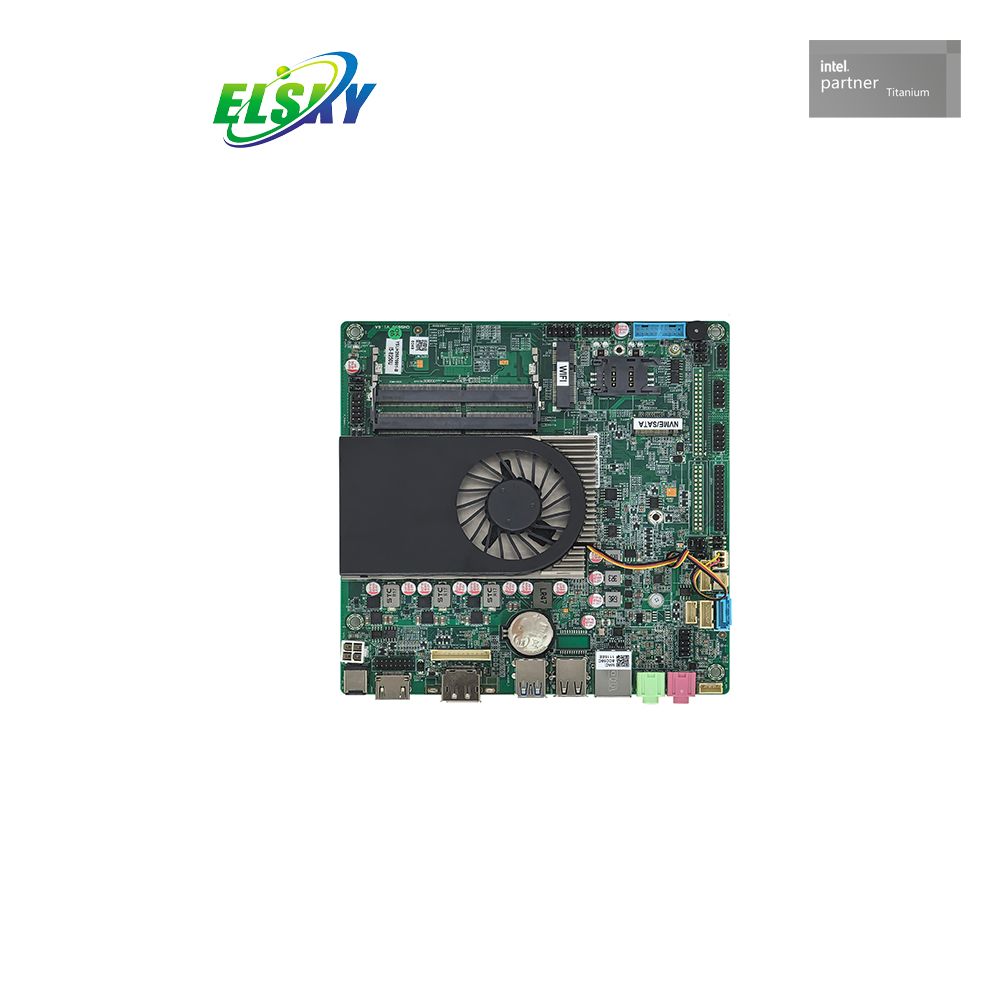

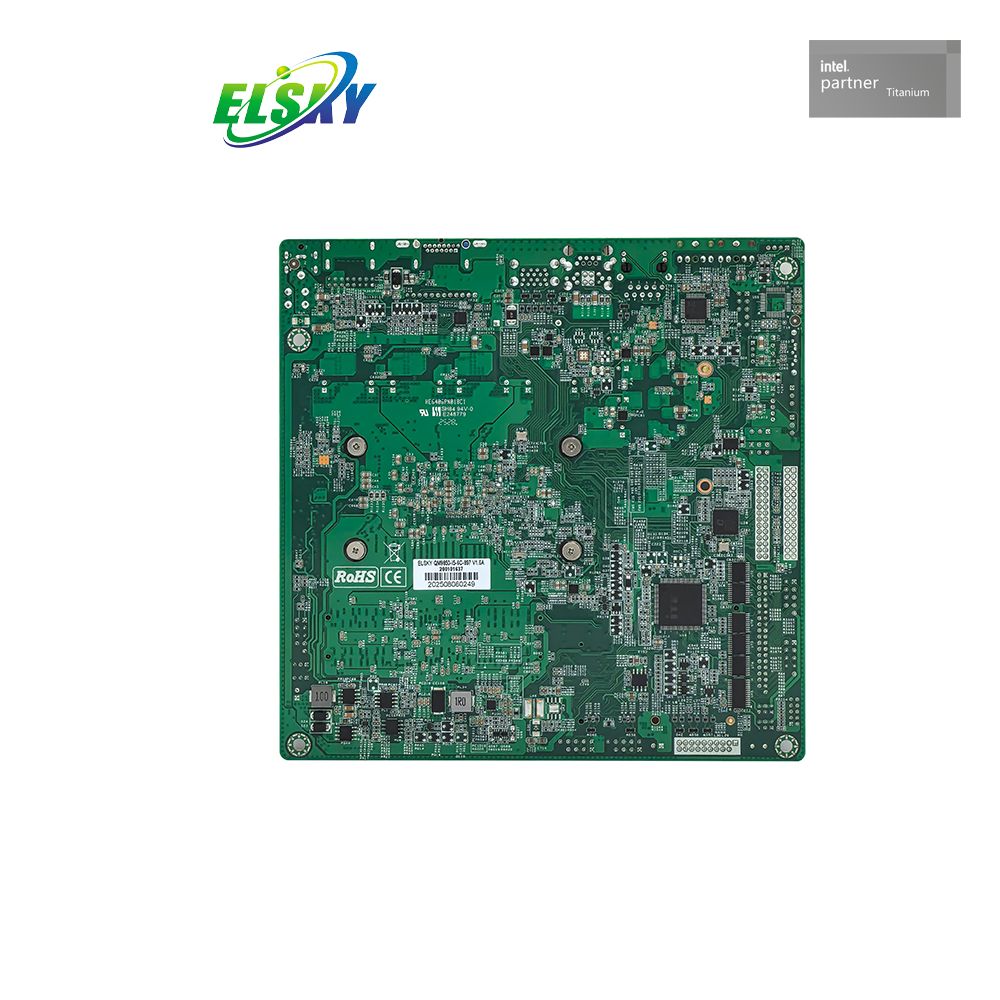

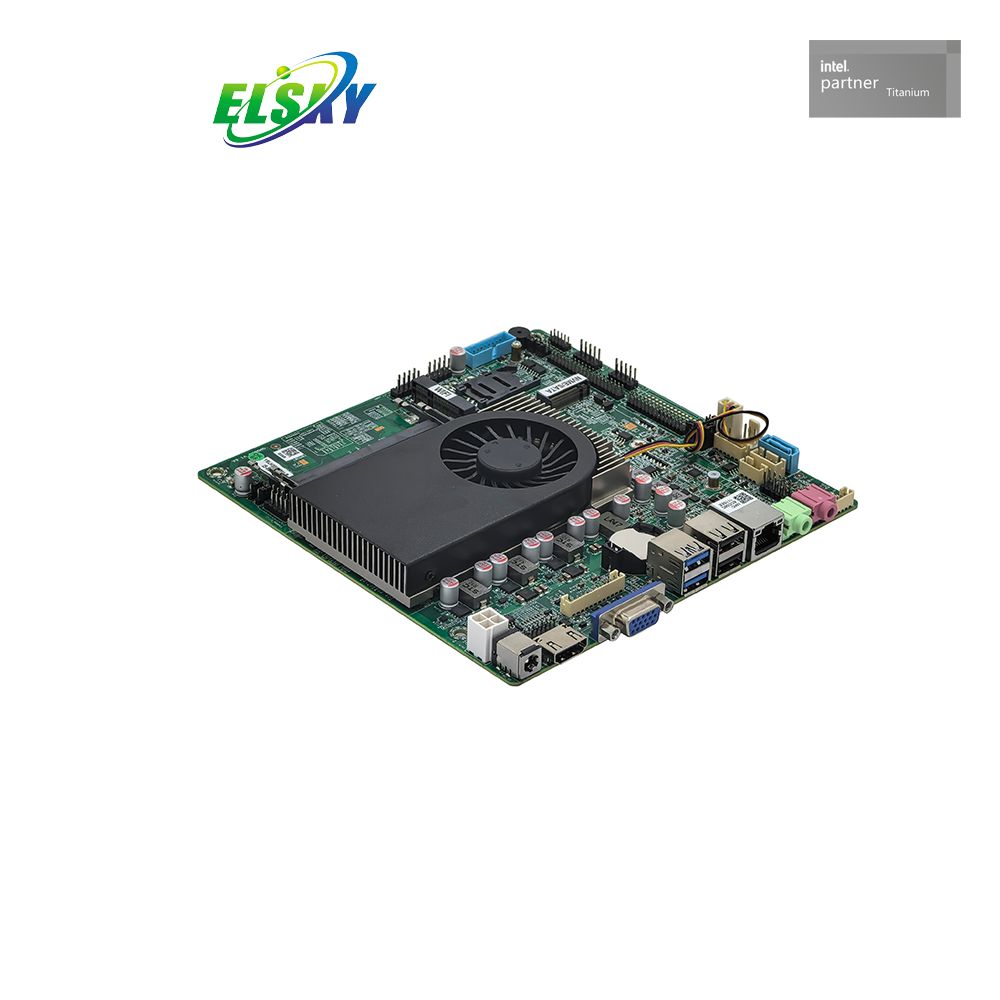

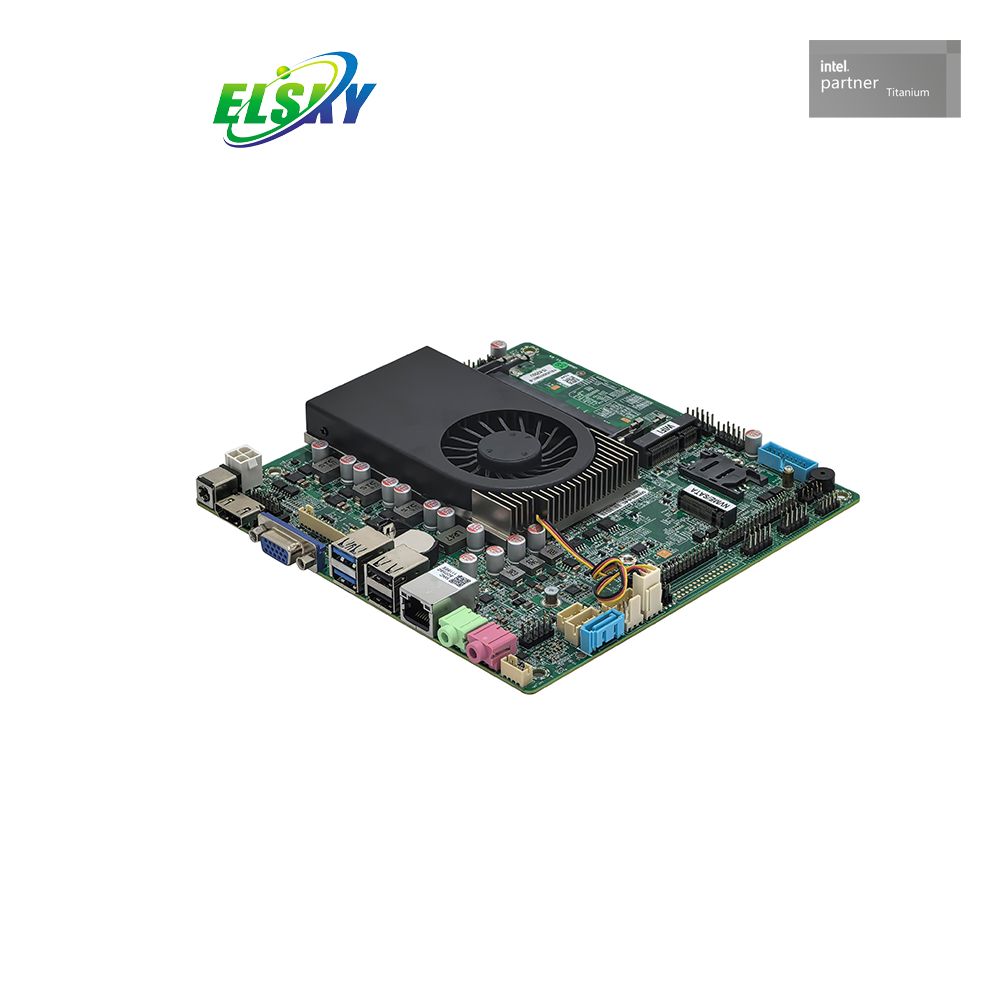

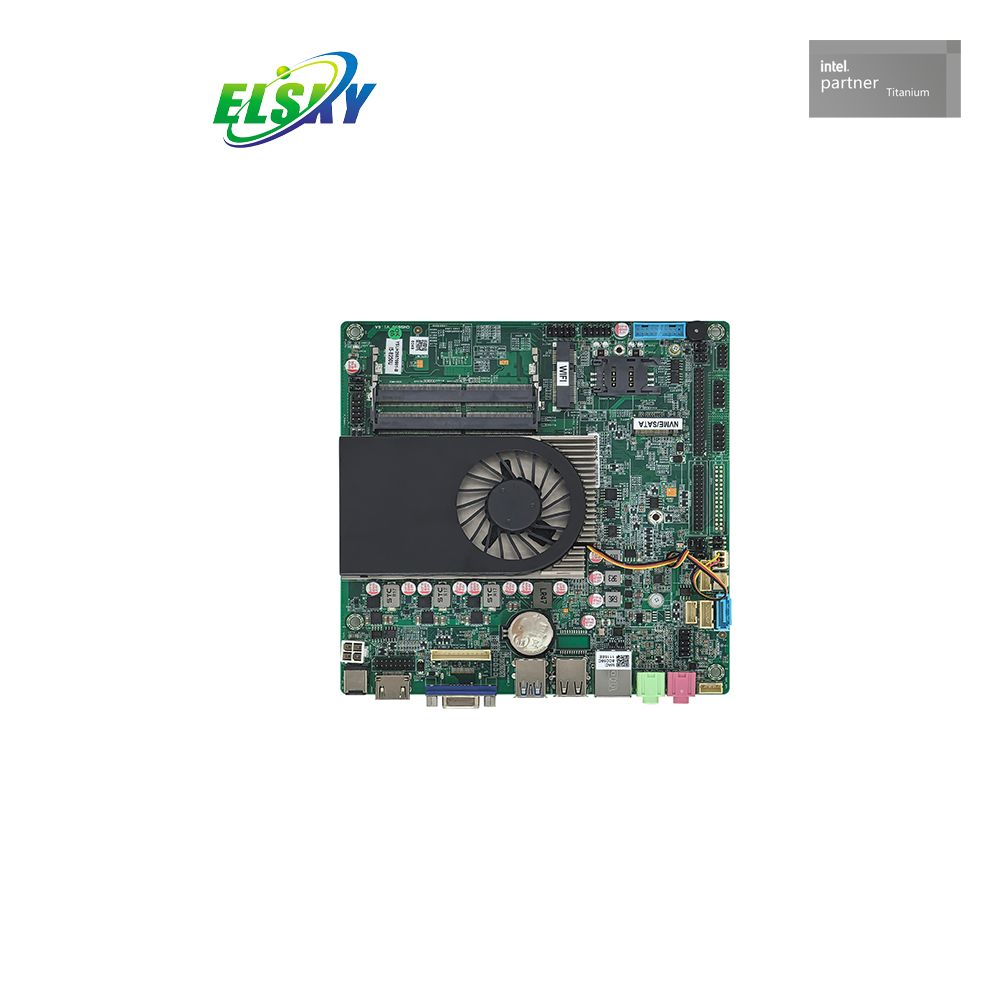

The ELSKY QM9750 is a 7th Gen Kabylake industrial Mini-ITX motherboard featuring triple 4K display, dual LAN, M.2 NVMe, up to 6 COM ports, and -10°C~60°C operation for 24/7 industrial applications.
Broad Processor Compatibility: Supports Intel 7th Gen Kabylake processors (i3-7100U, i5-7200U, i7-7500U) for reliable industrial performance.
High-Speed Memory Support: 2 x NB-DDR4 slots support up to 64GB 2133/2400MHz memory for fast data access and multitasking.
Triple 4K Display Output: HDMI 1.4 (4K@30Hz), DP 1.4 (4K@60Hz), VGA, LVDS, and eDP — ideal for digital signage and multi-screen workstations.
High-Speed Storage Support: 1 x M.2 2280 NVMe/SATA SSD slot + 1 x SATA 3.0 port for ultra-fast data transfer.
Rich I/O Connectivity: Up to 10 x USB (4 x USB3.0 + 6 x USB2.0) and 6 x COM ports (RS232/RS422/RS485 optional).
Application | Key Use |
|---|---|
Industrial Control | Factory automation, CNC, PLC, 6 x COM |
Digital Signage | Triple 4K display for retail, airports, hotels |
Self-Service Kiosks | ATMs, terminals, compact Mini-ITX |
Embedded Automation | IoT gateways, smart manufacturing |
Medical Equipment | Diagnostic devices, patient monitoring |
Technological Innovation: Supports Intel 7th Gen Kabylake CPUs, triple 4K display, and M.2 NVMe for future-ready industrial performance.
Quality-Driven Manufacturing: Strict quality standards and rigorous testing ensure stability and reliability for 24/7 operation.
Long-Term Support: Regular BIOS updates and dedicated technical support throughout the product lifecycle.
Factory Direct Pricing: Competitive wholesale pricing direct from China manufacturer.
>> CPU information
CPU Specifications | CPU Brand | CPU Model | Frequency | Turbo | CPU power consumption (W) | Full load power consumption (W) |
7gen I3 | Core | 7020U | Dual-core 2.3G | 15 | 40 | |
7100U | Dual-core 2.4G | 15 | 40 | |||
7130U | Dual-core 2.7G | 15 | 40 | |||
7gen I5 | Core | 7200U | Dual-core 2.5G | 3.1G | 15 | 40 |
7300U | Dual-core 2.6G | 3.5G | 15 | 40 | ||
7gen I7 | Core | 7500U | Dual-core 2.7G | 3.5G | 15 | 40 |
7600U | Dual-core 2.8G | 3.9G | 15 | 40 |
>> Product Specifications
Motherboard size | 170mm（L）*170mm（W）*24mm（H） | ||
CPU Processor | 6th Generation | Celeron 3855U, 3955U, Skylake Core i3-6100U, i5-6200U, i7-6500U, etc | |
7th Generation | Celeron 3865U, 3965U and Kabylake Core i3-7100U, i5-7200U, i7-7500U, etc | ||
8th Generation | Kirby Lake-R Core i3-8130U, i5-8250U, i7-8550U, etc | ||
Memory | 2 * NB-DDR4 memory slot, supports 2133/2400MHz memory, maximum support 64GB | ||
Power supply | 1*DC_IN | Supports 12V/19V voltage, with a DC head inner diameter of 2.5MM The full load power consumption of the 6th and 7th generation motherboards is about 40W, and it is recommended to use a power supply of 12V5A or 19V3A or above; The full load power consumption of the 8th generation motherboard is about 60W. It is recommended to use a power supply of 12V7A or 19V5A or above; | |
1*ATX1（4Pin） | |||
Display functions | 6th generation integrated with Intel ® HD510/520 Graphics | Support single display, dual display/triple display replication, dual display/triple display expansion, single display under DOS | |
7th/8th generation integrated with Intel ® HD610/620 Graphics | |||
1*VGA DB15 interface | Supports a resolution of 1920* 1080@60Hz | ||
1*VGA_OUT pin | Supports a resolution of 1920* 1080@60Hz （12Pin，1*12Pin，2.0mm） | ||
1*DP 1.4 interface | DP does not support DP++, supports 4K resolution 4096/3840* 2160@60Hz | ||
VGA and DP are two options | |||
1*HDMI®1.4 interface | Supports 4K resolution of 4096/3840* 2160@30Hz | ||
1*HDMI_CON pin | Supports 4K resolution of 4096/3840* 2160@30Hz （16Pin，2*8Pin，2.0mm） | ||
1*LVDS pin | Supports a resolution of 1920* 1080@60Hz （30Pin，2*15Pin，2.0mm） | ||
1*VCC_SEL pin | LVDS voltage control pin （6Pin，2*3Pin，2.54mm） | ||
1*BKLT_PWR1 pin | LVDS backlight voltage control pin （3Pin，1*3Pin，2.54mm） | ||
1*BKLT_CTRL pin | LVDS backlight brightness adjustment pin （4Pin，1*4Pin，2.0mm） | ||
1*BKLT_CONN pin | LVDS backlight switch backlight brightness adjustment control （6Pin，1*6Pin，2.0mm） | ||
1*EDP pin | EDP-C screen cable, supports 4K resolution 4096/3840* 2160@60Hz （30Pin，2*15Pin，2.0mm） | ||
1*EDP_PWR pin | EDP voltage control pin （6Pin，2*3Pin，2.0mm） | ||
LVDS and EDP are two options, each with a separate pin | |||
Network Features | 1/2*LAN interface | Single network: default support for Realtek 8111H Gigabit Ethernet card; Optional support for Realtek 8106E 100Mbps network card; Dual network: supports Realtek 8111H Gigabit Ethernet card+Realtek 8111H Gigabit Ethernet card; Optional support for Realtek 8106E+Realtek 8106E 100Mbps network card Support network wake-up and PXE functionality | |
1*MPCIE interface | Supports PCIE3.0 x1 signal, default supports WiFi module, does not support Bluetooth/4G module; Can be modified to support WiFi Bluetooth/4G modules, but after modification, there is no signal at pins 2/4/6/8/10 of the F2 USB2 pin; The PCIE signal can be changed to SATA signal, and after the change, it supports MSATA disks; | ||
Hard disk function | 1*M.2 interface | Support Key-M interface M.2 2280 NVME PCIE3.0 x4/SATA adaptive standard SSD; Optional M.2 2242 hard drive； | |
1*SATA2 interface | Standard SATA 3.0 hard drive interface, maximum transfer speed of 6.0 Gbps | ||
1*SATA_PWR2 pin | The hard drive power supply pin can be powered with 5V or 12V. （4Pin，1*4Pin，2.54mm） | ||
Sound Function | Integrated Realtek ALC897 HD digital audio decoder, 6-channel high fidelity audio controller Can modify Cmedia HS_100B USB sound card | ||
1*LINE_OUT interface | Supports audio output (green) | ||
1*MIC_IN interface | Supports microphone input (red) | ||
1*INT_SPK pin | Power amplifier; Supports dual channel output with 8 Euro and 5 Watt speakers （4Pin，1*4Pin，2.0mm） | ||
1*F_AUDIO pin | Standard audio pin （9Pin，2*5Pin，2.54mm） | ||
USB Function | 2*USB3.0 interface | Rear standard USB 3.0 interface | |
2*USB2.0 interface | Rear standard USB 2.0 interface | ||
1*F_USB1 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.54mm） | ||
1*F_USB2 pin | Front USB 2.0 pins, one set with 2 USB 2.0 （9Pin，25Pin，2.54mm） | ||
Choose between the 2nd/4th/6th/8th/10th pins of the motherboard's USB2 pin and the USB signal of the Mini PCIe interface. The default USB pin has a signal; Choose between the 1st/3rd/5th/7th pins of the motherboard's F_USB2 pin and the USB signal of the Cmedia HS_100B USB sound card. The default USB pin has a signal； | |||
1 * F_USB3_Spin | Front USB 3.0 pins, one set with 2 USB 3.0 （19Pin，210Pin，2.0mm） | ||
Switch | 1*F_PANEL pin | Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） | |
1*AUTO_SW pin | Hardware control power on plug （3Pin，1*3Pin，2.0mm） | ||
Other I/O | 1*COM1 pin | Serial port, supports RS232/RS422/RS485 optional （9Pin，2*5Pin，2.54mm） | |
1*COM2 pin | Serial port, supporting standard RS232; （9Pin，2*5Pin，2.54mm） | ||
1*COM3-6 pin | Serial port, supporting standard RS232; （39Pin，2*20Pin，2.0mm） | ||
1*JCOM1 pin | Control COM1 pin 9 voltage 0V/5V/12V optional （6Pin，2*3Pin，2.0mm） | ||
1*JCOM2 pin | Control the 9th pin voltage of COM2 to 0V/5V/12V, optional （6Pin，2*3Pin，2.0mm） | ||
All com can be modified to support TTL hardware | |||
1*SIM_CARD slot | Supports SIM card, SIM card is required when using 4G | ||
1*FAN2 pin | CPU fan pin, full speed, does not support temperature control （3Pin，1*3Pin，2.54mm） | ||
1*FAN3 pin | System fan pin, full speed, does not support temperature control （3Pin，1*3Pin，2.54mm） | ||
1*J_GPIO pin | GPIO control pin （10Pin，2*5Pin，2.0mm） | ||
Operating environment | Working temperature: -10 ℃~60 ℃; Working humidity: 5%~95% relative humidity, no condensation | ||
BIOS | AMI BIOS， Timed startup, intelligent recognition of remote power on/off devices | ||
Watch Dog | Watchdog programming, supports hardware reset function (256 levels, 0-255 seconds) | ||
Operating system | 6/7 generations support Windows 10, Windows 8, Windows 7, Linux, etc; 8th generation supports Windows 10, Linux, etc | ||
>> FAQ
1. What processors does the QM9750 support?
The QM9750 supports Intel 7th Generation Kabylake processors, including Core i3-7100U, i5-7200U, i7-7500U.
2. How much memory can it support?
It has 2 x NB-DDR4 slots, supporting up to 64GB of 2133/2400MHz memory.
3. Does it support 4K display?
Yes. It supports triple independent 4K display via HDMI 1.4 (4K@30Hz), DP 1.4 (4K@60Hz), VGA, LVDS, and eDP.
4. How many LAN ports are available?
The motherboard offers 1 or 2 x Realtek 8111H Gigabit LAN ports with Wake-on-LAN and PXE support.
5. What storage options are available?
It includes 1 x M.2 2280 NVMe/SATA SSD slot and 1 x SATA 3.0 port.
6. How many COM ports does it have?
Up to 6 x COM ports, supporting RS232/RS422/RS485 optional.
7. What is the operating temperature range?
The motherboard operates reliably from -10°C to 60°C.
