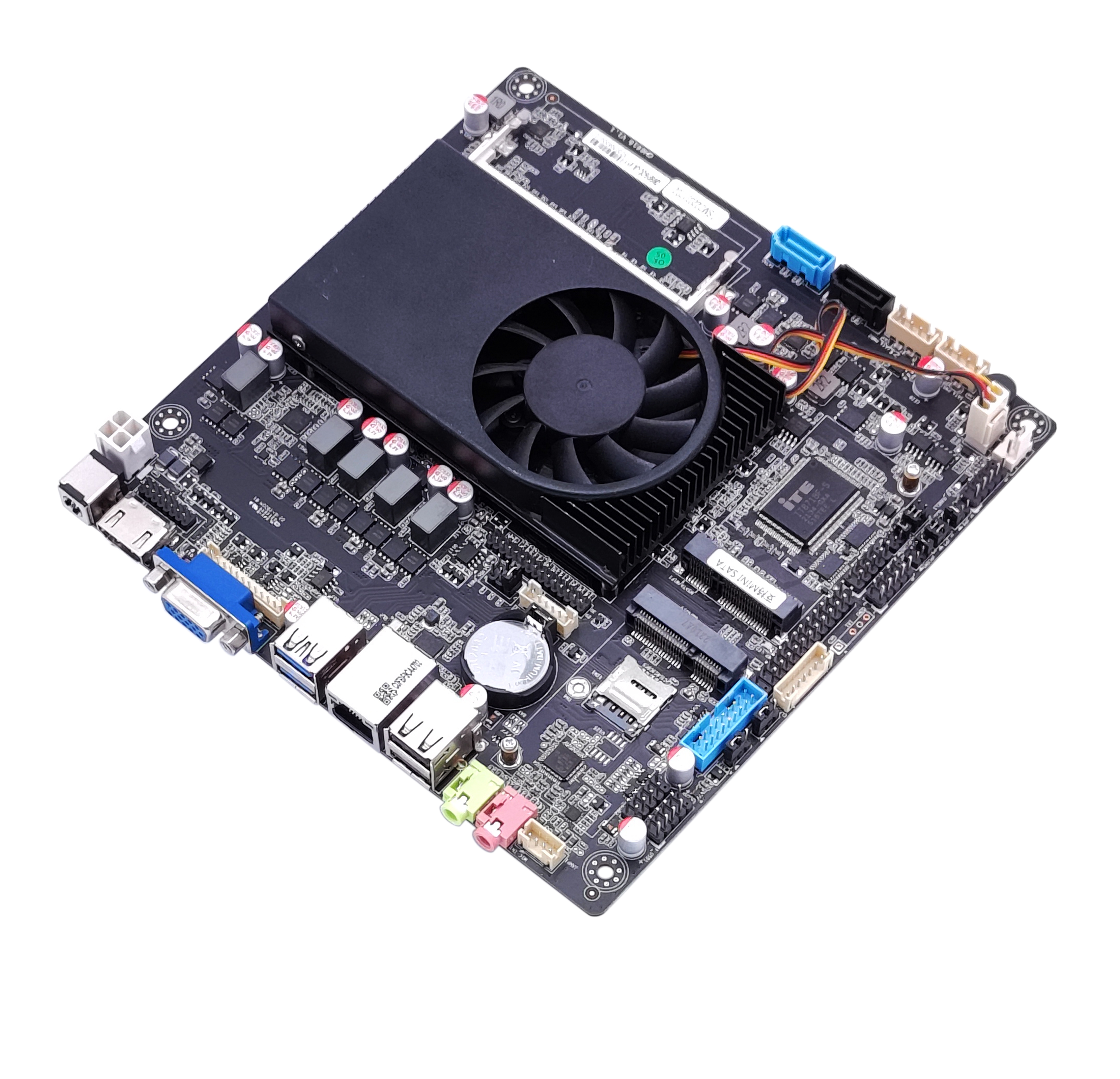

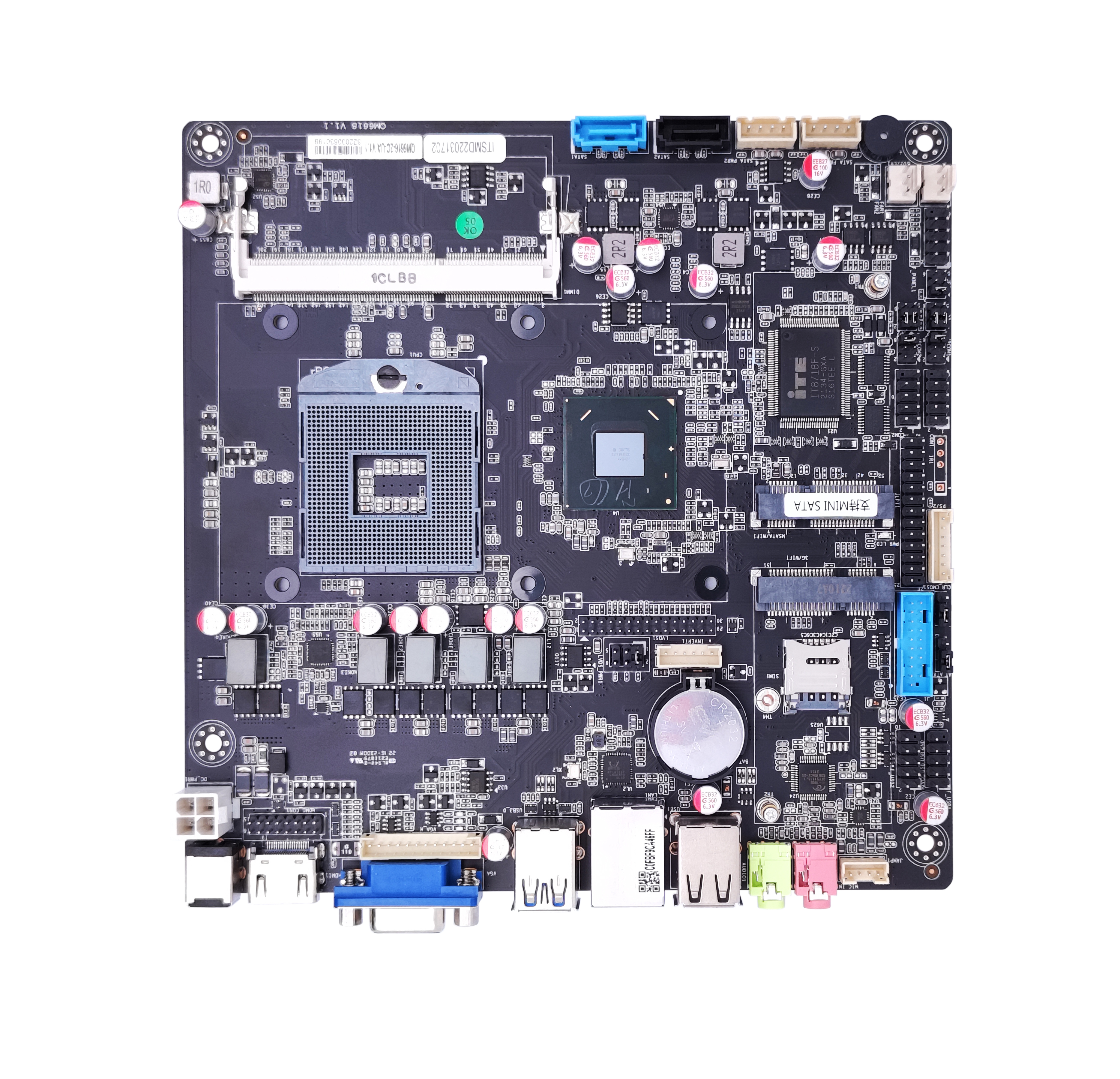

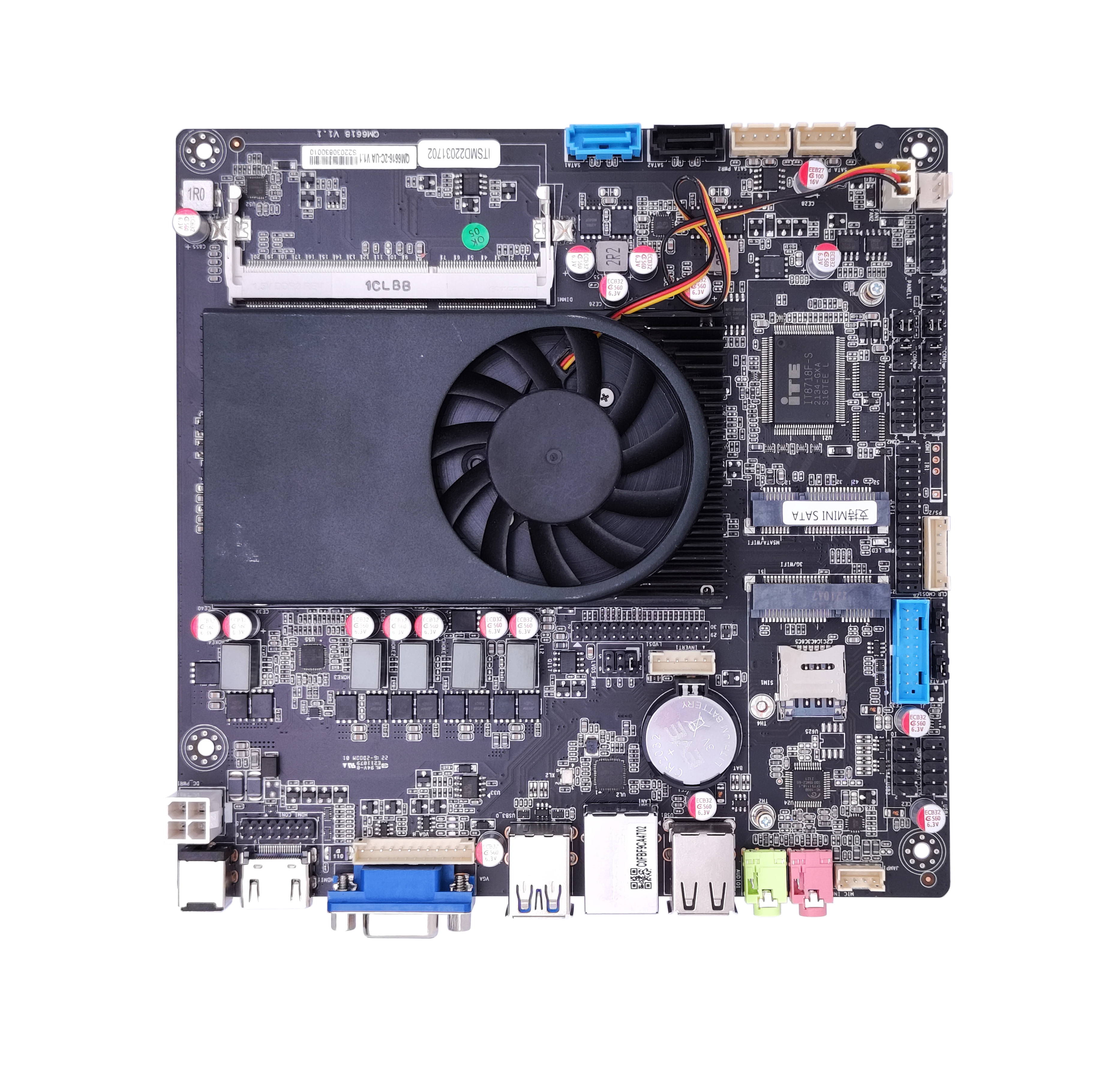

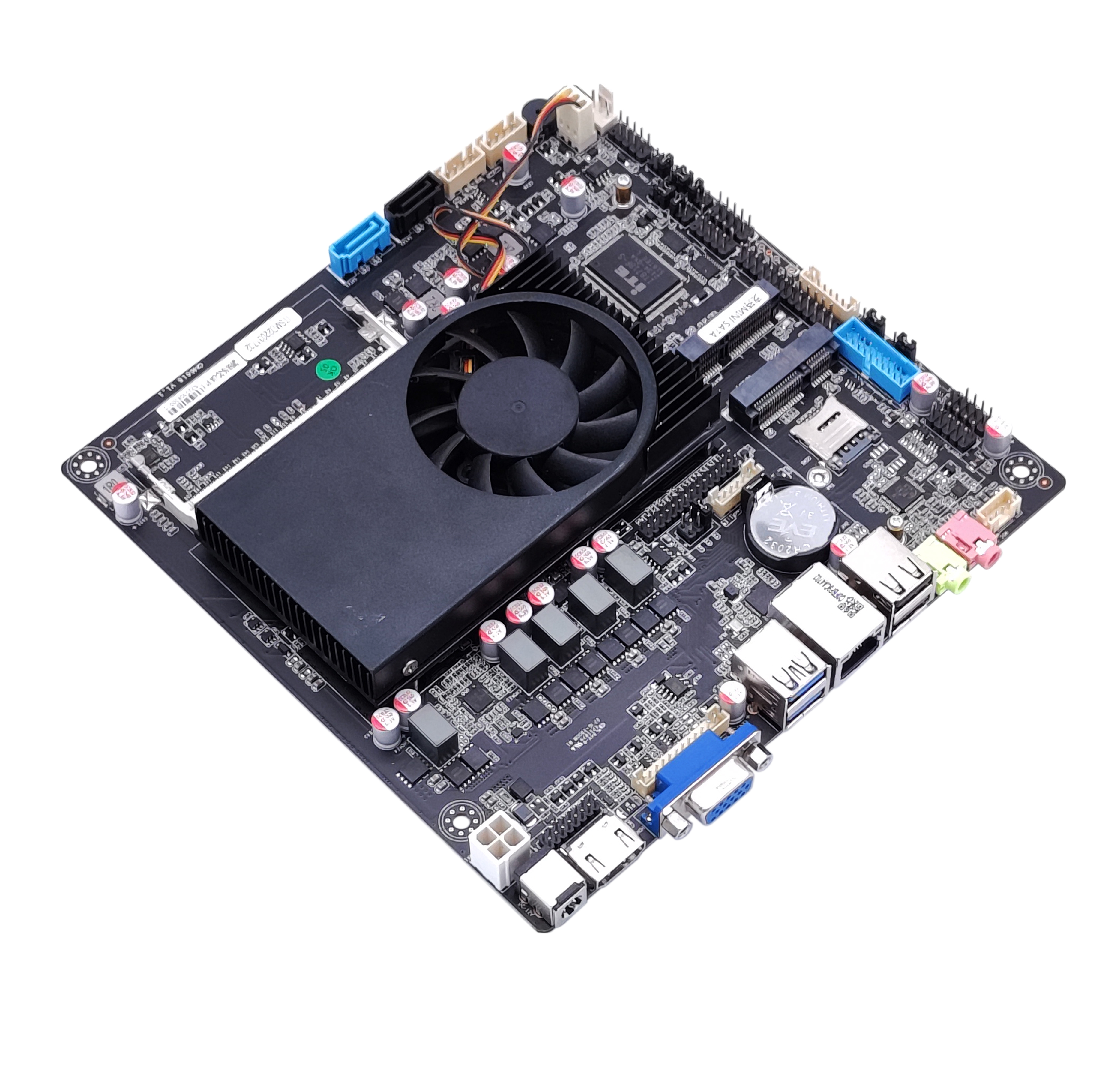

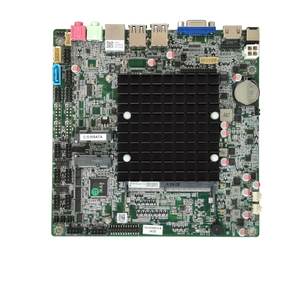

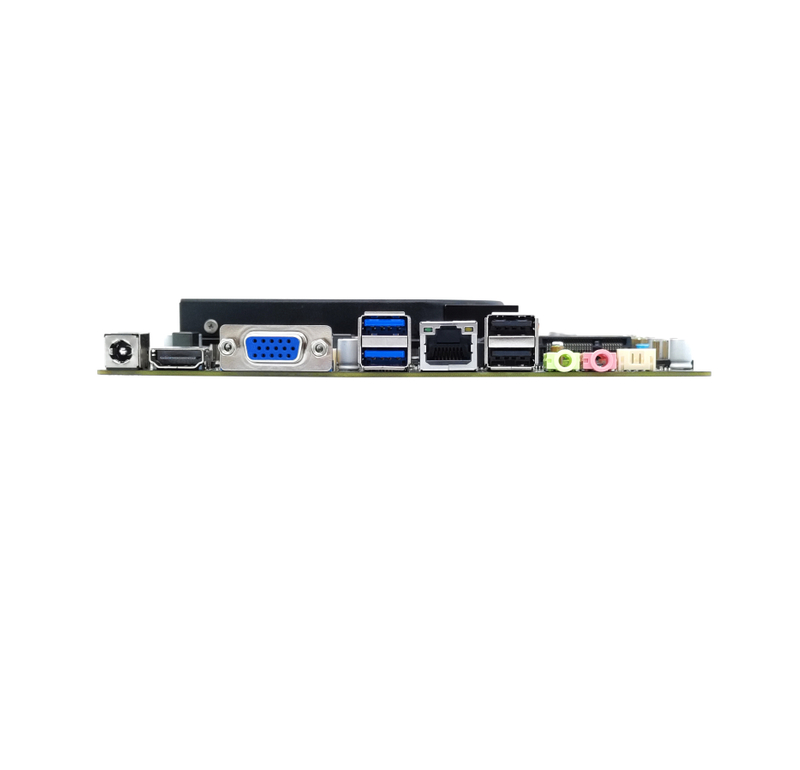

Form factor |
170（L）mm*170（W）mm*25mm（H）Thickness from bottom to top |
CPU |
Support Intel 2th gen、3th gen full series CPU |
Chipset |
Intel 6 series chipset：HM65、HM67、QM67 Intel 7series chipset：HM70、HM76、HM77、QM77 |
power |
1*DC_IN |
Support 12Vvoltage，DC port: 2.5MM When CPU is U series，The motherboard full load power consumption is about 35W，Recommended to use12V5A or above. When CPU is M series，The motherboard full load power consumption is about 60W，Recommended to use12V7A or above. |
1*DC_PWR |
memory |
1*DIMM slot |
NB-DDR3 ram，support 1600MHZ memory，max support 8G |
Network function |
1*LAN port |
Realtek 8111H*1000M network card，supports Wake-on-LAN and PXE diskless boot function. |
1*MINI_PCIE port |
Support WIFI/3G/4G |
Display function |
Graphic card |
Intel HD Graphics 3000/4000 graphic controller，Support single display, double display replication, double display expansion, DOS single display |
1*VGA standard port |
Support highest resolution 1920*1200@60HZ |
1*VGA_OUT pin |
Support highest resolution1920*1200@60HZ （12Pin,1*12Pin，2.0mm） |
1*HDMI 1.4 port |
Support highest resolution1920*1080@60HZ |
1*HDMI_CON pin |
Support highest resolution 1920*1080@60HZ （16Pin,2*8Pin，2.0mm） |
1*LVDS pin |
Support highest resolution1920*1080@60HZ （30Pin，2*15Pin，2.0mm） |
1*LVDS_PWR pin |
LVDS working voltage control pin （6Pin，2*3Pin，2.54mm） |
1*INVERT pin |
LVDS backlight control pin （6Pin，1*6Pin，2.0mm） |
USB Function |
2*USB3.0 port |
Rear standard USB3.0port（when chipset is 6 series,the port is USB2.0 speed） |
2*USB2.0 port |
Rear standard USB2.0port |
1*F_USB1 pin |
Front standard USB2.0pin，one group has 2*USB2.0 （9Pin，2*5Pin，2.54mm） |
1*F_USB2 pin |
Front standard USB2.0pin，one group has 2*USB2.0 （9Pin，2*5Pin，2.54mm） |
Audio Function |
Integrated Realtek ALC662 HD Digital audio decoder， 6-channel high fidelity audio controller |
1*LIN_OUT port |
Support Audio output（green） |
1*MIC_IN port |
Support Microphone input（red） |
1*JAMP pin |
power amplifier Support 8Om5W Speaker output （4Pin，1*4Pin，2.0mm） |
1*F_AUDIO pin |
Standard Audio pin （9Pin，2*5Pin，2.54mm） |
Hard disk function |
1*SATA1 port |
Standard SATA hard disk port，support SATA3.0 |
1*SATA2 port |
Standard SATA hard disk port，support SATA2.0 |
1*MSATA port |
Standard MINI_SATA hard disk，support MSATA2.0 |
1*SATA_PWR pin |
It is hard disk power supply pin and can take the 5V,12V electricity. （4Pin，1*4Pin，2.54mm） |
Switch |
1*F_PANEL pin |
switch、power LED、 Hard disk LED、restart pin （9Pin，2*5Pin，2.54mm） |
1*AUTO_SW pin |
Hardware control power on pin （3Pin，1*3Pin，2.0mm） |
Other I/O |
1*SIM_SLOT slot |
Support SIM card，when use 3G/4G,will need SIm card |
1*CLR_CMOS pin |
Motherboard zero clearing、discharge pin （3Pin，1*3Pin，2.54mm） |
2*FAN pin |
Fan pin，full speed,not support temperature control （3Pin，1*3Pin，2.54mm） |
Working environment |
working temperature ：-20℃~60℃； Working humidity：5%~95% relative humidity， No condensation |
BIOS |
AMI BIOS，Support Power up，RTC，Intelligent identification of remote switching equipment |
Operating system |
Support Windows 10，Windows 8，Windows 7，Windows XP，Linux etc. |
