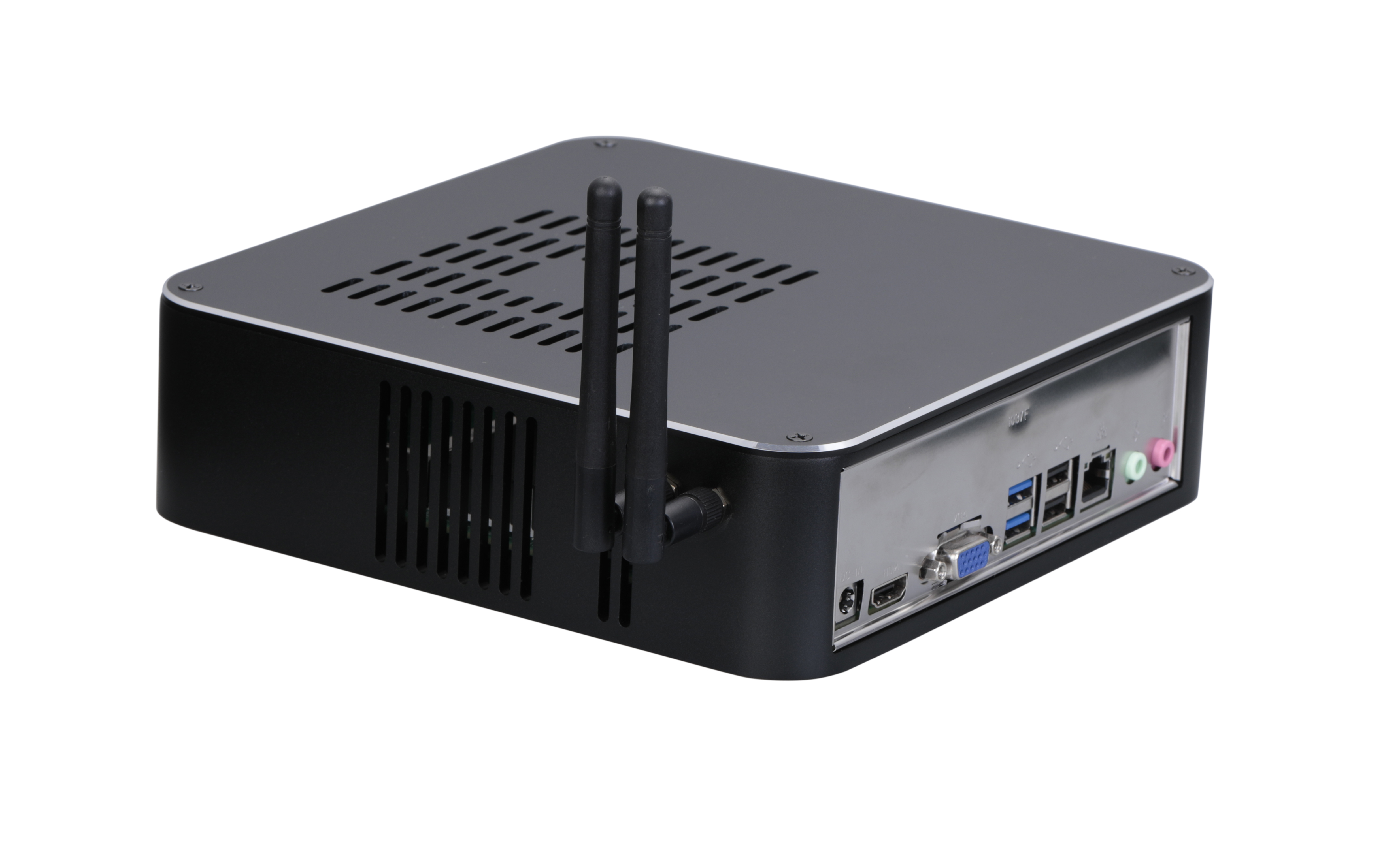

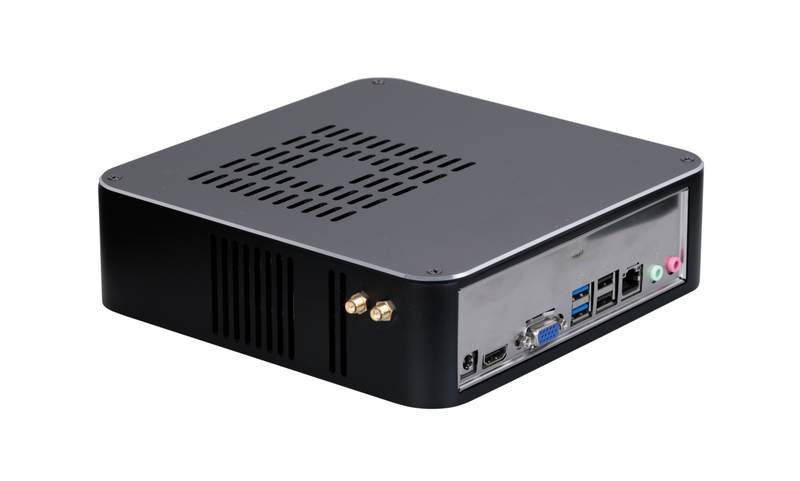

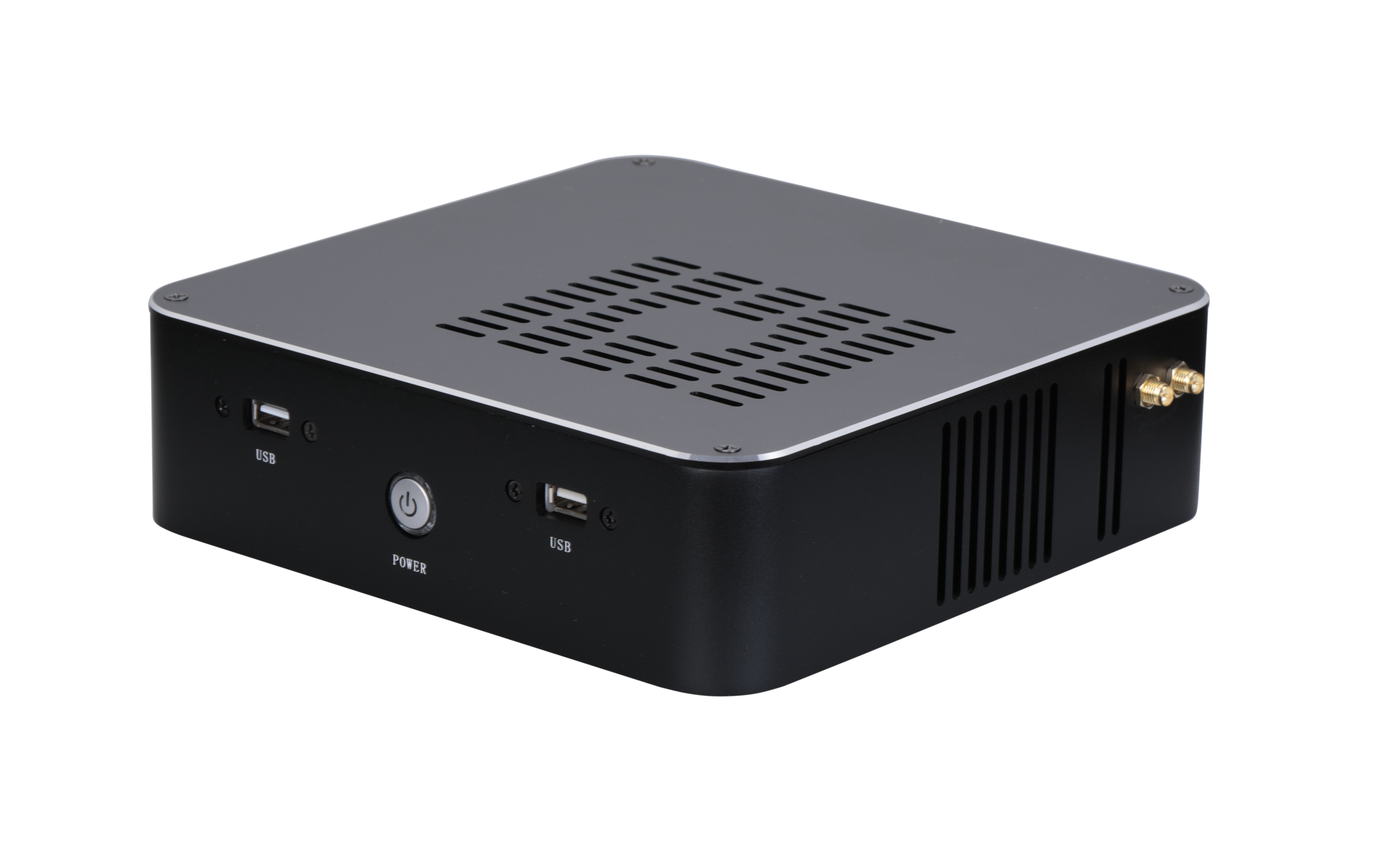

Model |
HD4009 |
Motherboard |
QM14U |

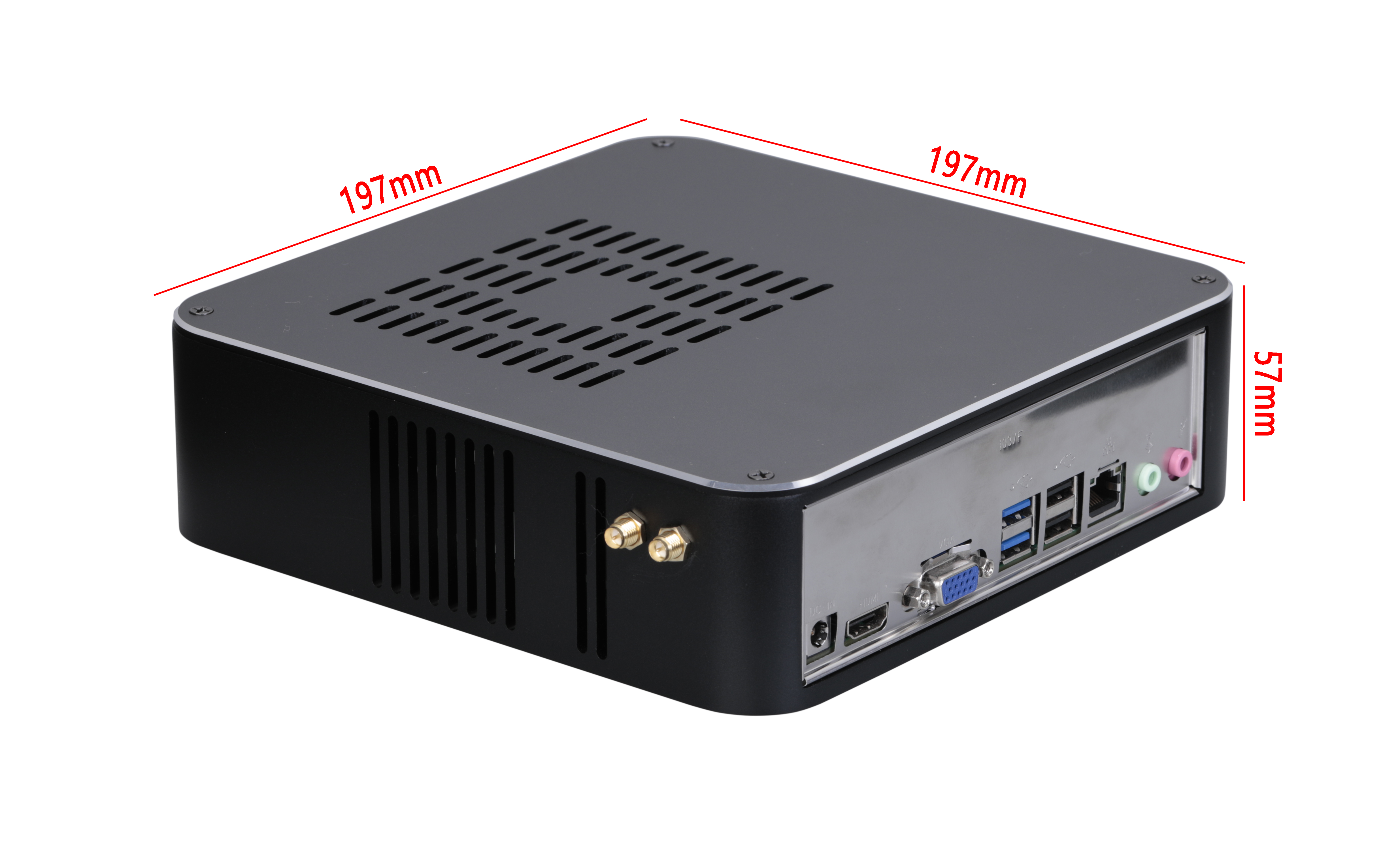

host size |
197mm*197mm*57mm |

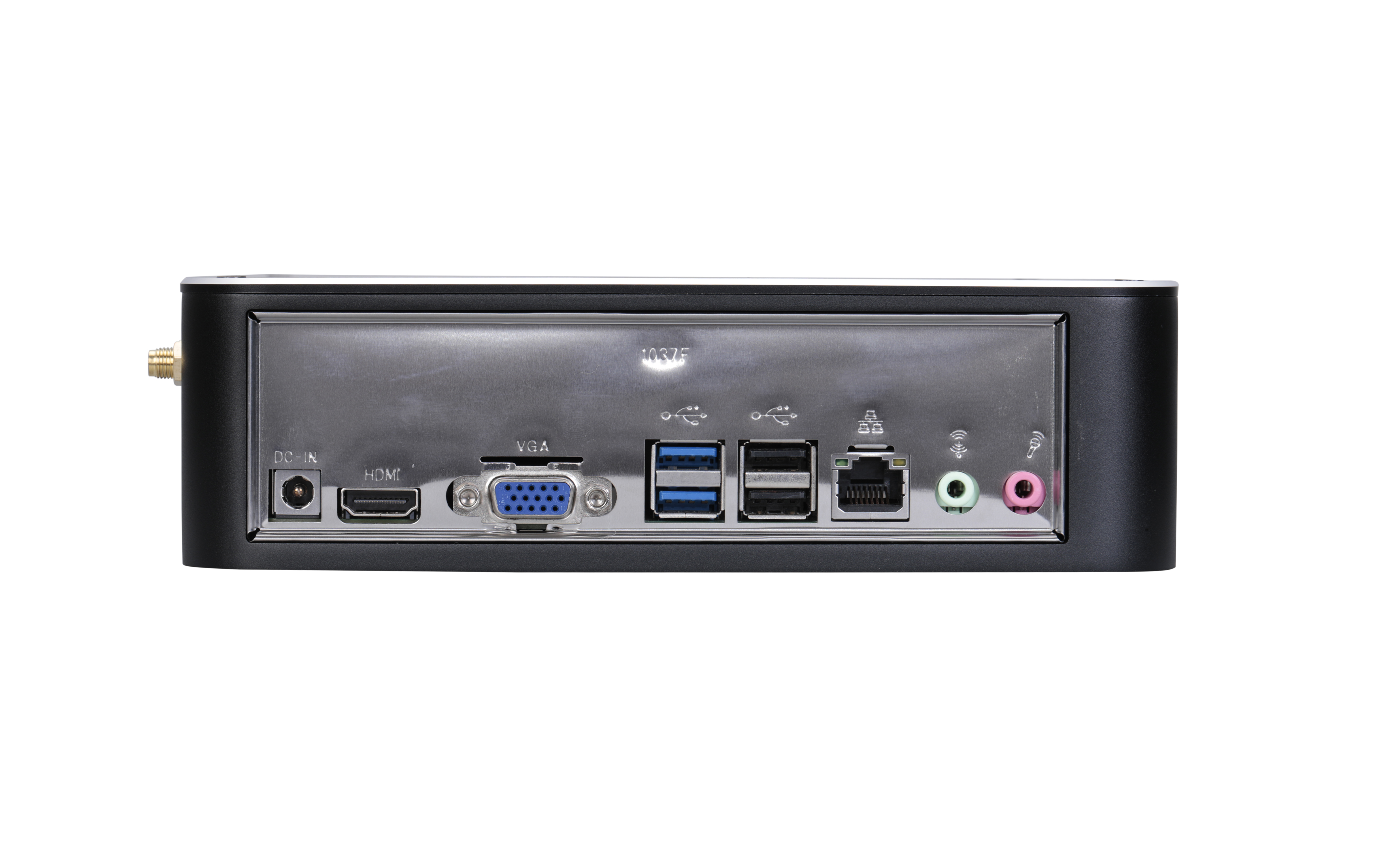

I/O: 2COM 2LAN 6USB 1HDMI 1VGA 1*DC 12V 1*Line-Out , 1*Mic-in,wifi holes,power button. |
Motherboard specifications |
Size |
170mm(L)*170mm(W)*21mm(H) (No fan thickness) |
CPU |
QM14U |
Support Intel Meteor Lake 14th gen Ultra 5, Ultra 7, Ultra 9 U/H series CPU |
Power supply |
1*DC_IN |
The inner diameter of the DC head is 2.5MM and supports 12V/19V The maximum power consumption of U series CPU is 57W, and it is recommended to use 12V 7A or 19V5A; H series CPU maximum core frequency power consumption is 115W, it is recommended to use 12V 10A or 19V 6.3A above the power supply; |
1*DC_ATX（4Pin） |
Memory |
2*SODIMM slot |
NB-DDR5 memory，support 4800/5600MT/s memory, up to support 96GB |
Internet function |
1/2*RJ45_LAN port |
Single network: the default support of Intel I219V gigabit network card; Dual network: support Intel I219V + Realtek 8111H Gigabit network card; Support network wake-up, PXE function; |
1*M.2-WIFI port |
PCIE 4.0 signal, support for Key-E interface M.2 2230 WiFi/Bluetooth module |
1*M.2-4G/5G port |
Support the Key-B interface M.2 5G (3052/3042) module or M.2 4G (3042) module |
Display function |
Integrated Intel Graphics/Intel Arc graphics supercore graphics card Support single display, double/three/four development replication, double/three/four development extension, SHELL double display; |
1*HDMI2.0 port |
Support for 4K resolution 4096/3840*2160@60Hz |
1*HDMI_CON pin |
Support for 4K resolution 4096/3840*2160@60Hz （16Pin，2*8Pin，2.0mm） |
1*VGA DB15 port |
Support resolution 1920*1080@60Hz |
1*DP port（optional） |
Support for DP + +, with 4K resolution 4096/3840*2160@60Hz |
VGA interface can support DP interface |
1*LVDS1/EDP2 pin |
LVDS1 support 2K60Hz；EDP2 support 4K60Hz （30Pin，2*15Pin，2.0mm） |
1*EDP1 pin |
With the EDP-C screen line, support for 4K resolution 4096/3840*2160@60Hz（30Pin，2*15Pin，2.0mm） |
1*LVDS_PWR1 pin |
LVDS1/EDP2 operating voltage control pin （6Pin，2*3Pin，2.0mm） |
1*EDP_PWR pin |
The EDP 1 operating voltage control pin （6Pin，2*3Pin，2.0mm） |
1*INVERT pin |
The LVDS backlight control pin （6Pin，1*6Pin，2.0mm） |
Default support LVDS 1, optional support EDP 2, common pins, with EDP-B screen line |
USB function |
2*USB3.2 port |
The rear standard USB3.2 Gen1 interface, the maximum transmission broadband of 5 Gbps |
2*USB2.0 port |
The rear standard USB2.0 interface, the maximum transmission broadband of 480Mbps |
1*F_USB3_A pin |
Front USB3.2 pin, one group has 2*USB3.2 （19Pin，2*10Pin，2.0mm） |
1*F_USB1 pin |
Front USB2.0 pin, one group has 2*USB2.0 （9Pin，2*5Pin，2.54mm） |
1*F_USB2 pin |
Front USB2.0 pin, one group has 2*USB2.0 （9Pin，2*5Pin，2.54mm） |
Sound function |
Integrated Realtek ALC897 HD digital audio decoder, 6-channel high-fidelity audio controller; |
1*LINE_OUT port |
Support audio output (green) |
1*MIC_IN port |
Support microphone input (red) |
1*INT_SPK pin |
The power amplifier supports dual-channel output of 8 ohm 5 watt Speakers （4Pin，1*4Pin，2.0mm） |
1*F_AUDIO pin |
Standard audio insert （9Pin，2*5Pin，2.54mm） |
Hard Disk Function |
1*M.2-SATA/PCIE port |
Support PCIE 4.0 signal, support Key-M interface M.2 2280 hard disk, and support NVME and SATA protocol by default |
1*SATA1 port |
Standard SATA hard disk interface, with support for SATA 3.0 |
1*SATA_PWR pin |
Hard disk power supply pin, the cable power 5V, 12V（4Pin，1*4Pin，2.54mm） |
Switch function |
1*F_PANEL pin |
Switch, power light, hard disk light, restart pin （9Pin，2*5Pin，2.54mm） |
1*AUTO_SW pin |
Hardware control power-on boot pin （3Pin，1*3Pin，2.0mm） |
Other I/O |
1*COM1 pin |
Support for standard RS232/RS422/RS485 optional (BIOS settings) （9Pin，2*5Pin，2.54mm） |
1*COM2 pin |
Only the standard RS232 is supported （9Pin，2*5Pin，2.54mm） |
1*COM3~6 pin |
Only the standard RS232 is supported （39Pin，2*20Pin，2.0mm） |
1*JCOM1 pin |
COM19th foot set 0V/5V/12V （6Pin，2*3Pin，2.0mm） |
1*MSIM1 slot |
SIM card supported, SIM card required for 5G/4G |
1*CLR_CMOS pin |
Motherboard zero clearance, discharge plug pin （3Pin，1*3Pin，2.0mm） |
1*CPU_FAN pin |
CPU fan pin, support for temperature control （4Pin，1*4Pin，1.25mm） |
1*SYS_FAN pin |
System fan pin does not support temperature control at full speed （3Pin，1*3Pin，2.54mm） |
1*J_GPIO pin |
GPIO control pin （10Pin，2*5Pin，2.0mm） |
Operating environment |
Working temperature：-10℃~60℃； Working humidity：5%~95% relative humidity, non-condensing |
BIOS |
AMI BIOS，Support power-on boot, scheduled boot, remote switch machine intelligent identification |
Watch Dog |
Watchdog programming, support hardware reset function (256 levels, 0~255 seconds） |
Operating system |
Support Windows 11，Windows 10，LINUX etc. |
