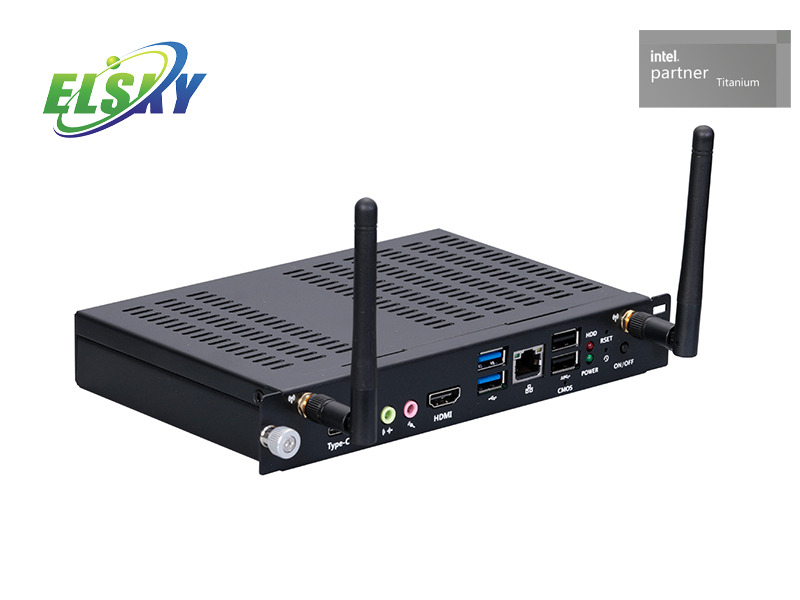

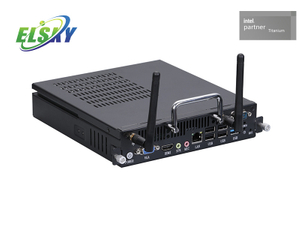

Small Size OPS PC Series
180*120*30MM European Standard Series
Supports single and dual LAN ports
4K HD
HDMI/LVDS/VGA/DP Display Interfaces
7*24 hours stable operation
Supports daughter card
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
Application:
- Intelligent Education/Conferences
Intel full series OPS
- Intelligent Commercial Display
Advertising machine: OPS PC
PC model | CPU | 4K | LAN | Daughter card TTL | USB 2.0 | USB3.2 | Type-C | SSD | Memory | Power |
OPS-12U | Support Intel Alder Lake 12th generation U series i3, i5, i7, i9 | support | 1 | 1 | 2 | 2 | 1 | 1*M.2 1*JSATA 2.5-inch SSD/HDD optional | 1*NB-DDR4 MAX 32G | 12/19V |
OPS-13U | Support Intel RaptorLake 13th generation U/P/H series i3, i5, i7, i9 |
>> Important Note
Power supply interface:
The motherboard supports 12V or 19V power supply; the motherboard DC interface specification is 5.5*2.5, and can be changed to support 4Pin ATX;
The maximum turbo power consumption of U series CPU is 55W. It is recommended to use a power supply of 12V 7A or 19V 5A or above;
The maximum turbo power consumption of P series CPU is 64W. It is recommended to use a power supply of 12V 7A or 19V 5A or above;
The maximum turbo power consumption of H series CPU is 115W. It is recommended to use a 12V 10A or 19V 6.3A or above power supply;
Display interface:
1. The Mini PC HDMI, DP, daughter card HDMI, daughter card DP support single display, dual display/triple display/quad display replication, dual display/triple display/quad display expansion, dual display is supported under SHELL, and DOS is not supported;
2. PC-side HDMI and daughter-card side HDMI are independent HDMI 2.0 signals, supporting 4K resolution 4096/3840*2160@60Hz;
3. The PC-side DP and the daughter card DP are independent signals, supporting 4K resolution 4096/3840*2160@60Hz; the PC-side DP supports DP++ (supports DP cables and DP to HDMI ordinary cables/active adapter cables). The card-side DP does not support DP++ (supports DP cables and DP to HDMI active adapter cables, but does not support DP to HDMI ordinary cables);
4. The Mini PC does not support subcard LVDS;
Mini-PCIE:
1. The motherboard NGFF supports the Key-M interface, the default M.2 2280 hard drive, the optional M.2 2242 hard drive; the default support NVME (PCIE) protocol, optional support SATA protocol, only need to change the hardware, no need to update the BIOS;
2. The motherboard M2_WIFI supports the Key-E interface M.2 2230 WiFi Bluetooth module, and the default PCIE signal and USB signal coexist;
3. The motherboard’s JSATA interface supports SATA3.0 signals by default and supports 2.5-inch SSD/HDD disks; the host has optional hard drive bays or no hard drive bays;
USB interface:
1. The Mini PC supports 4*USB by default (2*USB3.2 Gen1; 2*USB2.0);
2. The Mini PC supports 1 Type-C interface, which only supports USB function and does not support display function. Its USB signal is an independent signal;
4. All USB interfaces and pins of the Mini PC are defaulted to S power (no power when powered off), and can be changed to A power (power off when powered off);
COM port:
The Mini PC daughter card supports TTL, no need to change the hardware;
Network card:
The Mini PC supports Intel I219V single Gigabit network port; it cannot be changed to dual network and POE power supply cannot be changed;
Sound card:
The Mini PC supports Realtek ALC897 sound card by default, and optionally supports BBH621 USB sound card.
>> CPU information
CPU specifications | CPU brand | CPU model | Core/Thread | Main frequency | Turbo frequency | CPU basic power consumption (W) | Maximum Turbo Power Consumption (W) |
12th generation i3 | core | 1215U | Six cores and eight threads | 1.2G | 4.4G | 15 | 55 |
1210U | Six cores and eight threads | 1.0G | 4.4G | 9 | 29 | ||
12th generation i5 | core | 1235U | Ten cores and twelve threads | 1.3G | 4.4G | 15 | 55 |
1240U | Ten cores and twelve threads | 1.1G | 4.4G | 9 | 29 | ||
1230U | Ten cores and twelve threads | 1.0G | 4.4G | 9 | 29 | ||
1245U | Ten cores and twelve threads | 1.6G | 4.4G | 15 | 55 | ||
12th generation I7 | core | 1250U | Ten cores and twelve threads | 1.1G | 4.7G | 9 | 29 |
1260U | Twelve cores and sixteen threads | 1.1G | 4.7G | 9 | 29 | ||
1265U | Ten cores and twelve threads | 1.8G | 4.8G | 15 | 55 | ||
1255U | Ten cores and twelve threads | 1.7G | 4.7G | 15 | 55 | ||
12th generation i3 | core | 1220P | Ten cores and twelve threads | 1.5G | 4.4G | 28 | 64 |
12th generation i5 | core | 1240P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 |
1250P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 | ||
12th generation I7 | core | 1280P | Fourteen cores and twenty threads | 1.8G | 4.8G | 28 | 64 |
1260P | Twelve cores and sixteen threads | 2.1G | 4.7G | 28 | 64 | ||
1270P | Twelve cores and sixteen threads | 2.2G | 4.8G | 28 | 64 | ||
12th generation i5 | core | 12450H | Eight cores and twelve threads | 2.0G | 4.4G | 45 | 95 |
12500H | Twelve cores and sixteen threads | 2.5G | 4.5G | 45 | 95 | ||
12th generation I7 | core | 12800H | Fourteen cores and twenty threads | 2.4G | 4.8G | 45 | 115 |
12700H | Fourteen cores and twenty threads | 2.7G | 4.7G | 45 | 115 | ||
12650H | Ten cores and sixteen threads | 2.3G | 4.7G | 45 | 115 | ||
12600H | Twelve cores and sixteen threads | 2.7G | 4.5G | 45 | 95 | ||
12th generation I9 | core | 12900H | Fourteen cores and twenty threads | 2.5G | 5.0G | 45 | 115 |
13th generation i3 | core | 1305U | Five cores and six threads | 1.6G | 4.5G | 15 | 55 |
1315U | Six cores and eight threads | 1.2G | 4.5G | 15 | 55 | ||
13th generation i5 | core | 1334U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 |
1335U | Ten cores and twelve threads | 1.3G | 4.6G | 15 | 55 | ||
1345U | Ten cores and twelve threads | 1.6G | 4.7G | 15 | 55 | ||
13th generation I7 | core | 1355U | Ten cores and twelve threads | 1.7G | 5.0G | 15 | 55 |
1365U | Ten cores and twelve threads | 1.8G | 5.2G | 15 | 55 | ||
13th generation i5 | core | 1340P | Twelve cores and sixteen threads | 1.8G | 4.6G | 28 | 64 |
1350P | Twelve cores and sixteen threads | 1.9G | 4.7G | 28 | 64 | ||
13th generation I7 | core | 1360P | Twelve cores and sixteen threads | 2.2G | 5.0G | 28 | 64 |
1370P | Fourteen cores and twenty threads | 1.9G | 5.2G | 28 | 64 | ||
13th generation i5 | core | 13420H | Eight cores and twelve threads | 2.1G | 4.60G | 45 | 95 |
13500H | Twelve cores and sixteen threads | 2.6G | 4.70G | 45 | 95 | ||
13505H | Twelve cores and sixteen threads | 2.6G | 4.70G | 45 | 115 | ||
13600H | Twelve cores and sixteen threads | 2.8G | 4.80G | 45 | 95 | ||
13th generation I7 | core | 13620H | Ten cores and sixteen threads | 2.4G | 4.90G | 45 | 115 |
13700H | Fourteen cores and twenty threads | 2.4G | 5.00G | 45 | 115 | ||
13705H | Fourteen cores and twenty threads | 2.4G | 5.00G | 45 | 115 | ||
13800H | Fourteen cores and twenty threads | 2.5G | 5.20G | 45 | 115 | ||
13th generation I9 | core | 13900H | Fourteen cores and twenty threads | 2.6G | 5.40G | 45 | 115 |

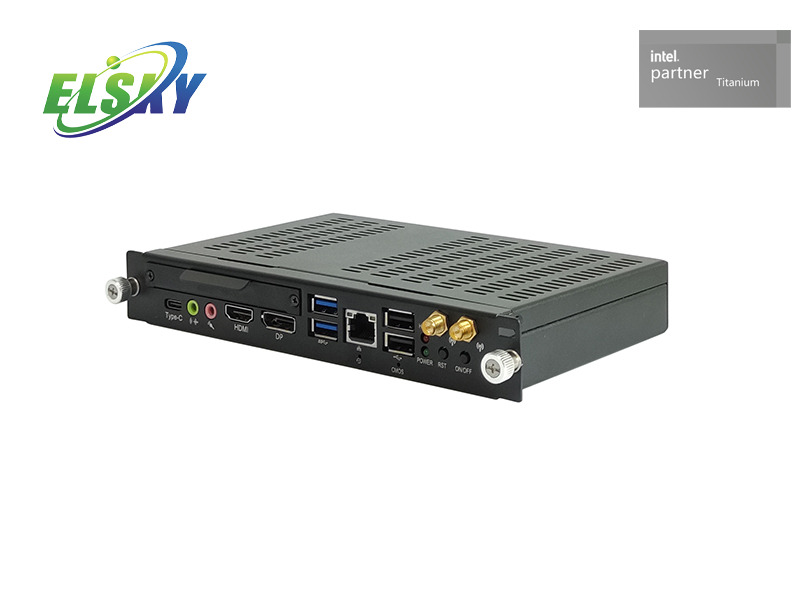

>> Product Specifications

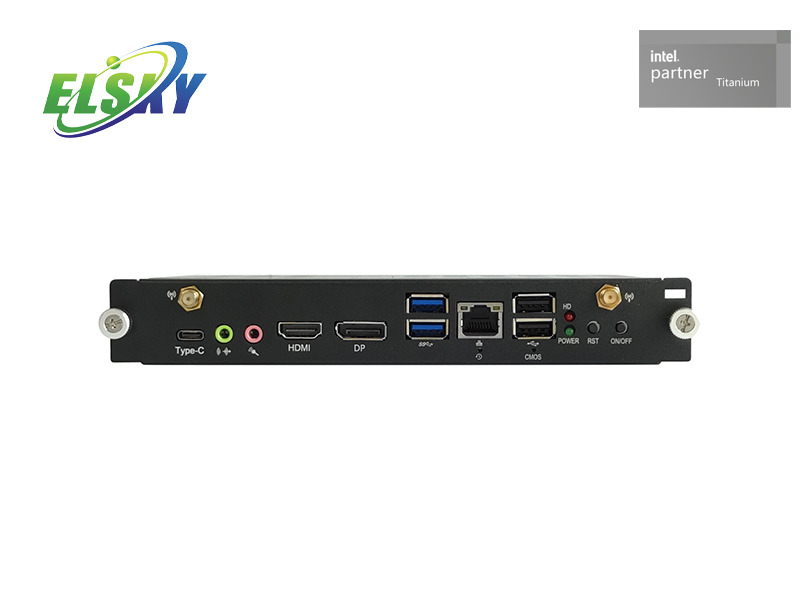

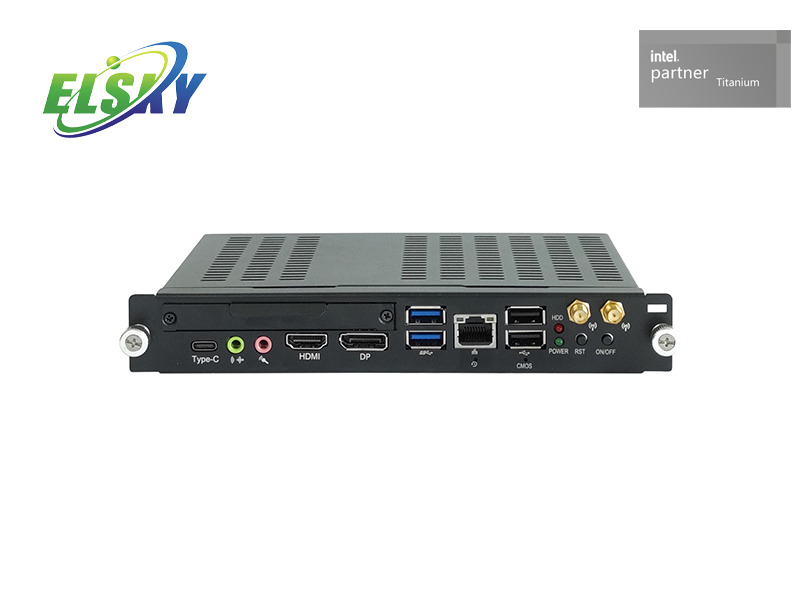

PC model | OPS-12U OPS-13U | |
PC size | 120mm(L)*180mm(W)*30mm(H) | |
CPU processor | OPS-12U | Supports Intel Alder Lake 12th generation U/P/H series CPUs |
OPS-13U | Supports Intel Raptor Lake 13th generation U/P/H series CPUs | |
Memory support | 1*NB-DDR4 SODIMM memory slot, supports 2133/2400/2666/3200 MHz memory, supports up to 32 GB | |
Power supply | 1*DC_IN | Supports 12V/19V voltage, the inner diameter of the DC head is 2.5MM The maximum turbo power consumption of U series CPU is 55W. It is recommended to use a power supply of 12V 7A or 19V5A or above; The maximum turbo power consumption of P series CPU is 64W. It is recommended to use a power supply of 12V 7A or 19V5A or above; The maximum turbo power consumption of H series CPU is 115W. It is recommended to use a 12V 10A or 19V 6.3A or above power supply; |
Display function | Integrated Intel UHD Graphics super core graphics card , supports single display, dual display/triple display/quad display copy, dual display/triple display/quad display expansion, supports dual display under SHELL, does not support DOS | |
1*HDMI 2.0 interface (mainboard side) | Support 4K resolution 4096/3840*2160@60Hz | |
1*DP interface (motherboard side) | Support DP++; support 4K resolution 4096/3840*2160@60Hz | |
1*HDMI 2.0 interface (daughter card side) | Support 4K resolution 4096/3840*2160@60Hz | |
1*DP interface (daughter card side) | Does not support DP++; supports 4K resolution 4096/3840*2160@60Hz | |
Internet function | 1*LAN interface | Intel I219V Gigabit network card chip, supports network wake-up and PXE diskless boot function |
1* M2_WIFI interface | PCIE 3.0 signal, supports Key-E interface M.2_2230 WIF Bluetooth module | |
Hard drive function | 1*NGFF1 (M.2) interface | PCIE 4.0 signal, supports Key-M interface, default M.2 2280 hard drive, optional M.2 2242 hard drive; It supports NVME protocol by default, and the hardware can be changed to support SATA protocol. |
1*JSATA interface | Supports SATA3.0 signal by default and supports 2.5-inch SSD/HDD disks | |
Sound function | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller; The hardware can be modified to support BBH621 USB sound card; | |
1*LIN_OUT interface | Support audio output (green) | |
1*MIC_IN interface | Support microphone input (red) | |
USB function | 2*USB3.2 interface | Rear standard USB3. 2 Gen1 interface, maximum transmission bandwidth is 5Gbps |
2*USB2.0 interface | Rear standard USB2.0 interface , maximum transmission bandwidth is 480Mbps | |
1*Type-C interface | Standard Type-C interface, only supports USB function and does not support display function | |
Switch function | 1*PWR_SW 1 button | switch button |
1*RST_SW1 button | Support hardware restart | |
Other I/O | 1*J CMOS button | Motherboard reset and discharge buttons |
1*OPS interface | Standard 80Pin OPS interface | |
1*GHOST button | Support system one-click restore | |
1*LED | Power and hard drive status indicators | |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS supports power on, scheduled boot, and remote power on/off device intelligent identification | |
Watch Dog | Watchdog programming, supports hardware reset function (level 256, 0~255 seconds) | |
Operating system | Supports Windows 11, Windows 10, Linux, etc. | |

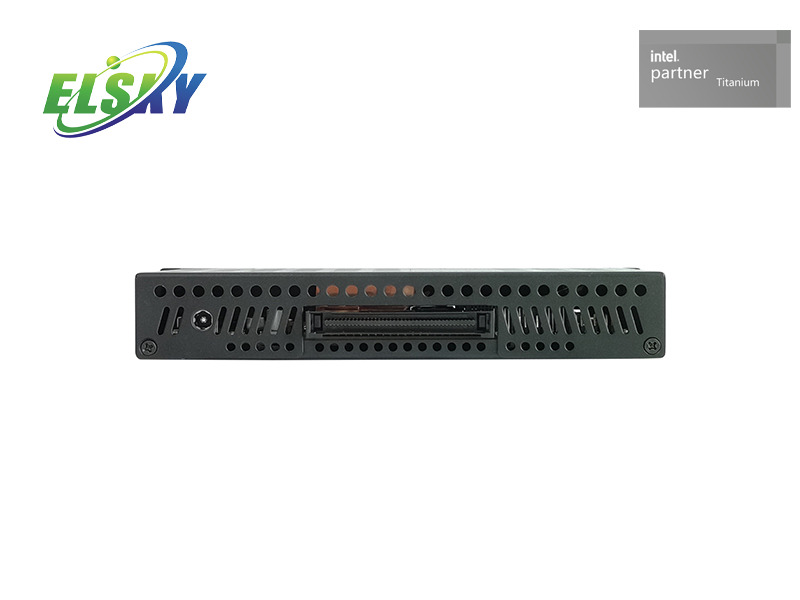

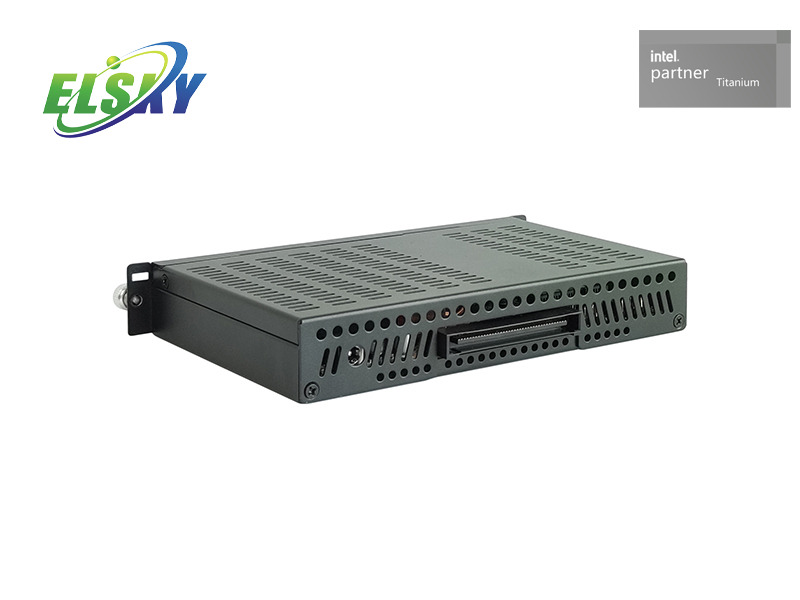

80Pin OPS interface definition:
| Pins | Signal | Describe | Aisle |
| 1 | DDP_3N | DisplayPort | OUT |
| 2 | DDP_3P | DisplayPort | OUT |
| 3 | GND | Ground | - |
| 4 | DDP_2N | DisplayPort | OUT |
| 5 | DDP_2P | DisplayPort | OUT |
| 6 | GND | Ground | - |
| 7 | DDP_1N | DisplayPort | OUT |
| 8 | DDP_1P | DisplayPort | OUT |
| 9 | GND | Ground | - |
| 10 | DDP_0N | DisplayPort | OUT |
| 11 | DDP_0P | DisplayPort | OUT |
| 12 | GND | Ground | - |
| 13 | DDP_AUXN | DisplayPort | I/O |
| 14 | DDP_AUXP | DisplayPort | I/O |
| 15 | DDP_HPD | DisplayPort | IN |
| 16 | GND | Ground | - |
| 17 | TMDS_CLK- | DVI-D | OUT |
| 18 | TMDS_CLK+ | DVI-D | OUT |
| 19 | GND | Ground | - |
| 20 | TMDS0- | DVI-D | OUT |
| 21 | TMDS0+ | DVI-D | OUT |
| 22 | GND | Ground | - |
| 23 | TMDS1- | DVI-D | OUT |
| 24 | TMDS1+ | DVI-D | OUT |
| 25 | GND | Ground | - |
| 26 | TMDS2- | DVI-D | OUT |
| 27 | TMDS2+ | DVI-D | OUT |
| 28 | GND | Ground | - |
| 29 | DVI_DDC_DATA | DVI-D | I/O |
| 30 | DVI_DDC_CLK | DVI-D | I/O |
| 31 | DVI_HPD | DVI-D | IN |
| 32 | GND | Ground | - |
| 33 | +12V~+19V | Power | - |
| 34 | +12V~+19V | Power | - |
| 35 | +12V~+19V | Power | - |
| 36 | +12V~+19V | Power | - |
| 37 | +12V~+19V | Power | - |
| 38 | +12V~+19V | Power | - |
| 39 | +12V~+19V | Power | - |
| 40 | +12V~+19V | Power | - |
| 41 | RSVD | Reserved pins | - |
| 42 | RSVD | Reserved pins | - |
| 43 | RSVD | Reserved pins | - |
| 44 | RSVD | Reserved pins | - |
| 45 | RSVD | Reserved pins | - |
| 46 | GHOST | GHOST_OPS | - |
| 47 | RSVD | Reserved pins | - |
| 48 | RSVD | Reserved pins | - |
| 49 | SYSRST | SYS_RESET | - |
| 50 | SYS_FAN | System Fan Control | OUT |
| 51 | UART_RXD | UART 3.3V | IN |
| 52 | UART_TXD | UART 3.3V | OUT |
| 53 | GND | Ground | - |
| 54 | StdA_SSRX- | USB3.0 | IN |
| 55 | StdA_SSRX+ | USB3.0 | IN |
| 56 | GND | Ground | - |
| 57 | StdA_SSTX- | USB3.0 | OUT |
| 58 | StdA_SSTX+ | USB3.0 | OUT |
| 59 | GND | Ground | - |
| 60 | USB_PN2 | USB | I/O |
| 61 | USB_PP2 | USB | I/O |
| 62 | GND | Ground | - |
| 63 | USB_PN1 | USB | I/O |
| 64 | USB_PP1 | USB | I/O |
| 65 | GND | Ground | - |
| 66 | USB_PN0 | USB | I/O |
| 67 | USB_PP0 | USB | I/O |
| 68 | GND | Ground | - |
| 69 | AZ_LINEOUT_L | Audio-Lch | OUT |
| 70 | AZ_LINEOUT_R | Audio-Rch | OUT |
| 71 | CEC | Consumer Electronic Control | I/O |
| 72 | PB_DET | Pluggable Board Detect | OUT |
| 73 | PS_ON# | Pluggable Signal ON | IN |
| 74 | PWR_STATUS | PowerGood | OUT |
| (OC) | |||
| 75 | GND | Ground | - |
| 76 | GND | Ground | - |
| 77 | GND | Ground | - |
| 78 | GND | Ground | - |
| 79 | GND | Ground | - |
| 80 | GND | Ground | - |
1. The I/O column definition is in reference to the pluggable board.
2. OC=Open Collector.
3. For USB3.0 implementation, pins #60 and #61 shall be used to complement the Super Speed USB signals.
>> The Characteristics of the OPS PC
The OPS PC supports 4K Extreme HD, Multi-Generation, Multi-Configuration, options with Daughter Card, optional Discrete Graphics Card.
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9.
European standard OPS PC: 180*120*30MM
Standard OPS PC: 180*195*30/33/42MM
OPS PC Series
Size: 180*195*30/33MM Ultra-thin Series
Size: 180*195*42MM standard series
Supports single and dual LAN ports
4K HD
HDMI/LVDS/VGA/DP Display Interfaces
7*24 hours stable operation
Supports daughter card
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
Small Size OPS PC Series
Size: 180*120*30MM European Standard Series
Support single and dual LAN ports
4K HD
HDMI/LVDS/VGA/DP Display Interfaces
7*24 hours stable operation
Supports daughter card
Supports 6th-14th Gen CPUs Intel CORE i3, i5, i7, i9
OPS PC Discrete Graphics Series
OPS-MX5100, OPS-MX6900H, OPS-MX8900, OPS-MX8900
Size: 180*195*30/42MM
H310/H510/H610 chipsets
Supports Discrete graphics card
4K HD
Supports 6th-14th Gen Desktop CPUs: Intel CORE i3, i5, i7, i9
>> The Applications of the OPS PC
ELSKY products help thousands of businesses, widely used in Intelligent city, Intelligent financial, Intelligent retails, Intelligent transportation, Intelligent Medical Care, Intelligent Network Security, Intelligent Commercial Display, Intelligent Education and Conferences, Self-service Cash Registers, Industrial Automation, Industrial control, AI Computing Terminal, AI Robots, 5G IoT, ect.
>> Company Profile
Founded in 2009, ELSKY is a national high-tech enterprise focusing on independent research and development of industrial control motherboards and computers. With more than 16 years of deep development of control terminal industry technology, ELSKY has been at the forefront of industrial control terminal design and development, committed to promoting the automation, intelligence and informationization of high-end manufacturing equipment industry, and providing partners with complete industrial control terminal solutions.
ELSKY has obtained more than 40 intellectual property rights. The products are widely used in industrial control, medical, transportation, network security and other industries, fully supporting the application of visual innovation technology and artificial intelligence technology, and have been strongly recognized by the market and users. ELSKY has won many government recognitions and industry awards, and has passed many major global certifications.
ELSKY is a member of Intel China Intelligent Manufacturing Base, a member of Intel Internet of Things Alliance, and has been awarded Intel Titanium Global Strategic Partner in 2022. The company has launched hundreds of industrial motherboards and OPS based on low-power platforms, industrial PC, with comprehensive functions, exquisite processing, stable operation, which are affirmed by the users and sold well in Europe, America, the Middle East, Southeast Asia and hundreds of other countries and regions. In the field of IoT artificial intelligence innovation, we are willing to work with excellent partners all the way to create a win-win situation!
>> Company Advantage
National High-tech Enterprise, National Specialized New Small Giant Enterprise, Guangdong Industrial Visual Control Terminal Engineering Technology Research Center.
Founded in 2009, with 200+ professional employees, focusing on motherboard and OPS, Industrial Computer solutions for more than sixteen years.
Providing OEM / ODM motherboard and computer service
All kinds of intellectual property rights more than 60 pieces.
Core support: Intel Titanium strategic partner, Intel China Intelligent Manufacturing Base members.
Supply chain support: Intel, ON, Realtek, ITE and other domestic and international OEMs and ODMs.
Wide range of applications: covering Display, Education,Retail, Industrial Automation, Network, Medical, Telecommunications, Metallurgy, Transportation, Electric power, Railroads, aviation, Communications, Finance, etc.
Representative Users and projects: Foxconn, TCL, Lenovo, Daxing Airport, Zhejiang University, etc.
>> FAQs
Q: Who are you?
A: We are Shenzhen ELSKY Technology Co., Ltd.
"ELSKY"is our own brand.
We are "Intel Internet of Things(IOT) solutions alliance"member, "Intel Chinese intelligent manufacture base"member, Intel Titanium Partner and Microsoft CLA Partner.
Q: What do you do?
A: We develop, produce, sell motherboard, Mini PC, Industrial Computer, OPS PC and Industrial Tablet PC.
We have many types of motherboards, like ATX, Mini-itx, Nano-itx, 3.5-inch, 4.0-inch, OPS, Firewall, NUC, x86, embedded, industrial motherboards.
Our products mainly use for industrial production, banking, shops, supermarkets, transportation, medical and other industries.
They also apply to ordering machines, cash registers, ATM, digital signage, advertising machines, spot welders, electronic whiteboards, conference equipment, teaching equipment, multimedia players and other equipment.
Q: How many engineers are there in your company?
A: Now we have 50 engineers and technicians.
For the company to develop better, we moved to our own property rights office in Longgang District, Shenzhen, now we have 6000 square meters office space. Every year we continue to increase our staff to meet the needs of the company's development. Welcome to visit our company.
Q: What's your payment ways?
A: We accept T/T, Western Union, Paypal, Alibaba Trade Assurance, Alipay, Wechat Pay, Cash, etc.
