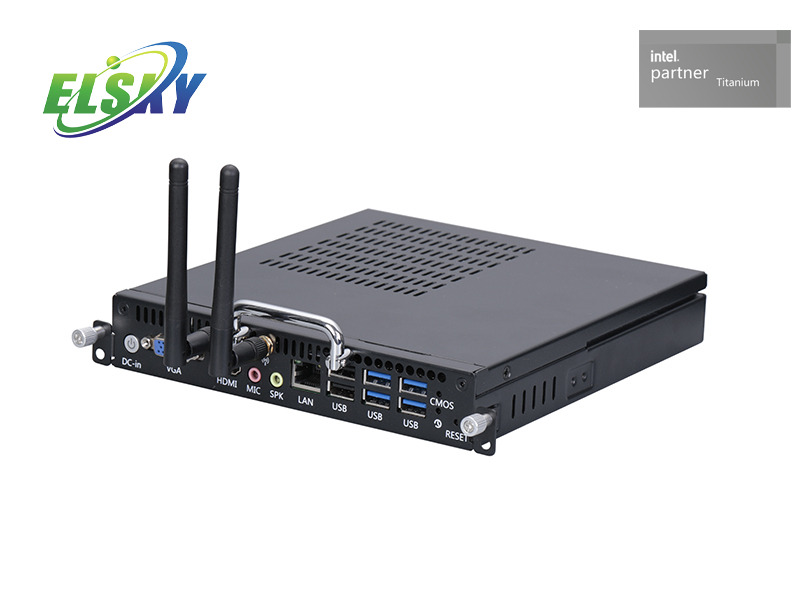

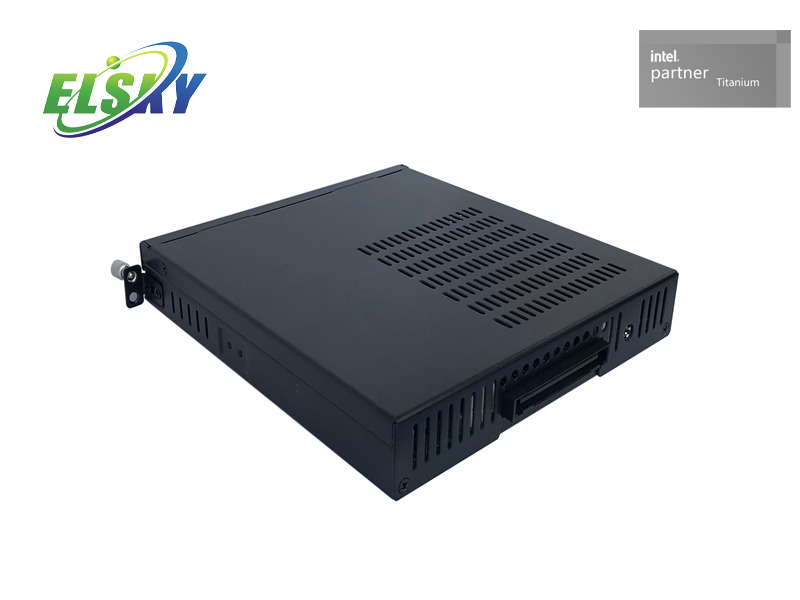

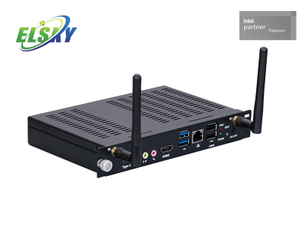

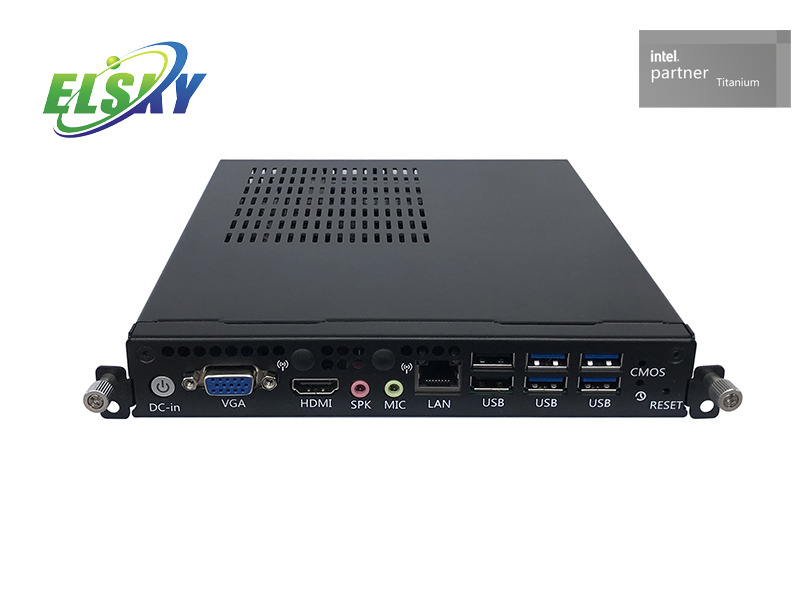

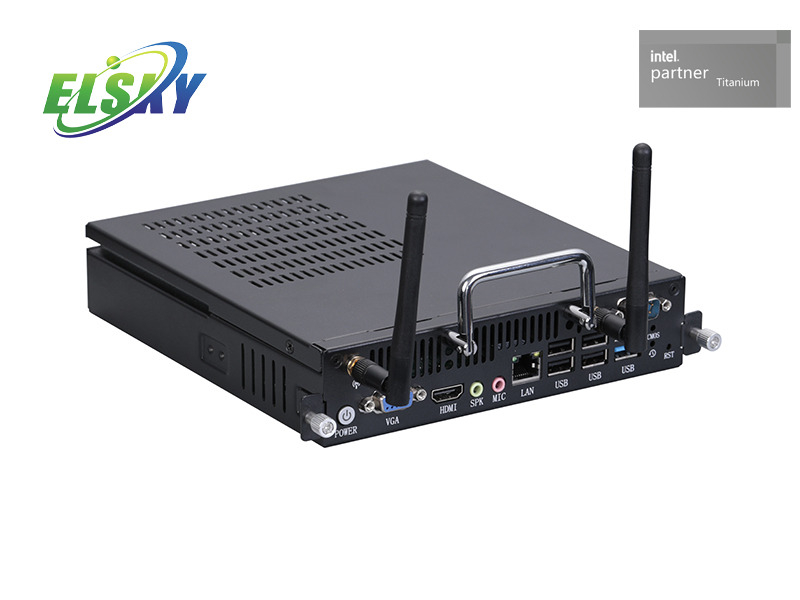

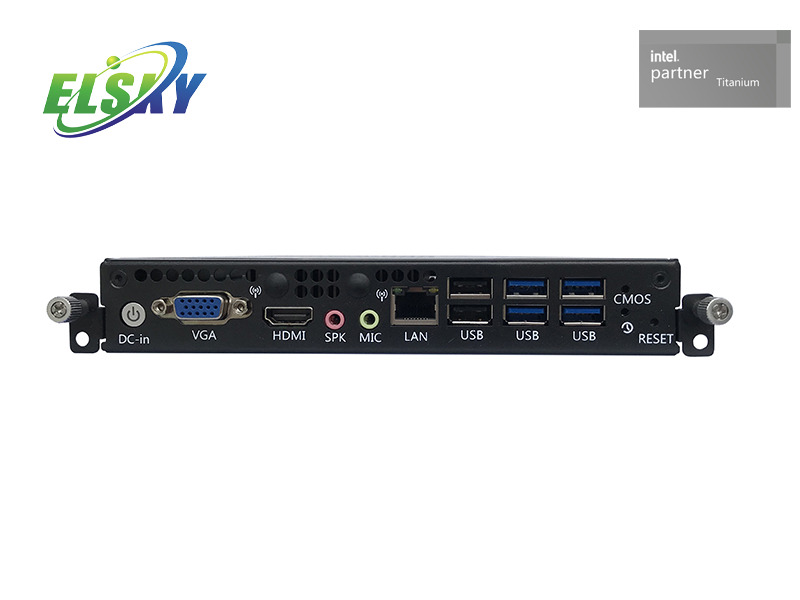

OPS-C PC Series
180*195*30/33MM Ultra-thin Series
Support single and dual LAN ports
4K HD
HDMI/LVDS/VGA/DP Display Interfaces
7*24 hours stable operation
Support daughter card
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
OPS PC Series
180*195*42MM standard series
Supports single and dual LAN ports
4K HD
HDMI/LVDS/VGA/DP Display Interfaces
7*24 hours stable operation
Supports daughter card
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
Application
- Intelligent Education/Conferences
Intel full series OPS
- Intelligent Commercial Display
Advertising machine: OPS PC
PC model | CPU | 4K | LAN | PC COM | Daughter card terminal COM | USB2.0 | USB3.2 | Memory | SSD | Power |
P30N-6U-OPS-12H | Support Intel Alder Lake12th generation U/P/H series i3, i5, i7, i9 | Optional support 4*4K @60Hz | 1 | None | 1*TTL | 3 | 3 | 1*NB-DDR4 MAX 32G | 1*M.2 1*2.5 inch SSD/ mechanical hard drive | +12V/19V |
>> Important Note
Power supply interface:
Mini PC DC interface specification 5.5*2.5;
The Mini PC supports 12V or 19V power supply, and the full load power consumption is about 115W. It is recommended to use a 12V10A or 19V6.3A or above power supply;
Display interface:
1. The Mini PC HDMI interface, VGA/DP interface, daughter card HDMI interface, daughter card DP interface support single display, dual display/triple display/quad display replication, dual display/triple display/quad display expansion;
2. The default VGA interface of the Mini PC can be changed to support the DP interface; the VGA interface of the Mini PC supports 1920X1080@60Hz;
3. PC-side HDMI 2.0, daughter-card HDMI 2.0, PC-side DP, and daughter-card DP all support 4K resolution 4096/3840*2160@60Hz;
SSD:
1. The motherboard NGFF supports Key-M interface M.2 2280 hard drive, optional M.2 2242 hard drive; supports SATA protocol by default, optionally supports NVME (PCIE) protocol, hardware changes are required;
2. The motherboard Mini-PCIE interface defaults to PCIE signal, no USB signal, and supports WIFI by default; it can be changed to coexist with USB signal, and it supports WIFI/3G/4G/Bluetooth module after modification. The PCIE signal cannot be changed to SATA signal; Mini-PCIE's USB Choose one of three signals: USB signal of M.2_WIFI and signal of USB sound card. By default, M.2_WIFI has USB signal, while Mini-PCIE and USB sound card do not have USB signal;
3. The motherboard SATA1 and SATA2 signals are optional. By default, SATA2 has a signal and SATA1 has no signal. SATA2 supports 2.5-inch S SD disk/mechanical hard disk;
USB interface:
1. The Mini PC supports 6*USB by default (3*USB3.2 Gen1, 3*USB2.0);
2. The PC's external blue USB DUAL_USB30_ 2 lower USB interface is USB2.0 signal;
3. The daughter card side supports 3*USB (1*USB3.2 Gen1, 2*USB2.0);
COM port:
The motherboard COM2 and subcard TTL signals. The subcard TTL is supported by default. The motherboard COM2 has no signal. If you use COM2, you need to change the hardware;
Network card:
The motherboard supports Realtek 8111H Gigabit network card, and the POE power supply cannot be changed;
Sound card:
The motherboard sound card supports Realtek ALC 897 by default, and optionally supports BBH621 USB sound card. After changing the USB sound card, the Mini-PCIE interface has no USB signal.
>> CPU information
CPU specifications | CPU brand | CPU model | Core/Thread | Main frequency | Turbo frequency | CPU basic power consumption (W) | Maximum Turbo Power Consumption (W) | |
12th generation H series CPU | 12th generation i5 | core | 12450H | Eight cores and twelve threads | 2.0G | 4.4G | 45 | 95 |
12500H | Twelve cores and sixteen threads | 2.5G | 4.5G | 45 | 95 | |||
12th generation I7 | core | 12800H | Fourteen cores and twenty threads | 2.4G | 4.8G | 45 | 115 | |
12700H | Fourteen cores and twenty threads | 2.7G | 4.7G | 45 | 115 | |||
12650H | Ten cores and sixteen threads | 2.3G | 4.7G | 45 | 115 | |||
12600H | Twelve cores and sixteen threads | 2.7G | 4.5G | 45 | 95 | |||
12th generation I9 | core | 12900H | Fourteen cores and twenty threads | 2.5G | 5.0G | 45 | 115 | |
12th generation P series CPU | 12th generation i3 | core | 1220P | Ten cores and twelve threads | 1.5G | 4.4G | 28 | 64 |
12th generation i5 | core | 1240P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 | |
1250P | Twelve cores and sixteen threads | 1.7G | 4.4G | 28 | 64 | |||
12th generation I7 | core | 1280P | Fourteen cores and twenty threads | 1.8G | 4.8G | 28 | 64 | |
1260P | Twelve cores and sixteen threads | 2.1G | 4.7G | 28 | 64 | |||
1270P | Twelve cores and sixteen threads | 2.2G | 4.8G | 28 | 64 | |||
12th generation U series CPU | 12th generation i3 | core | 1215U | Six cores and eight threads | 1.2G | 4.4G | 15 | 55 |
1210U | Six cores and eight threads | 1.0G | 4.4G | 9 | 29 | |||
12th generation i5 | core | 1235U | Ten cores and twelve threads | 1.3G | 4.4G | 15 | 55 | |
1240U | Ten cores and twelve threads | 1.1G | 4.4G | 9 | 29 | |||
1230U | Ten cores and twelve threads | 1.0G | 4.4G | 9 | 29 | |||
1245U | Ten cores and twelve threads | 1.6G | 4.4G | 15 | 55 | |||
12th generation I7 | core | 1250U | Ten cores and twelve threads | 1.1G | 4.7G | 9 | 29 | |
1260U | Twelve cores and sixteen threads | 1.1G | 4.7G | 9 | 29 | |||
1265U | Ten cores and twelve threads | 1.8G | 4.8G | 15 | 55 | |||
1255U | Ten cores and twelve threads | 1.7G | 4.7G | 15 | 55 |
>> Product Specifications
PC size | 195mm(L)*180mm(W)*30mm(H) | |
Motherboard size | 170mm(L)*190mm(W)*23mm(H) | |
CPU processor | Supports Intel Alder Lake 12th generation U series I3-1215U, I5-1235U, I7-1250U and other CPUs | |
Supports Intel Alder Lake 12th generation P series I3-1200P, I5-1245P, I7-1280P and other CPUs | ||
Supports Intel Alder Lake 12th generation H series I5-12500H, I7-12800H, I9-12900H and other CPUs | ||
Memory support | 1*NB-DDR4 SODIMM memory slot, supports 2133/24 00 /2666/3200 MHz memory, supports up to 32 GB | |
Power supply | 1*DC_IN | Supports 12V/19V voltage, the inner diameter of the DC head is 2.5MM The maximum turbo power consumption is 115W. It is recommended to use a 12V 10 A or 19V 6.3A or above power supply. |
1*4Pin ATX | ||
Display function | Integrated Intel(R) UHD Graphics super core graphics card, supports single display, dual display/triple display/quad display copy, dual display/triple display/quad display expansion, supports dual display under SHELL, does not support DOS | |
1*HDMI 2.0 interface (motherboard side) | Support 4K resolution 4096/3840*2160@60Hz | |
1*VGA DB15 interface (motherboard side) | Support 1920X1080@60Hz | |
1*DP interface (motherboard side) (optional) | Support 4K resolution 4096/3840*2160@60Hz | |
The motherboard VGA interface and DP interface are optional. | ||
1*HDMI 2.0 interface (daughter card side) | Support 4K resolution 4096/3840*2160@60Hz | |
1*DP interface (daughter card side) | Support 4K resolution 4096/3840*2160@60Hz | |
Internet function | 1*LAN -RJ45 interface | Realtek 8111H Gigabit network card supports wake-on-LAN and PXE diskless boot functions |
1*Mini-PCIE interface | Support WIFI/ Bluetooth/ 3G/4G module | |
Hard drive function | 1*NGFF1 (M.2) interface | Supports Key-M interface M.2 2280 hard drive, optional M.2 2242 hard drive; supports SATA protocol by default, optionally supports NVME (PCIE) protocol |
1*SATA1 interface (no signal by default) | Standard SATA3.0 hard disk interface, maximum transmission speed 6.0 Gbps | |
1*SATA2 interface | 2.5-inch hard drive bay, supports 2.5-inch SSD disk/mechanical hard drive | |
Sound function | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller Modifiable hardware supports BBH621 USB sound card | |
1*LIN_OUT interface | Support audio output (green) | |
1*MIC_IN interface | Support microphone input (red) | |
USB function | 3*USB3.2 Gen1 interface | Rear standard USB 3.2 Gen1 interface, maximum transmission bandwidth is 5.0Gbps |
3 *USB2.0 interface | Rear standard USB2.0 interface, maximum transmission bandwidth is 480Mbps (60MB/s) | |
External blue DUAL_USB30_ 2 lower USB interfaces are USB2.0 signals | ||
Switch function | 1*PWR_SW 1 button | switch button |
1*RST_BTN button | Support hardware restart | |
Other I/O | 1*TTL (daughter card side) | By default, the subcard TTL has a signal, and the motherboard COM2 has no signal. Choose one of the COM2 and subcard TTL signals. |
1*SIM_CARD card slot | Supports SIM card, SIM card is required when using 3G/4G | |
1* CLR_GHO_SW button | System hardware one-click restore button and motherboard reset and discharge buttons | |
1* OPS interface | Standard 80Pin OPS interface | |
Operating environment | Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation | |
BIOS | AMI BIOS supports power-on, scheduled boot, and intelligent identification of remote power on and off devices. | |
Watch Dog | Watchdog programming, supports hardware reset function (level 256, 0~255 seconds) | |
Operating system | Support Windows 11, Windows 10, Linux, etc. | |
80Pin OPS interface definition:
| Pins | Signal | Describe | Aisle |
| 1 | DDP_3N | DisplayPort | OUT |
| 2 | DDP_3P | DisplayPort | OUT |
| 3 | GND | Ground | - |
| 4 | DDP_2N | DisplayPort | OUT |
| 5 | DDP_2P | DisplayPort | OUT |
| 6 | GND | Ground | - |
| 7 | DDP_1N | DisplayPort | OUT |
| 8 | DDP_1P | DisplayPort | OUT |
| 9 | GND | Ground | - |
| 10 | DDP_0N | DisplayPort | OUT |
| 11 | DDP_0P | DisplayPort | OUT |
| 12 | GND | Ground | - |
| 13 | DDP_AUXN | DisplayPort | I/O |
| 14 | DDP_AUXP | DisplayPort | I/O |
| 15 | DDP_HPD | DisplayPort | IN |
| 16 | GND | Ground | - |
| 17 | TMDS_CLK- | DVI-D | OUT |
| 18 | TMDS_CLK+ | DVI-D | OUT |
| 19 | GND | Ground | - |
| 20 | TMDS0- | DVI-D | OUT |
| 21 | TMDS0+ | DVI-D | OUT |
| 22 | GND | Ground | - |
| 23 | TMDS1- | DVI-D | OUT |
| 24 | TMDS1+ | DVI-D | OUT |
| 25 | GND | Ground | - |
| 26 | TMDS2- | DVI-D | OUT |
| 27 | TMDS2+ | DVI-D | OUT |
| 28 | GND | Ground | - |
| 29 | DVI_DDC_DATA | DVI-D | I/O |
| 30 | DVI_DDC_CLK | DVI-D | I/O |
| 31 | DVI_HPD | DVI-D | IN |
| 32 | GND | Ground | - |
| 33 | +12V~+19V | Power | - |
| 34 | +12V~+19V | Power | - |
| 35 | +12V~+19V | Power | - |
| 36 | +12V~+19V | Power | - |
| 37 | +12V~+19V | Power | - |
| 38 | +12V~+19V | Power | - |
| 39 | +12V~+19V | Power | - |
| 40 | +12V~+19V | Power | - |
| 41 | RSVD | Reserved pins | - |
| 42 | RSVD | Reserved pins | - |
| 43 | RSVD | Reserved pins | - |
| 44 | RSVD | Reserved pins | - |
| 45 | RSVD | Reserved pins | - |
| 46 | GHOST | GHOST_OPS | - |
| 47 | RSVD | Reserved pins | - |
| 48 | RSVD | Reserved pins | - |
| 49 | SYSRST | SYS_RESET | - |
| 50 | SYS_FAN | System Fan Control | OUT |
| 51 | UART_RXD | UART 3.3V | IN |
| 52 | UART_TXD | UART 3.3V | OUT |
| 53 | GND | Ground | - |
| 54 | StdA_SSRX- | USB3.0 | IN |
| 55 | StdA_SSRX+ | USB3.0 | IN |
| 56 | GND | Ground | - |
| 57 | StdA_SSTX- | USB3.0 | OUT |
| 58 | StdA_SSTX+ | USB3.0 | OUT |
| 59 | GND | Ground | - |
| 60 | USB_PN2 | USB | I/O |
| 61 | USB_PP2 | USB | I/O |
| 62 | GND | Ground | - |
| 63 | USB_PN1 | USB | I/O |
| 64 | USB_PP1 | USB | I/O |
| 65 | GND | Ground | - |
| 66 | USB_PN0 | USB | I/O |
| 67 | USB_PP0 | USB | I/O |
| 68 | GND | Ground | - |
| 69 | AZ_LINEOUT_L | Audio-Lch | OUT |
| 70 | AZ_LINEOUT_R | Audio-Rch | OUT |
| 71 | CEC | Consumer Electronic Control | I/O |
| 72 | PB_DET | Pluggable Board Detect | OUT |
| 73 | PS_ON# | Pluggable Signal ON | IN |
| 74 | PWR_STATUS | PowerGood | OUT |
| (OC) | |||
| 75 | GND | Ground | - |
| 76 | GND | Ground | - |
| 77 | GND | Ground | - |
| 78 | GND | Ground | - |
| 79 | GND | Ground | - |
| 80 | GND | Ground | - |
1. The I/O column definition is in reference to the pluggable board.
2. OC=Open Collector.
3. For USB3.0 implementation, pins #60 and #61 shall be used to complement the Super Speed USB signals.
>> The Characteristics of the OPS PC
The OPS PC supports 4K Extreme HD, Multi-Generation, Multi-Configuration, options with Daughter Card, optional Discrete Graphics Card.
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9.
European standard OPS PC: 180*120*30MM
Standard OPS PC: 180*195*30/33/42MM
OPS PC Series
Size: 180*195*30/33MM Ultra-thin Series
Size: 180*195*42MM standard series
Supports single and dual LAN ports
4K HD
HDMI/LVDS/VGA/DP Display Interfaces
7*24 hours stable operation
Supports daughter card
Supports 6th-14th Gen CPUs: Intel CORE i3, i5, i7, i9
Small Size OPS PC Series
Size: 180*120*30MM European Standard Series
Support single and dual LAN ports
4K HD
HDMI/LVDS/VGA/DP Display Interfaces
7*24 hours stable operation
Supports daughter card
Supports 6th-14th Gen CPUs Intel CORE i3, i5, i7, i9
OPS PC Discrete Graphics Series
OPS-MX5100, OPS-MX6900H, OPS-MX8900, OPS-MX8900
Size: 180*195*30/42MM
H310/H510/H610 chipsets
Supports Discrete graphics card
4K HD
Supports 6th-14th Gen Desktop CPUs: Intel CORE i3, i5, i7, i9
>> The Applications of the OPS PC
ELSKY products help thousands of businesses, widely used in Intelligent city, Intelligent financial, Intelligent retails, Intelligent transportation, Intelligent Medical Care, Intelligent Network Security, Intelligent Commercial Display, Intelligent Education and Conferences, Self-service Cash Registers, Industrial Automation, Industrial control, AI Computing Terminal, AI Robots, 5G IoT, ect.
>> Company Profile
Founded in 2009, ELSKY is a national high-tech enterprise focusing on independent research and development of industrial control motherboards and computers. With more than 16 years of deep development of control terminal industry technology, ELSKY has been at the forefront of industrial control terminal design and development, committed to promoting the automation, intelligence and informationization of high-end manufacturing equipment industry, and providing partners with complete industrial control terminal solutions.
ELSKY has obtained more than 40 intellectual property rights. The products are widely used in industrial control, medical, transportation, network security and other industries, fully supporting the application of visual innovation technology and artificial intelligence technology, and have been strongly recognized by the market and users. ELSKY has won many government recognitions and industry awards, and has passed many major global certifications.
ELSKY is a member of Intel China Intelligent Manufacturing Base, a member of Intel Internet of Things Alliance, and has been awarded Intel Titanium Global Strategic Partner in 2022. The company has launched hundreds of industrial motherboards and OPS based on low-power platforms, industrial PC, with comprehensive functions, exquisite processing, stable operation, which are affirmed by the users and sold well in Europe, America, the Middle East, Southeast Asia and hundreds of other countries and regions. In the field of IoT artificial intelligence innovation, we are willing to work with excellent partners all the way to create a win-win situation!
>> Company Advantage
National High-tech Enterprise, National Specialized New Small Giant Enterprise, Guangdong Industrial Visual Control Terminal Engineering Technology Research Center.
Founded in 2009, with 200+ professional employees, focusing on motherboard and OPS, Industrial Computer solutions for more than sixteen years.
Providing OEM / ODM motherboard and computer service
All kinds of intellectual property rights more than 60 pieces.
Core support: Intel Titanium strategic partner, Intel China Intelligent Manufacturing Base members.
Supply chain support: Intel, ON, Realtek, ITE and other domestic and international OEMs and ODMs.
Wide range of applications: covering Display, Education,Retail, Industrial Automation, Network, Medical, Telecommunications, Metallurgy, Transportation, Electric power, Railroads, aviation, Communications, Finance, etc.
Representative Users and projects: Foxconn, TCL, Lenovo, Daxing Airport, Zhejiang University, etc.
>> FAQs
Q: Who are you?
A: We are Shenzhen ELSKY Technology Co., Ltd.
"ELSKY"is our own brand.
We are "Intel Internet of Things(IOT) solutions alliance"member, "Intel Chinese intelligent manufacture base"member, Intel Titanium Partner and Microsoft CLA Partner.
Q: What do you do?
A: We develop, produce, sell motherboard, Mini PC, Industrial Computer, OPS PC and Industrial Tablet PC.
We have many types of motherboards, like ATX, Mini-itx, Nano-itx, 3.5-inch, 4.0-inch, OPS, Firewall, NUC, x86, embedded, industrial motherboards.
Our products mainly use for industrial production, banking, shops, supermarkets, transportation, medical and other industries.
They also apply to ordering machines, cash registers, ATM, digital signage, advertising machines, spot welders, electronic whiteboards, conference equipment, teaching equipment, multimedia players and other equipment.
Q: How many engineers are there in your company?
A: Now we have 50 engineers and technicians.
For the company to develop better, we moved to our own property rights office in Longgang District, Shenzhen, now we have 6000 square meters office space. Every year we continue to increase our staff to meet the needs of the company's development. Welcome to visit our company.
Q: What's your payment ways?
A: We accept T/T, Western Union, Paypal, Alibaba Trade Assurance, Alipay, Wechat Pay, Cash, etc.
