Smart computer for Edge Computing in IIoT

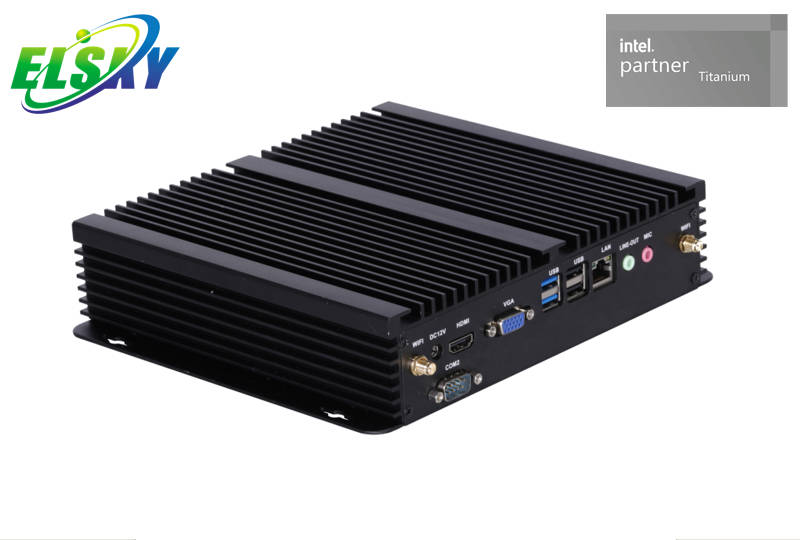

The ELSKY IPC6001 series is a high-performance, compact Industrial PC designed for demanding applications in automation, edge computing, smart factories, and IoT. Built with rugged durability and flexible connectivity, it supports a wide range of Intel processors (from Celeron to Core i7/i9) across multiple generations (6th to 13th Gen), ensuring scalability for diverse industrial needs.

ELSKY IPC6001 MINI PC specification.doc

Note: Specifications subject to change. Contact ELSKY for more detailed solutions.

Features

• Robust Hardware Design

• Compact Size: 234mm (L) × 200mm (W) × 52mm (H), optimized for space-constrained environments.

• Durable Construction: Black metal casing with cooling holes, supporting fanless or silent fan operation (-10°C to 60°C).

• Modular Expansion: Optional dual LAN, multiple display outputs (VGA/HDMI/DP), and optional I/O (RS232/485, LPT).

• High-Performance Computing

• CPU Options:

• 6th–13th Gen Intel CPUs: Supports Celeron, Pentium, Core i3/i5/i7, and i9 (up to 14 cores, turbo boost to 5.4GHz).

• Low-Power Variants: U-series (15W TDP) for energy efficiency; H-series (45W) for high performance.

• Memory: Up to 64GB DDR4 (dual-channel, 3200MHz).

• Storage: Dual storage support (1× M.2 NVMe + 1× 2.5" SSD/HDD; optional MSATA).

•  Rich Connectivity

• Display:

• 4K Output: HDMI 2.0 (4K@30Hz), DP 1.4 (4K@60Hz), and VGA (2K@60Hz).

• Multi-Monitor: Supports extended/duplicated displays.

• Networking:

• Dual Gigabit LAN (Intel I219V + Realtek 8111H) with PXE/WoL.

• Optional Wi-Fi 6/4G/Bluetooth (M.2 slots + external antennas).

• USB/Serial:

• 2× USB 3.2 Gen1 (5Gbps) + 6× USB 2.0; 2× RS232/485 COM ports.

• Industrial Reliability

• Extended Temperature Range: Operates at -10°C to 60°C (storage: -20°C to 70°C).

• Watchdog Timer: Hardware reset (0–255 seconds) for uninterrupted operation.

• Power Options: 12V/19V DC input (2.5mm jack, 12V5A/19V3A recommended).


Certification

FCC Certificate( IPC, OPS).pdf

CE Certificate( IPC, OPS).pdf

Microsoft CLA Partner - WINDOWS IOT System.jpg

2025 Intel Titanium Partner.jpg

Certified HDMI Adopter License.jpg

Applications

Factory Automation	PLC control, HMI, robotic arm integration.
Edge Computing	Real-time data processing for IIoT, predictive maintenance.
Smart Cities	Traffic monitoring, 5G-enabled surveillance, green energy management.
Medical	Diagnostic equipment, patient monitoring (medical-grade certification).
Oil & Gas	Ruggedized for harsh environments (IP65 optional).

Datasheet

The following is a partial list of compatible CPU datasheets. For complete compatibility information, please refer to the product specification sheet (available for download in the Product Overview section).

HDMI

VGA/DP

LAN

USB2.0

USB3.2

COM

LPT

SSD

Memory

Power

4K 60Hz

VGA 2K 60Hz optional DP 4K 60Hz

1

6

2

2

0

1*M.2 1*2.5inch SSD/HDD

2*NB-DDR4 MAX 64G

12V/19V

2

4

2

2

Model

IPC6001-2C-12th /13th gen series

Size

234mm（L）*200mm（W）*52mm（H）

Cooling System

With heat dissipation holes, silent fan heat dissipation

Color

Black

Motherboard model

QM12U、QM13U、QM12P、QM13P、QM12H、QM13H

Power

1*DC_IN

The inner diameter of DC head is 2.5mm, supporting 12V/19V, and the U/P series is recommended to use power supply above 12V7A or 19V5A; The H series recommends a power supply of 12V10A or 19V6.3A or more

12th /13th gen  CPU

Support Intel Alder Lake12 gen U、P、H series i3、i5、i7、i9 Support Intel Raptor Lake 13gen U、P、H series i3、i5、i7、i9

Memory

2*NB-DDR4 memory, support 1.2V, support 2133/2400/2666/3200MHz memory, maximum support 64G.

Network

1*RJ45 LAN port （2*LAN optional）

Single network Intel I219V Gigabit network card; dual network Intel I219V + Realtek 8111H gigabit network card.Supports network power on/off, network PXE function

Support M.2 WIFI/Bluetooth optional,support M.2-5G,M.2-4G optional support 2*WIFI antenna poles

Dispaly function

Intel UHD /Iris Xe Graphics Controller, supports single display, dual display copy, dual display expansion

1*VGA DB15 port

Supported resolution 1920*1080@60Hz

1*DP port（optional）

Supported 4K resolution 4096/3840*2160@60Hz

Choose between VGA and DP

1*HDMI 2.0 port

Supported 4K resolution 4096/3840*2160@30Hz

USB function

2*USB3.2 port

The blue USB group is USB3.2 Gen1

6*USB2.0 port

The black USB group is USB2.0

Dual network host supports 4*USB2.0 interfaces

Sound function

Integrated Realtek ALC 662/897 HD digital audio decoder, 6-channel high-fidelity audio controller or integrated Cmedia HS_100B USB audio chip;

1*SPK port

Support audio output

1*MIC port

Support microphone input

HDMI interface supports HDMI audio output

SSD

1*M.2； （1*MSATA optional） 1*2.5 inch SSDor HDD

Switch function

POWER button

Switch button

Other I/O

2*COM port

Support RS232 (can be made to support RS485)

Operating Environment

Working temperature: -10℃~60℃; Working humidity: 5%~95% relative humidity, no condensation Storage temperature: -20℃~70℃;

BIOS

AMI BIOS, supports power-on, scheduled startup, remote power on and off, etc.

Watch Dog

Watchdog programming, support hardware reset function (256 levels, 0~255 seconds)

OS

Windows 11、Windows 10、Linux etc.

Optional Accessories

Power adapter	12V: 5A/ 7A/ 10A
	19V: 6.3A/ 9.5A/ 11.58A/ 12A/ 18.94A
	24V: 3.8A/ 6.3A
Power Cord Type	US/ UK/ EU/ Kr
RAM	NB_DDR3: 4G/ 8G
	NB_DDR4: 4G/ 8G/ 16/ 32G
Hard Disk (M.2/MSATA/2.5'' SSD/2.5'' HDD)	64G/ 120G/ 128G/ 240G/ 256G/ 480G/ 500G/ 512G/ 960G/ 1TB/ 2TB/ 4TB
WiFi	2.4GHz, 2.4GHz/5GHz, 6GHz

FAQ

What warranty is provided?

This product comes with a one-year warranty

Why Choose ELSKY IPC6001?

• Adaptation: Tailored configurations (e.g., RS485, additional LAN, TPM).

• Longevity: 5+ years product lifecycle with Intel’s embedded CPU roadmap.

• Global Certifications: CE, FCC, RoHS; UL certification optional.

Which Intel CPU generations are supported by the IPC6001 series?
The IPC6001 supports 6th to 13th Gen Intel CPUs, including:

• Low-power options: Celeron J6412, Core i5-1135G7, etc.

• High-performance: Core i7-13700H , i9-13900H, etc .

What are the dimensions of the IPC6001?
The host measures 234mm × 200mm × 52mm (L×W×H)
